1 General

This document contains proprietary information of VIPA and is not to

be disclosed or used except in accordance with applicable agree-

ments.

This material is protected by the copyright laws. It may not be repro-

duced, distributed, or altered in any fashion by any entity (either

internal or external to VIPA), except in accordance with applicable

agreements, contracts or licensing, without the express written con-

sent of VIPA and the business management owner of the material.

For permission to reproduce or distribute, please contact: VIPA,

Gesellschaft für Visualisierung und Prozessautomatisierung mbH

Ohmstraße 4, D-91074 Herzogenaurach, Germany

Tel.: +49 9132 744 -0

Fax.: +49 9132 744-1864

EMail: [email protected]

http://www.vipa.com

Every effort has been made to ensure that the information

contained in this document was complete and accurate at

the time of publishing. Nevertheless, the authors retain the

right to modify the information.

This customer document describes all the hardware units

and functions known at the present time. Descriptions may

be included for units which are not present at the customer

site. The exact scope of delivery is described in the

respective purchase contract.

Hereby, VIPA GmbH declares that the products and systems are in

compliance with the essential requirements and other relevant provi-

sions. Conformity is indicated by the CE marking affixed to the

product.

For more information regarding CE marking and Declaration of Con-

formity (DoC), please contact your local VIPA customer service

organization.

CE Conformity Declara-

tion

Conformity Information

VIPA System SLIO IM 053DNGeneral

HB300 | IM | 053-1DN00 | GB | 15-33 4

VIPA, SLIO, System 100V, System 200V, System 300V, System

300S, System 400V, System 500S and Commander Compact are

registered trademarks of VIPA Gesellschaft für Visualisierung und

Prozessautomatisierung mbH.

SPEED7 is a registered trademark of profichip GmbH.

SIMATIC, STEP, SINEC, TIA Portal, S7-300 and S7-400 are regis-

tered trademarks of Siemens AG.

Microsoft and Windows are registered trademarks of Microsoft Inc.,

USA.

Portable Document Format (PDF) and Postscript are registered trade-

marks of Adobe Systems, Inc.

All other trademarks, logos and service or product marks specified

herein are owned by their respective companies.

Contact your local VIPA Customer Service Organization representa-

tive if you wish to report errors or questions regarding the contents of

this document. If you are unable to locate a customer service centre,

contact VIPA as follows:

VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany

Telefax: +49 9132 744-1204

EMail: [email protected]

Contact your local VIPA Customer Service Organization representa-

tive if you encounter problems with the product or have questions

regarding the product. If you are unable to locate a customer service

centre, contact VIPA as follows:

VIPA GmbH, Ohmstraße 4, 91074 Herzogenaurach, Germany

Tel.: +49 9132 744-1150 (Hotline)

EMail: [email protected]

1.2 About this manual

This manual describes the IM 053-1DN00 of the System SLIO from

VIPA. It contains a description of the structure, project engineering

and deployment.

Product Order number as of state:

HW FW

IM 053DN 053-1DN00 01 V1.2.5

The manual is targeted at users who have a background in automa-

tion technology.

The manual consists of chapters. Every chapter provides a self-con-

tained description of a specific topic.

Trademarks

Information product

support

Technical support

Objective and contents

Target audience

Structure of the manual

VIPA System SLIO IM 053DN General

About this manual

HB300 | IM | 053-1DN00 | GB | 15-33 5

The following guides are available in the manual:

nAn overall table of contents at the beginning of the manual

nReferences with page numbers

The manual is available in:

nprinted form, on paper

nin electronic form as PDF-file (Adobe Acrobat Reader)

Important passages in the text are highlighted by following icons and

headings:

DANGER!

Immediate or likely danger. Personal injury is possible.

CAUTION!

Damages to property is likely if these warnings are not

heeded.

Supplementary information and useful tips.

1.3 Safety information

The System SLIO is constructed and produced for:

ncommunication and process control

ngeneral control and automation applications

nindustrial applications

noperation within the environmental conditions specified in the

technical data

ninstallation into a cubicle

DANGER!

This device is not certified for applications in

–in explosive environments (EX-zone)

The manual must be available to all personnel in the

nproject design department

ninstallation department

ncommissioning

noperation

Guide to the document

Availability

Icons Headings

Applications con-

forming with specifica-

tions

Documentation

VIPA System SLIO IM 053DNGeneral

Safety information

HB300 | IM | 053-1DN00 | GB | 15-33 6

CAUTION!

The following conditions must be met before using or

commissioning the components described in this

manual:

– Hardware modifications to the process control system

should only be carried out when the system has been

disconnected from power!

–Installation and hardware modifications only by prop-

erly trained personnel.

– The national rules and regulations of the respective

country must be satisfied (installation, safety, EMC ...)

National rules and regulations apply to the disposal of the unit!Disposal

VIPA System SLIO IM 053DN General

Safety information

HB300 | IM | 053-1DN00 | GB | 15-33 7

2 Basics and Assembly

2.1 Safety information for users

VIPA modules make use of highly integrated components in MOS-

Technology. These components are extremely sensitive to over-vol-

tages that can occur during electrostatic discharges. The following

symbol is attached to modules that can be destroyed by electrostatic

discharges.

The Symbol is located on the module, the module rack or on packing

material and it indicates the presence of electrostatic sensitive equip-

ment. It is possible that electrostatic sensitive equipment is destroyed

by energies and voltages that are far less than the human threshold

of perception. These voltages can occur where persons do not dis-

charge themselves before handling electrostatic sensitive modules

and they can damage components thereby, causing the module to

become inoperable or unusable. Modules that have been damaged

by electrostatic discharges can fail after a temperature change,

mechanical shock or changes in the electrical load. Only the conse-

quent implementation of protection devices and meticulous attention

to the applicable rules and regulations for handling the respective

equipment can prevent failures of electrostatic sensitive modules.

Modules must be shipped in the original packing material.

When you are conducting measurements on electrostatic sensitive

modules you should take the following precautions:

nFloating instruments must be discharged before use.

nInstruments must be grounded.

Modifying electrostatic sensitive modules you should only use sol-

dering irons with grounded tips.

CAUTION!

Personnel and instruments should be grounded when

working on electrostatic sensitive modules.

Handling of electro-

static sensitive modules

Shipping of modules

Measurements and

alterations on electro-

static sensitive modules

VIPA System SLIO IM 053DNBasics and Assembly

Safety information for users

HB300 | IM | 053-1DN00 | GB | 15-33 8

2.2 System conception

System SLIO is a modular automation system for assembly on a

35mm mounting rail. By means of the peripheral modules with 2, 4 or

8 channels this system may properly be adapted matching to your

automation tasks. The wiring complexity is low, because the supply of

the DC 24V power section is integrated to the backplane bus and

defective modules may be replaced with standing wiring. By deploy-

ment of the power modules in contrasting colours within the system,

further isolated areas may be defined for the DC 24V power section

supply, respectively the electronic power supply may be extended

with 2A.

nCPU (head module)

nBus coupler (head module)

nPeriphery modules

nPower modules

nAccessories

CAUTION!

Only modules of VIPA may be combined. A mixed opera-

tion with third-party modules is not allowed!

Overview

Components

VIPA System SLIO IM 053DN Basics and Assembly

System conception

HB300 | IM | 053-1DN00 | GB | 15-33 9

With a CPU, CPU electronic and power module are integrated to one

casing. As head module via the integrated power module for power

supply the CPU electronic is supplied as well as the electronic of the

connected periphery modules. The DC 24 power section supply for

the linked periphery modules is established via a further connection at

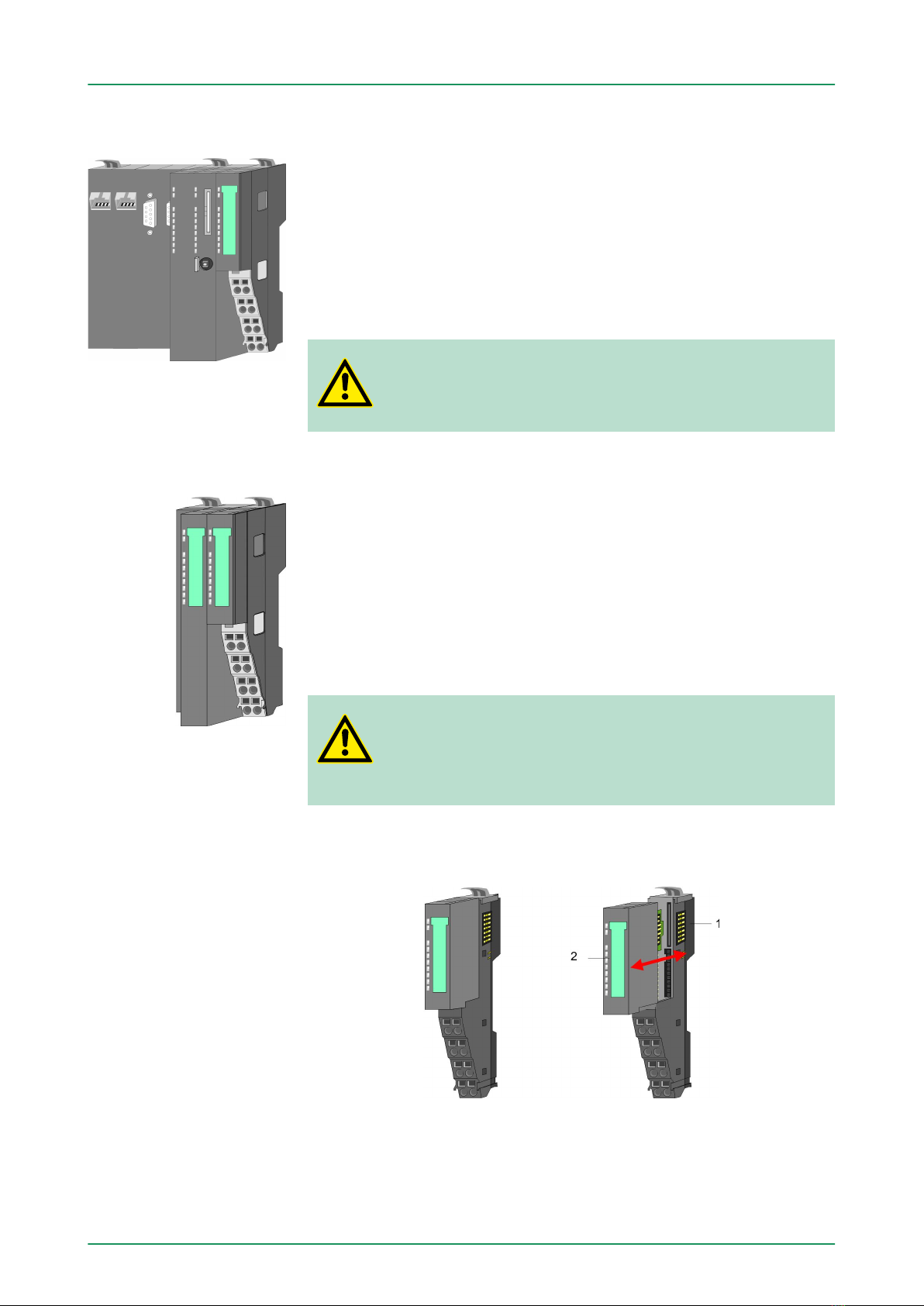

the power module. By installing of up to 64 periphery modules at the

CPU, these are electrically connected, this means these are assigned

to the backplane bus, the electronic modules are power supplied and

each periphery module is connected to the DC 24V power section

supply.

CAUTION!

CPU part and power module of a CPU may not be sepa-

rated! Here you may only exchange the electronic module!

With a bus coupler bus interface and power module are integrated to

one casing. With the bus interface you get access to a subordinated

bus system. As head module via the integrated power module for

power supply the bus interface is supplied as well as the electronic of

the connected periphery modules. The DC 24 power section supply

for the linked periphery modules is established via a further connec-

tion at the power module. By installing of up to 64 periphery modules

at the bus coupler, these are electrically connected, this means these

are assigned to the backplane bus, the electronic modules are power

supplied and each periphery module is connected to the DC 24V

power section supply.

CAUTION!

Bus interface and power module of the bus coupler may

not be separated! Here you may only exchange the elec-

tronic module!

Each periphery module consists of a terminal and an electronic

module.

1 Terminal module

2 Electronic module

CPU

Bus coupler

Periphery modules

VIPA System SLIO IM 053DNBasics and Assembly

System conception

HB300 | IM | 053-1DN00 | GB | 15-33 10

Table des matières

Autres manuels VIPA Unité de contrôle

VIPA

VIPA CPU 21 Series Manuel utilisateur

VIPA

VIPA System 200V PS Manuel utilisateur

VIPA

VIPA System 300S Manuel utilisateur

VIPA

VIPA SSM-BG41 Manuel utilisateur

VIPA

VIPA SLIO System FM 050-1BA10 Manuel utilisateur

VIPA

VIPA 053-1EC00 Manuel utilisateur

VIPA

VIPA IM 306-1LZ00 Manuel utilisateur

VIPA

VIPA SLIO IM 053-1DN00 Manuel utilisateur

VIPA

VIPA 134-4EE00 Manuel utilisateur

VIPA

VIPA CP143plus Manuel utilisateur

VIPA

VIPA System 300S Manuel utilisateur

VIPA

VIPA SLIO FM 050-1BB00 Manuel utilisateur

VIPA

VIPA System 300S Manuel utilisateur

VIPA

VIPA IM Series Manuel utilisateur

VIPA

VIPA System 200V Series Manuel utilisateur

VIPA

VIPA TM-E 900-1E630 Manuel utilisateur

VIPA

VIPA System 200V Series Manuel utilisateur

VIPA

VIPA SLIO FM 050-1BB30 Manuel utilisateur

VIPA

VIPA System 300S Manuel utilisateur

VIPA

VIPA TM-E 900-1E640 Manuel utilisateur

VIPA

VIPA System 300S IM 353-1DP01 Manuel utilisateur

VIPA

VIPA 900-2H611 Manuel utilisateur

VIPA

VIPA System 200V Series Manuel utilisateur

VIPA

VIPA TM-E 900-1E660 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
