Viking Designer DFWB300 Manuel utilisateur

5/16”

(0.8 cm)

1/4”

(0.6 cm)

11/32”

(0.9 cm)

3/4”

(1.9 cm)

3”

(7.6 cm)

1-15/16”

(3.3 cm)

1-3/8”

(3.5 cm)

3”

(7.6 cm)

1-5/16”

(3.3 cm)

1-3/8”

(3.5 cm)

5/16”

(0.8 cm)

3/4”

(1.9 cm)

11/32”

(0.9 cm)

1/4”

(0.6 cm)

19/32”

(1.5 cm)

15/32”

(1.2 cm)

3”

(7.6 cm)

28-5/8”

(72.7cm)

R1/4”

(0.6cm)

39-5/16”

(99.8cm)

69-1/2”

(176.5cm)

3”

(7.6cm)

CUSTOM PANEL–REFRIGERATION

Built-In 30”W. Full Hei ht Wine Cellar—DFWB300

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E L E A S E D 9 / 9 / 8

Dimensions & Specifications

DFWB300

Overall panel width 28-5/8” (72.7 cm)

Overall panel height 69-1/2” (176.5 cm)

Overall panel depth 1-11/32” (3.4 cm)

Maximum panel weight 50 lbs. (22.7 k )

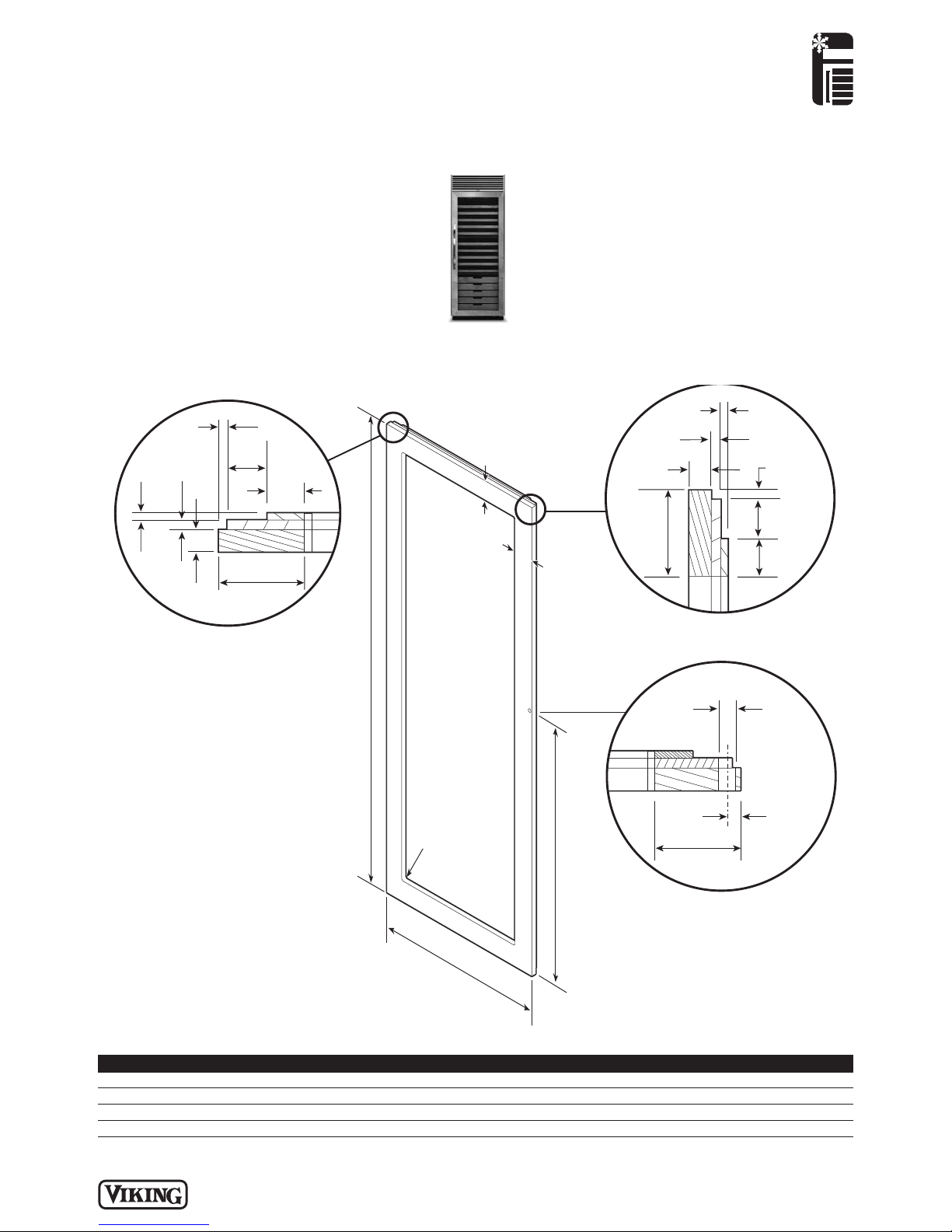

CUSTOM PANEL DIMENSIONS

DFWB300

TOP VIEW

SIDE VIEW

LOCK LOCATION

Note: Adding a 3/4” (1.9 cm) side panel adds an additional 3/4” (1.9 cm) to the ove all width of the p oduct fo each side panel.

Requi es side panel ha dwa e kit (Kit model numbe – SPHKDS)

CUSTOM PANEL–REFRIGERATION

Built-In 30”W. Full Hei ht Wine Cellar—DFWB300

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E L E A S E D 9 / 9 / 8

3/4”

(1.9 cm)

End panel

1”

(2.5 cm) 1/4”

(0.6 cm)

Z-Bracket

21-3/4”

(55.2 cm)

21-3/4”

(55.2 cm)

24”

(61.0 cm)

Optional kickplate

Notch, dimensions

determined by cabinets

24”

(61.0 cm)

82-7/8”

(210.5cm) min.

84-1/16”

(213.5cm) max.*

82-7/8”

(210.5cm)min.

84-1/16”

(213.5cm)max.*

Dimensions & Specifications

DFWB300

Overall panel width 3/4” (1.9 cm)

Overall panel height 82-7/8” (210.5 cm) min. to 84-1/16” (213.5 cm) max.*

Overall panel depth 24” (61.0 cm)

*Depending on how high leveling feet are raised and cabinet enclosure height.

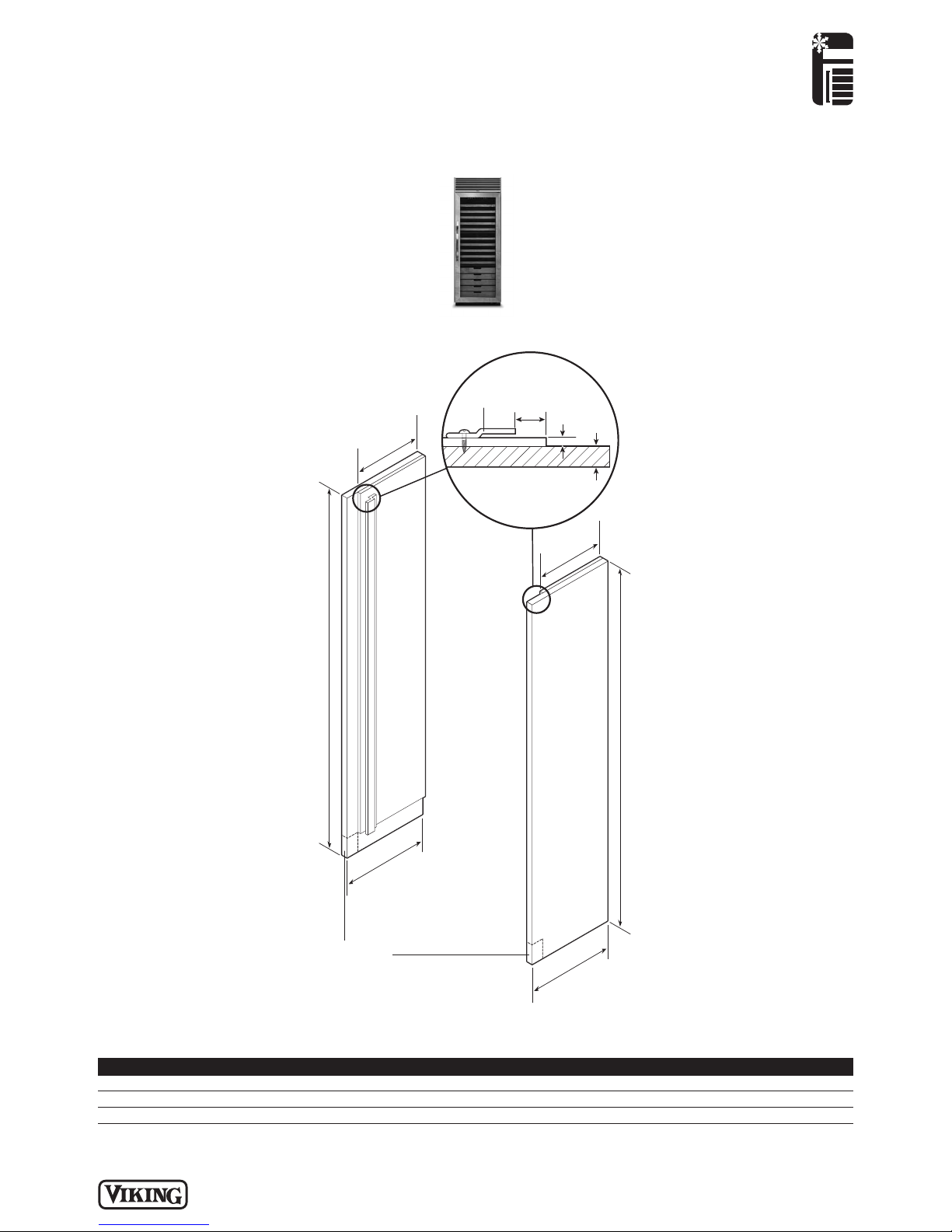

CUSTOM SIDE PANEL DIMENSIONS

DFWB300

TOP VIEW

23-7/8”

(60.6 cm)

(4X) 3/32”(0.1 cm)dia.

1/2”(1.27 cm) deep

1-15/16”

(4.9 cm)

1-7/16”

(3.7 cm)

6-11/16”

(17.0 cm)

Back of

facing

23-7/8”

(60.6 cm)

(4X) 3/32”(0.1 cm) dia.

1/2”(1.27 cm) deep

1-15/16”

(4.9cm)

3-5/16”

(8.4cm)

(2X) R1/2”

(1.3 cm)

6-11/16”

(17.0 cm)

Back of

facing

(2X) 45°x 1/8”

(0.3 cm)

(3X) R1/8”

(0.3 cm)

1-7/16”

(3.7 cm)

1/4”

(0.6 cm)

1/8”

(0.3 cm)

1/8”

(0.3 cm)

1/32”

(0.03 cm)

31/32”

(2.5 cm)

1/8”

(0.3 cm)

1/32”

(0.03 cm)

31/32”

(2.5 cm)

1/4”

(0.6 cm)

1/8”

(0.3 cm)

3-15/16”

(10.0 cm)

11/16”

(1.7 cm)

(2X) 45°x 1/8”

(0.3 cm)

DFWB300

CUSTOM PANEL–REFRIGERATION

Built-In 30”W. Full Hei ht Wine Cellar—DFWB300

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

R E L E A S E D 9 / 9 / 8

Dimensions & Specifications

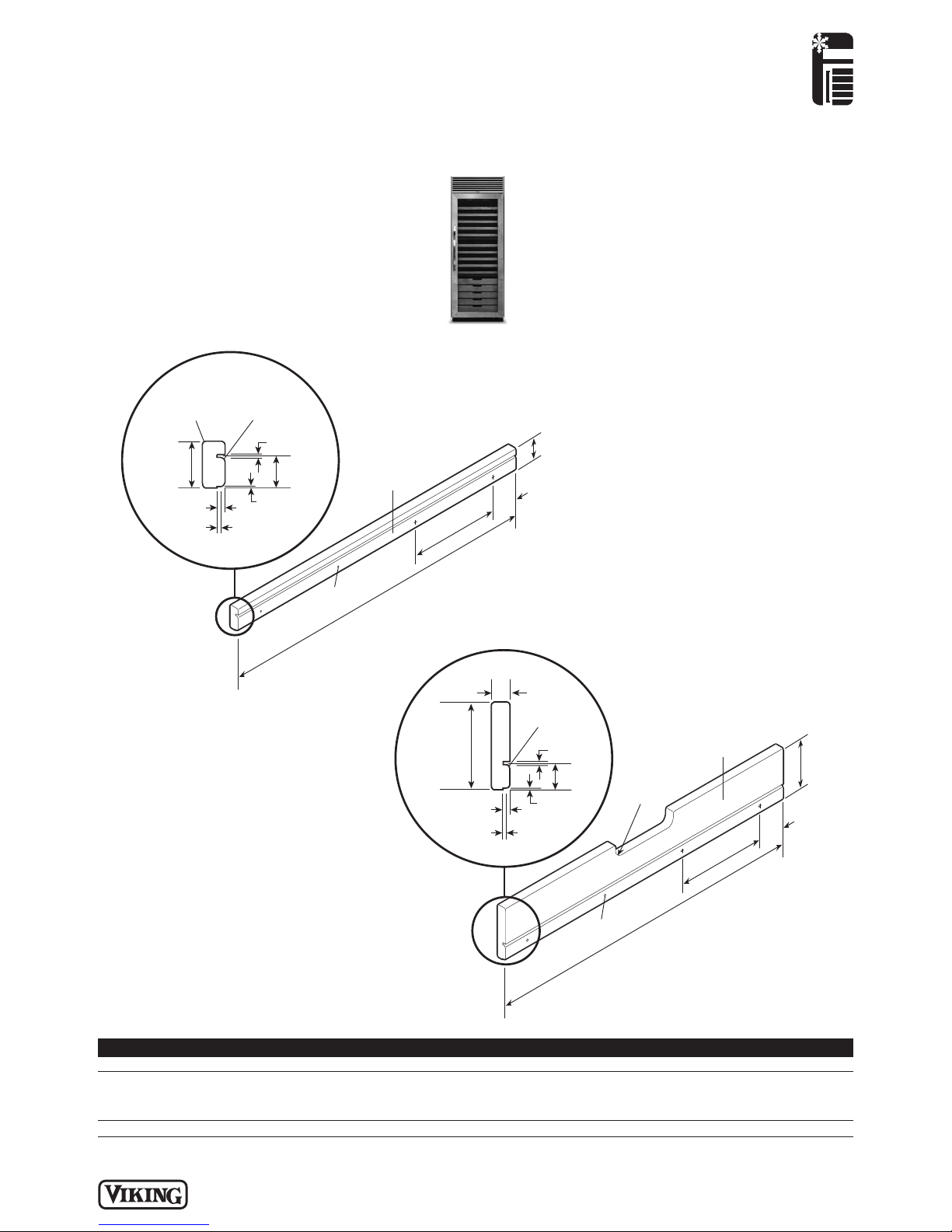

CUSTOM SHELF FACING DIMENSIONS

SHORT FACING

(TWO TOP ZONES)

TALL FACING

(LOWER ZONES)

DFWB300

Overall shelf facing width 23-7/8” (60.6 cm)

Overall shelf facing height

Short facing 1-7/16” (3.7 cm)

Tall facing 3-5/16” (8.4 cm)

Overall shelf facing depth 11/16” (1.7 cm)

SIDE VIEW
