ViewZ VZ-WM71 Manuel utilisateur
WALL MOUNT FOR 43" to 65"
www.ViewZUSA.com | 1-714-996-1177
VESA COMPATIBLE
MAX. 800 x 400,
MIN. 100 x 100
65" MAX
MAX WEIGHT 165 lbs / 75 kg
VZ-WM71 INSTALLATION INSTRUCTIONS
VZ-WM71
2Installation InstructionsVisit the ViewZ USA website at http://www.viewzusa.com
WM series
Maximum Flat-panel Weight: 165 lbs
THE WALL STRUCTURE MUST BE CAPABLE OF
SUPPORTING AT LEAST FIVE TIMES THE
WEIGHT OF THE FLAT-PANEL. IF NOT, THE WALL
STRUCTURE MUST BE REINFORCED.
Your ViewZ mount product is shipped with all proper installaon hardware and components. If there are parts missing
and/or damaged, please stop the installaon and contact ViewZ USA at (888)-998-4399.
Weight Limit
Parts
1
4
T3
T6
T9
W2
U2
x 2
x 1
x 4
x 4
x 4
x 6
x 4
x 1
x 4
x 4
x 4
x 12
x 6
x 1
x 4
x 4
x 4
x 6
x 4
2
T1
T4
T7
T10
W3
3
2
T5
T8
W1
U1
4Installation InstructionsVisit the ViewZ USA website at http://www.viewzusa.com
WM series

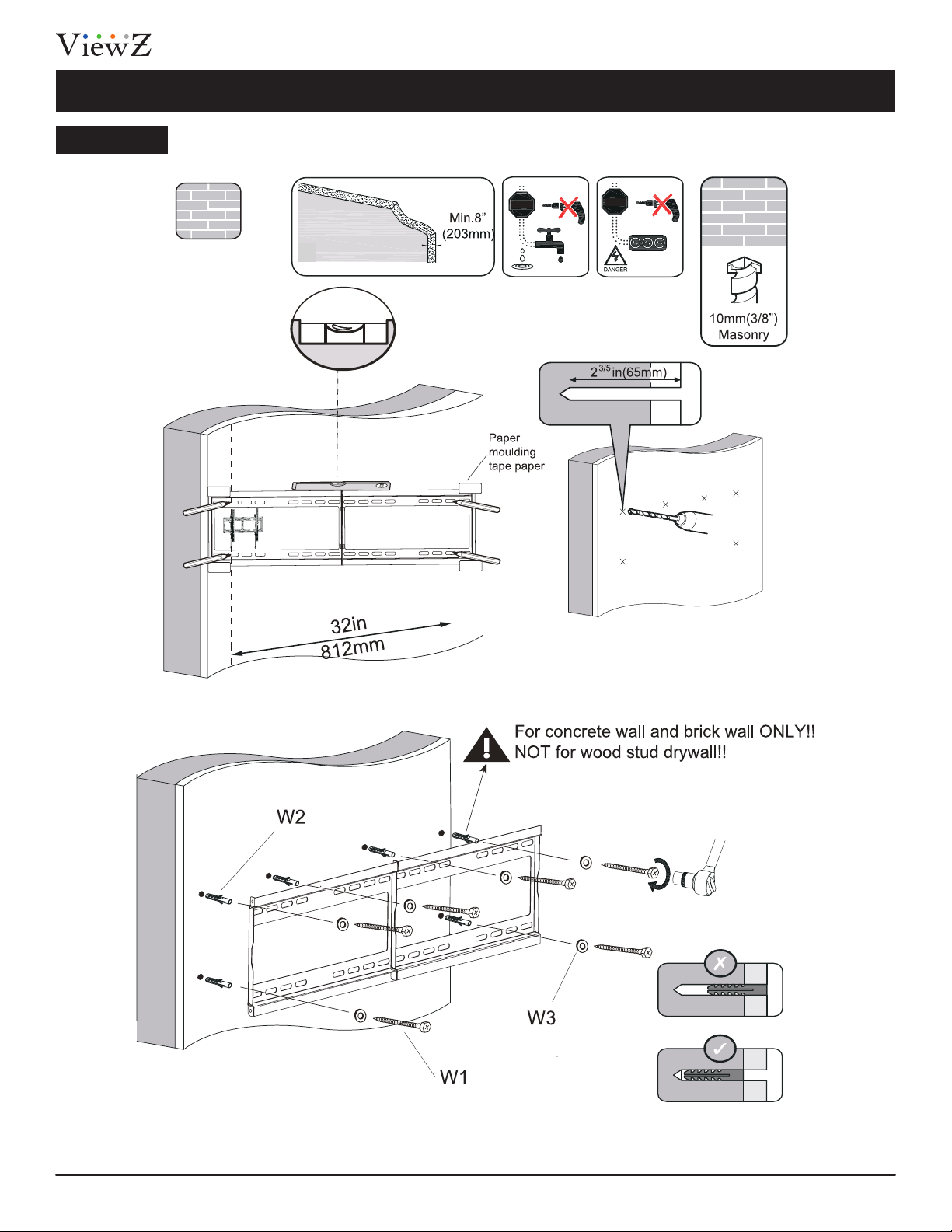

Step 1
Note: Please choose the right panel according to your own needs.
VESA 400mm x400mm(15.7in x 15.7in) Wood Stud
VESA 800mm x400mm(31.5in x 15.7in) Wood Stud
Installation Tools
The following tools may be required depending on your installaon.
Electronic Stud Finder
Level
Protecve Eye-wear
Phillips Head Screwdriver
Pencil
½˝ Socket
Portable Drill
Socket Wrench
1/4˝ Drill Bit
Installation
