ViewSonic PJ402D Manuel utilisateur

ViewSonic®

PJ402D

DLP Projector

Model No. : VS10400

- User Guide

- Guide de l’utilisateur

- Bedienungsanleitung

- Guía del usuario

- Guia do usuário

- Руководство пользователя

- 使用手冊 (繁體)

- 使用手冊 (簡體)

- 사용자 안내서

Compliance Information

FCC Statement

This device complies with part 15 of FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy, and if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user

is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modications not expressly approved by

the party responsible for compliance could void your authority to operate the equipment.

For Canada

• This Class B digital apparatus complies with Canadian ICES-003.

• Cet appareil numérique de la classe B est conforme à la norme NMB-003 du

Canada.

CE Conformity for European Countries

The device complies with the requirements of the EEC directive 89/336/

EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to

“Electromagnetic compatibility”, and 73/23/EEC as amended by 93/68/

EEC Art.13 with regard to “Safety.”

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and

Electronic Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment as

unsorted municipal waste, but use the return and collection systems according

to local law.

1ViewSonic PJ402D

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this unit near water.

6. Clean with a soft, dry cloth. If still not clean, see “Cleaning the Display” in this

guide for further instructions.

Do not block any ventilation openings. Install the unit in accordance with the

manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or

other devices (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade and the third

prong are provided for your safety. If the provided plug does not t into your

outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs.

Convenience receptacles and the point where they exit from the unit. Be sure

that the power outlet is located near the unit so that it is easily accessible.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specied by the

manufacturer, or sold with the unit. When a cart is used, use caution

when moving the cart/unit combination to avoid injury from tipping over.

13. Unplug this unit when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when

the unit has been damaged in any way, such as: if the power-supply cord or plug

is damaged, if liquid is spilled onto or objects fall into the unit, if the unit is

exposed to rain or moisture, or if the unit does not operate normally or has been

dropped.

2ViewSonic PJ402D

Declaration of RoHS Compliance

This product has been designed and manufactured in compliance with Directive

2002/95/EC of the European Parliament and the Council on restriction of the use of

certain hazardous substances in electrical and electronic equipment (RoHS Directive)

and is deemed to comply with the maximum concentration values issued by the

European Technical Adaptation Committee (TAC) as shown below:

Substance Proposed Maximum

Concentration

Actual

Concentration

Lead (Pb) 0.1% < 0.1%

Mercury (Hg) 0.1% < 0.1%

Cadmium (Cd) 0.01% < 0.01%

Hexavalent Chromium (Cr6+) 0.1% < 0.1%

Polybrominated biphenyls (PBB) 0.1% < 0.1%

Polybrominated diphenyl ethers (PBDE) 0.1% < 0.1%

Certain components of products as stated above are exempted under the Annex of the

RoHS Directives as noted below:

Examples of exempted components are:

1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other

lamps not specically mentioned in the Annex of RoHS Directive.

2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and

electronic ceramic parts (e.g. piezoelectronic devices).

3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by

weight or more lead).

4. Lead as an allotting element in steel containing up to 0.35% lead by weight,

aluminium containing up to 0.4% lead by weight and as a cooper alloy containing

up to 4% lead by weight.

3ViewSonic PJ402D

Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc.

Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks

of Microsoft Corporation in the United States and other countries.

ViewSonic, the three birds’ logo, OnView, ViewMatch, and ViewMeter are registered

trademarks of ViewSonic Corporation.

VESA is a registered trademark of the Video Electronics Standards Association.

DPMS and DDC are trademarks of VESA.

PS/2, VGA and XGA are registered trademarks of International Business Machines

Corporation.

Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors

or omissions contained herein; nor for incidental or consequential damages resulting

from furnishing this material, or the performance or use of this product.

In the interest of continuing product improvement, ViewSonic Corporation reserves

the right to change product specications without notice. Information in this document

may change without notice.

No part of this document may be copied, reproduced, or transmitted by any means, for

any purpose without prior written permission from ViewSonic Corporation.

Product Registration

To meet your future needs, and to receive any additional product information as it

becomes available, please register your product on the Internet at: www.viewsonic.

com. The ViewSonic®Wizard CD-ROM also provides an opportunity for you to print

the registration form, which you may mail or fax to ViewSonic.

For Your Records

Product Name:

Model Number:

Document Number:

Serial Number:

Purchase Date:

PJ402D

ViewSonic DLP Projector

VS10400

PJ402D-2_UG_ENG Rev.1C 02-26-07

The lamp in this product contains mercury.

Please dispose of in accordance with local, state or federal laws.

4ViewSonic PJ402D

Notes on AC Power Cord

AC Power Cord must meet requirement of country where you use a projector.

Conrm an AC plug type with graphics below and proper AC Power Cord must be

used. If supplied AC Power Cord does not match your AC outlet, contact your sales

dealer.

This projector is equipped with a grounding type AC line plug. Make sure that your

outlet ts the plug. Do not defeat the safety purpose of this grounding type plug.

We highly recommend using a video source device also equipped with a grounding

type AC line plug to prevent from signal interference due to voltage uctuation.

Ground Ground

Ground

For the U.K.

For the U.S.A. and CanadaFor Australia and

Mainland China�

For Continental Europe

5ViewSonic PJ402D

CONTENTS

Product Introduction .................................................................................................6

Projector Features.............................................................................................6

Package Contents.............................................................................................7

Getting to Know the Projector...................................................................................8

Projector Components.......................................................................................8

Remote Control Components..........................................................................11

Installation ..............................................................................................................12

Connecting the Projector.................................................................................12

Powering On/Off the Projector ........................................................................16

Adjusting the Projected Image ........................................................................17

Adjusting the Projector Zoom and Focus .......................................................18

Adjusting Projection Image Size......................................................................18

Using the Projector.................................................................................................20

Control Panel...................................................................................................20

Remote Control ...............................................................................................21

Menu Options .........................................................................................................24

Image ..............................................................................................................25

Video ...............................................................................................................28

Display.............................................................................................................29

Language ........................................................................................................30

Advanced ........................................................................................................31

Audio ...............................................................................................................32

Maintenance...........................................................................................................33

Cleaning the Lens ...........................................................................................33

Cleaning the Projector Housing.......................................................................33

Replacing the Lamp ........................................................................................34

Technical Specications .........................................................................................36

Appendix.................................................................................................................37

Indicator Messages .........................................................................................37

Preset Signals .................................................................................................38

6ViewSonic PJ402D

Product Introduction

Projector Features

The projector integrates high-performance optical engin e projection and a user-

friendly design to deliver high reliability and ease of use.

The projector offers the following features:

Single chip 0.55” Texas Instruments DLP™ technology

SVGA (800 x 600 pixels)

Compact size, light weight for portability

1.2x manual zoom lens

Auto image re-sizing (Auto-Sync.) to 800 x 600 full screen with scaling

compression compatibility for VGA, SVGA, XGA* and SXGA*.

State-of-the-art motion adaptive hardware deinterlacing with 3:2 pull down

200-watt, user-replaceable lamp

Compatibility with Macintosh®computers

Compatibility with NTSC, PAL, SECAM, and HDTV

Multi-function remote control

D-Sub 15-pin cable for analog video connectivity

User-friendly, multi-language on-screen display (OSD)

Advanced electronic keystone correction

means compressed.

7ViewSonic PJ402D

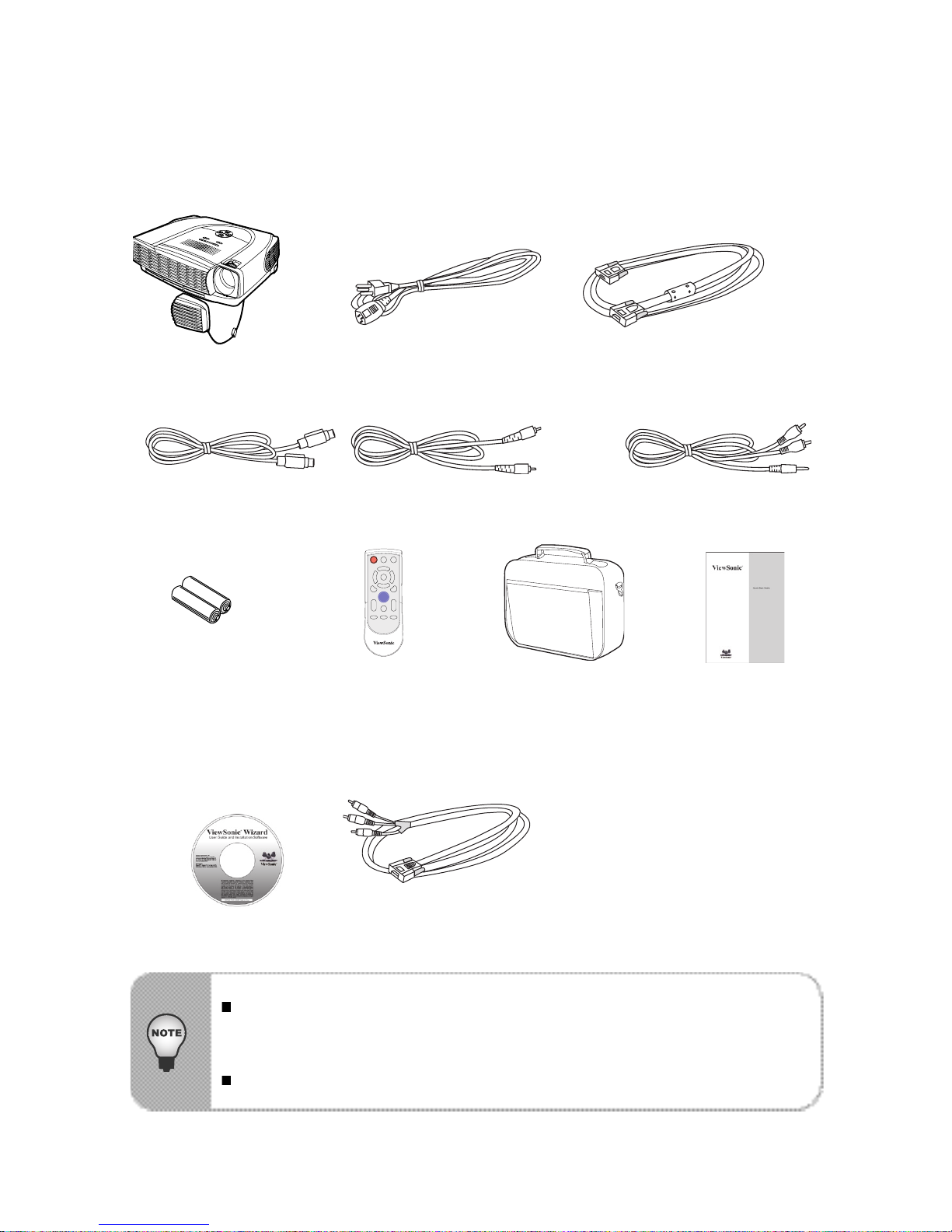

Package Contents

When you unpack the projector, make sure you have all these components:

Save the original shipping carton and packing material; they will come in

handy if you ever to ship your unit. For maximum protection, repack your

unit as it was originally packed at the factory.

Accessories and components may vary by retailer and region.

Projector with Lens Cap AC Power Cord VGA Cable (D-SUB to D-SUB)

S-Video Cable Composite Video Cable

Battery for

Remote Control

Audio Cable

VGA (D-SUB) to

HDTV (RCA) Cable

Projector

Soft Case Quick Start Guide

Remote Control (IR)

Optional Accessory:

Wizard CD

POWER

MUTE

4:3/16:9 KEYSTONE

LASER

ENTER BLANK

VOLUME

AUTO SOURCE

8ViewSonic PJ402D

Getting to Know the Projector

Projector Components

Front View

1. Lens cap

2. Lens cap strap

3. Lens

4. Ventilation holes (intake)

5. Zoom ring

123

10 4

6. Focus ring

7. Control panel

8. Speaker

9. Front IR remote control sensor

10. Ventilation holes (exhaust)

Autres manuels pour PJ402D

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ViewSonic Projecteur

ViewSonic

ViewSonic PJL7211 Manuel utilisateur

ViewSonic

ViewSonic PJL802 Manuel utilisateur

ViewSonic

ViewSonic PJD8353S Manuel utilisateur

ViewSonic

ViewSonic PJ750 Manuel utilisateur

ViewSonic

ViewSonic BRILLIANTCOLOR PJD6241 Manuel utilisateur

ViewSonic

ViewSonic VS11481 Manuel utilisateur

ViewSonic

ViewSonic PJ557D - XGA DLP Projector Manuel utilisateur

ViewSonic

ViewSonic M2W Manuel utilisateur

ViewSonic

ViewSonic M1+ Manuel utilisateur

ViewSonic

ViewSonic VS10872 Guide de démarrage rapide

ViewSonic

ViewSonic Pro10100 Manuel utilisateur

ViewSonic

ViewSonic PJ258 Manuel utilisateur

ViewSonic

ViewSonic PJ520 Manuel utilisateur

ViewSonic

ViewSonic PG707W Manuel utilisateur

ViewSonic

ViewSonic PA500S Manuel utilisateur

ViewSonic

ViewSonic Pro8300 Manuel utilisateur

ViewSonic

ViewSonic PJ406D Manuel utilisateur

ViewSonic

ViewSonic PJL6233 Manuel utilisateur

ViewSonic

ViewSonic PFJ62 Manuel utilisateur

ViewSonic

ViewSonic CINE1000 - DLP Home Theater Projector Manuel utilisateur

ViewSonic

ViewSonic PJ755D - 2600 Lumens DLP Projector Manuel utilisateur

ViewSonic

ViewSonic PRO8500 Manuel utilisateur

ViewSonic

ViewSonic PRO8500 Manuel utilisateur

ViewSonic

ViewSonic M1+ G2 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
