ViewSonic VA2456-MIKU Manuel utilisateur

Model No. VS17295

P/N: VA2456-MIKU

VA2456-MIKU

LCD Monitor

User Guide

Art by Fukahire © Crypton Future Media, INC.

www.piapro.net

Thank you for choosing ViewSonic®

As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding

the world’s expectations for technological evolution, innovation, and simplicity.

At ViewSonic®, we believe that our products have the potential to make a positive

impact in the world, and we are confident that the ViewSonic® product you have

chosen will serve you well.

Once again, thank you for choosing ViewSonic®!

Safety Precauons

Please read the following Safety Precauons before you start using the device.

• Keep this user guide in a safe place for later reference.

• Read all warnings and follow all instructions.

• Sit at least 18" (45 cm) away from the device.

• Allow at least 4" (10 cm) clearance around the device to ensure proper

ventilation.

• Place the device in a well-ventilated area. Do not place anything on the device

that prevents heat dissipation.

• Do not use the device near water. To reduce the risk of fire or electric shock, do

not expose the device to moisture.

• Avoid exposing the device to direct sunlight or other sources of sustained heat.

• Do not install near any heat sources such as radiators, heat registers, stoves, or

other devices (including amplifiers) that may increase the temperature of the

device to dangerous levels.

• Use a soft, dry cloth to clean the external housing. For more information, refer

to the "Maintenance" section on page 47.

• Oil may collect on the screen as you touch it. To clean the greasy spots on the

screen, refer to the "Maintenance" section on page 47.

• Do not touch the screen surface with sharp or hard objects, as it may cause

damage to the screen.

• When moving the device, be careful not to drop or bump the device on

anything.

• Do not place the device on an uneven or unstable surface. The device may fall

over resulting in an injury or a malfunction.

• Do not place any heavy objects on the device or connection cables.

• If smoke, an abnormal noise, or a strange odor is present, immediately turn the

device off and call your dealer or ViewSonic®. It is dangerous to continue using

the device.

• Do not attempt to circumvent the safety provisions of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the

other. A grounding-type plug has two blades and a third grounding prong. The

wide blade and the third prong are provided for your safety. If the plug does not

fit into your outlet, obtain an adapter and do not attempt to force the plug into

the outlet.

• When connecting to a power outlet, DO NOT remove the grounding

prong. Please ensure grounding prongs are NEVER REMOVED.

• Protect the power cord from being treaded upon or pinched,

particularly at the plug, and at the point where it emerges from

the equipment. Ensure that the power outlet is located near the

equipment so that it is easily accessible.

• Only use attachments/accessories specified by the manufacturer.

• When a cart is used, use with caution when moving the cart/equipment

combination to avoid injury from tipping over.

• Disconnect the power plug from the AC outlet if the device is not being used for

a long period of time.

• Refer all servicing to qualified service personnel. Service will be

required when the unit has been damaged in any way, such as:

if the power supply cord or plug is damaged

if liquid is spilled onto or objects fall in the unit

if the unit is exposed to moisture

if the unit does not operate normally or has been dropped

• NOTICE: LISTENING THROUGH EAR-/HEADPHONES AT A HIGH VOLUME FOR

EXTENDED PERIODS CAN CAUSE HEARING DAMAGE/HEARING LOSS. When using

ear-/headphones, adjust the volume to appropriate levels, or hearing damage

may result.

• NOTICE: THE MONITOR MAY OVERHEAT AND SHUTDOWN! If the device shuts

down automatically, please turn on your monitor again. After rebooting, change

your monitor's resolution and refresh rate. For details, please refer to the

graphics card's user guide.

Contents

Safety Precautions....................................................... 3

Introduction ................................................................ 7

Package Contents ...................................................................................................7

Product Overview...................................................................................................8

Initial Setup................................................................. 9

Installing the Stand.................................................................................................9

Wall Mounting......................................................................................................11

Using the Security Slot..........................................................................................13

Making Connections.................................................. 14

Connecting to Power ............................................................................................14

Connecting External Devices ................................................................................15

HDMI Connection.................................................................................................. 15

DisplayPort Connection......................................................................................... 16

VGA Connection .................................................................................................... 17

Audio Connection.................................................................................................. 18

Using the Monitor ..................................................... 19

Adjusting the Viewing Angle.................................................................................19

Tilt Angle Adjustment............................................................................................ 19

Turning the Device On/Off ...................................................................................20

Using the Control Panel Keys................................................................................21

Quick Menu........................................................................................................... 21

Hot Keys ................................................................................................................ 23

Configuring the Settings .......................................................................................25

General Operations............................................................................................... 25

On-Screen Display (OSD) Menu Tree .................................................................... 28

Menu Options ....................................................................................................... 31

Appendix................................................................... 40

Specifications........................................................................................................40

Glossary ................................................................................................................41

Troubleshooting ...................................................................................................45

Maintenance.........................................................................................................47

General Precautions.............................................................................................. 47

Cleaning the Screen............................................................................................... 47

Cleaning the Case.................................................................................................. 47

Regulatory and Service Information .......................... 48

Compliance Information.......................................................................................48

FCC Compliance Statement................................................................................... 48

Industry Canada Statement................................................................................... 48

CE Conformity for European Countries ................................................................. 48

Declaration of RoHS2 Compliance......................................................................... 49

Indian Restriction of Hazardous Substances ......................................................... 50

Product Disposal at End of Product Life................................................................ 50

TCO Information.................................................................................................... 51

Customer Service .................................................................................................. 54

Limited Warranty .................................................................................................. 55

Mexico Limited Warranty...................................................................................... 58

Introducon

Package Contents

• Monitor

• Power cord

• Video cable

• Quick start guide

NOTE: The power cord and video cables included in your package may vary

depending on your country. Please contact your local reseller for more

informaon.

Product Overview

Front View

Display screen

Power LED

1 («)3 5

2Power Buon

Rear View

VGA

Security Slot

Audio Out port

Audio In port

DisplayPort

AC IN jack HDMI port

VGA port

NOTE: For more informaon about the 1(«)/2/3/4/5 key and its funcons,

refer to the “Hot Keys” secon on page 23.

Inial Setup

This secon provides detailed instrucons for seng up your monitor.

Installing the Stand

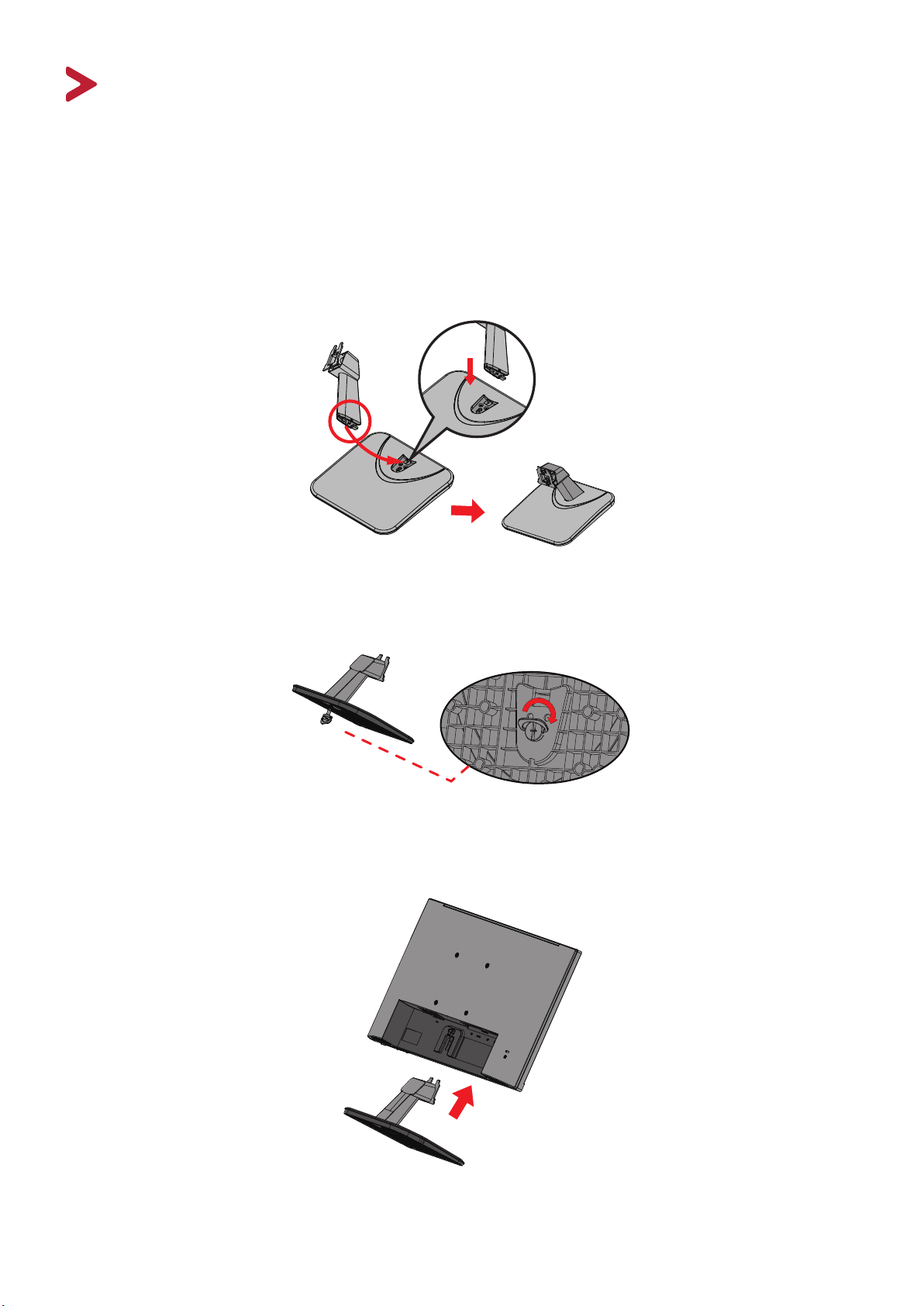

1. Place the monitor on a at, stable surface with the screen facing down.

2. Align and connect all points on the monitor stand’s neck with the monitor stand’s

base.

3. Use the captured screw in the monitor stand’s base and secure it to the monitor

stand’s neck.

4. Align and slide the upper hooks of the monitor stand’s neck into the stand

mounng slot as shown in the illustraon below:

5. Li the device into its upright posion on a at, stable surface.

NOTE: Always place the device on a at, stable surface. Failure to do so may

cause the device to fall and damage the device and/or result in personal

injury.
