NMP-570/ NMP-570w
Network Media Player
User Guide
Model No. VS13807/ VS14604
IMPORTANT: Please read this User Guide to obtain important information on installing
and using your product in a safe manner, as well as registering your product for future
service. Warranty information contained in this User Guide will describe your limited
coverage from ViewSonic Corporation, which is also found on our web site at http://
www.viewsonic.com in English, or in specic languages using the Regional selection
box in the upper right corner of our website. “Antes de operar su equipo lea cu
idadosamente las instrucciones en este manual”
i
Compliance Information
FCC Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
Warning: Youarecautionedthatchangesormodicationsnotexpresslyapprovedbytheparty
responsible for compliance could void your authority to operate the equipment.
For Canada
• ThisClassBdigitalapparatuscomplieswithCanadianICES-003.
• CetappareilnumériquedelaclasseBestconformeàlanormeNMB-003duCanada.
CE Conformity for European Countries
ThedevicecomplieswiththeEMCDirective2004/108/ECandLowVoltageDirective
2006/95/EC.
Following information is only for EU-member states:
ThemarkisincompliancewiththeWasteElectricalandElectronicEquipmentDirective
2002/96/EC(WEEE).
ThemarkindicatestherequirementNOTtodisposetheequipmentincludinganyspentor
discarded batteries or accumulators as unsorted municipal waste, but use the return and collection
systems available.
If the batteries, accumulators and button cells included with this equipment, display the chemical
symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than
0.0005%Mercuryormorethan,0.002%Cadmium,ormorethan0.004%Lead.
ii
Declaration of RoHS Compliance
ThisproducthasbeendesignedandmanufacturedincompliancewithDirective2002/95/ECofthe
EuropeanParliamentandtheCouncilonrestrictionoftheuseofcertainhazardoussubstancesin
electricalandelectronicequipment(RoHSDirective)andisdeemedtocomplywiththemaximum
concentrationvaluesissuedbytheEuropeanTechnicalAdaptationCommittee(TAC)asshown
below:
Substance Proposed Maximum
Concentration Actual Concentration
Lead(Pb) 0.1% <0.1%
Mercury(Hg) 0.1% <0.1%
Cadmium (Cd) 0.01% <0.01%
HexavalentChromium(Cr6+)0.1% <0.1%
Polybrominated biphenyls (PBB) 0.1% <0.1%
Polybrominateddiphenylethers(PBDE) 0.1% <0.1%
CertaincomponentsofproductsasstatedaboveareexemptedundertheAnnexoftheRoHS
Directivesasnotedbelow:
Examplesofexemptedcomponentsare:
1.Mercuryincompactuorescentlampsnotexceeding5mgperlampandinotherlampsnot
specicallymentionedintheAnnexofRoHSDirective.
2.Leadinglassofcathoderaytubes,electroniccomponents,uorescenttubes,andelectronic
ceramicparts(e.g.piezoelectronicdevices).
3.Leadinhightemperaturetypesolders(i.e.lead-basedalloyscontaining85%byweightormore
lead).
4.Leadasanallottingelementinsteelcontainingupto0.35%leadbyweight,aluminiumcontaining
upto0.4%leadbyweightandasacooperalloycontainingupto4%leadbyweight.
iii
Copyright Information
Copyright©ViewSonicCorporation,2012.Allrightsreserved.
ViewSonic,thethreebirdslogo,OnView,ViewMatch,andViewMeterareregisteredtrademarks
ofViewSonicCorporation.
Disclaimer:ViewSonicCorporationshallnotbeliablefortechnicaloreditorialerrorsor
omissions contained herein; nor for incidental or consequential damages resulting from furnishing
this material, or the performance or use of this product.
Intheinterestofcontinuingproductimprovement,ViewSonicCorporationreservestherightto
changeproductspecicationswithoutnotice.Informationinthisdocumentmaychangewithout
notice.
Nopartofthisdocumentmaybecopied,reproduced,ortransmittedbyanymeans,forany
purposewithoutpriorwrittenpermissionfromViewSonicCorporation.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
NMP-570/ NMP-570w
ViewSonic Network Media Player
VS13807/ VS14604
NMP-570/ NMP-570w_UG_ENG Rev. 1B 05-16-12
_________________________________________
_________________________________________
Product disposal at end of product life
ViewSonicrespectstheenvironmentandiscommittedtoworkingandlivinggreen.Thankyou
forbeingpartofSmarter,GreenerComputing.PleasevisitViewSonicwebsitetolearnmore.
USA&Canada:http://www.viewsonic.com/company/green/recycle-program/
Europe:http://www.viewsoniceurope.com/uk/kbase/article.php?id=639
Taiwan:http://recycle.epa.gov.tw/recycle/index2.aspx
iv
Content
1. Introduction ...................................................................... 1
1.1. Features..................................................................... 1
1.2. Package contents ...................................................... 1
1.3. Mounting options ....................................................... 2
1.4. Physical view ............................................................. 2
2. Conguring the NMP-570/NMP-570w Media Player ........ 3
2.1. System connections .................................................. 3
2.2. USB keyboard conguration menus.......................... 4
2.3. Connect the NMP-570/NMP-570w to your network .. 4
2.4. Video output settings ................................................. 5
2.5. Clock and calendar settings ...................................... 5
2.6. Setting a password.................................................... 6
2.7. Factory reset ............................................................. 6
2.8. Applying rmware upgrades ...................................... 6
3. Content Management ....................................................... 7
4. Authoring in HTML5 .......................................................... 7
5. Working with SMIL ............................................................ 7
5.1. Introduction................................................................ 7
5.2. www.a-smil.org for developers .................................. 8
6. Technical Data .................................................................. 9
6.1. Specications............................................................. 9
7. Appendix: FAQ.................................................................11
1
1. Introduction
This document describes the hardware and software operations of the NMP-
570/NMP-570w, system set up, and frequently asked questions.
1.1. Features
The NMP-570/NMP-570w is a Full-HD 1080p high definition digital signage
player featuring industrial grade mechanical design and versatile open-
standard HTML5 and SMIL programmability.
• Support for HTML5 widgets for dynamic content (W3C
Widgets standard)
• Full-HD 1080p hardware decoding of MPEG, H.264, and
VC-1 media formats
• 4GB on-board ash local storage with CF card slot
• Integrated audio and video output via HDMI
• Supports full POPAI Screen Media Formats Standards proles
S1 to S12, and E1 to E9
• Multiple 3rd party software solution compatibility
• Industry leading W3C SMIL support for developers
• (NMP-570W only) Built-in wireless b/g/n network

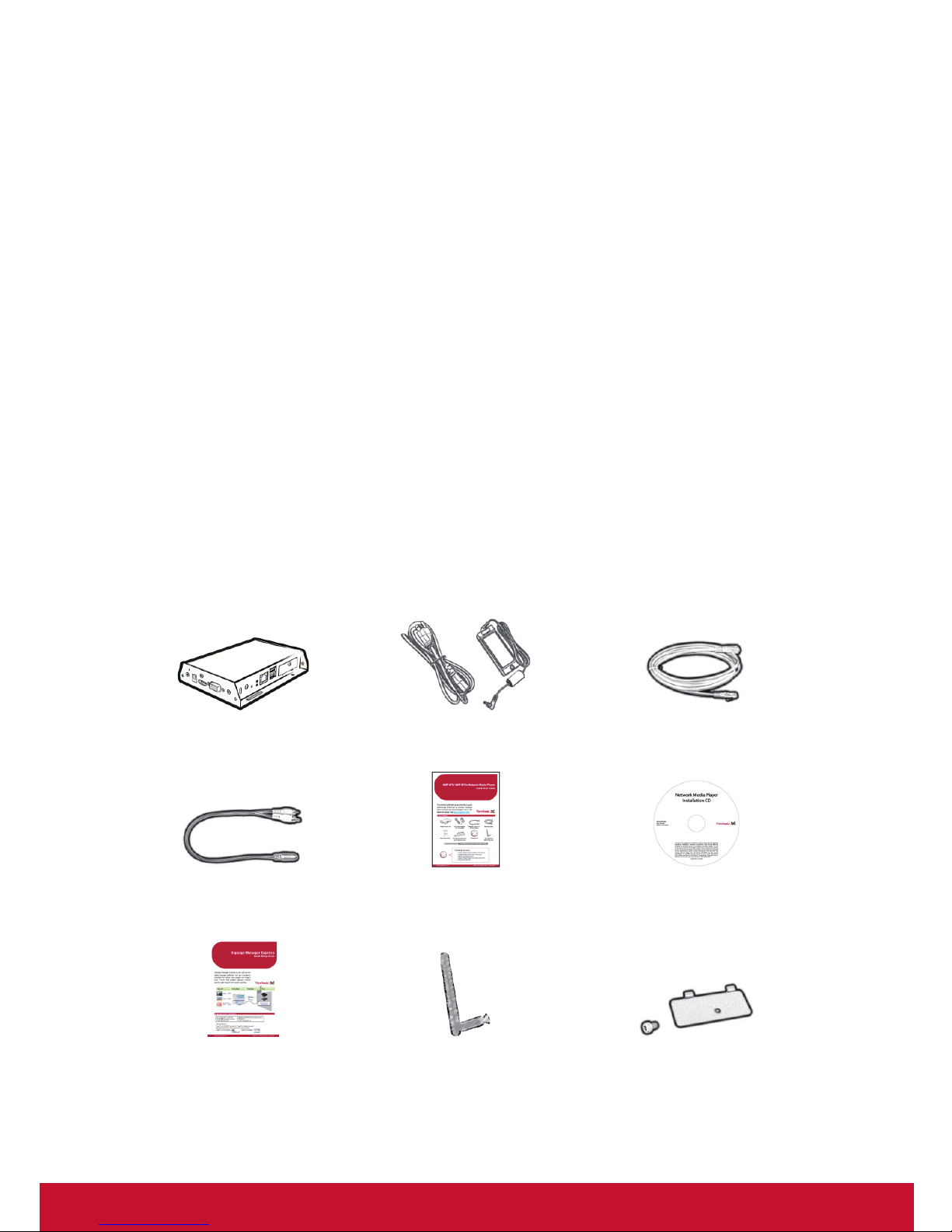

1.2. Package contents
Media Player Unit AC Adapter and Cord Ethernet cable
Standard 3.5mm to
RCA AV adapter
Quick Start Guide Documentation CD
Software set up guide Wi-Fi Antenna
(NMP-570W only)
CF card cover/remover
(pre-installed on unit)
NOT INCLUDED: A USB keyboard is required for system setup
2
1.3. Mounting options
The player can be attached to mounting posts on
the back of screens or inside cabinetry with the built
in VESA MIS-D100 (100mmx100mm) compatible
mounting ange
(For NMP-570w only) ATTACH the
wireless antenna as shown. Screw
antenna clockwise onto the post

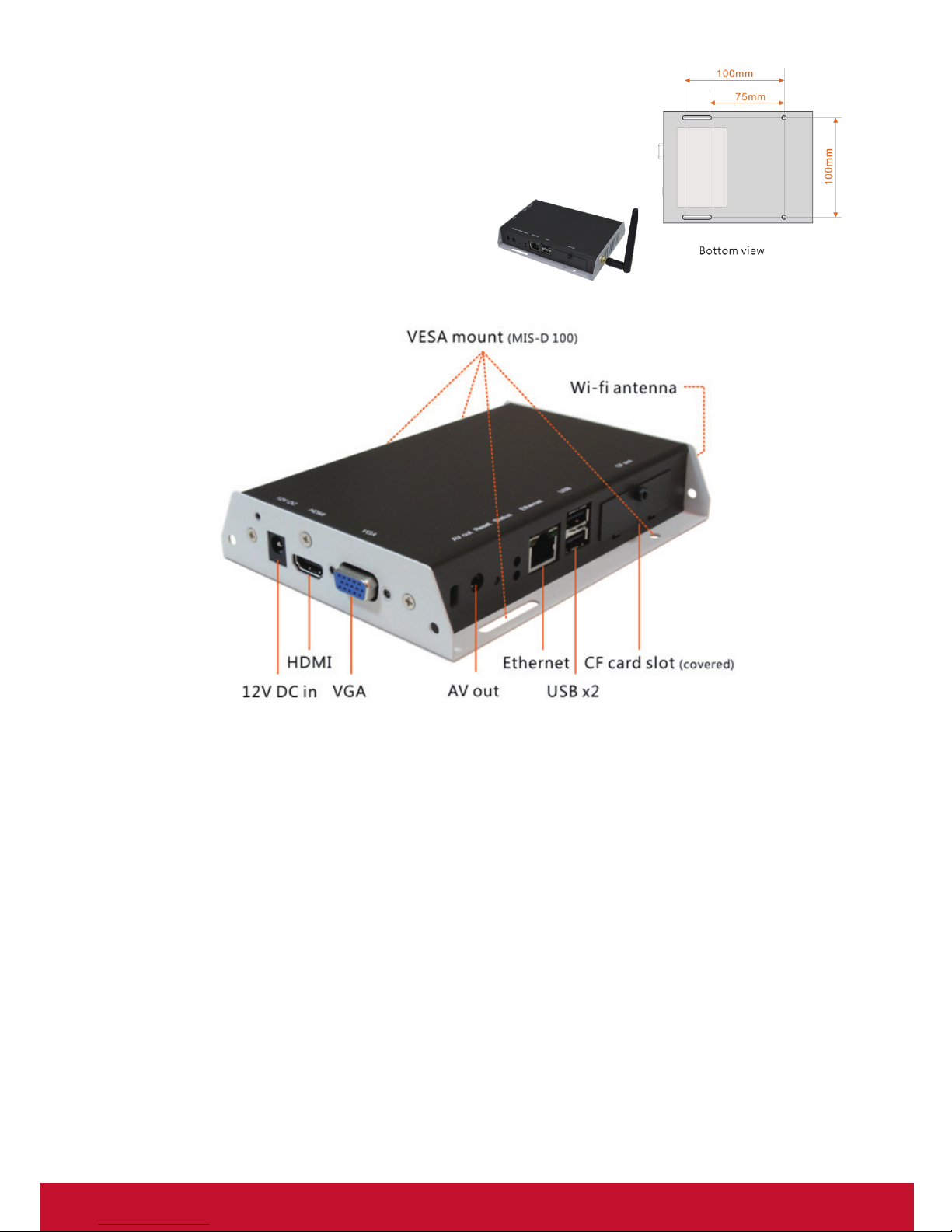

1.4. Physical view
Physical features (left to right in above illustration)
• 12V DC for power adapter
• HDMI 1.3a connector for digital video and audio combined
outputs, or digital video via option DVI adapter
• VGA port for analog video output
• 3.5mm composite AV output
• S/W Reset button to perform factory reset
• Ethernet port for network content update
• USB ports for USB content update and conguration
• CF card slot cover with integrated CF card removing tool
3
2. Conguring the NMP-570/NMP-570w Media Player
2.1. System connections
1. Attach a video cable (either VGA or HDMI) to your monitor.
When using the VGA connection, your monitor should support XGA
(1024x768) resolution or greater. For audio output, you will also need
to connect a stereo RCA cable from the NMP-570/NMP-570w to your
monitor.
When using an HDMI connection, audio is sent along with video over the
HDMI cable, so no additional cables are required.
Reminder: If you do not see anything on screen, check your monitor
video input mode.

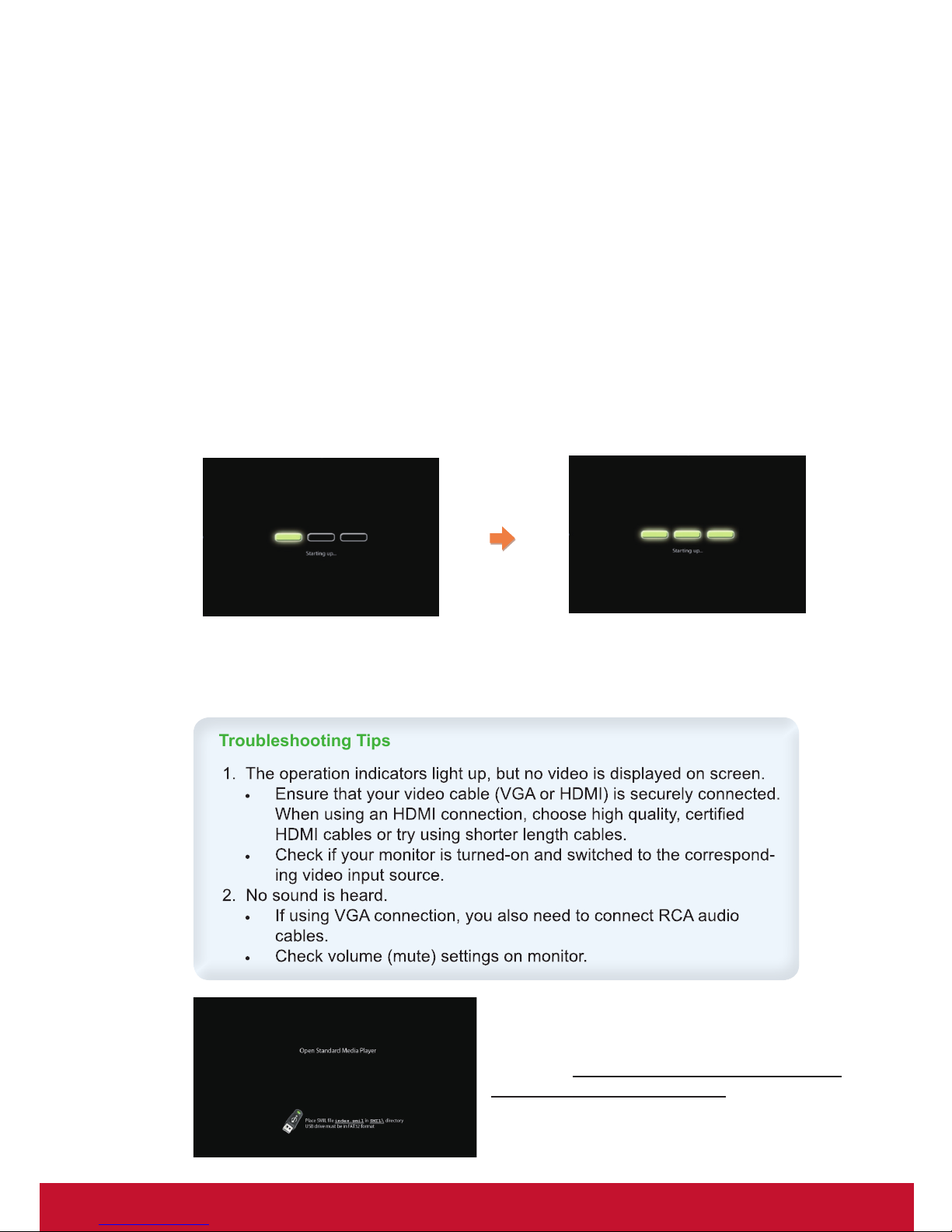

2. Attach the AC power adapter to power on the unit. Shortly afterwards, the
following progress bar will be displayed on your monitor:
3. Player boot process takes approximately 90 seconds to complete. The
player will indicate that it is ready for content sync via the USB port or, if
content has been loaded, begin playback immediately.
After performing the initial setup as
outlined above, the player will boot
into the “Open Standard Media Player”
screen. Plug in a USB keyboard to
enter conguration menus.
If you have already loaded media
contents into the player, contents will
90 seconds
Troubleshooting TipsTroubleshooting Tips
4
play back immediately after boot up, and the “Open Standard Media
Player” screen will not be shown. You can still plug in a USB keyboard at
any time during playback to enter the menu system.
2.2. USB keyboard conguration menus
You must attach a USB keyboard to the NMP-570 to congure settings. With
the player booted up and ready, it takes approximately 30 seconds after you
plug in the keyboard for the following menu to be displayed:

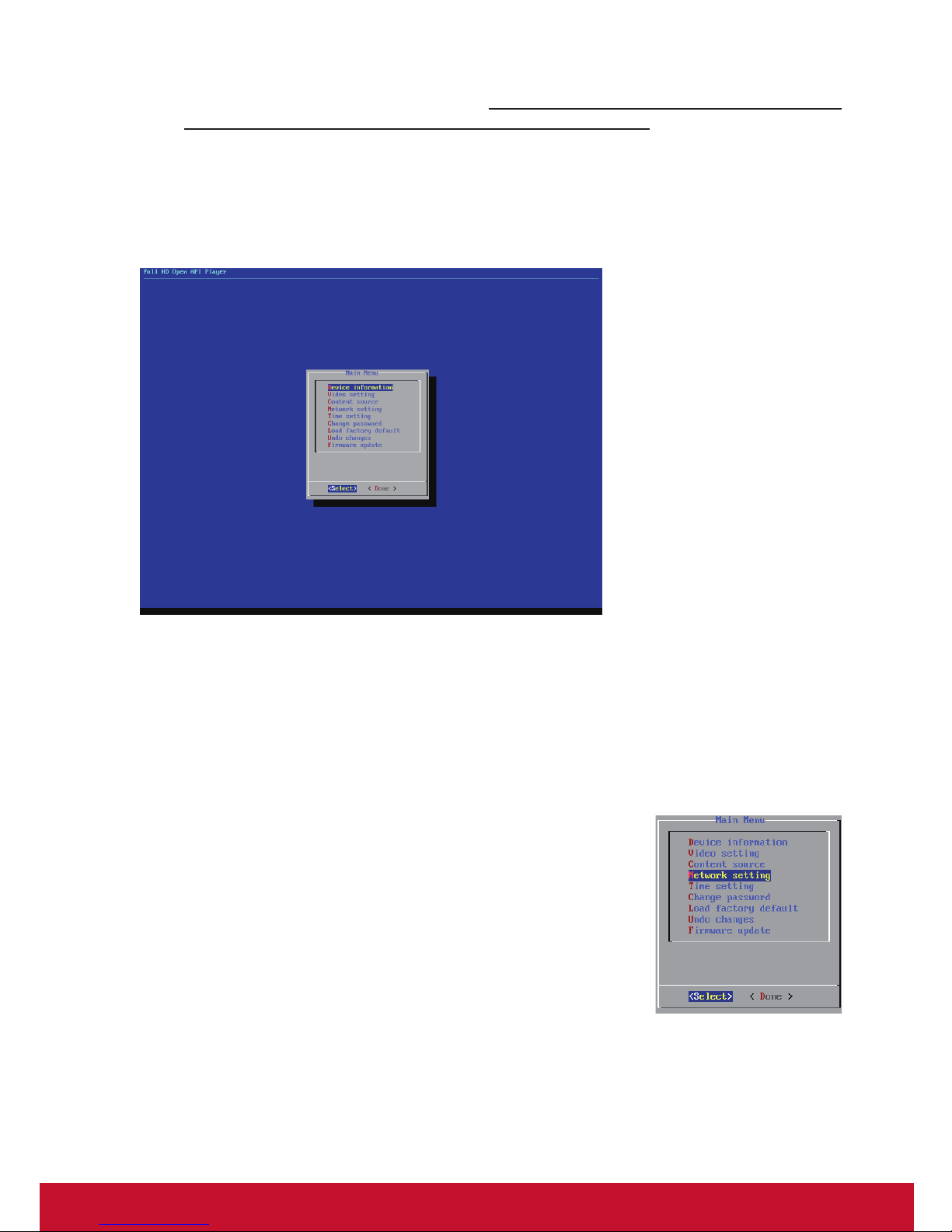

Navigating the menus
Navigate the menus using arrow keys, space bar, enter key, and numeral
keys on your USB keyboard. Use the keyboard arrow keys to highlight menu
items, press the space bar to move the star (cursor), and then press enter to
conrm (<OK>) or reject (<Cancel>) any changes.
2.3. Connect the NMP-570/NMP-570w to your network
Enter Network setting in the menu to set up a network
connection method.
Wireless connection (NMP-570W only)
The player will scan for wireless signals nearby during
boot up. If the network requires authentication, you will
be asked to provide the password for access.
Wired connection
To use the wired Ethernet connection, connect an
Ethernet cable and the Wi-Fi (NMP-570W) will be
disabled.
5

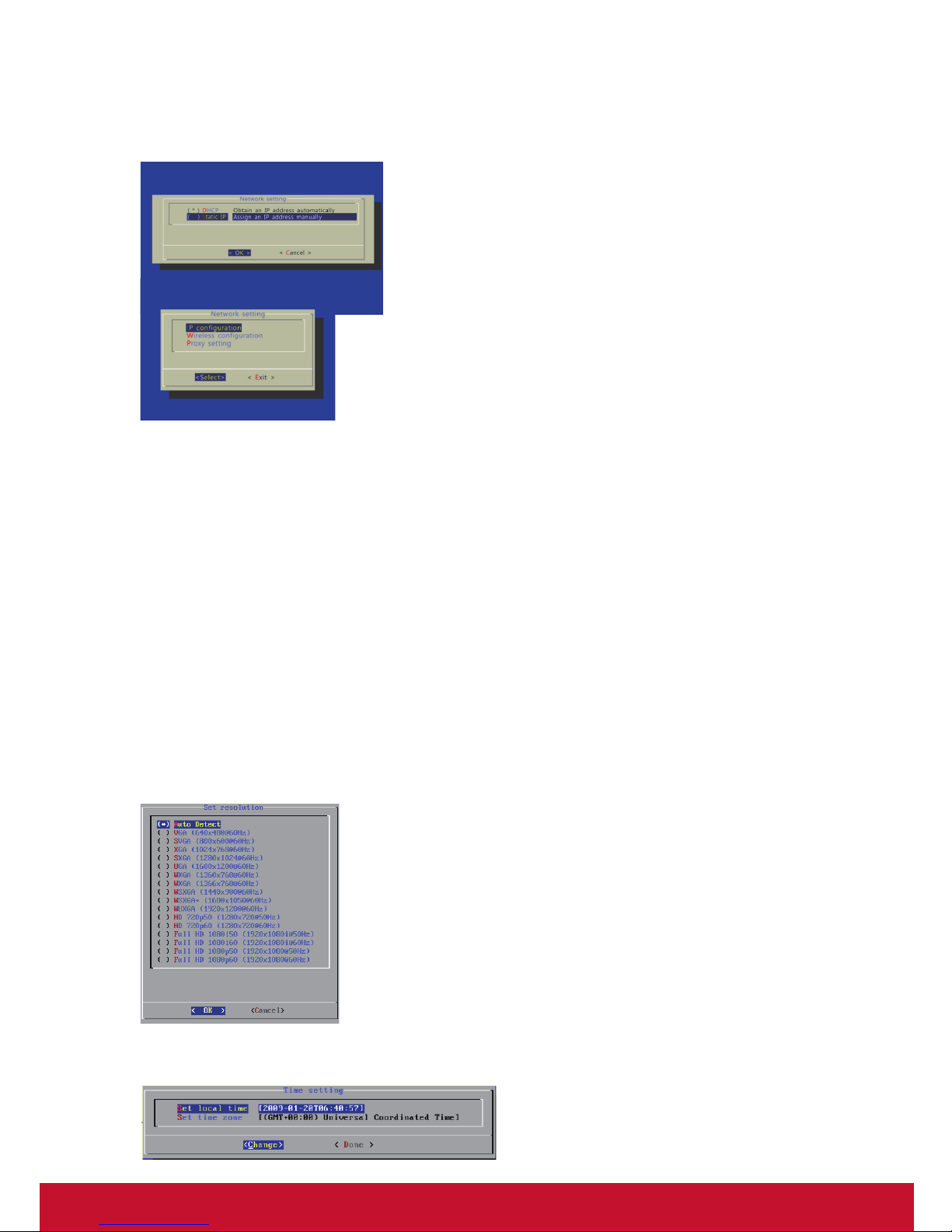

Player IP address
You will also need an IP address for the player on your network. This could be
set automatically (DHCP) or manually (static IP):
DHCP – automatically assign network IP address
DHCP is enabled by default. You do not need to
change the settings unless setting a static IP.
Static IP – manually assign network IP address
Highlight “IP conguration” and press “Enter” on
keyboard to <Select>
Move the highlight to “Static IP” below, press
“Space bar” on the keyboard to ll in the star (*)
at the Static IP brackets, and press “Enter” on the
keyboard to select <OK>.
Proceed to configure an available static IP
address. Select Wireless configuration or IP
conguration as determined by your connection.
Please consult your network administrator for
assistance if necessary.
2.4. Video output settings
For best quality, set the output resolution to match your display’s native
resolution to avoid image scaling and blur.
If you are connecting to an LCD TV, the resolution setting is most likely
1366x768, 1280x720, or 1920x1080. If you are connecting a LCD computer
monitor, projector, or plasma display, refer to the device specications for the
best matching setting.
Press the space bar to fill in the star (*) before pressing the enter key for
<OK>.
2.5. Clock and calendar settings
Set the correct time zone, time, and
date. Daylight Saving (DST) rules
can be congured in Set time zone.
Autres manuels pour NMP-570W
1
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels ViewSonic Lecteur multimédia
ViewSonic
ViewSonic NMP-500 Manuel utilisateur
ViewSonic
ViewSonic NMP599-W Manuel utilisateur
ViewSonic
ViewSonic NMP599-W-2 Manuel utilisateur
ViewSonic
ViewSonic NMP-530 - Digital Multimedia Receiver Manuel utilisateur
ViewSonic
ViewSonic NexTV VMP75 Manuel d'utilisation et d'entretien
ViewSonic
ViewSonic VMP50 Manuel utilisateur
ViewSonic
ViewSonic NMP620-P10 Manuel utilisateur
ViewSonic
ViewSonic NexTV VMP75 Manuel utilisateur
ViewSonic
ViewSonic NexTV VMP75 Manuel utilisateur
ViewSonic
ViewSonic Moderro NMP012 Manuel utilisateur
ViewSonic
ViewSonic VS12770 Manuel utilisateur
ViewSonic
ViewSonic VMP71 Manuel utilisateur
ViewSonic
ViewSonic NMP-600 - Network Media Player Connects Manuel utilisateur
ViewSonic
ViewSonic NMP-640 Manuel utilisateur
ViewSonic
ViewSonic VMP72 Guide de référence
ViewSonic
ViewSonic VS13406 Manuel utilisateur
ViewSonic
ViewSonic NMP-570 Manuel utilisateur
ViewSonic
ViewSonic NMP-200 - Network Media Player Ess-based... Manuel utilisateur
ViewSonic
ViewSonic VMP74 Manuel utilisateur
ViewSonic
ViewSonic VMP74 Manuel utilisateur
