ViewSonic VFD1078W-11E Manuel utilisateur
VFD1078w
Digital Photo Frame
User Guide
Model No. VS14962
2
Compliance Information
FCC Statement
This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cautioned that changes or modications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
For Canada
• This Class B digital apparatus complies with Canadian ICES-003.
• Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
CE Conformity for European Countries
The device complies with the EMC Directive 2004/108/EC and Low Voltage Directive
2006/95/EC.
Following information is only for EU-member states:
The mark is in compliance with the Waste Electrical and Electronic Equipment Directive
2002/96/EC (WEEE).
The mark indicates the requirement NOT to dispose the equipment including any spent or
discarded batteries or accumulators as unsorted municipal waste, but use the return and collection
systems available.
If the batteries, accumulators and button cells included with this equipment, display the chemical
symbol Hg, Cd, or Pb, then it means that the battery has a heavy metal content of more than
0.0005% Mercury or more than, 0.002% Cadmium, or more than 0.004% Lead.
3
Declaration of RoHS Compliance
This product has been designed and manufactured in compliance with Directive 2002/95/EC of the
European Parliament and the Council on restriction of the use of certain hazardous substances in
electrical and electronic equipment (RoHS Directive) and is deemed to comply with the maximum
concentration values issued by the European Technical Adaptation Committee (TAC) as shown
below:
Substance Proposed Maximum
Concentration Actual Concentration
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6+) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers
(PBDE) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex of the RoHS
Directives as noted below:
Examples of exempted components are:
1. Mercury in compact uorescent lamps not exceeding 5 mg per lamp and in other lamps not
specically mentioned in the Annex of RoHS Directive.
2. Lead in glass of cathode ray tubes, electronic components, uorescent tubes, and electronic
ceramic parts (e.g. piezoelectronic devices).
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more
lead).
4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing
up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight.
4
Copyright Information
Copyright© ViewSonic Corporation, 2012. All rights reserved.
ViewSonic, the three birds logo, OnView, ViewMatch, and ViewMeter are registered trademarks
of ViewSonic Corporation.
Disclaimer:ViewSonic Corporation shall not be liable for technical or editorial errors or
omissions contained herein; nor for incidental or consequential damages resulting from furnishing
this material, or the performance or use of this product.
In the interest of continuing product improvement, ViewSonic Corporation reserves the right to
change product specications without notice. Information in this document may change without
notice.
No part of this document may be copied, reproduced, or transmitted by any means, for any
purpose without prior written permission from ViewSonic Corporation.
For Your Records
Product Name:
Model Number:
Document Number:
Serial Number:
Purchase Date:
VFD1078w
ViewSonic Digital Photo Frame
VS14962
VFD1078w_UG_ENG Rev. 1A 08-16-12
_____________________________
_____________________________
Product disposal at end of product life
ViewSonic respects the environment and is committed to working and living green. Thank you
for being part of Smarter, Greener Computing. Please visit ViewSonic website to learn more.
USA & Canada: http://www.viewsonic.com/company/green/recycle-program/
Europe: http://www.viewsoniceurope.com/uk/kbase/article.php?id=639
Taiwan: http://recycle.epa.gov.tw/recycle/index2.aspx
v
Important Safety Precautions
Always follow these basic safety precautions when using your Digital Picture Frame.
This will reduce the risk of re, electric shock, and injury.
Warning: To reduce the risk of re or shock hazard, do not expose this product to rain or
moisture.
Warning: To prevent the risk of electric shock, do not remove the cover. There are no
user-serviceable parts inside. Refer all servicing to qualied personnel.
•
The Digital Picture Frame is for indoor use only.
•
Unplug the Digital Picture Frame before performing care and maintenance.
•
Do not block the ventilation holes on the back of the Digital Picture Frame at any
time.
•
Keep your Digital Picture Frame out of direct sunlight and heat sources.
•
Protect the power cord. Route power cord so that it is not likely to be walked on or
pinched by item places on or against it. Pay particular attention to the point where the
cord attaches to the Digital Picture Frame.
•
Only use the AC adapter included with the Digital Picture Frame. Using any other
power adapter will void your warranty.
•
Unplug the power cord from the outlet when the unit is not in use.
•
Risk of explosion if battery replaced by an incorrect type. Dispose of used batteries
according to the instructions.
Cleaning the LCD Screen
Touch the screen gently.
To clean ngerprints or dust from the LCD screen, it is recommended to use a soft,
non-abrasive cloth such as a camera lens cloth to clean the LCD screen.
If you use a commercial LCD cleaning kit, do not apply the cleaning liquid directly to the
LCD screen. Clean the LCD screen with a cleaning cloth moistened with the liquid.
Cleaning the Digital Picture Frame
Clean the outer surface of the Digital Picture Frame (excluding the screen) with a soft
cloth dampened with water.
Package Content
Digital Picture Frame
Power Adapter
Stand
Remote Control
USB Cable
Quick Start Guide
User’s Manual
VFD1078w
Digital Photo Frame
User Guide
Model No. VS14962
vi
Table of Contents
1. Hardware --------------------------------------------------------------------------- 1
1.1. Specications ----------------------------------------------------------------- 1
1.2. Identication of Controls --------------------------------------------------- 1
1.3. Accessories ------------------------------------------------------------------- 2
1.4. Features ------------------------------------------------------------------------ 2
1.5. Features Checklist ----------------------------------------------------------- 3
1.6. Remote control --------------------------------------------------------------- 3
2. Main function --------------------------------------------------------------------- 4
2.1. Photo ---------------------------------------------------------------------------- 5
2.1.1. Browse ----------------------------------------------------------------- 6
2.1.2. Slideshow -------------------------------------------------------------- 6
2.2. Calendar ----------------------------------------------------------------------- 7
2.2.1. Display Mode --------------------------------------------------------- 7
2.2.1.1. Monthly calendar ----------------------------------------- 7
2.2.1.2. Calendar ---------------------------------------------------- 8
2.2.1.3. Clock --------------------------------------------------------- 8
2.3. Settings ------------------------------------------------------------------------- 9
2.3.1. Photo Setting --------------------------------------------------------10
2.3.2. Calendar Setting ----------------------------------------------------10
2.3.3. System Setting -----------------------------------------------------11
3. Troubleshooting ----------------------------------------------------------------12
Customer Support -----------------------------------------------------------------13
Limited Warranty -------------------------------------------------------------------14
1
1. Hardware
1.1. Specications
LCD screen
Panel size/ Aspect ratio 10.1 inch/ Wide
Effective viewing area 8.2” W x 4.1” H ( 208.3 mm x 104.1 mm)
Resolution 1024 x 600 pixels
Fhoto File
Image formats supported JPG, JPEG (baseline coding), BMP
Max. image resolution 30 million pixels
Calendar Clock, Calendar
Memory Medium
Internal 128 MB
Memory Card MMC, SD, SDHC ( max. 32GB)
USB USB ash drive
File System FAT, FAT32
Electric Specication
Power Input 5VDC, 1A
Power Consumption ≤ 5W
Power Adapter
Input AC 100-240V, 50/60HZ
Output DC5V , 1A
Dimensions
Dimensions 12.52”W x 8.7”H x 1.42”D (318 x 221 x 36 mm)
Weight Approx. 2.03 lbs (917g)
Operating Mode Buttons on panel and IR Remote
Environmental
Requirements
Operating temperature 0ºC ~ 40ºC (32ºF~104ºF)
Storage temperature -20ºC ~ 60ºC (-4ºF~140ºF)

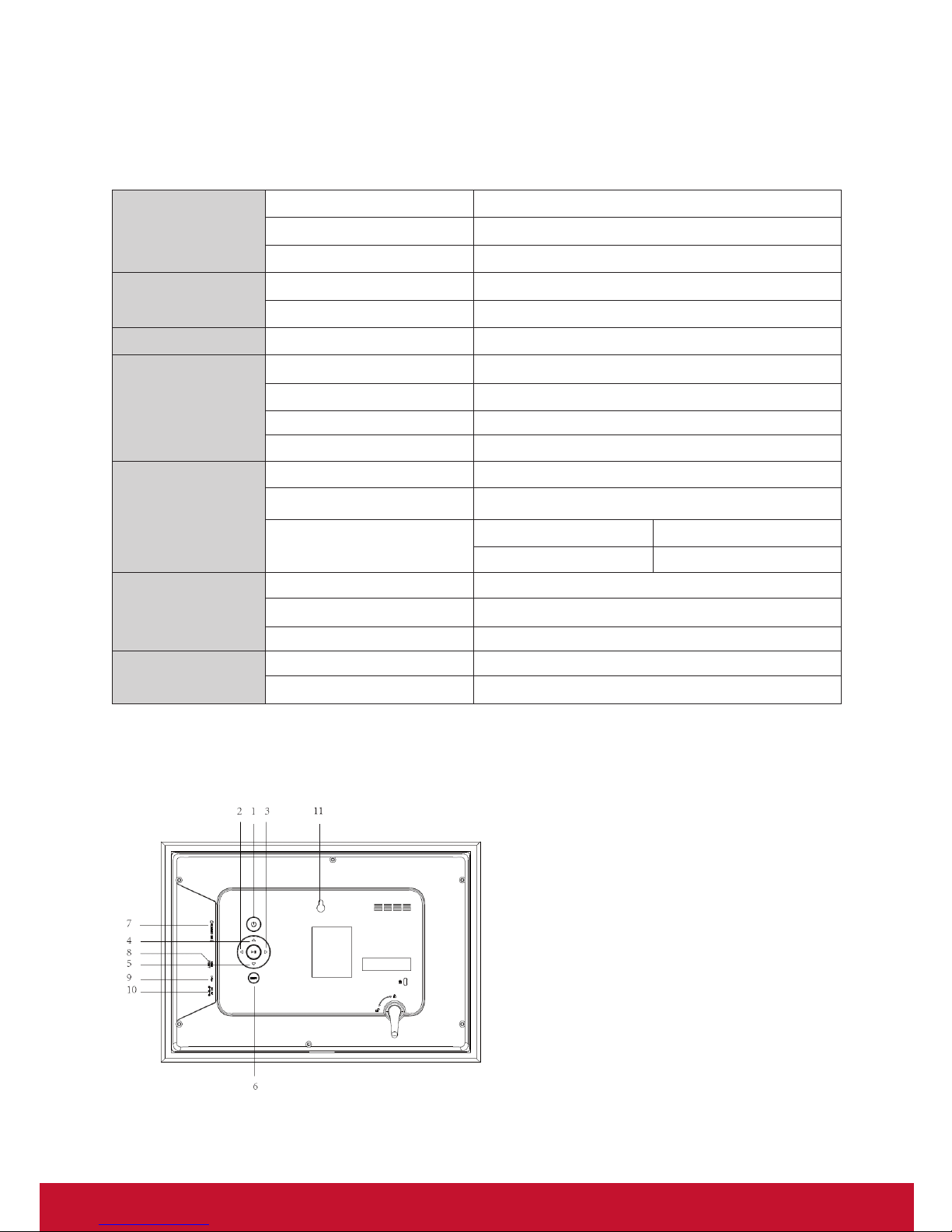

1.2. Identication of Controls
1. Power on/off
2. Right
3. Left
4. UP
5. DOWN
6. MENU
7. MMC/SD/MS
8. USB HOST
9. MINI USB
10.
DC IN
11. Wall mount hole
2
1.3. Accessories

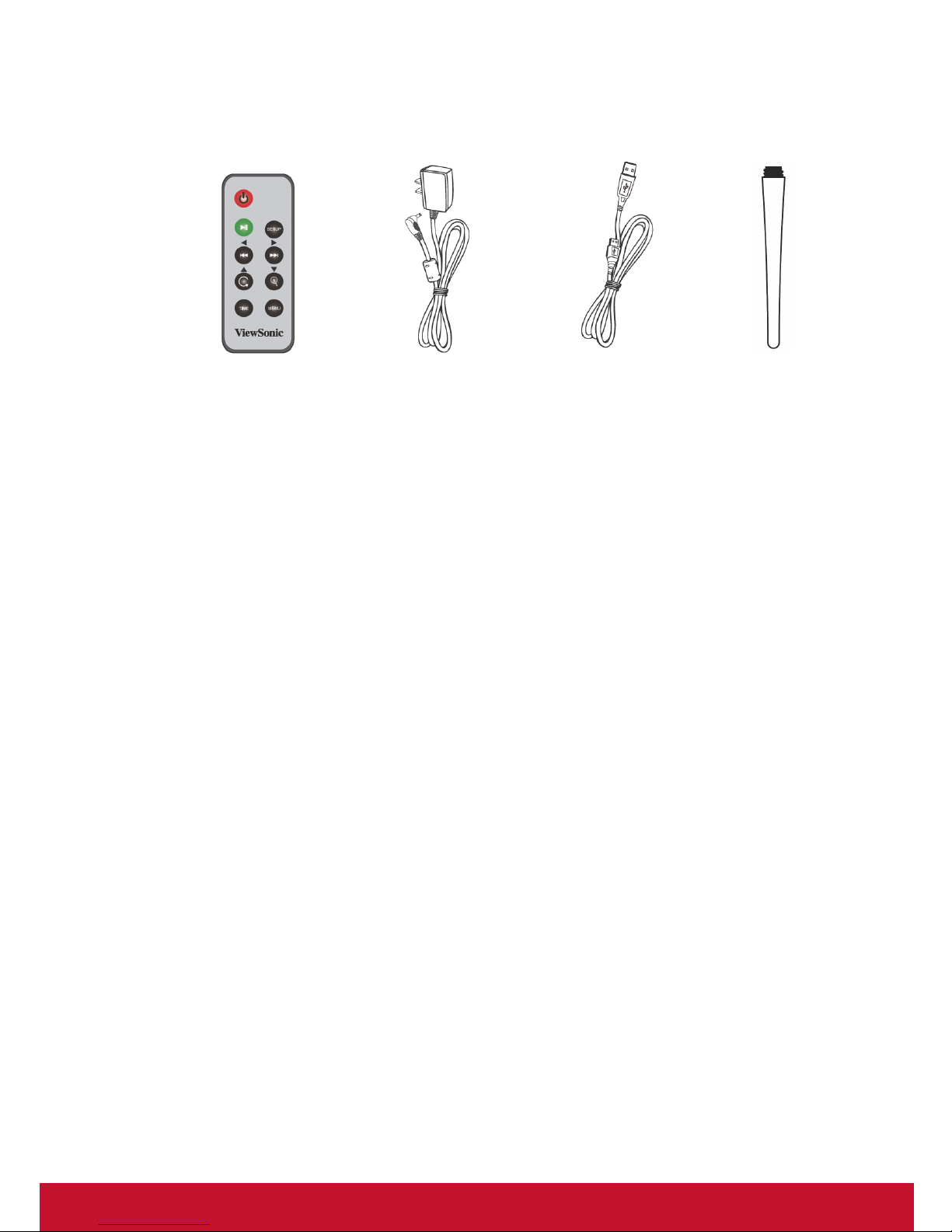

The following accessories are included with the digital photo frame.
Remote Control AC/DC Adapter USB Cable Stand
1.4. Features
• Remote control and hard keypad control.
• Playback of photo stored on data storage devices through
High-Speed USB 2.0 port, card-reader port or the built-in
memory.
• Data storage devices: USB disk, SD, MS, MMC card.
• Multi-language OSD supports: English, French, Spanish.
• File format: JPG, BMP.
• Photo Play Sequence: sequence, random.
• Automatic slideshow with multiple transition effects and
adjustable display time.
• Supports calendar.
• Has screen saver function.
• 10.1 inch TFT LCD display, brightness, contrast and
saturation adjustable.
• Add and delete image on built-in memory.
3
1.5. Features Checklist
VFD1078w
Remote control and keypad control √
SD/MS/MMC √
USB √
Photo √
10.1” TFT-LCD display √
Built-in memory √
Calendar √

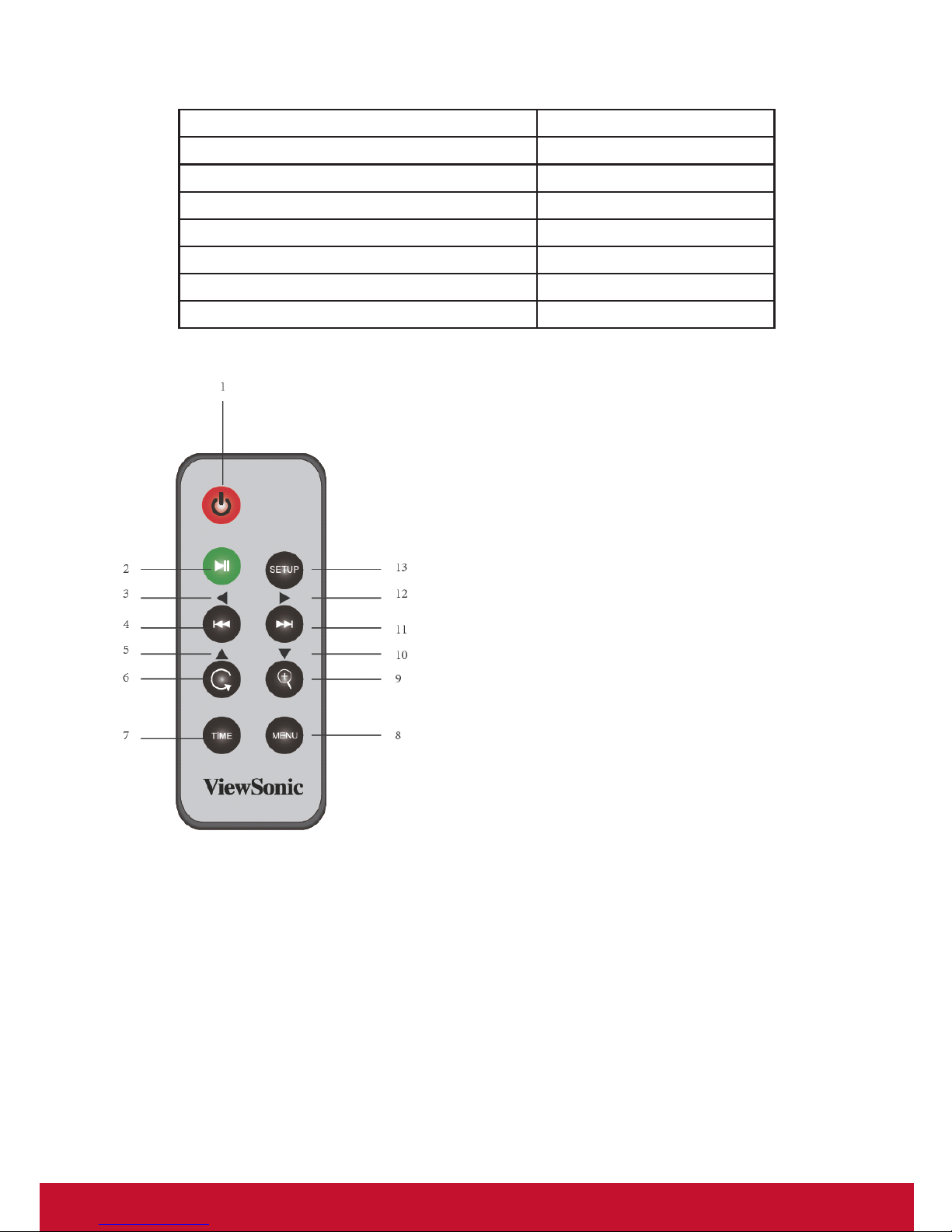

1.6. Remote control
1: Power on/off
2: Play/Pause/Enter
3/4: Left/Backward
5/6: Up/Return
7: Time
8: Menu
9/10: Zoom/Down
11/12: Forward/Right
13: Setup menu
4
2. Main function

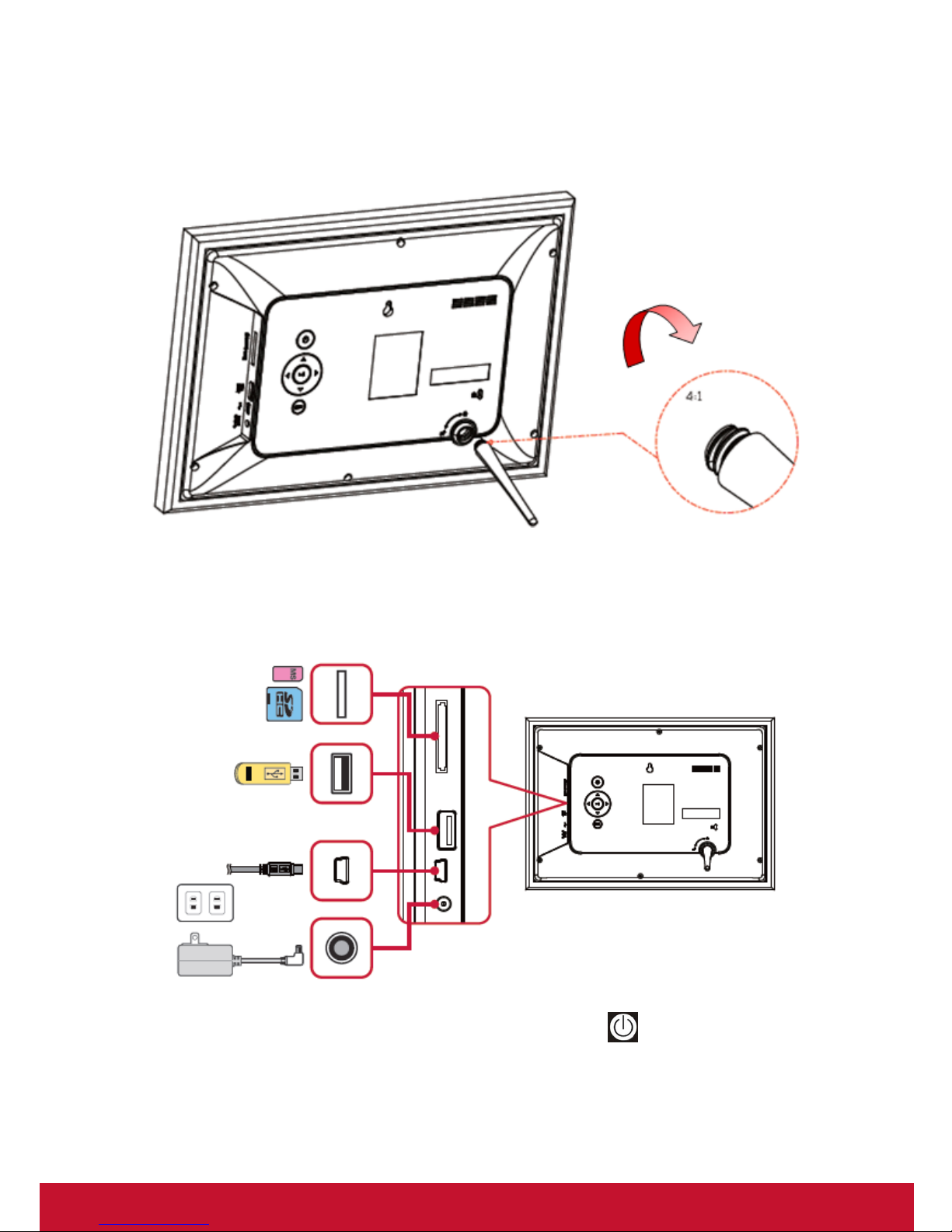

To attach the stand, screw in the stand clockwise until it is secure.
Insert an SD/SDHC/MMC or USB memory source device into an appropriate
memory slot. Connect the supplied power adapter to the photo frame and to an
electrical outlet.
The photo frame will power on automatically. Press “ ” to power on and off
manually.
Ce manuel convient aux modèles suivants
2
Table des matières
Autres manuels ViewSonic Cadre photo numérique
ViewSonic
ViewSonic VS12190 Manuel utilisateur
ViewSonic
ViewSonic 3DPF8 Manuel utilisateur
ViewSonic
ViewSonic VFD820-70 Manuel utilisateur
ViewSonic
ViewSonic VS12982 Manuel utilisateur
ViewSonic
ViewSonic VS13471 Manuel utilisateur
ViewSonic
ViewSonic DPG801BK Manuel utilisateur
ViewSonic
ViewSonic VFM1035-52 Manuel utilisateur
ViewSonic
ViewSonic VFD724w-11 Manuel utilisateur
ViewSonic
ViewSonic DPG807 Manuel utilisateur
ViewSonic
ViewSonic VFM886-50E Manuel utilisateur
ViewSonic
ViewSonic DP701W4 Manuel utilisateur
ViewSonic
ViewSonic VFD1027w-11 Manuel utilisateur
ViewSonic
ViewSonic DPX1002WD Manuel utilisateur
ViewSonic
ViewSonic VFA721w-50 Manuel utilisateur
ViewSonic
ViewSonic VFM1035-52 Manuel utilisateur
ViewSonic
ViewSonic VFD826-70 Manuel utilisateur
ViewSonic
ViewSonic VFD621w-70 Manuel utilisateur
ViewSonic
ViewSonic DPX704WH Manuel utilisateur
ViewSonic
ViewSonic DPG801BK Manuel utilisateur
ViewSonic
ViewSonic DPX802 Manuel utilisateur
Manuels Cadre photo numérique populaires d'autres marques
Philips
Philips SPF1327 Manuel utilisateur
Philips
Philips SPF7010/10 Manuel utilisateur
Digital Spectrum
Digital Spectrum MemoryVue MV-1500 Manuel utilisateur
YURAKU
YURAKU YUR.PHOTO 7B4C Manuel utilisateur
Denver
Denver PFF-710WHITE MK2 Manuel utilisateur
Pandigital
Pandigital PAN8000DWPCF1 Manuel utilisateur
