VB-WIFI-004
Wi-Fi Module
User Guide
Model No. VS19250
P/N: VB-WIFI-004
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic®Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box of our website.
2
Thank you for choosing ViewSonic®
As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding
the world’s expectations for technological evolution, innovation, and simplicity.
At ViewSonic®, we believe that our products have the potential to make a positive
impact in the world, and we are confident that the ViewSonic® product you have
chosen will serve you well.
Once again, thank you for choosing ViewSonic®!
33
Introduction ................................................................ 4
Overview.................................................................................................................4
Product.................................................................................................................... 4
I/O Port.................................................................................................................... 4
Initial Setup................................................................. 5
Installation..............................................................................................................5
Appendix..................................................................... 6
Specifications..........................................................................................................6
Regulatory and Service Information ............................ 7
Compliance Information.........................................................................................7
FCC Compliance Statement..................................................................................... 7
CE Conformity for European Countries ................................................................... 8
Declaration of RoHS2 Compliance........................................................................... 9
Indian Restriction of Hazardous Substances ......................................................... 10
Product Disposal at End of Product Life ................................................................ 10
Copyright Information ..........................................................................................11
Customer Service..................................................................................................12
Contents
4
Introducon

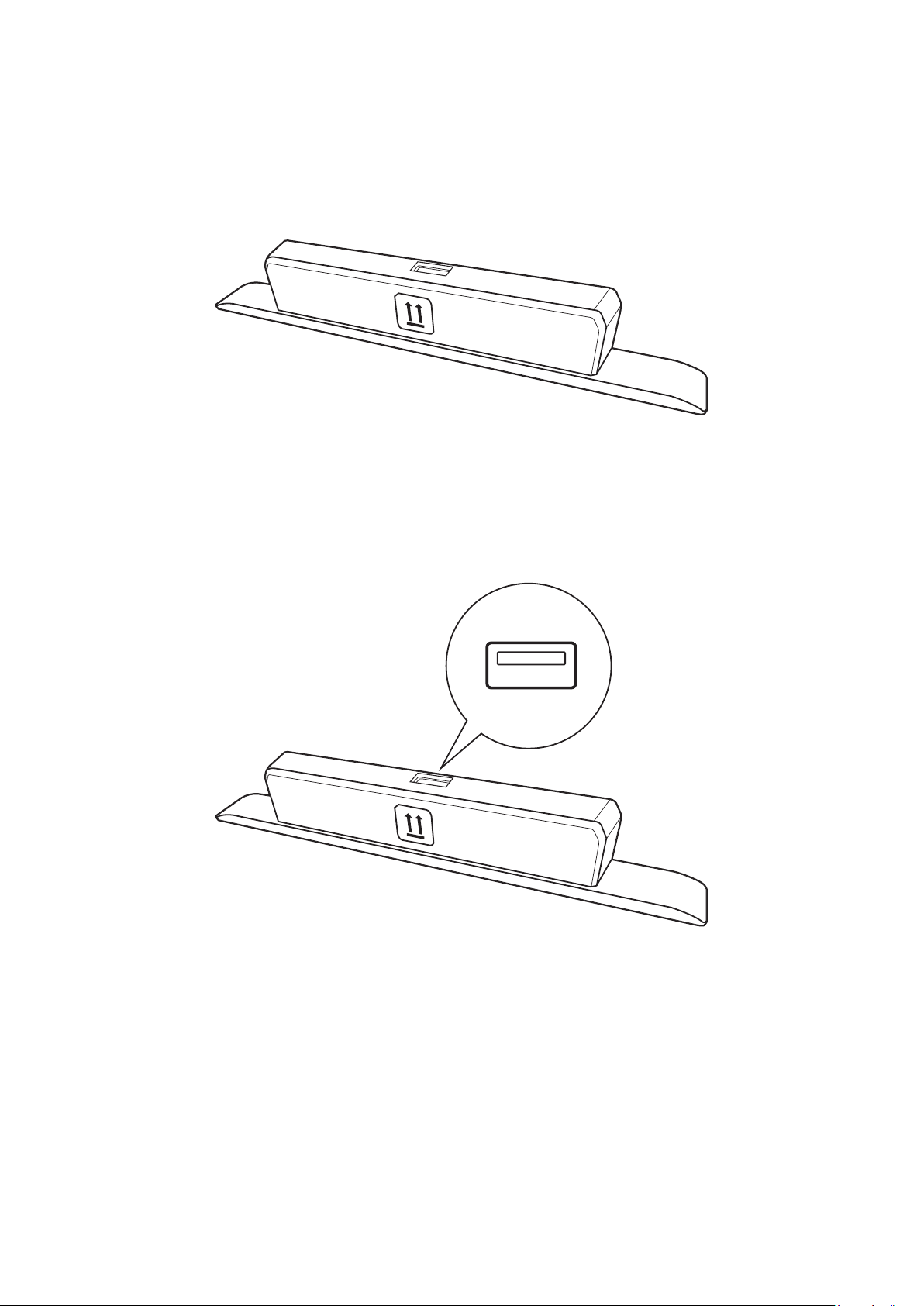

Overview
Product
I/O Port
USB A
5
Inial Setup
Installaon
1. Ensure the arrows on the module are facing outwards.
2. Insert the module into the display as shown in the diagram below.
6
Appendix
Specicaons
Item Specicaons
Dimensions
(W x H x D)
208 x 30 x 20 mm
(8.19 x 1.18 x 0.79 in)
Weight 0.85 kg (0.19 lb)
Operang Condion
0°C to 40°C (32°F to 104°F)
10% ~ 90% non-condensing
Storage Condion
-20°C to 60°C (-4°F to 140°F)
10% ~ 90% non-condensing
Antenna 1T1R dipole antenna
Wi-Fi Standard 802.11 a/b/g/n/ac/ax
Frequency 2.4/5G
Modulaon
11b: DBPSK, DQPSK and CCK, and DSSS
11a/g: BPSK, QPSK, 16QAM, 64QAM, and OFDM
11n: BPSK, QPSK, 16QAM, 64QAM, and OFDM
11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM, and OFDM
11ax: BPSK, QPSK, 16QAM, 64QAM, 256QAM, OFDM, and OFDMA
BT: FHSS, GFSK, DPSK, and DQPSK
Power 5V DC, 1000mA
7
Regulatory and Service Informaon
Compliance Informaon
This secon addresses all connected requirements and statements regarding
regulaons. Conrmed corresponding applicaons shall refer to nameplate labels
and relevant markings on the unit.
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operaon is subject to the following
two condions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may
cause undesired operaon. This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protecon against harmful
interference in a residenal installaon. This equipment generates, uses, and
can radiate radio frequency energy, and if not installed and used in accordance
with the instrucons, may cause harmful interference to radio communicaons.
However, there is no guarantee that interference will not occur in a parcular
installaon. If this equipment does cause harmful interference to radio or television
recepon, which can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separaon between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cauoned that changes or modicaons not expressly approved
by the party responsible for compliance could void your authority to operate the
equipment.
Industry Canada Statement
CAN ICES-003(B) / NMB-003(B)
FCC ID : 2AFG6-SI07B
IC : 22166-SI07B
8
CE Conformity for European Countries
The device complies with the EMC Direcve 2014/30/EU and Low Voltage
Direcve 2014/35/EU and Radio Equipment Direcve (RED) 2014/53/EU.
The full Declaraon of Conformity can be found at the following website:
hps://www.viewsonicglobal.com/public/products_download/safety_
compliance/acc/VB-WIFI-004_VS19250_CE_DOC.pdf
The following informaon is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical
and Electronic Equipment Directive 2012/19/EU (WEEE). The mark
indicates the requirement NOT to dispose of the equipment as unsorted
municipal waste, but use the return and collection systems according to
local law.
In all EU member states, operation of 5150-5350MHz is restricted to
indoor use only. This device should be installed and operated with a
minimum distance of 20cm between the radiator and your body.
9
Declaraon of RoHS2 Compliance
This product has been designed and manufactured in compliance with Direcve
2011/65/EU of the European Parliament and the Council on restricon of the use
of certain hazardous substances in electrical and electronic equipment (RoHS2
Direcve) and is deemed to comply with the maximum concentraon values issued
by the European Technical Adaptaon Commiee (TAC) as shown below:
Substance Proposed Maximum
Concentraon Actual Concentraon
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6⁺) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers
(PBDE) 0.1% < 0.1%
Bis(2-Ethylhexyl) phthalate
(DEHP) 0.1% < 0.1%
Benzyl butyl phthalate (BBP) 0.1% < 0.1%
Dibutyl phthalate (DBP) 0.1% < 0.1%
Diisobutyl phthalate (DIBP) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex
III of the RoHS2 Direcves as noted below. Examples of exempted components
are:
• Copper alloy containing up to 4% lead by weight.
• Lead in high melng temperature type solders (i.e. lead-based alloys containing
85% by weight or more lead).
• Electrical and electronic components containing lead in a glass or ceramic other
than dielectric ceramic in capacitors, e.g. piezoelectronic devices, or in a glass or
ceramic matrix compound.
• Lead in dielectric ceramic in capacitors for a rated voltage of 125V AC or 250V DC
or higher.
10
Indian Restricon of Hazardous Substances
Restricon on Hazardous Substances statement (India). This product complies
with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers in
concentraons exceeding 0.1 weight % and 0.01 weight % for cadmium, except for
the exempons set in Schedule 2 of the Rule.
Product Disposal at End of Product Life
ViewSonic® respects the environment and is commied to working and living
green. Thank you for being part of Smarter, Greener Compung. Please visit the
ViewSonic® website to learn more.
USA & Canada:
hps://www.viewsonic.com/us/go-green-with-viewsonic
Europe:
hps://www.viewsonic.com/eu/go-green-with-viewsonic
Taiwan:
hps://recycle.epa.gov.tw/
