Installation instructions

for contractors

VIESMANN

Vitocell 300-V/W

Type EVIA-A

DHW cylinder with internal indirect coil

160 to 500 l

VITOCELL 300-V/W

5791 762 GB 3/2017 Dispose after installation.

Please follow these safety instructions closely to

prevent accidents and material losses.

Safety instructions explained

Danger

This symbol warns against the risk of injury.

!Please note

This symbol warns against the risk of material

losses and environmental pollution.

Note

Details identified by the word "Note" contain additional

information.

Target group

These instructions are exclusively intended for quali-

fied contractors.

■Work on electrical equipment may only be carried

out by a qualified electrician.

Regulations to be observed

■National installation regulations

■Statutory regulations for the prevention of accidents

■Statutory regulations for environmental protection

■Codes of practice of the relevant trade associations

■All relevant safety regulations as defined by DIN, EN,

DVGW, VDE and locally applicable standards

aÖNORM, EN and ÖVE

cSEV, SUVA, SVTI, SWKI and SVGW

Working on the system

■Isolate the system from the power supply (e.g. by

removing the separate fuse or by means of a mains

isolator) and check that it is no longer live.

■Safeguard the system against reconnection.

■Wear protective clothing.

!Please note

Electronic assemblies can be damaged by elec-

trostatic discharge.

Prior to commencing any work, touch earthed

objects such as heating or water pipes to dis-

charge static loads.

Danger

Hot surfaces can cause burns.

■Before maintenance and service work, switch

OFF the appliance and let it cool down.

■Never touch the hot surfaces of uninsulated

pipes and fittings.

Repair work

!Please note

Repairing components that fulfil a safety func-

tion can compromise the safe operation of the

system.

Replace faulty components only with genuine

Viessmann spare parts.

Safety instructions

5791 762 GB

1. Information Disposal of packaging ............................................................................ 4

Symbols ................................................................................................. 4

Intended use .......................................................................................... 5

Product information ................................................................................ 5

2. Preparing for installation Connections ........................................................................................... 6

Information on transport and siting ........................................................ 6

■300 and 500 l capacity: Setting up the DHW cylinder with immersion

heater ................................................................................................. 7

3. Installation sequence 160, 200, 300 l capacity ......................................................................... 8

■Installing the temperature controller sensor ....................................... 8

Affixing the type plate ............................................................................ 9

300 l capacity ......................................................................................... 9

■Installing the sensor well and the cylinder temperature sensor .......... 9

■Fitting the flange cover ....................................................................... 10

500 l capacity ......................................................................................... 11

■Siting the DHW cylinder and fitting the thermal insulation mat at the

bottom ................................................................................................. 11

■Fitting the thermometer sensor (if supplied) and cylinder tempera-

ture sensor .......................................................................................... 12

■Fitting the thermal insulation jacket .................................................... 13

■Fitting the cover strips ........................................................................ 14

■Fitting the cover .................................................................................. 15

Connections on the heating water side .................................................. 15

Connections on the DHW side ............................................................... 16

■Safety valve ........................................................................................ 17

■Connecting the DHW circulation pipe for cylinder banks .................... 17

Connecting the equipotential bonding ................................................... 19

Commissioning ...................................................................................... 19

4. Specification ................................................................................................................ 20

Index

5791 762 GB

Please dispose of packaging waste in line with statu-

tory regulations.

DE: Use the disposal system organised by

Viessmann.

AT: Use the ARA statutory disposal system (Altstoff

Recycling Austria AG, licence number 5766).

CH: Packaging waste is disposed of by the HVAC

contractor.

Symbols

Symbol Meaning

Reference to other document containing

further information

Step in a diagram:

The numbers correspond to the order in

which the steps are carried out.

Warning of material losses and environ-

mental pollution

Live electrical area

Pay particular attention.

■Component must audibly click into place.

■Acoustic signal

■Fit new component.

■In conjunction with a tool: Clean the sur-

face.

Dispose of component correctly.

Dispose of component at a suitable collec-

tion point. Do not dispose of component in

domestic waste.

Disposal of packaging

5791 762 GB

The appliance is only intended to be installed and

operated in sealed unvented systems that comply with

EN 12828 / DIN 1988, or solar thermal systems that

comply with EN 12977, with due attention paid to the

associated installation, service and operating instruc-

tions. DHW cylinders are only designed to store and

heat water of potable water quality. Heating water buf-

fer cylinders are only designed to hold fill water of pot-

able water quality. Only operate solar collectors with

the heat transfer medium approved by the manufac-

turer.

Intended use presupposes that a fixed installation in

conjunction with permissible, system-specific compo-

nents has been carried out.

Commercial or industrial usage for a purpose other

than heating the building or DHW shall be deemed

inappropriate.

Any usage beyond this must be approved by the man-

ufacturer for the individual case.

Incorrect usage or operation of the appliance (e.g. the

appliance being opened by the system user) is prohibi-

ted and results in an exclusion of liability.

Incorrect usage also occurs if the components in the

system are modified from their intended use (e.g.

through direct DHW heating in the collector).

Adhere to statutory regulations, especially concerning

the hygiene of potable water.

Product information

Stainless steel DHW cylinder with internal indirect coil

for DHW heating in conjunction with floorstanding and

wall mounted boilers.

■Capacity: 160, 200, 300 and 500 l

■300 and 500 l: An immersion heater can be used.

■Suitable for systems conforming to DIN 1988,

EN 12828 and DIN 4753

Intended use

5791 762 GB

Fig. 1 160, 200, 300 litres

ACylinder temperature sensor (160 and 200 l, below

the thermal insulation)

BHigh limit safety cut-out (below the thermal insula-

tion)

CDHW

DDHW circulation

ECylinder temperature sensor or temperature con-

troller (300 l)

FHeating water flow

GHeating water return

HCold water

Fig. 2 500 litres

ADHW

BDHW circulation

CClamp (behind the thermal insulation) for cylinder

temperature sensor or temperature controller

DHeating water flow

EHeating water return

FCold water

Information on transport and siting

Note

■Use a transport aid (accessories).

■Transport the appliance with a sufficient number of

persons. Note the weight of the cylinder (see

page 20).

!Please note

To prevent material losses, install the DHW cyl-

inder in a room free from draughts and risk of

frost.

When not in use, the DHW cylinder must be

drained if there is a risk of frost.

!Please note

The thermal insulation must not come into con-

tact with naked flames.

Exercise caution when welding and brazing.

■Minimum wall clearance: 500 mm.

■Provide adequate clearance from the wall to allow for

operation of the temperature controller (if installed).

■Use the adjustable feet to level the DHW cylinder.

Note

Never extend the adjustable feet beyond a total length

of 35 mm.

Connections

5791 762 GB

300 and 500 l capacity: Setting up the DHW cylinder with immersion heater

Fig. 3

Immersion heater installation instructions

Maintain the minimum clearance.

Cylinder capacity Dim. a

300 l 730 mm

500 l 670 mm

Note

The unheated length of any threaded immersion

heater installed on site must be at least 100 mm.

Information on transport and siting (cont.)

5791 762 GB

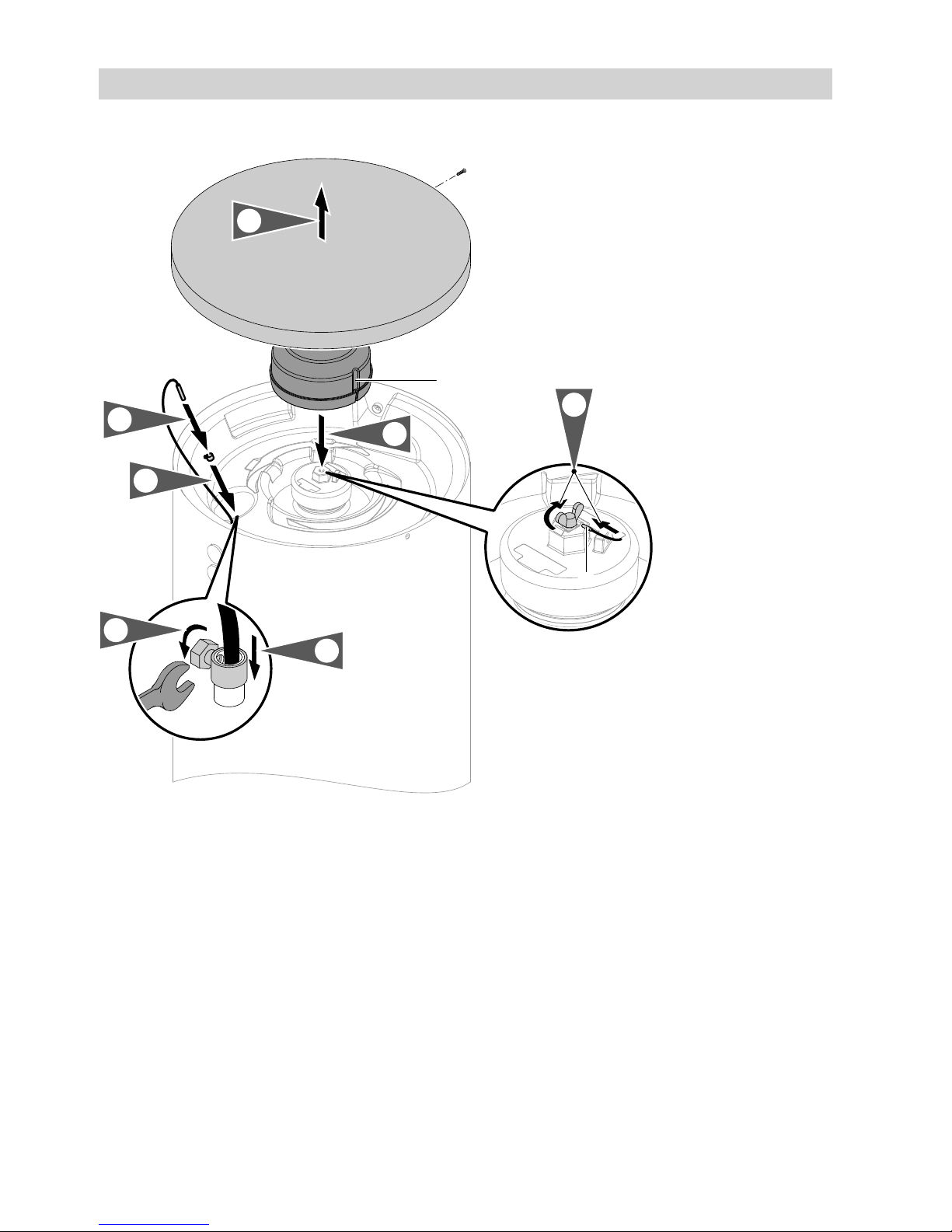

Installing the temperature controller sensor

Fig. 4

Note for cylinders with 300 l capacity

Following step 1, remove the parts for flange cover

installation.

Note on steps 2 to 5

For 160 and 200 l capacities only.

Note on step 6

If a high limit safety cut-out is installed:

■Cut out opening A on flange insulation.

■Push high limit safety cut-out sensor B into clamp-

ing bracket, and secure with wing screw.

160, 200, 300 l capacity

5791 762 GB

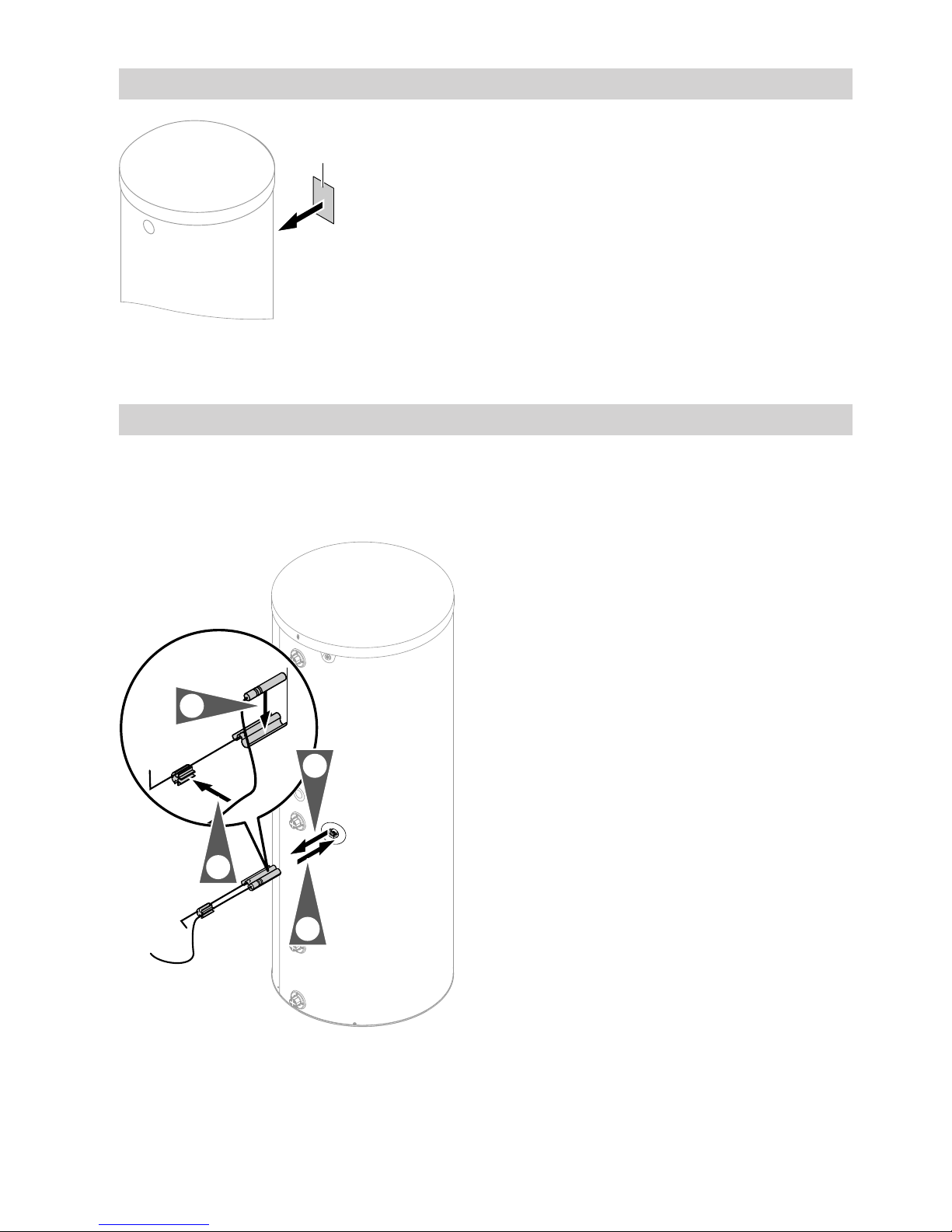

Fig. 5

AType plate

300 l capacity

Installing the sensor well and the cylinder temperature sensor

Note

The sensor retainer is in the sensor well.

Fig. 6

1. Extract the sensor retainer.

2. Fit the sensor to the outside of the sensor retainer

contact spring (not in the groove).

Note

■The sensor must sit flush with the front of the

spring.

■Never wrap insulating tape around the sensor.

3. Insert the sensor retainer with sensor into the sen-

sor well as far as it will go.

Affixing the type plate

5791 762 GB

Fitting the flange cover

Fig. 7

300 l capacity (cont.)

5791 762 GB

Autres manuels pour VITOCELL 300W

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Viessmann Chaudière

Viessmann

Viessmann Vitola 200 Manuel utilisateur

Viessmann

Viessmann VITOCROSSAL 300 Mode d'emploi

Viessmann

Viessmann VITOROND 200 Manuel d'utilisation original

Viessmann

Viessmann VITOFLEX 300-UF Manuel d'instructions

Viessmann

Viessmann VITOROND 200 Manuel

Viessmann

Viessmann Vitodens 100-W B1HA Manuel d'instructions

Viessmann

Viessmann Vitodens 100-W WB1B Series Guide rapide

Viessmann

Viessmann Vitodens 200-W System Guide rapide

Viessmann

Viessmann VITOCROSSAL 300 Manuel utilisateur

Viessmann

Viessmann VITOCROSSAL 300 Mode d'emploi

Viessmann

Viessmann VITOCROSSAL 200 Manuel utilisateur

Viessmann

Viessmann Vitodens 111-W Guide rapide

Viessmann

Viessmann VITOCROSSAL 300 Manuel utilisateur

Viessmann

Viessmann Vitorond 100 Manuel utilisateur

Viessmann

Viessmann Vitodens 200-W System Manuel utilisateur

Viessmann

Viessmann Vitodens 200-W System Mode d'emploi

Viessmann

Viessmann Vitodens 100-W B1HA 26Vitodens 100-W B1HA 35Vitodens 100-W B1KA... Guide rapide

Viessmann

Viessmann Vitotronic 300 KW3 Manuel utilisateur

Viessmann

Viessmann Vitodens 100-W Manuel utilisateur

Viessmann

Viessmann VITODENS 200-W B2HA 150 Mode d'emploi

Viessmann

Viessmann VITODENS 333 Mode d'emploi

Viessmann

Viessmann VITODENS 200 WB2 Series Manuel utilisateur

Viessmann

Viessmann Vitodens 100 Manuel utilisateur

Viessmann

Viessmann VITOPLEX 100?LS Manuel utilisateur

Manuels Chaudière populaires d'autres marques

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Manuel utilisateur

Radijator

Radijator BIO max 23.1 Manuel utilisateur

Brunner

Brunner BSV 20 Manuel utilisateur

Buderus

Buderus Logamax GB062-24 KDE H V2 Manuel utilisateur

Potterton

Potterton 50e Fiche technique

UTICA BOILERS

UTICA BOILERS TriFire Manuel utilisateur

Joannes

Joannes LADY Series Manuel

ECR International

ECR International UB90-125 Manuel d'instructions

Froling

Froling FHG Turbo 3000 Manuel utilisateur

Froling

Froling P4 Pellet 8 - 105 Manuel utilisateur

U.S. Boiler Company

U.S. Boiler Company K2 Manuel utilisateur

Henrad

Henrad C95 FF Manuel utilisateur

NeOvo

NeOvo EcoNox EF 36 Manuel utilisateur

Potterton

Potterton PROMAX SL 12 Manuel utilisateur

Eco Hometec

Eco Hometec EC 25 COMPACT Manuel utilisateur

Baxi

Baxi Prime 1.24 Manuel utilisateur

REXNOVA

REXNOVA ISA 20 BITHERMAL Manuel utilisateur

Radiant

Radiant R2K 55 Manuel
