Videotec UCCMA Manuel utilisateur
EN English - Instructions manual
IT Italiano - Manuale di istruzioni
FR Français - Manuel d'instructions
DE Deutsch - Bedienungslanleitung
UCCMA
Ceiling bracket mount for upside down working of ULISSE COMPACT
EN - English - Instructions manual
1
EN
UCCMA
Ceiling bracket mount for upside down working of ULISSE COMPACT
3 Safety rules
The manufacturer declines all responsibility
for any damage caused by an improper use
of the appliances mentioned in this manual.
Furthermore, the manufacturer reserves
the right to modify its contents without any
prior notice. The documentation contained
in this manual has been collected with great
care, the manufacturer, however, cannot
take any liability for its use. The same thing
can be said for any person or company
involved in the creation and production of
this manual.
• The device must be installed only and exclusively
by qualified technical personnel.
• Before any technical work on the appliance,
disconnect the power supply.
• Do not use power supply cables that seem worn
or old.
• Never, under any circumstances, make any
changes or connections that are not shown in
this handbook: improper use of the appliance
can cause serious hazards, risking the safety of
personnel and of the installation.
• Use only original spare parts. Not original spare
parts could cause fire, electrical discharge or other
hazards.
• Before proceeding with installation check the
supplied material to make sure it corresponds
to the order specification by examining the
identification labels ("4.2 Product markings", page 1).
4 Identification
4.1 Product description and type
designation
Ceiling bracket mount for upside down working of
ULISSE COMPACT.
4.2 Product markings
See the label attached to the outside of the package.
1 About this manual
Before installing and using this unit, please read this
manual carefully. Be sure to keep it handy for later
reference.
1.1 Typographical conventions
DANGER!
High level hazard.
Risk of electric shock. Disconnect the
power supply before proceeding with any
operation, unless indicated otherwise.
WARNING!
Medium level hazard.
This operation is very important for the
system to function properly. Please read
the procedure described very carefully and
carry it out as instructed.
INFO
Description of system specifications.
We recommend reading this part carefully
in order to understand the subsequent
stages.
2 Notes on copyright and
information on trademarks
The quoted names of products or companies are
trademarks or registered trademarks.
ENGLISH
EN - English - Instructions manual
2
6 Assembling and
installing
Only specialised personnel should be
allowed to assemble and install the device.
6.1 Installation
6.1.1 Brackets and pan & tilt
installation
If the appliance must be fixed to a concrete
surface, plugs must be used with minimum
tractive force of 300 daN each. If the
surface is in metal, use screws with a
minimum diameter equal to 8mm and with
appropriate length.
Fix the upper bracket to the ceiling, centring it with
respect to the cable that must escape from the ceiling
by 1m.
Fig. 01
Fix the base of ULISSE COMPACT onto the lower
bracket adding Loctite 238 or equivalent.
Respect the orientation
visible in figure.
Fig. 02
5 Preparing the product
for use
Any change that is not expressly approved
by the manufacturer will invalidate the
guarantee.
5.1 Contents and unpacking
When the product is delivered, make sure that the
package is intact and that there are no signs that it
has been dropped or scratched.
If there are obvious signs of damage, contact the
supplier immediately.
Keep the packaging in case you need to send the
product for repairs.
Check the contents to make sure they correspond
with the list of materials as below:
• Upper bracket
• Lower bracket
• Covered steel cables
• Snap hook
• Eye-bolt
• Hook bolt
• Chain
• Sunshield
• Brackets for sunshield
• Equipment
• Instructions manual
5.2 Safely disposing of
packaging material
The packaging material can all be recycled. The
installer technician will be responsible for separating
the material for disposal, and in any case for
compliance with the legislation in force where the
device is to be used.
Bear in mind that if the material has to be returned
due to a fault, using the original packaging for its
transport is strongly recommended.
EN - English - Instructions manual
3
Insert the snap hook at the other end of the chain.
Insert the snap hook in the seat of the upper bracket.
Fig. 06
Fig. 07
The configuration in the figure is thus obtained.
Fig. 08
Fix the eye-bolt to the base using the hole in the
lower bracket, positioning the split washer and
adding Loctite 238 or equivalent.
Fig. 03
Insert one end of the chain into the hook bolt hole
and then the eye-bolt, position the notched washer
and Loctite 238 or equivalent.
Fig. 04
Fig. 05
EN - English - Instructions manual
4
Half way along the length of the chain, insert the
supplied cable for wiring recovery, making it pass
through the 2 holes in the bracket.
Fig. 12
Turn the lower bracket overmaking it turn as in the
figure.
Fig. 13
Fig. 14

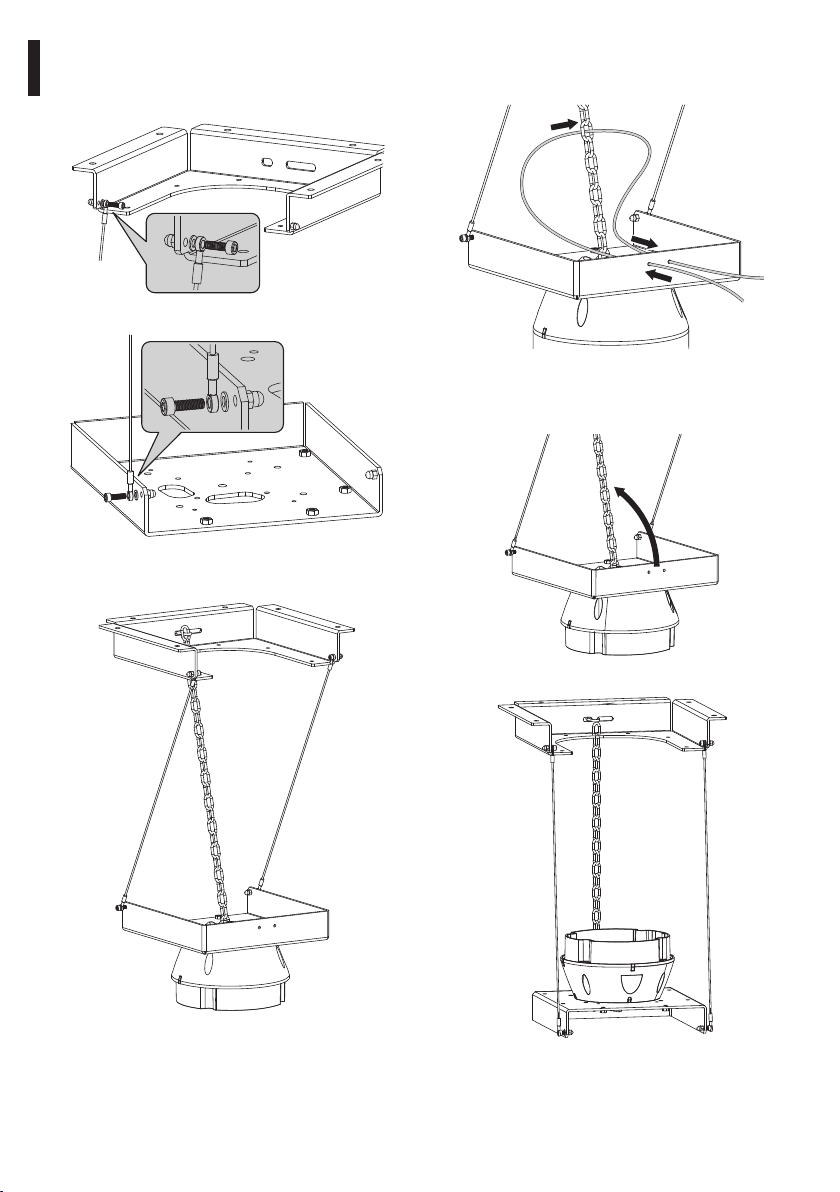

Connect the steel cables to the lower and upper
brackets as indicated in the following figures,
tightening with Loctite 238 (or equivalent). Fasten
with tightening torque of 4Nm.
Fig. 09
Fig. 10
The configuration in the figure is thus obtained.
Fig. 11
EN - English - Instructions manual
5
Fix the body to the base using the 4 screws and
washers. Fasten with tightening torque of 4Nm.
Fig. 17
Overturn the entire pan & tilt, making it rotate.
Fig. 18
Fig. 19
Pass the power supply and signal cables through the
cable glands on the base. Use the clips supplied to
fix the cables to the chain, but do not tighten it fully
home (the cable must be able to run inside).
Fig. 15
Wire the base (see ULISSE COMPACT manual). Tighten
the cable glands to the torque of 5Nm.
Now mount hte body of ULISSE COMPACT onto the
base, making sure that the 3 reference notches are
aligned to each other.
Fig. 16
EN - English - Instructions manual
6
Fix the lower bracket to the upper one using the 6
screws and washers; add Loctite 238 threadlocks or
equivalent.
Fig. 23
6.1.2 Fixing the sunshield
Remove the sunshield from the casing.
Fig. 24
Fix the two brackets to the case.
Fig. 25
Grip the pan & tilt with two hands in the area around
the base.
Fig. 20
Insert the lower bracket into the upper one as in the
figure.
Fig. 21
Recover the cables before pushing the lower bracket
completely into the upper bracket.
Fig. 22
During this phase, prevent that chain and
cables remaining entangled between the
two brackets.
EN - English - Instructions manual
7
7 Disposal of waste
materials
This symbol mark and recycle system
are applied only to EU countries and not
applied to the countries in the other area of
the world.
Your product is designed and manufactured with
high quality materials and components which can be
recycled and reused.
This symbol means that electrical and electronic
equipment, at their end-of-life, should be disposed of
separately from your household waste.
Please dispose of this equipment at your local
Community waste collection or Recycling centre.
In the European Union there are separate collection
systems for used electrical and electronic products.
8 Technical data
8.1 General
Bracket built in 4mm thick sheet steel and painted with
epoxypolyester powder, stainless steel 316L safety chain
8.2 Mechanical
Dimensions (WxHxL): 345x290x60mm (13.6x11.5x2.4in)
Unit Weight: 7kg
8.3 Environment
Indoor / Outdoor
Fix the sunshield as in the image.
Fig. 26
Fig. 27
Fig. 28
IT - Italiano - Manuale di istruzioni
1
IT
ITALIANO
UCCMA
Supporto montaggio a soffitto per il funzionamento capovolto di ULISSE COMPACT
3 Norme di sicurezza
Il produttore declina ogni responsabilità
per eventuali danni derivanti da un
uso improprio delle apparecchiature
menzionate in questo manuale. Si
riserva inoltre il diritto di modificarne il
contenuto senza preavviso. Ogni cura è
stata posta nella raccolta e nella verifica
della documentazione contenuta in questo
manuale, tuttavia il produttore non può
assumersi alcuna responsabilità derivante
dall'utilizzo della stessa. Lo stesso dicasi
per ogni persona o società coinvolta nella
creazione e nella produzione di questo
manuale.
• L'installazione e la manutenzione del dispositivo
deve essere eseguita solo da personale tecnico
qualificato.
• Prima di effettuare interventi tecnici
sull'apparecchio togliere l'alimentazione elettrica.
• Non utilizzare cavi di alimentazione con segni di
usura o invecchiamento.
• Non effettuare per nessun motivo alterazioni o
collegamenti non previsti in questo manuale:
l'uso di apparecchi non idonei può portare a
gravi pericoli per la sicurezza del personale e
dell'impianto.
• Utilizzare solo parti di ricambio originali. Pezzi di
ricambio non originali potrebbero causare incendi,
scariche elettriche o altri pericoli.
• Prima di procedere con l'installazione controllare
che il materiale fornito corrisponda alle specifiche
richieste esaminando le etichette di marcatura ("4.2
Marcatura del prodotto", pagina 1).
4 Identificazione
4.1 Descrizione e designazione
del prodotto
Supporto montaggio a soffitto per il funzionamento
capovolto di ULISSE COMPACT.
4.2 Marcatura del prodotto
Vedere l’etichetta posta sull’esterno dell’imballo.
1 Informazioni sul presente
manuale
Prima di installare e utilizzare questa unità, leggere
attentamente questo manuale. Conservare questo
manuale a portata di mano come riferimento futuro.
1.1 Convenzioni tipografiche
PERICOLO!
Pericolosità elevata.
Rischio di scosse elettriche. Togliere
l'alimentazione prima di procedere con le
operazioni, salvo diversa indicazione.
ATTENZIONE!
Pericolosità media.
L'operazione è molto importante per il
corretto funzionamento del sistema. Si
prega di leggere attentamente la procedura
indicata e di eseguirla secondo le modalità
previste.
INFO
Descrizione delle caratteristiche del
sistema.
Si consiglia di leggere attentamente per
comprendere le fasi successive.
2 Note sul copyright e
informazioni sui marchi
commerciali
I nomi di prodotto o di aziende citati sono marchi
commerciali o marchi commerciali registrati
appartenenti alle rispettive società.
