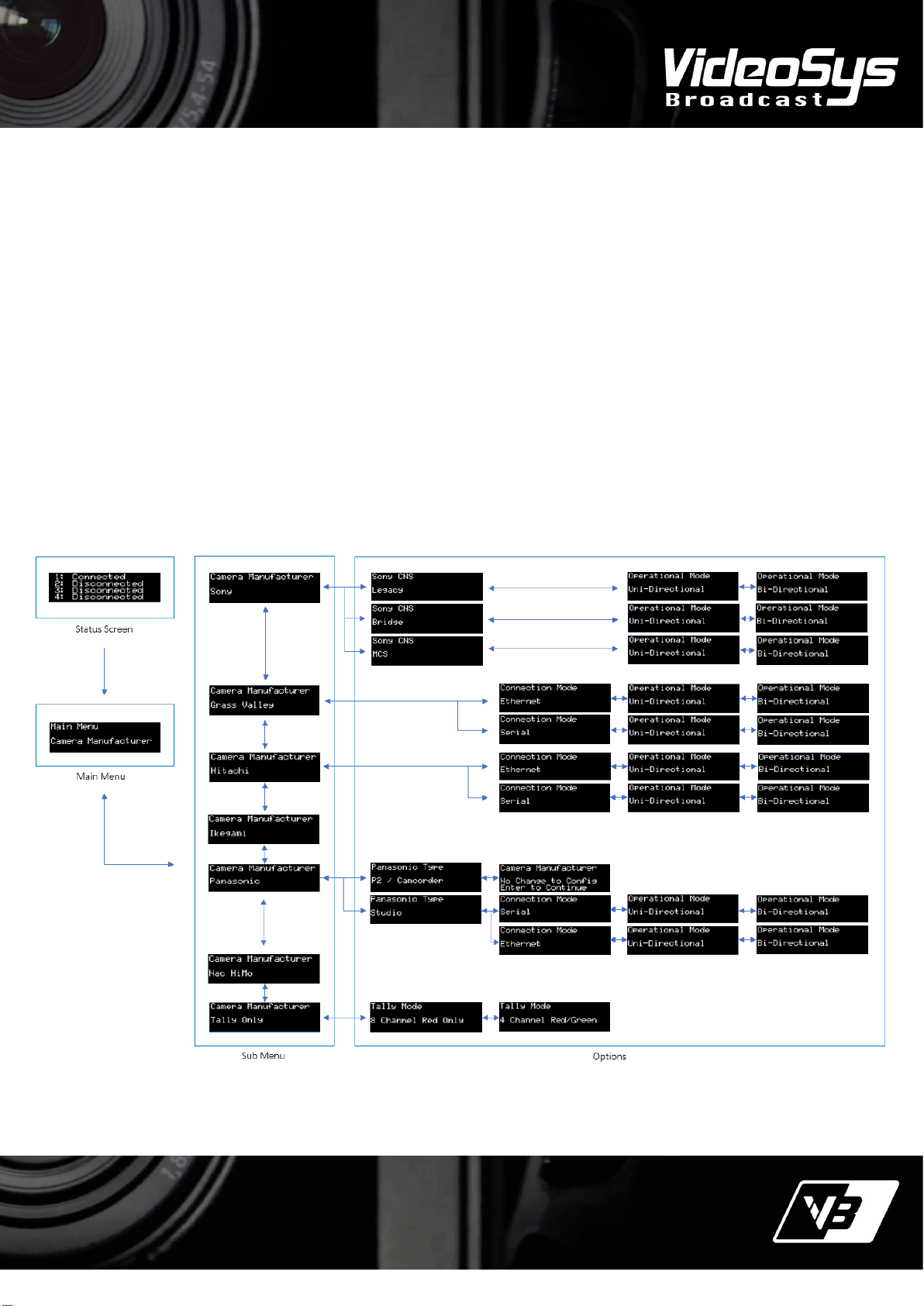

Each screen has a number of possible states, reported as follows:
Home Status
•Not Ready - At least one of the four data paths are not currently connected or configured correctly.
•Sync - All four data paths are connected, but Panel and Camera are still initialising.
•Active - The system is initialised and operational.
Return Link Status
•Return Not OK - No valid data is being received on the return port. Check connections and settings from RX
all the way through to the IDU.
•Return ID?? - Valid data is coming through however the Camera ID being returned from the RX does not
match the Channel number on the IDU.
•Return OK - The IDU is receiving good return data from the RX.
Forward Link Status
•Forward?? - The state of the forward link cannot be determined as the return path is not correct.
•Forward Not OK - Forward link is known to not be OK. Check connections from the IDU to the ODU and
camera control radio frequencies.
•Forward OK - Both Return and Forward links are both OK. The Bi-Directional link is established.
Panel Connection Status
•Panel?? - Status of the connection to the panel cannot be determined. This could be due to the “BiDi Panel
Drop” option being enabled.
•Panel Not Ok - Connection to the panel is not established.
•Panel Sync - Connection to the panel is established, but not yet initialised.
•Panel OK - Connection is OK and ready to be used by an operator.
Camera Connection Status
•Camera?? - The status of the connection to the camera cannot be determined. This is likely to be due to the
Bi-Directional link not being established.
•Camera Type? - RX has an invalid camera type selected.
•Camera Not OK - Connection between the RX and the camera is not established.
•Camera Sync - Connection to the camera is established, but not yet initialised.
•Camera OK - Connection is OK and ready to be used by an operator.
For a full description of BiDi setup please consult the BiDi Quick Start guide available on our website
www.Videosys.tv.
