Viconics VT8000 Series Manuel utilisateur

Pairing VT8000 Series Room Controllers

with ZigBee Sensors

Installation Guide and Procedure

Commercial and Hotel/Lodging HVAC Fan Coil Applications

Viconics Technologies Inc.

028-0450-00 November 2014

VT8000 Series

2ZigBee Pairing Procedure

Quick setup

The quick set-up assumes all back-end conﬁgurations of the stand alone Room Controller acting as coordinator or the Multi-Purpose

Manager (MPM) coordinator for the ZigBee network have already been done. It also assumes the user is familiar with the Permit Join

function and the Wireless Ecosystem screen functions.

PROCEDURE

1. Set Permit Join on your Room Controller (or networked MPM coordinator if used) to On.

2. Go to ﬁrst unused Zone screen in Wireless Ecosystem section of Room Controller’s interface.

3. Insert battery or remove pull tab (for contact sensors) to activate ZigBee sensor.

4. Verify sensor has joined network, and that on Zone screen the Paired ﬁeld status reads Yes.

5. Set the Set function to parameter to the correct setting.

6. Set Permit Join on your Room Controller (or networked MPM coordinator if used) to Off.

7. Conditional to use of door or window contact sensors:

a) Go to ﬁrst screen in Conﬁguration section of interface.

b) For window sensor, set UI16 to Window.

c) For door sensor, set UI17 to Door Dry.

8. Physically install the sensor.

TROUBLESHOOTING

If the short procedure described here is insufﬁcient or an MPM or Room Controller needs to be conﬁgured, refer to the full procedure

described later in this document.

VT8000 Series 3

ZigBee Pairing Procedure

Viconics Technologies Inc.

028-0450-00 November 2014

Overview

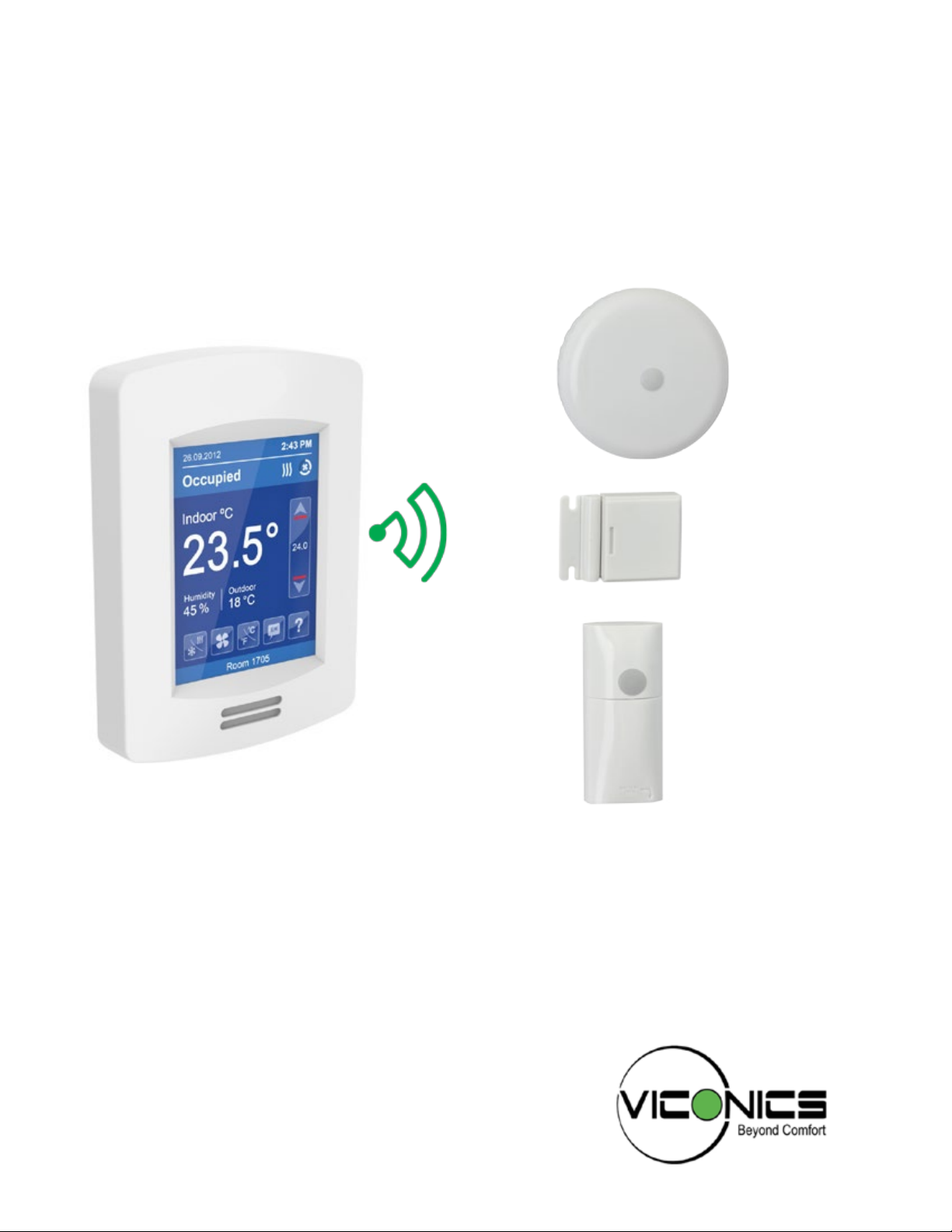

This procedure shows you how to pair an VT8000 Series Room Controller with one of the following ZigBee Sensors:

•Ceiling Mounted Sensor

•Door/Window Mounted Sensor

•Motion Sensor

The ZigBee Sensors can be paired with a stand-alone Room Controller, or with a Room Controller as part of a network. However, when

pairing a ZigBee Sensor with a Room Controller on a network, the Room Controller must ﬁrst be bound to a StruxureWare Lite

Multi-Purpose Manager.

You can pair up to 10 ZigBee Sensors per Room Controller. Each MPM can connect wirelessly with up to 30 ZigBee enabled devices

such as Room Controllers.

SETTINGS

You must correctly set the following parameters to successfully pair a ZigBee Sensor with a Room Controller:

•PAN ID to value less than 499 if Room Controller is to be bound to a MPM.

•PAN ID to value greater than or equal to 500 if the Room Controller is stand-alone.

•PAN ID parameter in Building Expert set to the same value as in the Room Controller.

•Permit join set to ON in Building Expert and Room Controller and then set to OFF in Building Expert and the Room Controller after a

successful pairing.

INSTALLATION STEPS

Perform the following steps to successfully pair the ZigBee Sensor to the Room Controller:

1. Bind the Room Controller to the MPM.

2. Set the parameters for the MPM.

3. Set Permit Join to On in the Room Controller and MPM

4. Pair the Sensor with the Room Controller

5. Install the Sensor at the selected location (see Installation Guide).

Viconics Technologies Inc.

028-0450-00 November 2014

VT8000 Series

4ZigBee Pairing Procedure

Bind Room Controller to MPM

This procedure shows you how to bind a Room Controller to a MPM using Building Expert.

CONFIGURE VT8000 SERIES

1. In the center of the top of the screen, touch and hold this point for 3 seconds to enter setup mode.

2. Select Network.

3. Select COM address.

•Using the up/down arrow icons, enter the COM address value.

•This should be unique to the device for networked installations.

4. Select ZigBee pan. ID.

•Using the up/down arrows, enter the ZigBee pan. ID value.

•This value should be 499 or less if the Room Controller is to be part of a network of Room Controllers, and 500 or greater if the

Room Controller will be stand-alone.

5. Select ZigBee channel.

6. Using the up/down arrows, enter the channel number.

7. Select the Back to Setup icon

1/2 Setup

Network

Configuration

Setpoints - Display

Service view

Test outputs

Language selection

page

Back to

Setup

Change

value

Com address

ZigBee Pan ID

1/2 ZigBee Network

ZigBee channel

0x0000

ZigBee short

0x0000

IEEE address

No NWK

ZigBee status

254

VT8000 Series 5

ZigBee Pairing Procedure

Viconics Technologies Inc.

028-0450-00 November 2014

Smart StruxureWare Building Expert requires an ESR version of Firefox. You can download it at:

http://www.mozilla.org/en-US/ﬁrefox/organizations/all.html

Note the instructions in this guide assume that Building Expert 2.13 or later is installed. If you are using an earlier version, update Building

Expert before attempting the procedures described in this guide.

1. Type the default address in the address bar (10.50.80.3 for MPM-GW and MPM-UN, 10.50.80.4 for MPM-VA).

2. Verify Building Expert login page shows.

3. Select Language (default English).

4. Enter User name (default ‘admin’).

5. Enter Password (default ‘admin’).

6. Click on Login.

Viconics Technologies Inc.

028-0450-00 November 2014

VT8000 Series

6ZigBee Pairing Procedure

Building Expert loads to the default page.

CONFIGURE MANAGER

1. In Building Expert, click Conﬁguration tab.

2. In Controller Settings (CFG1), set Adjust Time, Save Period, Time Zone Offset, and Enable DST (if applicable).

3. Toggle Enable.

4. In Ethernet Settings (ETH1), set IP, Netmask, Gateway, DNS, and Email Source with the appropriate addresses for your

network.

5. Click on Devices window, and select your MPM. Then scroll down the main Explorer tab window and select ZigBee Conﬁguration.

Click Conﬁguration tab of the main window and go to ZigBee Settings (ZBC1) section.

VT8000 Series 7

ZigBee Pairing Procedure

Viconics Technologies Inc.

028-0450-00 November 2014

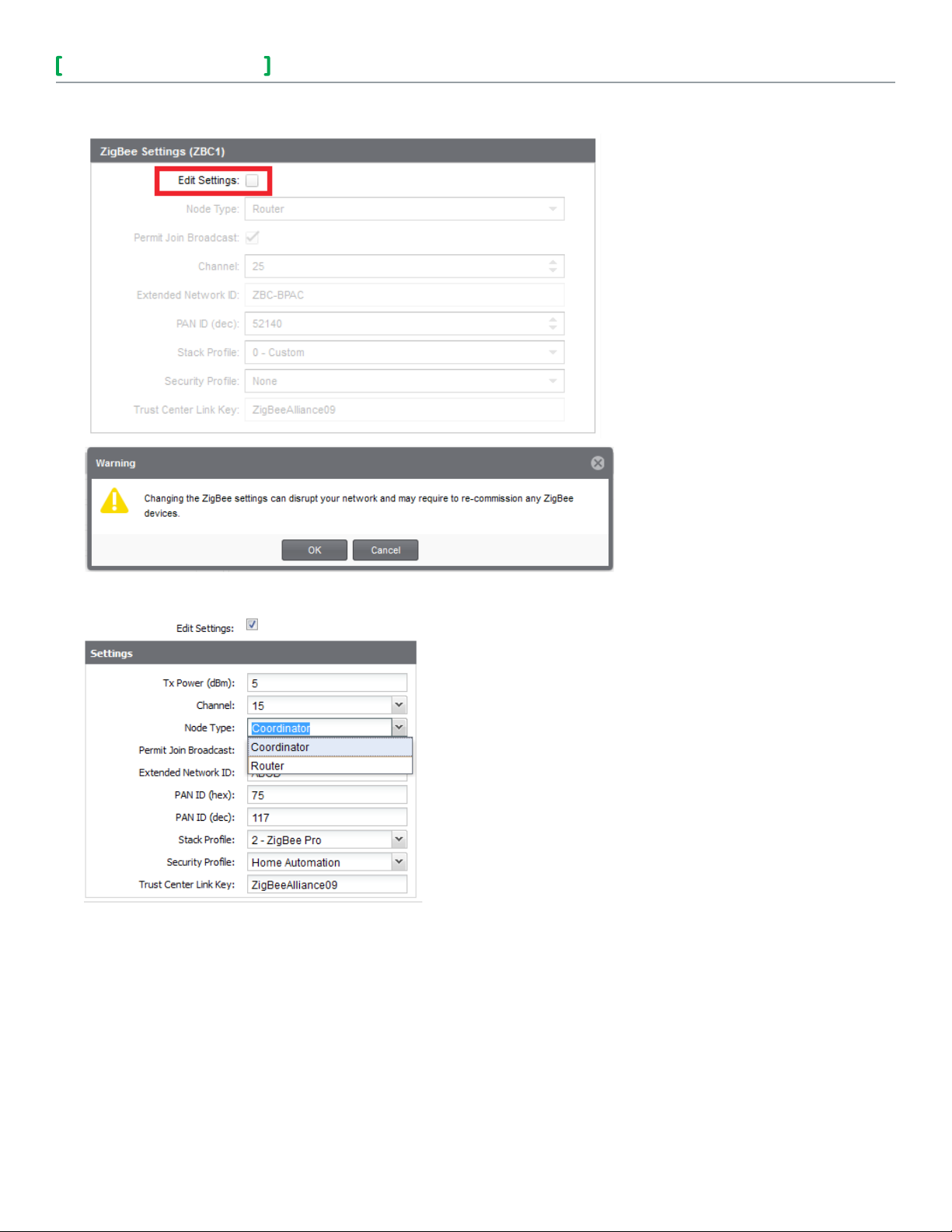

6. Click on the Edit Settings toggle. A warning message will appear, click on OK to continue.

7. Set Node Type as Coordinator or Router.

8. Set Channel to a value between 11 - 25 matching the channel value set on the Room Controller

9. Set PAN ID (dec) to a value matching the pan. ID value set on the Room Controller.

10. Set Stack Proﬁle to 2 - ZigBee_Pro.

11. Set Security Proﬁle to Home Automation

12. Click Save.

Viconics Technologies Inc.

028-0450-00 November 2014

VT8000 Series

8ZigBee Pairing Procedure

ADD DEVICE

1. In the Explorer tab of Building Expert, click the Add Device button. A new window opens.

2. Select the device you want to add.

NOTE: The device model selected from the device list must be identical to the model number of your device.

3. Click the Add Devices button. Building Expert automatically adds the device to your Room Controller.

VT8000 Series 9

ZigBee Pairing Procedure

Viconics Technologies Inc.

028-0450-00 November 2014

Set Parameters for MPM

BIND AND CONFIGURE ZIGBEE PRO ONLINE FOR VT8000 SERIES

1. In Devices pane, select the newly added device.

2. Navigate down the page to ZigBee Room Controller Conﬁguration on the Explorer tab.

Viconics Technologies Inc.

028-0450-00 November 2014

VT8000 Series

10 ZigBee Pairing Procedure

3. Click Bind. A new window opens and Building Expert searches for the Com Address and Extended Node ID for your device.

4. In the Select device window, select the device you want to bind with your MPM.

5. Click Bind device. Building Expert adds the device’s Extended Node ID and COM Address information to the selected Room

Controller in the device list.
