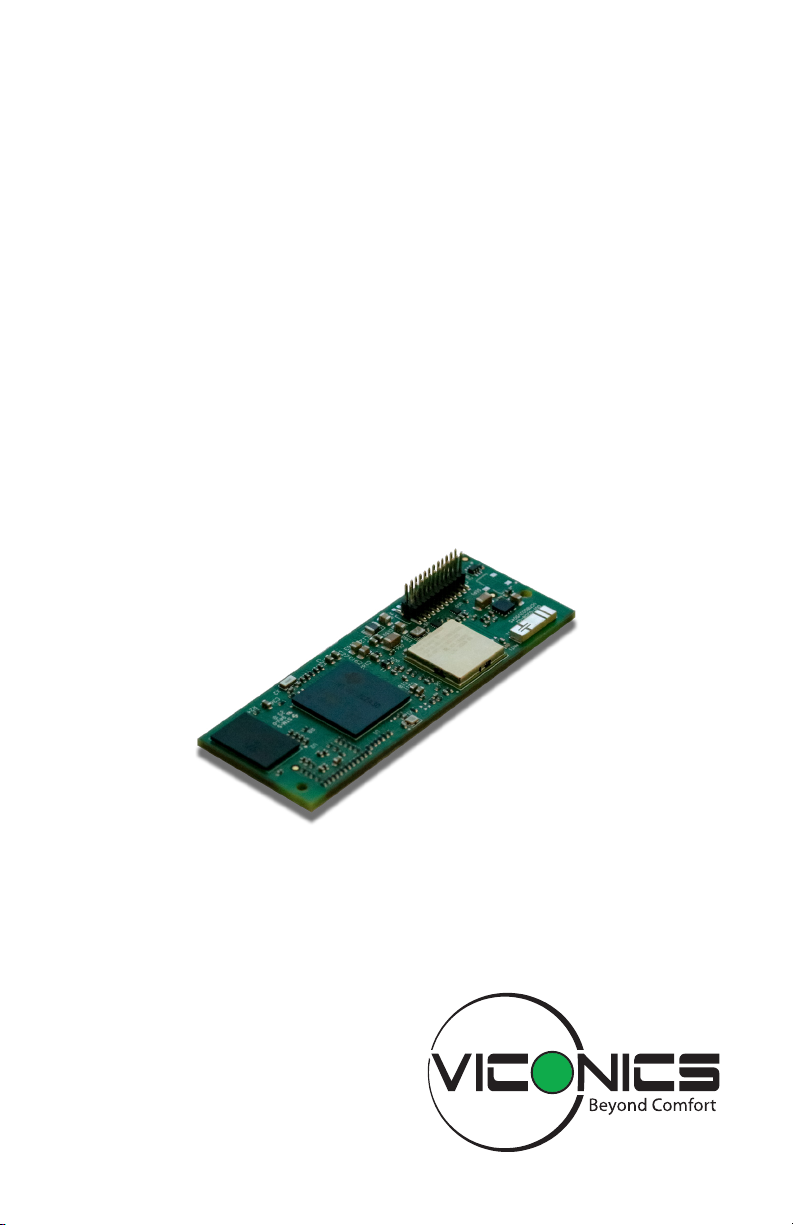

Viconics VT8000 Series Fiche technique

Version 7

VT8000 Room Controllers

Wi-Fi Module

Installation & Quick Start Guide

VCM8002V5031 rmware version 1.4

028-0497-07_II-VT8000-VCM8002_EN www.viconics.com March 2022

2VT8000 [ Wi-Fi Module Installation & Quick Start Guide ]

Changes or modications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This device complies with ISED Canada’s license-exempt RSSs. Operation is subject to

the following two conditions:

1. This device may not cause interference; and

2. This device must accept any interference, including interference that may cause

undesired operation of the device.

In order to comply with FCC/ISED RF Exposure requirements, this device must be

installed to provide at least 20 cm separation from the human body at all times.

CAUTION

FCC and ISED RF Radiation Exposure Statement:

This equipment complies with FCC and ISED RF radiation exposure limits set forth for

an uncontrolled environment. End-users must follow the specic operating instructions

for satisfying RF exposure limits. This transmitter and its antenna must not be

collocated or operating with any other antenna or transmitter.

NOTICE

LOSS OF CONNECTIVITY

Wireless networks (including Wi-Fi) are inherently less stable than wired networks.

When designing your Building Management System (BMS) system, consider if it

must have access to devices at all times. If so, wired connectivity may be more

suitable.

Failure to follow these instructions can result in a loss of connection or data.

CONTENTS

System Requirements ...................................................................................3

Safety Instructions ........................................................................................3

Installation ....................................................................................................4

Commissioning Via Wi-Fi ...............................................................................5

Commissioning Via USB ...............................................................................7

Conguration Web Pages .............................................................................8

Troubleshooting ..........................................................................................18

GNU Lesser General Public License ...........................................................18

California Proposition 65 Warning Statement For California Residents .........19

028-0497-07_II-VT8000-VCM8002_EN www.viconics.com March 2022

VT8000 [ Wi-Fi Module Installation & Quick Start Guide ]

The Wi-Fi Module requires rmware 2.5.1 or later on a VT8000 Room

Controller (RC).

SYSTEM REQUIREMENTS

• Electronic controls are static sensitive devices. Discharge yourself

correctly before manipulating Room Controllers.

• The Wi-Fi Module is Electro-Static Discharge (ESD) sensitive

material and must be handled with caution. ESD can permanently

damage electronics.

• Tampering with the devices or unintended application of the

devices will result in a void warranty.

• Before installation, make sure the Room Controller surface is clean

and free of dust or debris.

• Ensure that the darkened area (in the image below) of the

backplate, where the Wi-Fi Module will be located, is free of

mechanical interferences (i.e. screw heads, wiring, etc.).

SAFETY INSTRUCTIONS

Bad installations:

Skewed screw, wrong screw type, screw not fully tightened to backplate.

Good installation:

Screw in and fully tighten to backplate.

028-0497-07_II-VT8000-VCM8002_EN www.viconics.com March 2022

4VT8000 [ Wi-Fi Module Installation & Quick Start Guide ]

To install the Wi-Fi Module on a VT8000

Room Controller (RC):

1. Remove security screw from the

bottom of the Room Controller cover

(if present).

2. Open unit by pulling on the bottom of

the Room Controller (Figure 1).

NOTE: Visually inspect the Wi-Fi

Module for bent contact pins.

3. Below the gap in the upper-right

corner of the Room Controller’s

motherboard, locate holes to insert

the Wi-Fi Module.

4. Align the connector pins on the

Wi-Fi Module with the holes on the

motherboard (Figure 2).

NOTE: Ensure alignment of pins is

correct to avoid damaging the Wi-Fi

Module.

5. Gently press the Wi-Fi Module into the

Room Controller’s motherboard until it

ts snugly in place (Figure 3).

NOTE: Do not press too hard to avoid

damaging the Wi-Fi Module.

6. Gently align the cover with the top of

the base and snap in place from the

bottom (Figure 4).

7. Install the security screw.

INSTALLATION

Figure 1

Figure 2

Figure 3

Figure 4

028-0497-07_II-VT8000-VCM8002_EN www.viconics.com March 2022

VT8000 [ Wi-Fi Module Installation & Quick Start Guide ]

COMMISSIONING VIA WI-FI

Once installed, follow the steps below to commission the Wi-Fi

Module.

NOTE: If you intend to connect the module to a hidden Wi-Fi Network

(SSID Broadcast is disabled), it must be done before making the

connection. Once the module is connected, the network conguration

must not be changed, or the module may lose connection or fail to

reconnect after power is cycled to the device or router. If you do

change the network conguration, the module should be disconnected

from the network and reconnected again.

NOTE: If a conguration/installer

password is activated to prevent

unauthorized access to conguration

menu parameters, a password entry

prompt is displayed.

1. Touch and hold this point for 3 seconds

to enter set-up mode.

Network

BAC MSTP

Wired protocol

Onboard prot.

Zigbee

Optional prot.

2. Navigate to the Network menu.

3. Using the left and right arrows navigate

to the Wi-Fi conguration screens.

4. Enable the Wi-Fi Access Point.

5. The SSID, Password, and IP address

elds will be populated.

6. Connect your PC or smartphone to

the Access Point using the SSID and

Password shown on the RC’s screen.

7. Open your Internet browser and connect

to the IP address 192.168.71.1

Password:

IP address:

192.168.71.1

65F90617

SSID:

SE8X00_0617

Access Point

Enabled

2/5 Wi-Fi Access Point

Connect To The Wi-Fi Module

028-0497-07_II-VT8000-VCM8002_EN www.viconics.com March 2022

6VT8000 [ Wi-Fi Module Installation & Quick Start Guide ]

8. Enter the default credentials:

username: admin

password: admin8000

NOTE: Upon the rst log-in a

password change is required.

Passwords must have at least 8 characters, one uppercase

character, one lowercase character, and one number or symbol.

Each user should have a strong and unique password. Do not re-

use passwords for multiple users.

9. Enter a new password and click Submit.

You are now ready to manage your RC via the Conguration Web

Page.

NOTE: When connecting to the Conguration Web Page, the web

browser will present a warning due to the use of a self-signed

certicate. Although strong security is in use, this warning appears

as the web browser is not able to authenticate the website with

an online certicate authority. The warning must be accepted to

proceed to the Conguration Web Page.

Connect To The Building Wi-Fi Network

1. Navigate to the Network tab in the web

browser and connect to your desired Wi-Fi

network.

2. Once connected, on your RC Wi-Fi

network screen 3/5, the status will be

displayed as Ready. The SSID and IP ad-

dress to access the RC via the browser are

displayed.

3. You can continue conguring your RC using

the Access Point or via the building Wi-Fi

network.

NOTE: The Access Point will be disabled after the timeout period.

4. On the Admin tab, enable and congure Ping Remote Machine to

ensure that the end-to-end connectivity of the device is monitored

and xed if the connection is lost (refer to “Device Monitoring” on

page 12).

IP address:

192.168.171.40 (dhcp)

SSID:

Your Wi-Fi Network

Wi-Fi status

Ready

Signal strength

Fair

SMTP status

Online

3/5 Wi-Fi Network

028-0497-07_II-VT8000-VCM8002_EN www.viconics.com March 2022

VT8000 [ Wi-Fi Module Installation & Quick Start Guide ]

COMMISSIONING VIA USB

For sites where multiple RCs need to be commissioned, a sub-set

of commissioning is supported from the VT8000 Uploader Tool via

the USB port on the Room Controller. This provides a simple, fast,

repeatable method to connect the Wi-Fi Module to the building’s Wi-Fi

network and enable the most common features. Advanced features

can then be commissioned via the Conguration Web Pages across

the building Wi-Fi network, saving commissioning time as it is not

necessary to connect to the Access Point of each Wi-Fi Module. For

more information refer to the Uploader Tool Installation Guide.

Commissioning from the Uploader Tool supports:

• User authentication and rst admin password change

• Wi-Fi network connection (SSID)

• IP Conguration (DHCP or Static)

• Enable and congure BACnet/IP

• Enable NTP time source

Minimum system requirements:

• VT8000: 2.5.1

• VCM8002: 1.4

• Uploader tool: 3.3

To enable/disable Commissioning via USB, go to the Admin tab (refer

to “Conguration” on page 11), or go to USB access on the RC

Conguration screen.

NOTICE

INFORMATION DISCLOSURE/UNAUTHORIZED ACCESS

When the Wi-Fi Module is commissioned from the Uploader Tool, user and

network password hashes are sent from the Uploader Tool, via USB and the Room

Controller to the Module. If intercepted by a USB Eavesdropping Attack, these

hashes may be used to access the Module and Wi-Fi network. Care should be

taken to help ensure communications are not eavesdropped on.

Failure to follow these instructions may lead to unauthorized users

accessing the Wi-Fi Module or the Wi-Fi network.

NOTICE

UNAUTHORIZED ACCESS

When commissioning is complete, it is recommended to disable USB Access on

the Room Controller to minimize entry points to the system.

Failure to follow these instructions may lead to unauthorized users

accessing the Wi-Fi Module or the Room Controller via USB.

028-0497-07_II-VT8000-VCM8002_EN www.viconics.com March 2022

8VT8000 [ Wi-Fi Module Installation & Quick Start Guide ]

CONFIGURATION WEB PAGES

Home

Device Name

User Name

The Wi-Fi Module device name can be changed on the Admin

page (refer to “Device Name” on page 11). It is used in email

notications and as the SSID for the module’s Wi-Fi Access Point.

This name is different from the RC device name which is set by the

BACnet front end.

Network

The Network page shows the IPv4 and HTTPS proxy conguration

settings, and the building Wi-Fi network connection information. IPv4

and Wi-Fi can also be congured using the VT8000 Uploader Tool.

028-0497-07_II-VT8000-VCM8002_EN www.viconics.com March 2022

VT8000 [ Wi-Fi Module Installation & Quick Start Guide ]

IPv4 Conguration

The default DHCP setting will automatically assign a valid IP address

to your device. To set a Static IP conguration, please contact your

network administrator for the correct values.

HTTPS Proxy Conguration

An HTTPS proxy may be congured for connection to Facility Expert.

If congured, all trafc between the device and Facility Expert will

pass through the proxy server.

When do I need to configure a proxy?

It is only necessary to congure a proxy server if:

• You are connecting your Wi-Fi Module to Facility Expert, and

• A proxy server is required for internet connectivity from the Wi-Fi

network.

Configuration

Proxy servers are maintained by your Wi-Fi network administrator.

Please contact your network administrator for proxy server

conguration values required below.

028-0497-07_II-VT8000-VCM8002_EN www.viconics.com March 2022

10 VT8000 [ Wi-Fi Module Installation & Quick Start Guide ]

Facility Expert

Refer to the Integration Guide for

Connecting VT8000 to EcoStruxure

Facility Expert.

Devices

The Devices page shows the paired wireless devices conguration

settings. Make sure to congure the wireless devices before

connecting to the Facility Expert platform.

To congure the proxy, you need to specify:

• An address (e.g. 192.168.0.1 or proxy.my-domain.com)

• A port (e.g. 5000)

• If authentication is required to use the proxy:

A username

A password

Confirmation of Operation

After conguring your proxy, go to the Facility Expert page and

ensure Facility Expert is online.

Autres manuels pour VT8000 Series

Table des matières

Autres manuels Viconics Contrôleurs

Viconics

Viconics VT7600E Series Manuel utilisateur

Viconics

Viconics VTR8300 Series Guide de l'utilisateur

Viconics

Viconics R820 REV2 Series Manuel utilisateur

Viconics

Viconics VT7200 F 5000 B Manuel utilisateur

Viconics

Viconics VT7600W Series Manuel utilisateur

Viconics

Viconics VC3000 Series Manuel utilisateur

Viconics

Viconics VT8000 Series Manuel utilisateur

Viconics

Viconics VT7600E Series Manuel utilisateur

Viconics

Viconics VT8000 Series Manuel utilisateur

Viconics

Viconics VZ8250 Manuel utilisateur

Viconics

Viconics R851B Manuel utilisateur

Viconics

Viconics VT7200 Series Manuel utilisateur

Viconics

Viconics R851V Series Manuel utilisateur

Viconics

Viconics VTR7300 Series Manuel utilisateur

Viconics

Viconics VZ7260 5 00B Series Guide de l'utilisateur

Viconics

Viconics R850 Series Manuel utilisateur

Viconics

Viconics ZigBee Pro VT8000 Series Manuel utilisateur

Viconics

Viconics VT8000 Series Manuel utilisateur

Viconics

Viconics VTR8300 Series Manuel utilisateur

Viconics

Viconics VT76 Series Manuel d'utilisation et d'entretien

Viconics

Viconics VTR8300 Series Manuel utilisateur

Viconics

Viconics VTR7300 Series Manuel utilisateur

Viconics

Viconics VT8000 Series Manuel utilisateur

Viconics

Viconics VT8000 Series Manuel utilisateur

Manuels Contrôleurs populaires d'autres marques

Digiplex

Digiplex DGP-848 Mode d'emploi

YASKAWA

YASKAWA SGM series Manuel utilisateur

Sinope

Sinope Calypso RM3500ZB Manuel utilisateur

Isimet

Isimet DLA Series Style 2 Manuel d'installation

LSIS

LSIS sv-ip5a Manuel utilisateur

Rockwell Automation

Rockwell Automation 1769-L31 Manuel utilisateur

Airflow

Airflow Uno hab Manuel utilisateur

ABB

ABB ACS580-01 drives Manuel utilisateur

Panasonic

Panasonic GM1 Series Manuel utilisateur

Emerson

Emerson SW93 Manuel utilisateur

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manuel utilisateur

Panasonic

Panasonic FP? Positioning Unit RTEX Manuel utilisateur

Samson

Samson Type 5824 Manuel de service

Alpha IP

Alpha IP MIOB 21001 Manuel utilisateur

Siemens

Siemens OpenAir GMA 1 Series Manuel utilisateur

Surecom

Surecom SR-629 Manuel utilisateur

Fishman

Fishman TriplePlay Manuel utilisateur

Regulus

Regulus SRS1 T Manuel utilisateur
