Cruiser™ SN663V-A Outdoor PTZ

Network Camera Dome

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the

operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed

to be used in life-critical situations and must not be used for this purpose.

Vicon Industries Inc.

Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300

Document Number: 8009-8249-41-00

Product specications subject to change without notice.

Issued: 215

Quick Guide

1 Introduction

The SN663V-A network camera is an outdoor PTZ camera dome that includes a 1080p high

resolution camera lens combination that provides video transmission over a network. It is

fully featured for security surveillance and remote monitoring needs.

The network camera supports H.264 compression technology as well as M-JPEG compres-

sion. By using its dedicated program, multiple users are able to have access to the network

camera simultaneously or a single user can monitor various network cameras at the same

time. It also enables users to play, store and retrieve a monitoring image by using a PC. All

the settings and realtime monitoring screens are provided through access to the web.

1.1 Components

The camera is designed with compact, small size, hard dome camera housing. The housing

is constructed of aluminum, steel and plastic. The housing is designed to be mounted on

a wall or a ceiling. The housing meets the Protection Classiﬁcation IP66 standards for dust

and moisture resistance.

Dome Camera ······································· 1

Installation Guide/CD ······································· 1

Template Sheet ······································· 1

Mounting Bracket ······································· 1

Safety Lanyard ······································· 1

Accessory Kit ······································· 1

1) Mounting screws (PH6 x 35.0) ·················· (4)

2) Plastic anchors ·················· (4)

3) O-Rings ·················· (4)

4) Torx wrench ·················· (1)

Accessory Connector ······································· 1

1) 3-pin terminal block ·················· (1)

2) 6-pin terminal block ·················· (1)

1.2 Key Features

•Brilliant video quality

The network camera offers the highly efﬁcient H.264 video compression, which drasti-

cally reduces bandwidth and storage requirements without compromising image qual-

ity. Motion JPEG is also supported for increased ﬂexibility.

•Dual or Triple Streams

The network camera can deliver dual or triple video streams simultaneously at full

frame rate in all resolutions up to Full-HD (1920 x 1080p) using Motion H.264 and

JPEG. This means that several video streams can be conﬁgured with different com-

pression formats, resolutions and frame rates for different needs.

•Image setting adjustment

The network camera also enables users to adjust image settings such as contrast,

brightness and saturation to improve images before encoding takes place.

•Intelligent video capabilities

The network camera includes intelligent capabilities such as enhanced video motion

detection. The network cameras external inputs and outputs can be connected to de-

vices such as sensors and relays, enabling the system to react to alarms and activate

lights or open/close doors.

•Improved Security

The network camera logs all user access, and lists currently connected users. Also, its

full frame rate video can be provided over HTTPS.

•PoE (Power over Ethernet)

This network camera can be powered through PoE, which simpliﬁes installation since

only one cable is needed for carrying power, as well as video controls.

•ONVIF Certiﬁcate

This is a global interface standard that makes it easier for end users, integrators, con-

sultants, and manufacturers to take advantage of the possibilities offered by network

video technology. ONVIF enables interoperability between different vendor products,

increased ﬂexibility, reduced cost, and future-proof systems.

•Micro-SD Recording support

The network camera also supports a Micro-SD memory slot for local recording with

removable storage.

•Audio support

The network camera also supports two-way audio.

2 Installation

2.1 Installation

The dome camera is for use in surface or pendant mounting applications, and the mounting

member must be capable of supporting loads of up to 10 lb (4.5 kg). (Pendant mounting

must use pendant mount accessory.)

The dome cameras mounting bracket should be attached to a structural object, such as hard

wood, wall stud or ceiling rafter that supports the weight of the dome camera.

CAUTION: A silicone rubber sealant must be applied to seal the housing to secure water-

prooﬁng.

2.1.1 Locking Dome Camera

1. Make screw holes on the ceiling using the supplied mounting Template Sheet (Figure A).

2. Fix the Mounting Bracket to the ceiling using supplied Anchors (4x) and Mounting Screws (4x)

(Figure B).

3. Hook up the Safety Lanyard to the Safety Lanyard Hook of the Mounting Bracket (Figure C).

4. Align the locking tab on the bracket and the locking slot on the base of the dome (Figure D).

5. Turn the dome to the counterclockwise about 10 degree to the locked position (Figure E).

CAUTION: Before installing mounting bracket to surface pre-adjust the four mounting

screws ”A” on the base of the dome camera to best match the mounting bracket

locked position. Unscrew the locking screw on the side of the dome’s base and

ﬁt the tab of the mounting bracket into the locking slot. Screws ”A” should not

be too tight or too loose when the dome is in the locked position. After setting

the proper positions of screws ”A” remove the mounting bracket and install it

to the proper surface. If it is too difﬁcult to lock the dome in position after the

mounting bracket has been installed readjust the screws ”A” by unscrewing

them a small amount and try to install dome camera again.

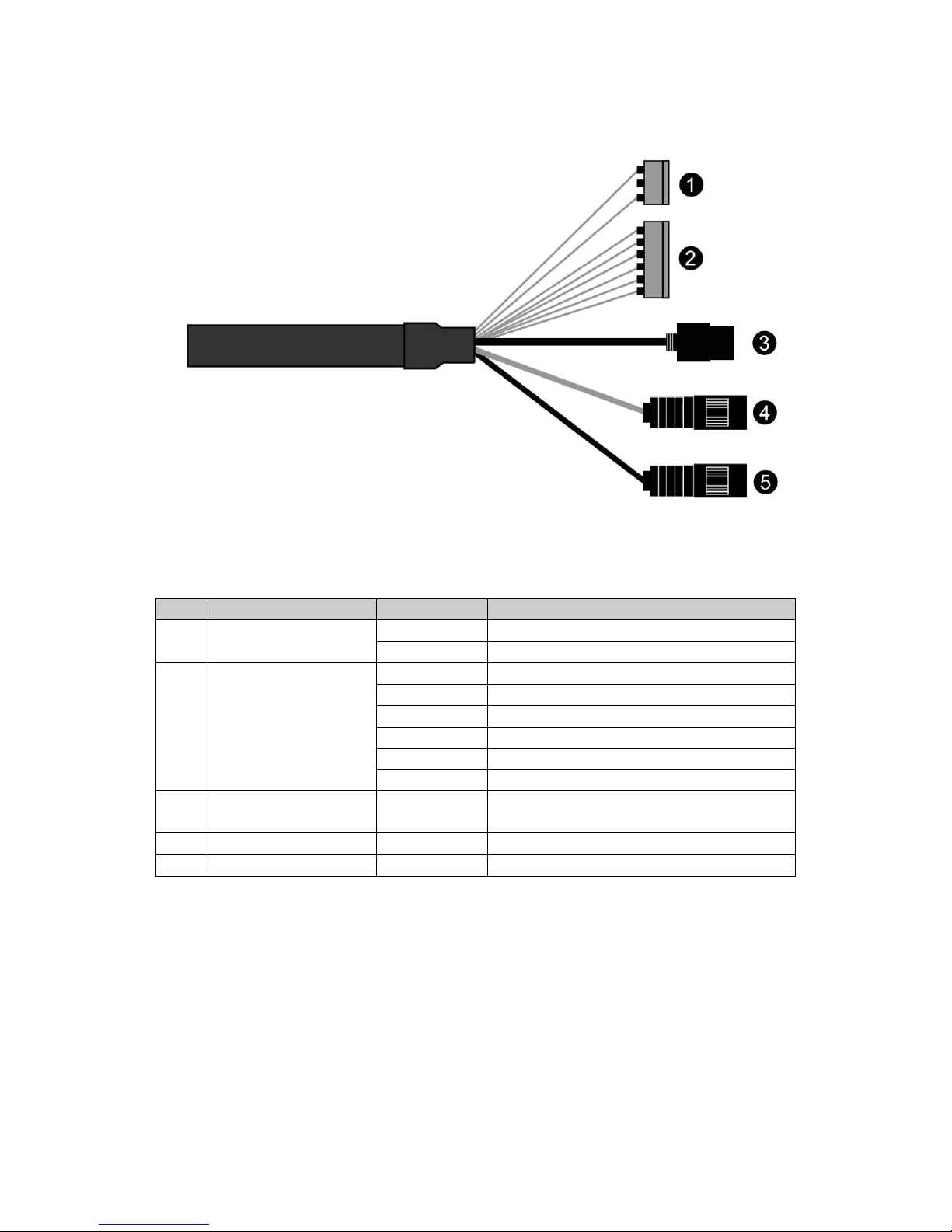

2.2 Basic Conﬁguration of Camera System

No. Connector Wire Color Description

13-pin terminal block RED 24VAC or 12VDC+

WHITE 24VAC or 12VDC-

26-pin terminal block

PINK ALARM INPUT 1

GRAY ALARM INPUT 2

GREEN ALARM INPUT 3

BLUE ALARM INPUT 4

BROWN GND

YELLOW ALARM OUTPUT

3RJ-45 BLACK Ethernet, RJ-45 port compatible with

10/100Mbps having PoE functionality.

4STEREO GRAY AUDIO OUTPUT

5STEREO BLACK AUDIO INPUT

The camera must be installed by qualiﬁed service personnel in accordance with all local and

federal electrical and building codes.

2.3 Micro-SD Card Insertion

User can install and change Micro-SD card as shown in the following picture.

1. Open the Micro-SD card cover.

2. Install or change Micro-SD card.

3. Tightly close the Micro-SD card cover to ensure waterproofness.

2.4 Connections

•Connecting the Network

Connect a standard RJ-45 cable to the network port of the camera. Generally a cross-

over cable is used for directly connection to PC, while a direct cable is used for con-

nection to a hub.

•Connecting Alarms

– A1,A2,A3,A4 (Alarm Input 1,2,3,4)

You can use external devices to signal the camera to react on events. Mechanical

or electrical switches can be wired to the A1,A2,A3,A4 (Alarm Input 1,2,3,4) and

G (Ground) connectors.

– G (Ground)

NOTE: All the connectors marked G or GND are common.

Connect the ground side of the alarm input and/or alarm output to the G (Ground)

connector.

– AO (Alarm Output)

The camera can activate external devices such as buzzers or lights. Connect the

device to the AO (Alarm Output) and G (Ground) connectors.

•Connecting the Power

Connect power of 12VDC or 24VAC for the camera.

When using a 12VDC adapter, connect the positive (+) pole to the ’ + ’ position and the

negative (-) pole to the ’ - ’ position.

Use satisfy clause 2.5 of IEC60950-1/UL60950-1 or Certiﬁed/Listed Class 2 power

source only.

–Be careful not to reverse the polarity when you connect the power cable.

–You can also use a router featuring PoE (Power over Ethernet) to supply power to

the camera.

–24VAC is recommended to use for the camera power for stable operation with

heater kit. If using PoE, the heater will not operate at all.

2.4.1 Network Connection & IP assignment

The network camera is designed for use on an Ethernet network and requires an IP ad-

dress for access. Most networks today have a DHCP server that automatically assigns IP

addresses to connected devices. By the factory default, your camera is set to obtain the IP

address automatically via DHCP server. If your network does not have a DHCP server the

network camera will use 192.168.1.100 as the default IP address.

If DHCP is enabled and the product cannot be accessed, run the SmartManager utility on

the CD to search and allocate an IP address, or reset the product to the factory default set-

tings and then perform the installation again.

1) Connect the network camera/device to the network and power up.

2) Start SmartManager utility (Start >All programs >SmartManager >SmartManager).

The main window will display, and after a short while any network devices connected to the

network will be displayed in the list.

3) Select the camera on the list and click right button of the mouse. You can see the pop-up

menu as below.

4) Select Assign IP Address. The Assign IP window will display. Enter the required IP ad-

dress.

NOTE: For more information, refer to the SmartManager Users Manual.
