Vicon IX 8000 IR Manuel utilisateur
Installation&
O
p
eration Manual
IX 8000 IR
Colour Camera
Vicon Industries Inc. Does not warrant that the functions contained in this equipment will meet your requirments or
that the operation will be entirely error free or perform precisely as discribed in the documentation. This system
has not been designed to be used in life critical situations and must not be used for this purpose.
Copyright © 2006 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and ist logo are registered trademarks of Vicon Industries Inc.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24- Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 WEB: vicon-cctv.com
-2-
Dear Customer!
By selecting this VICON product you have chosen a professional device which guarantees
highest possible quality and reliability. We like to thank you very much for your confidence in
our products and kindly ask you to read the following instructions carefully before
commissioning the product in order to be able to take full advantage of all quality features
regarding this product line.
Contens Page
General Information
¨Technical Support 2
¨Safety Precautions 3
Commissioning and Mounting the Camera
¨Tips for Camera Location 4
¨Connecting and Mounting the Camera
¨Dimensions of the Camera 5
¨Connecting the Camera 6
¨Internal Adjustments 7
Exhibit
¨Technical Specifications 8
Technical Support
Should you have any problems during installation you can reach our Technical Hotline under
the following telephone number: +44 (0) 1489 - 566 300.
TIPS FOR CAMERA LOCATION
-3-
General Information
Safety Precautions
·Read these instructions carefully before commissioning the camera in order to avoid
damages caused by improper installation or use.
·Installation may only be carried out by authorised personnel according to the local safety
regulations.
·Operate the camera with the designated voltage only.
·Follow the safety instructions attached to the camera.
·Never use the camera for other purposes than designated.
·Repairs and adjustments at the camera may only be carried out by authorised personnel.
·In case of ourdoor use you have to install the camera in a suitable weather protection
case incl. heating element.
·If any liquid or solid matter should get into the housing, disconnect the camera from
power supply and have it checked by your authorised dealer before re-using (danger of
electronic shock!).
·Do not disassemble the camera. To avoid electric shocks, never remove screws or
covers. There are no user-serviceable parts inside it. All maintenance may only be car-
ried out by authorised personnel according to the local safety regulations. Install the
camera by a least height of 2.30 m.
TIPS FOR CAMERA LOCATION
-4-

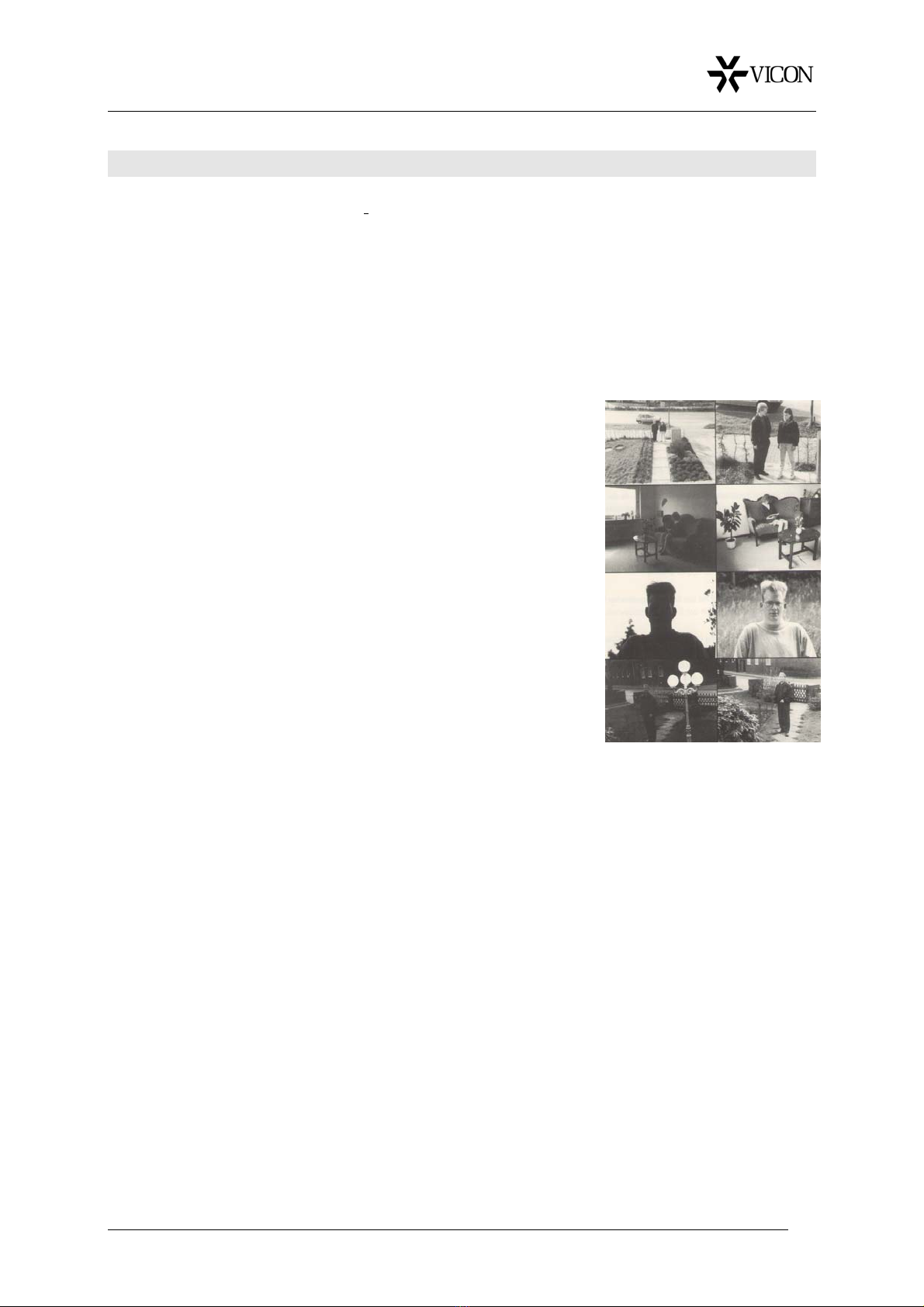

Tips for Camera Location
1.0 To avoid internal overheating:
-never expose the camera to direct sunlight without additional camera housing
-keep sufficient distance to direct heat sources.
2.0 The camera should be installed out of reach (min. height: 2.30 m)
3.0 Do not aim the camera towards indoor lighting, the windows, the sunlight or the sky (to
get good pictures, camera and light should be aimed towards the object)
4.0 Reduce the picture detail to the essential parts of the
picture and place the camera as close as possible to the
object (a smaller picture detail guarantees sharper
details).
5.0 Do not aim the camera towards a window but instead
towards the room.
6.0 Outdoors the camera should be placed as high as
possible so that the horizon does not appear in the
picture.
7.0 Avoid peak light as background (also caused by
reflections, e.g. window panes).
wrong right
CONNECTION AND MOUNTING THE CAMERA
-5-

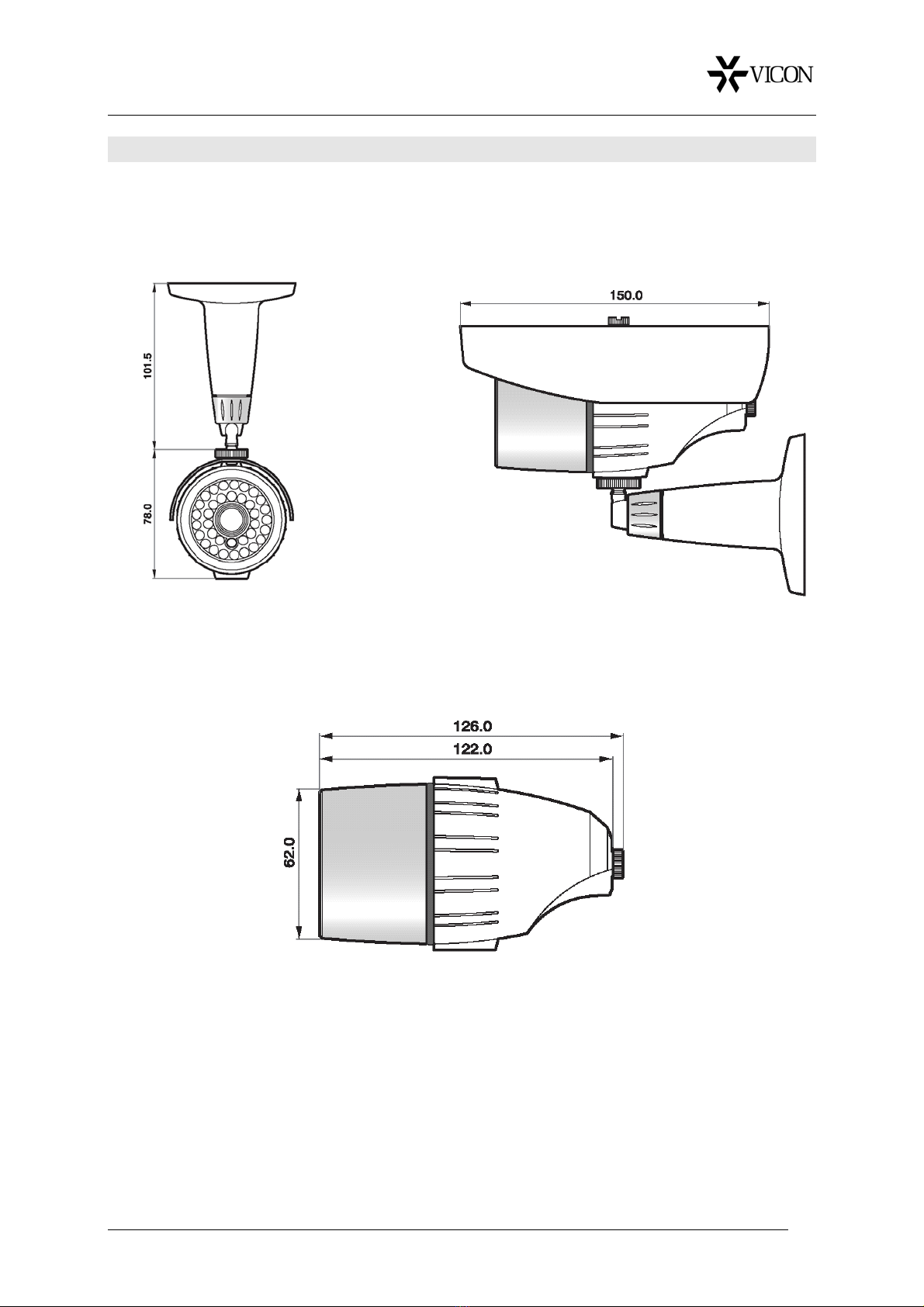

Dimensions of the Camera
CONNECTION AND MOUNTING THE CAMERA
-6-
Connecting the Kamera
Video output
12V DC
24V AC
Note: Polarity doesn’t play a role when connected to 12V DC
INTERNAL ADJUSTMENTS
-7-
Internal Adjustments
Open the camera by turning front part of the camera
Adjustmensts of the Camera:
·Zoom (1)
·Focus (2)
·DC Level (3)
The default settings are ideal. Only in very special situations it can be necessary
to change this adjustments.
12
3
TECHNICAL SPEZIFICATION
-8-
Technical Specifications
Model IX 8000 IR
CCD SENSOR 1/3“ Sony Super HAD
Effective Pixels 470.000
Resolution 550 TV Linien (Colour), 570 TV Linien (S/W)
Signal system PAL
Sampling process 625 Zeilen, 2:1 Interlace
Sampling rate (H) 15.625 Hz
Sampling rate (V) 50Hz
Signal to Noise Ratio (SNR) > 48 dB
Lenses 3,8 ~ 9,5 mm/F1.3 DC Varioobjektiv
Day / Night Function AUTO (ICR)
Sensitivity Day 0,3 Lux; Night 0,0 Lux (IR LED on)
Angle 74° ~ 30°
Synchronisation Intern
White Balance AUTO
AGC AUTO
IR LEDs and CDS Sensor 18 LEDs 850 nm (max illumination ~ 20m); 1 CDS Sensor
Video output Signal 1VSS (Composite, 75 W)
Power source 12V DC / 24V AC
Operating Temperature -10°C ~ +50°C (recommended -5°C ~ +40°C)
Ingress protection IP 67
Dimensions (W x H x D) 65 Øx 122,0 (L) mm
Weight ~ 800 g
NOTES
-9-
Cleaning and Care
Before you start to clean the camera body, disconnect the unit from power supply. For rea-
sons of electrical safety never clean the camera with water or other liquid matters and never
put the camera under water. To clean use a soft dry cloth.
Cleaning the camera inside is strictly forbidden and may only be done by your authorised
dealer.
Since all camera functions are self adjusting and the camera does not contain any parts or
components that are subject to wear we advise you not to open the camera (except for the
flap for settings), unless the camera appears to be defective.
Make sure to include these instructions when handing the camera over to third parties.
Technical Support
Should you have any problems during installation you can reach our Technical
Hotline under the following telephone number: +44 (0) 1489 - 566 300.
