Vicon Extra 328 Manuel utilisateur

Extra 328-332-336-340

Assembly instructions

Translated from the original assembly manual

Version 01.2013

Date printed 02.2013

Language EN

Document number KT19001203EN

Index number 2013-01

INSTRUCTIONS FOR RECIPIENTS

These instructions describe how to unpack and assemble the machine.

The machine is split into main components which are out together using these assembly instructions. Follow

the order for assembly given in the instructions and use the size and type of bolt shown for assembling the

parts - see the symbols below.

This warning symbol denotes instructions which concern your safety and that of others.

Generally speaking, machines must only be assembled by trained service personnel who are able to use

workshop equipment in complete safety. Assembly of some machines also requires knowledge of how to use

the tractor's hydraulics or hydraulic pump station.

Avoid loose, trailing clothing that can get caught in the machine's parts!

Use the personal protective equipment required for the work being carried out.

Only use approved, sturdy lifting equipment. Protect the lifting equipment from sharp edges and prevent any

chains form twisting.

For safety reasons, before the machine is used for the first time, the accompanying instructions

must be read carefully.

Kverneland Group Kerteminde AS

DK-5300 Kerteminde - Denmark

Phone/Fax: +45 65 19 19 00 / +45 65 19 19 99

web: www.kvernelandgroup.com

Copyright Kverneland Group Kerteminde AS, Denmark. Copying,reproduction in any form, translation, or use of excerpts or parts of this document

without prior warning. Rights reserved for technical amendments.

Round head bolts

Hex head bolts

Contents

The meaning of the symbols

This symbol indicates tips or additional

information.

This warning triangle indicates important safety

information and dangers. If this is not complied

with, it can lead to:

•Serious errors with the machine's operation.

•Damage to the machine.

•Injury or accidents.

Torque moment

Tightening torque for grade 4.6 - 5.8 - 8.8 - 10.9 -

12.9 black and/or galvanised and ungreased

bolts when tightened on smooth surfaces or plain

washers.

For safety reasons, always use original parts.

Dim.

Bolt grade

4.6 5.8 8.8 10.9 12.9

Nm ft/lb Nm ft/lb Nm ft/lb Nm ft/lb Nm ft/lb

M5 2 1.6 3.5 2.5 5.5 4 8 6 10 7

M6 3.5 2.6 64.5 10 714 10 17 12

M8 9 6.4 15 10.5 24 17 33 23.5 40 28.5

M10 17 12 29 21 47 33.5 65 46.5 79 56.5

M12 3021.55136.581 5811481.513697

M14 48 34 80 57 128 91.5 181 130 217 155

M16 74 53 123 88 197 141 277 200 333 238

M18 103 73.5 172 123 275 196.5 386 275 463 330

M20 144 103 240 171.5 385 275 541 386.5 649 463.5

M22 194 138.5 324 231.5 518 370 728 520 874 624

M24 249 178 416 297 665 475 935 668 1120 800

Assembly

Assembly The transport safety device is removed from

the hitch.

Fit the hitch on the tractor.

Connect the hydraulics to the tractor.

Remove the springs from the chain.

Pull in the cord.

Activate the tractor's hydraulic system and

swivel the arm down.

Assembly

Remove the bolt and bushing from the arm.

Apply oil or grease to the bushings.

Inject some grease or viscous oil into the

groove for the O-ring on both sides of the

hinged points on the arm.

Fit O-rings on both sides of the hinged points

on the arm.

58.237.000

Groove for O-ring.

58.237.000

Groove for lubricating.

O-rings

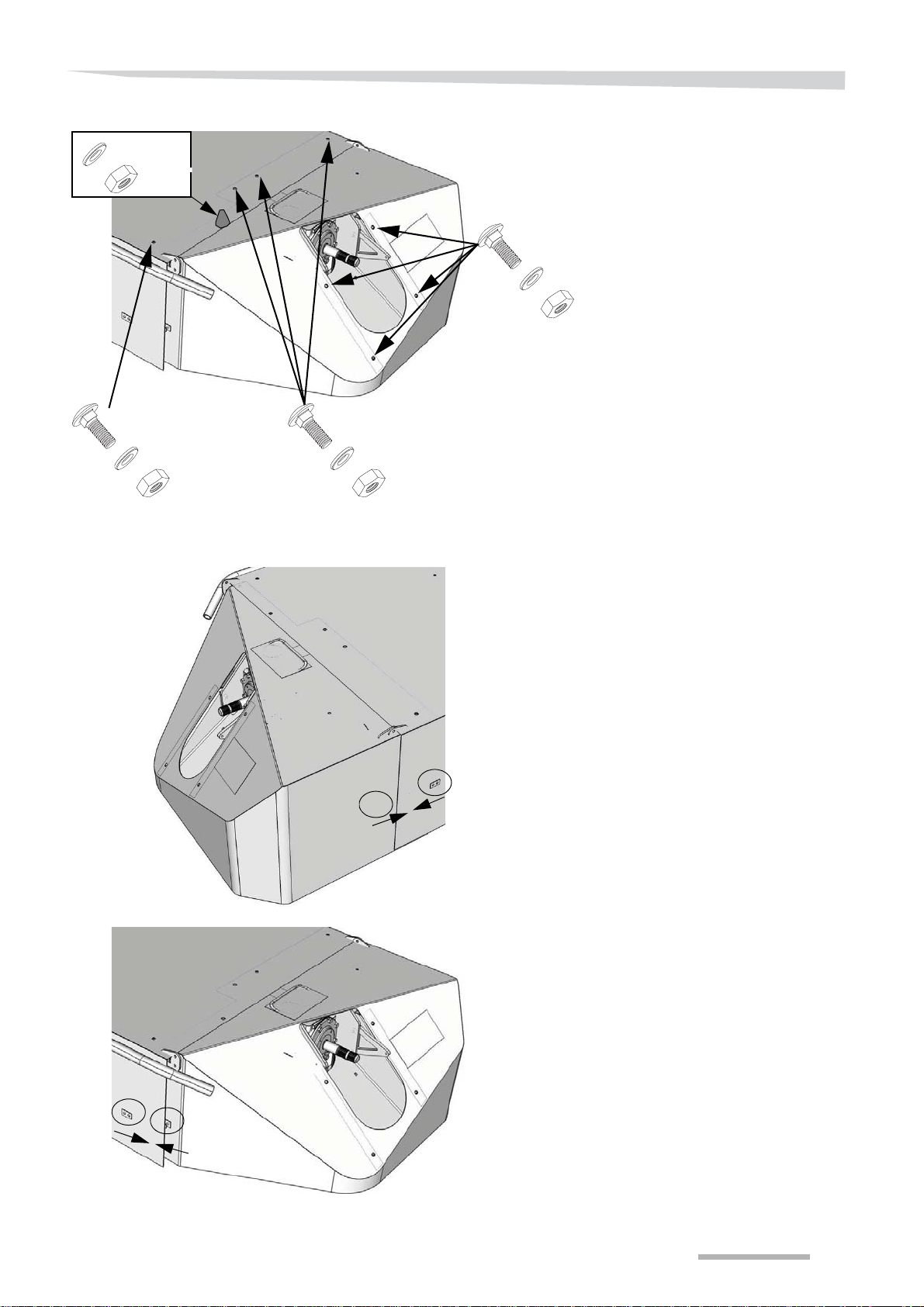

Assembly

Model 340 only

Fit the bracket.

Fit the guard.

M12x40

M12

M10x30

M10

M10x25

M10

Assembly

Fit the tarpaulin.

Fit the shock absorber.

Attach the tarpaulin

M10x60

M10

M10x55

M10

M16

M10x25

M10

Assembly

Fit the arm on the cutting unit.

The machine's cutting unit can be moved 130

mm so that the attachment point is moved as

shown.

When the attachment point is moved, the PTO

shaft is shortened.

See the Instruction manual for further instruc-

tions.

Apply oil or grease to the bushings before

fitting.

Tighten the bolt to a torque of 650 Nm (480 ft/

lb).

650 Nm

(480 ft/lb)

58.237.000

Assembly

Fit and secure the steel wire on the cutting

unit.

Fit the PTO shaft onto the bevel gear.

Remember that the friction clutch on the PTO

shaft must be fitted with the bevel gear.

Assembly

Secure the PTO shaft with the chain.

Fit the PTO shaft onto the cutting unit.

Do not forget the clamping ring!

Fit and secure the guard on the cutting unit.

Rotate the sleeve so that the lubrication hole in the universal joint is turned as

shown.
