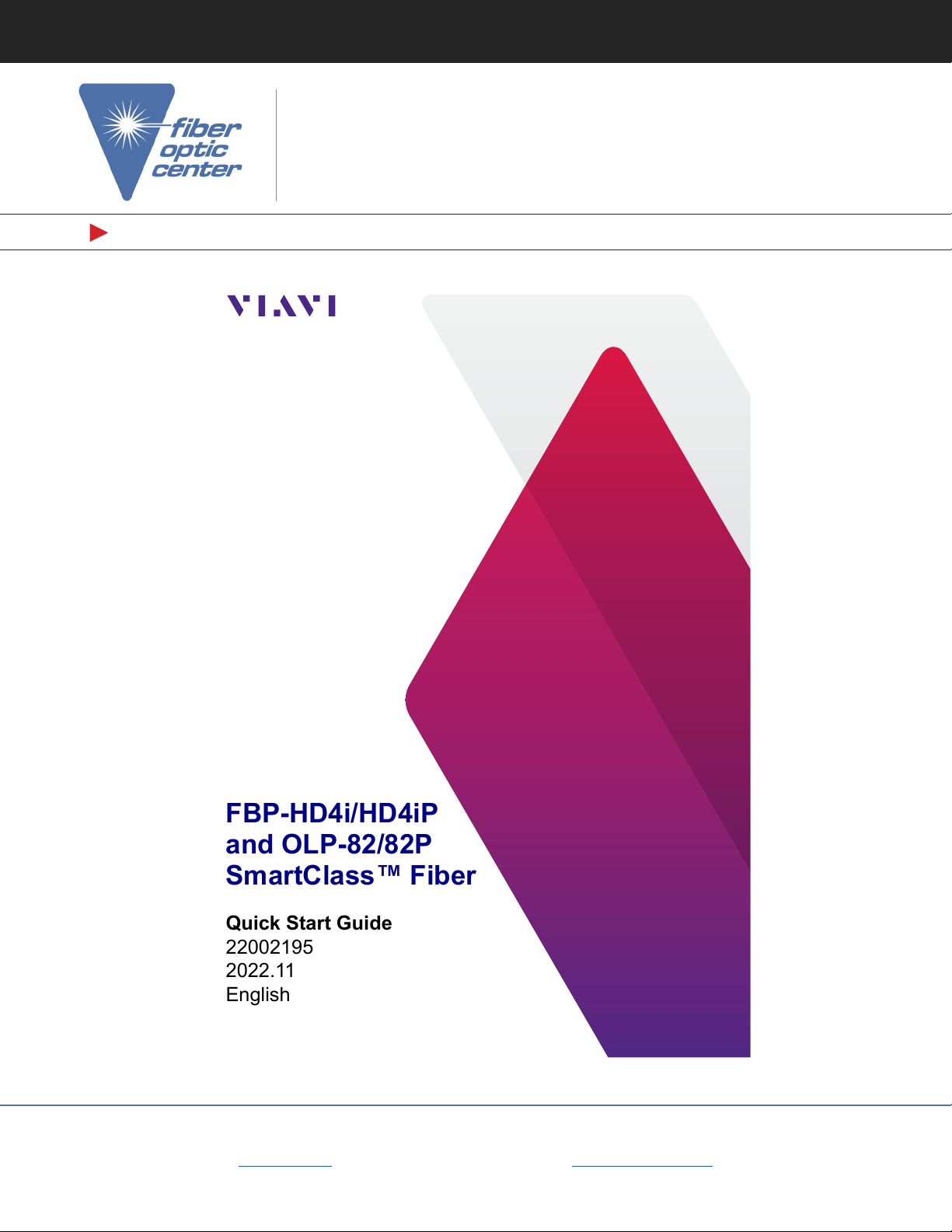

FBP-HD4i/HD4iP

and OLP-82/82P

SmartClass™ Fiber

Quick Start Guide

22002195

2022.11

English

Product data subject to change

without notice.

Quick Start Guide

Manufacturer:

Viavi

Product Name:

Viavi SmartClass™ HD4i Digital Handheld Video Display Pro Kit with Probe Scope

Manufacturer Part Number:

FBP-SD4I-PRO

Click here for more details on the Viavi SmartClass™ HD4i Digital Handheld Video Display Pro Kit with Probe Scope

Contact the professionals at Fiber Optic Center for a quote or to get more details.

focenter.com • 508-992-6464 | (800) 473-4237 • sales@focenter.com

23 Centre Street • New Bedford, MA 02740 USA Product data subject to change

without notice.

Click here for more details on the Viavi SmartClass™ HD4i Digital Handheld Video Display Pro Kit with Probe Scope

Please direct all enquiries to your local VIAVI sales office.

The addresses can be found at: www.viavisolutions.com/contact-us

Copyrights

This product or parts of this product are based on recommendations

and/or standards from the standardization section of the International

Telecommunication Union – ITU-T and/or the European

Telecommunications Standards Institute – ETSI. These recommendations

and standards are subject to the proprietary rights of these

organizations. It is not permitted to copy ITU-T recommendations or

ETSI standards fully or in part and/or to pass them on to third parties

without prior written permission from ITU-T and/or ETSI.

VIAVI and the VIAVI logo are trademarks of VIAVI Solutions Inc.

All other trademarks and registered trademarks are the property of their

respective owners.

Order number: 22002195

Issue: 2022.11

Previous issue: 2012.09

Notes:

Changes may be made to specifications, designations and delivery infor-

mation.

Contact the professionals at Fiber Optic Center for a quote or to get more details.

focenter.com • 508-992-6464 | (800) 473-4237 • sales@focenter.com

23 Centre Street • New Bedford, MA 02740 USA Product data subject to change

without notice.

Click here for more details on the Viavi SmartClass™ HD4i Digital Handheld Video Display Pro Kit with Probe Scope

FBP-HD4i/HD4iP / OLP-82/82P 3

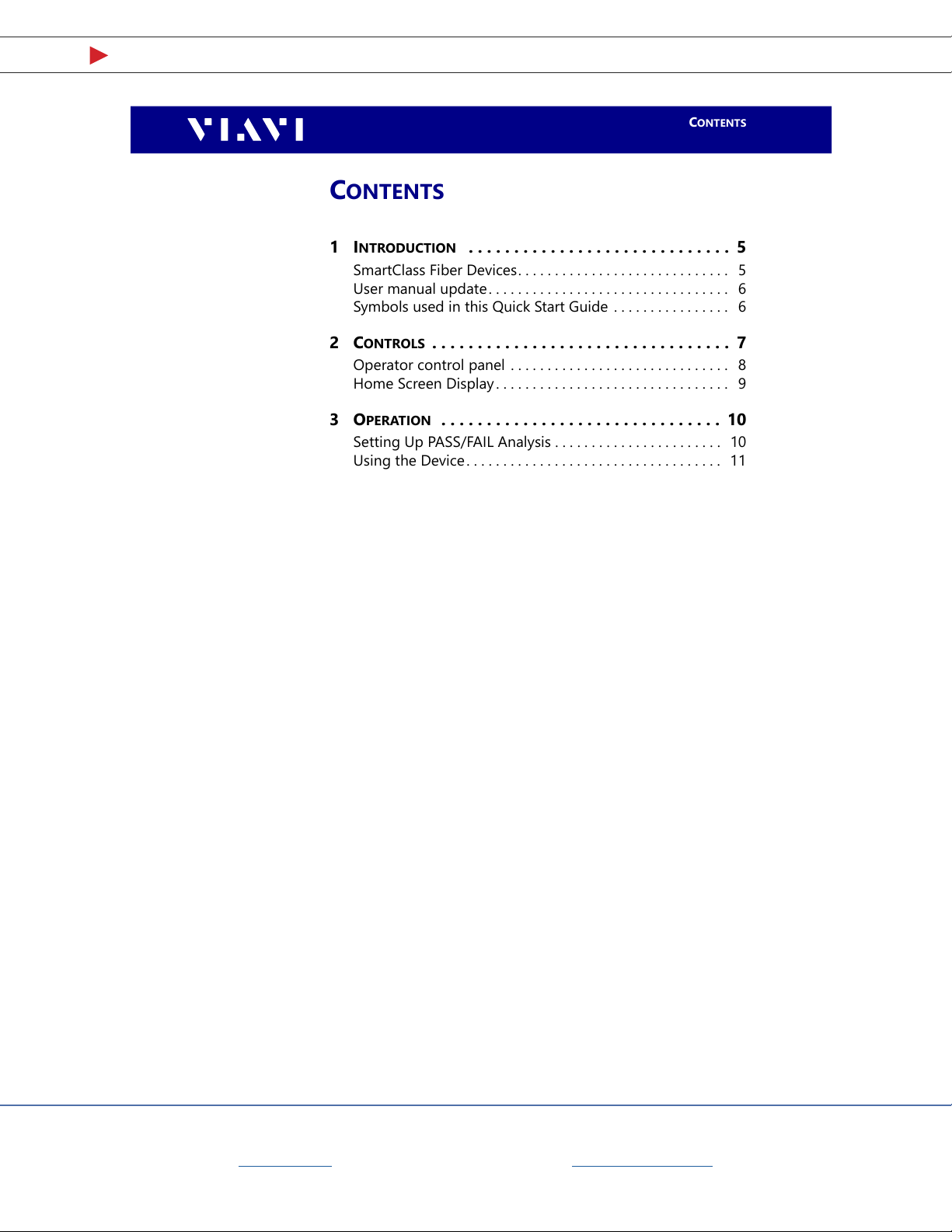

CONTENTS

1INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SmartClass Fiber Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

User manual update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Symbols used in this Quick Start Guide . . . . . . . . . . . . . . . . 6

2CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Operator control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Home Screen Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

3OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Setting Up PASS/FAIL Analysis . . . . . . . . . . . . . . . . . . . . . . . 10

Using the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Contact the professionals at Fiber Optic Center for a quote or to get more details.

focenter.com • 508-992-6464 | (800) 473-4237 • sales@focenter.com

23 Centre Street • New Bedford, MA 02740 USA Product data subject to change

without notice.

Click here for more details on the Viavi SmartClass™ HD4i Digital Handheld Video Display Pro Kit with Probe Scope

FBP-HD4i/HD4iP / OLP-82/82P 5

SMARTCLASS FIBER DEVICES

1 INTRODUCTION

1INTRODUCTION

SmartClass Fiber Devices

VIAVI’s SmartClass Fiber family is the next generation of optical

handheld test solutions that allow technicians to inspect, test,

certify, and save on a single device. Designed to help users work

smarter and faster, the SmartClass Fiber family incorporates the

features that technicians rely on every day to deliver best-in-

class reliable networks to their customers.

Products in the SmartClass Fiber family include:

Key Features and Functions

HD4i

Digital handheld

video display

OLP-82

Digital handheld video display

with optical power meter

Description HD4i OLP-82

Portable handheld display with 3.5" color touch screen 

Simple graphical menu-driven interface 

Accepts PASS/FAIL P5000i Probe 

Accepts external USB power meter 

Integrated connector certification reporting 

On-board storage: Endface images and inspection analysis 

User-definable acceptance criteria 

Integrated optical power meter 

On-board storage: Power meter results 

Integrated PON power meter (BPON, EPON, and GPON)

Integrated PASS/FAIL patch cord microscope option 

Contact the professionals at Fiber Optic Center for a quote or to get more details.

focenter.com • 508-992-6464 | (800) 473-4237 • sales@focenter.com

23 Centre Street • New Bedford, MA 02740 USA Product data subject to change

without notice.

Click here for more details on the Viavi SmartClass™ HD4i Digital Handheld Video Display Pro Kit with Probe Scope

6 FBP-HD4i/HD4iP / OLP-82/82P

1 INTRODUCTION

USER MANUAL UPDATE

This Quick Start Guide will focus on the HD4i and OLP-82

products. For further information on other VIAVI fiber test tools,

visit www.viavisolutions.com

User Manual Update

If the operating instructions about features provided by your

device are missing, please visit the VIAVI web site to check if

additional information is available.

To download the latest user manual:

1. Visit the VIAVI web site at www.viavisolutions.com.

2. Search for HD4i or OLP-82.

3. Open the download area and download the user manual if

available.

Symbols Used in this Quick Start Guide

The following character formats are used in this guide:

IRequirement

This requirement must be met first; e.g.

IThe device is switched on.

Instruction

Follow the instructions given (the numbers indicate the order

in which the instructions should be followed); e.g.

JSelect mode.

Bold type face Pages, controls, and display elements

Screen pages, controls, and display elements are indicated in

bold type.

6 FBP-HD4i/HD4iP / OLP-82/82P

1 INTRODUCTION

USER MANUAL UPDATE

This Quick Start Guide will focus on the HD4i and OLP-82

products. For further information on other VIAVI fiber test tools,

visit www.viavisolutions.com

User Manual Update

If the operating instructions about features provided by your

device are missing, please visit the VIAVI web site to check if

additional information is available.

To download the latest user manual:

1. Visit the VIAVI web site at www.viavisolutions.com.

2. Search for HD4i or OLP-82.

3. Open the download area and download the user manual if

available.

Symbols Used in this Quick Start Guide

The following character formats are used in this guide:

IRequirement

This requirement must be met first; e.g.

IThe device is switched on.

Instruction

Follow the instructions given (the numbers indicate the order

in which the instructions should be followed); e.g.

JSelect mode.

Bold type face Pages, controls, and display elements

Screen pages, controls, and display elements are indicated in

bold type.

Contact the professionals at Fiber Optic Center for a quote or to get more details.

focenter.com • 508-992-6464 | (800) 473-4237 • sales@focenter.com

23 Centre Street • New Bedford, MA 02740 USA Product data subject to change

without notice.

Click here for more details on the Viavi SmartClass™ HD4i Digital Handheld Video Display Pro Kit with Probe Scope

FBP-HD4i/HD4iP / OLP-82/82P 7

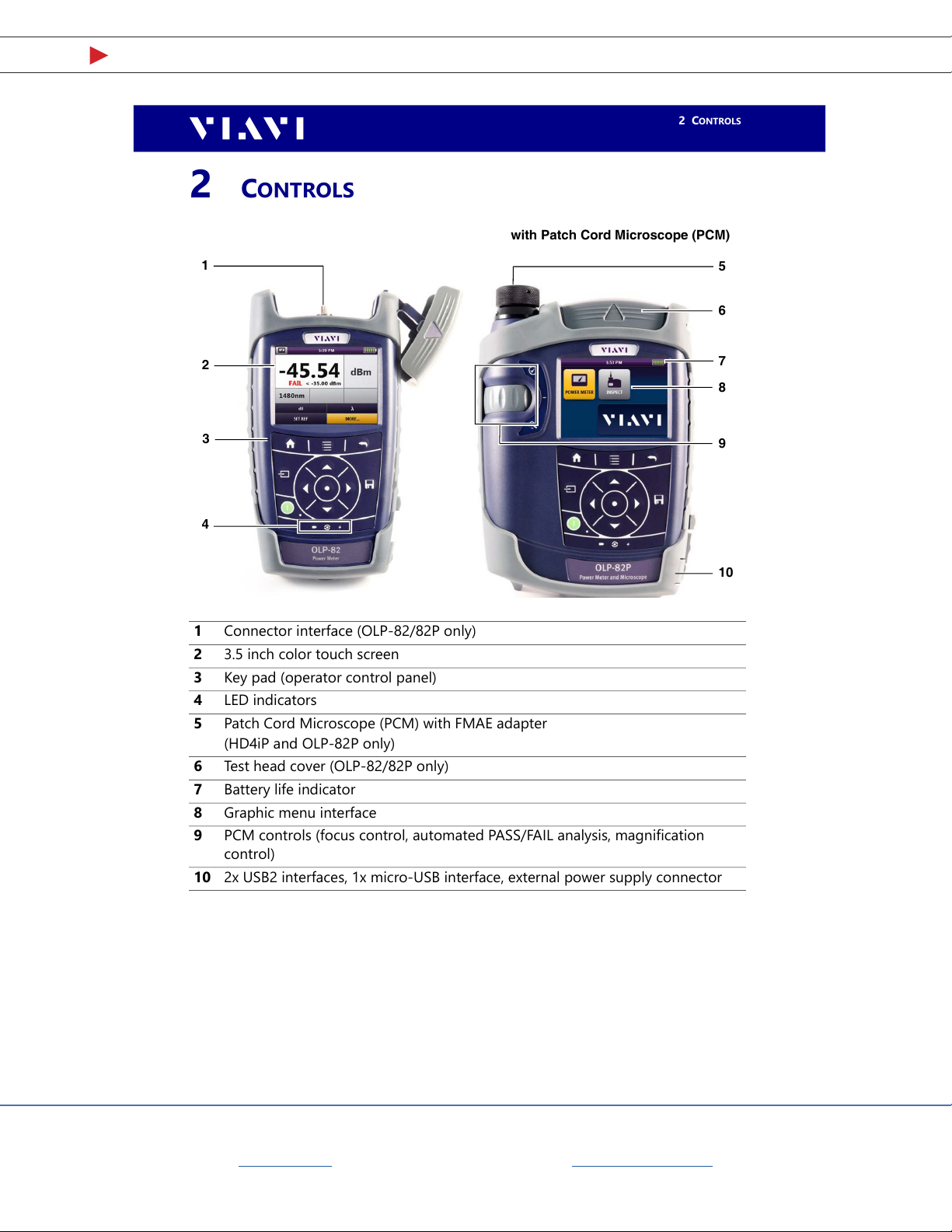

2 CONTROLS

2CONTROLS

with Patch Cord Microscope (PCM)

1Connector interface (OLP-82/82P only)

23.5 inch color touch screen

3Key pad (operator control panel)

4LED indicators

5Patch Cord Microscope (PCM) with FMAE adapter

(HD4iP and OLP-82P only)

6Test head cover (OLP-82/82P only)

7Battery life indicator

8Graphic menu interface

9PCM controls (focus control, automated PASS/FAIL analysis, magnification

control)

10 2x USB2 interfaces, 1x micro-USB interface, external power supply connector

Contact the professionals at Fiber Optic Center for a quote or to get more details.

focenter.com • 508-992-6464 | (800) 473-4237 • sales@focenter.com

23 Centre Street • New Bedford, MA 02740 USA Product data subject to change

without notice.

Click here for more details on the Viavi SmartClass™ HD4i Digital Handheld Video Display Pro Kit with Probe Scope

8 FBP-HD4i/HD4iP / OLP-82/82P

2 CONTROLS

OPERATOR CONTROL PANEL

Operator Control Panel

Mode Description

Home key

JPress to go to the home screen.

Menu key

JPress to open a menu.

Back key

JPress to go back one step.

Input Select Key (ISK)

JPress for fast toggling between device functions.

Power key

JPress to switch the instrument ON and OFF.

LED glows green when the instrument is ON.

Arrow keys

JPress to navigate through the menus.

JPress to change values in the menus.

Center key

JPress to confirm the selection.

Save key

JPress to save results

Low battery LED

Glows red when battery is low

Test in process LED

Glows red when a measurement is running in the background

Charge LED

Glows amber when battery is charging.

If the power is OFF, charging will continue with no LED

indicator.

Contact the professionals at Fiber Optic Center for a quote or to get more details.

focenter.com • 508-992-6464 | (800) 473-4237 • sales@focenter.com

23 Centre Street • New Bedford, MA 02740 USA Product data subject to change

without notice.

Click here for more details on the Viavi SmartClass™ HD4i Digital Handheld Video Display Pro Kit with Probe Scope

FBP-HD4i/HD4iP / OLP-82/82P 9

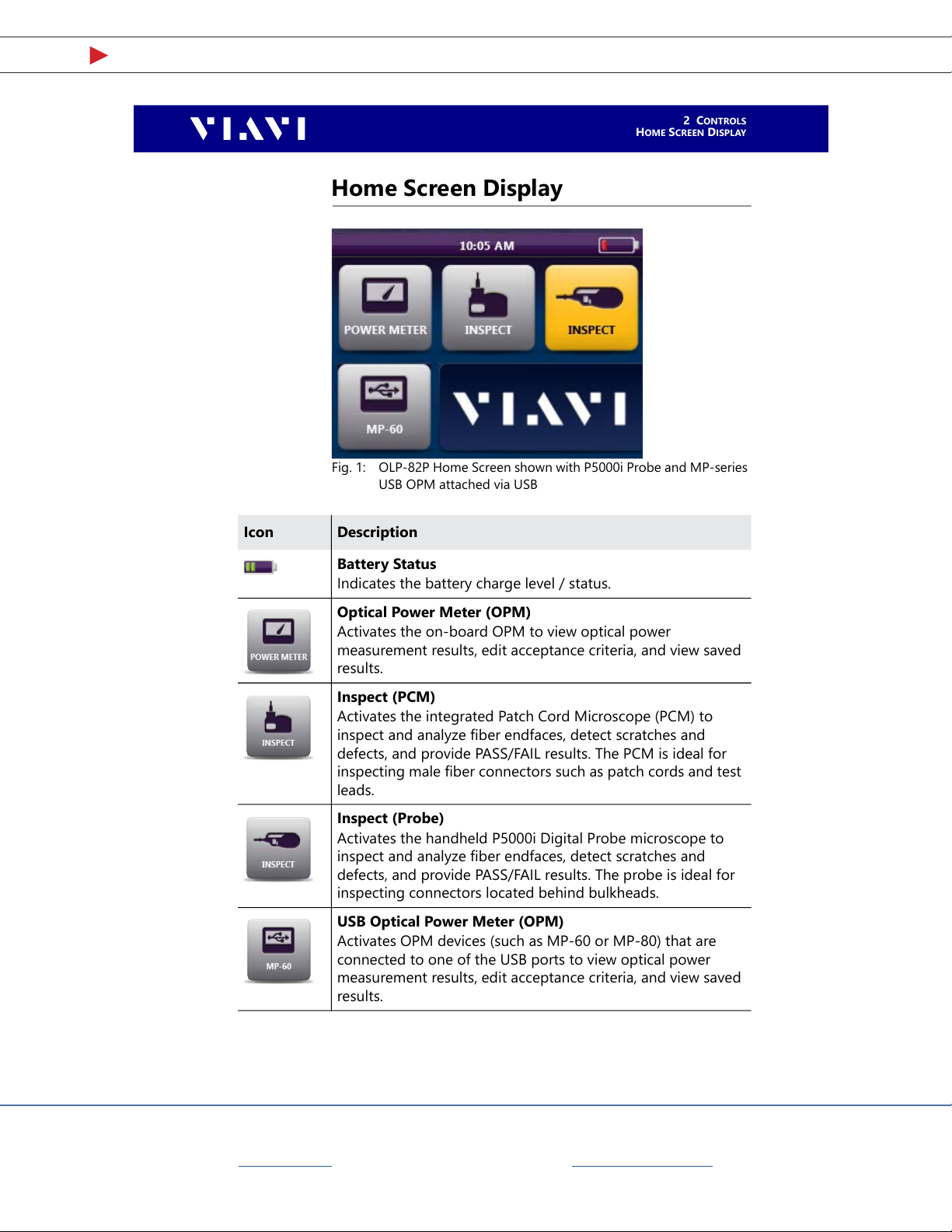

HOME SCREEN DISPLAY

2 CONTROLS

Home Screen Display

Fig. 1: OLP-82P Home Screen shown with P5000i Probe and MP-series

USB OPM attached via USB

Icon Description

Battery Status

Indicates the battery charge level / status.

Optical Power Meter (OPM)

Activates the on-board OPM to view optical power

measurement results, edit acceptance criteria, and view saved

results.

Inspect (PCM)

Activates the integrated Patch Cord Microscope (PCM) to

inspect and analyze fiber endfaces, detect scratches and

defects, and provide PASS/FAIL results. The PCM is ideal for

inspecting male fiber connectors such as patch cords and test

leads.

Inspect (Probe)

Activates the handheld P5000i Digital Probe microscope to

inspect and analyze fiber endfaces, detect scratches and

defects, and provide PASS/FAIL results. The probe is ideal for

inspecting connectors located behind bulkheads.

USB Optical Power Meter (OPM)

Activates OPM devices (such as MP-60 or MP-80) that are

connected to one of the USB ports to view optical power

measurement results, edit acceptance criteria, and view saved

results.

Contact the professionals at Fiber Optic Center for a quote or to get more details.

focenter.com • 508-992-6464 | (800) 473-4237 • sales@focenter.com

23 Centre Street • New Bedford, MA 02740 USA Product data subject to change

without notice.

Click here for more details on the Viavi SmartClass™ HD4i Digital Handheld Video Display Pro Kit with Probe Scope

10 FBP-HD4i/HD4iP / OLP-82/82P

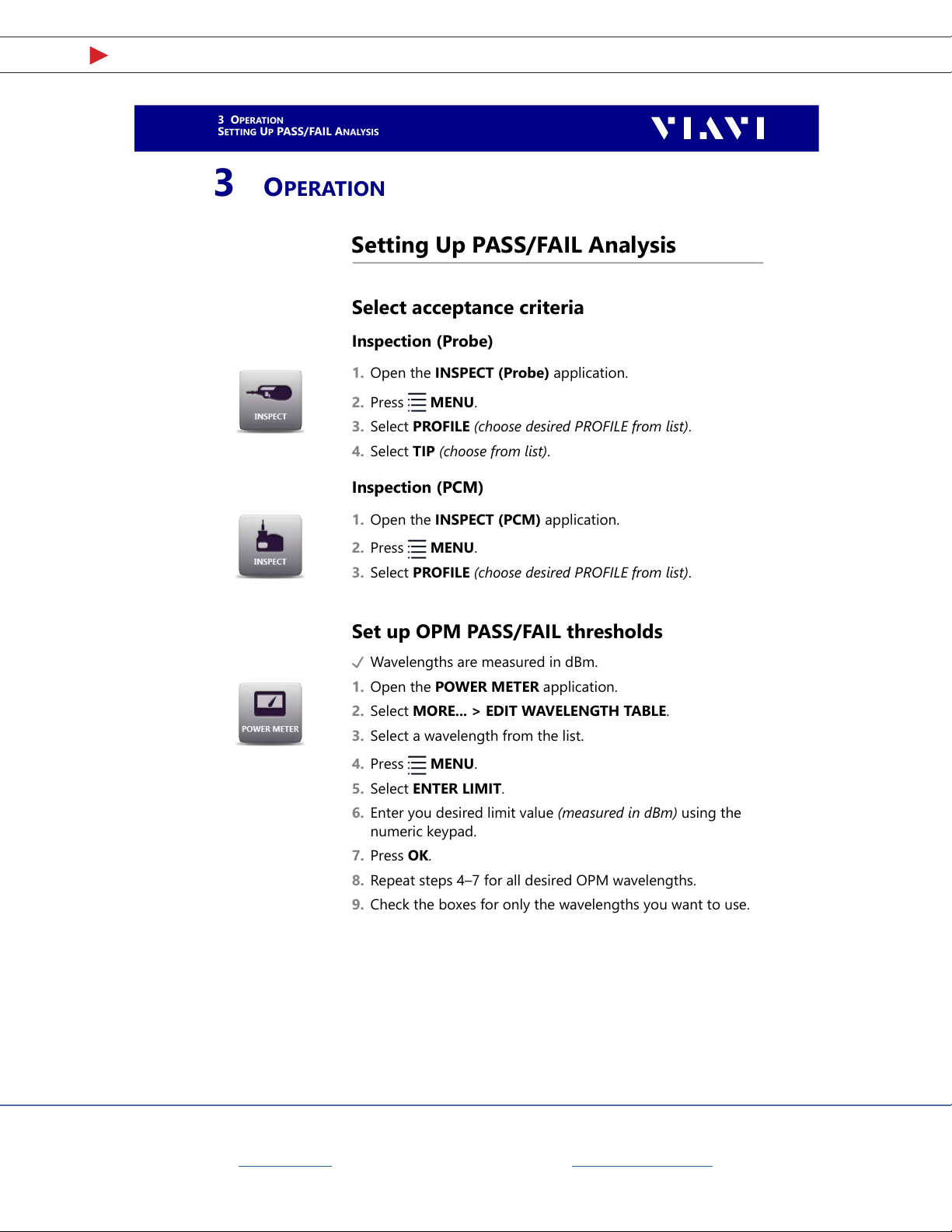

3 OPERATION

SETTING UP PASS/FAIL ANALYSIS

3OPERATION

Setting Up PASS/FAIL Analysis

Select acceptance criteria

Inspection (Probe)

1. Open the INSPECT (Probe) application.

2. Press MENU.

3. Select PROFILE (choose desired PROFILE from list).

4. Select TIP (choose from list).

Inspection (PCM)

1. Open the INSPECT (PCM) application.

2. Press MENU.

3. Select PROFILE (choose desired PROFILE from list).

Set up OPM PASS/FAIL thresholds

IWavelengths are measured in dBm.

1. Open the POWER METER application.

2. Select MORE... > EDIT WAVELENGTH TABLE.

3. Select a wavelength from the list.

4. Press MENU.

5. Select ENTER LIMIT.

6. Enter you desired limit value (measured in dBm) using the

numeric keypad.

7. Press OK.

8. Repeat steps 4–7 for all desired OPM wavelengths.

9. Check the boxes for only the wavelengths you want to use.

Contact the professionals at Fiber Optic Center for a quote or to get more details.

focenter.com • 508-992-6464 | (800) 473-4237 • sales@focenter.com

23 Centre Street • New Bedford, MA 02740 USA Product data subject to change

without notice.

Click here for more details on the Viavi SmartClass™ HD4i Digital Handheld Video Display Pro Kit with Probe Scope

FBP-HD4i/HD4iP / OLP-82/82P 11

USING THE DEVICE

3 OPERATION

Using the Device

This SmartClass Fiber device allows users to inspect, test, certify,

and save results quickly and easily by driving the user’s behavior

and incrementally stepping them through each application as it

should be used in a proper testing workflow as follows:

Starting from the Home Screen

1. Certify the patch cord/test lead endfaces:

a. Press to activate the PCM.

b. Inspect patch cord/test lead end A using the PCM.

c. Press the [TEST] button on the PCM.

d. Press to save result (if necessary).

e. Move end A over to the OPM port.

f. Inspect patch cord/test lead end B using the PCM.

g. Press the [TEST] button on the PCM.

h. Press to save result (if necessary).

i. Leave end B in the PCM.

2. Certify the bulkhead connector endface:

a. Press to activate the Probe Microscope.

b. Inspect the bulkhead endface using the Probe Microscope.

c. Press the [TEST] button on the Probe.

d. Press to save result.

e. Plug patch cord/test lead end B into the bulkhead port.

3. Measure the optical power:

a. Press to switch to the OPM.

b. Select desired wavelength (OPM value will be displayed on

the screen).

c. Press to save result.

d. Repeat as necessary for other wavelengths.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Viavi Instrument de mesure

Viavi

Viavi SmartClass ORL-85 Manuel utilisateur

Viavi

Viavi SmartPocket OLP-35V2 Manuel utilisateur

Viavi

Viavi OneExpert ONX CATV 620 Manuel utilisateur

Viavi

Viavi G3-GSP-8P-8TSSD Manuel

Viavi

Viavi SmartClass OLP-87 Manuel de la liste des pièces

Viavi

Viavi OneAdvisor ONA-800 Manuel de la liste des pièces

Viavi

Viavi DSP TDR Manuel utilisateur

Viavi

Viavi SmartOTDR Manuel de la liste des pièces

Viavi

Viavi SmartPocket OLP-37X2 Manuel utilisateur

Viavi

Viavi WiFi Advisor WFED-300AC Manuel utilisateur

Viavi

Viavi OneExpert CATV Mode d’emploi

Viavi

Viavi T-BERD 6000A V2 Manuel de la liste des pièces

Viavi

Viavi FIT-82P01-PRO Manuel utilisateur

Viavi

Viavi ALT-8000 Manuel de la liste des pièces

Viavi

Viavi CellAdvisor JD700B Series Manuel utilisateur

Viavi

Viavi CAA06M Manuel utilisateur

Viavi

Viavi OneAdvisor ONA-800 Manuel utilisateur

Viavi

Viavi SmartPocket OLS-34V2 Manuel utilisateur

Viavi

Viavi ONX-220 Manuel utilisateur

Viavi

Viavi G4-PT-040-8T Manuel

Viavi

Viavi OneExpert CATV Manuel utilisateur

Viavi

Viavi 3550 Manuel de la liste des pièces

Viavi

Viavi E4123MM Manuel utilisateur

Viavi

Viavi SmartPocket OLP-37XV2 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
