VESPA PX 125 Manuel utilisateur
Vespa would like to thank you
for choosing one of its products. We have prepared this manual to help you to get the very best from your vehicle. Please read it carefully before riding
the vehicle for the first time. It contains information, tips and precautions for using your vehicle. It also describes features, details and devices to assure
you that you have made the right choice. We believe that if you follow our suggestions, you will soon get to know your new vehicle and it will serve you
well for a long time to come. This booklet forms an integral part of the vehicle; should the vehicle be sold, it must be transferred to the new owner.
Vespa PX 125 150
The instructions given in this booklet are intended to provide a clear, simple guide to using your scooter; details are also given of routine maintenance
procedures and regular checks that should be carried out on the vehicle at and Authorized PIAGGIO Dealer or Service Centre. The booklet also
containsinstructionsforsimplerepairs.Anyoperationsnotspecificallydescribedinthisbookletrequiretheuseofspecialtoolsand/orparticulartechnical
knowledge: to carry out these operations refer to any authorized PIAGGIO Dealer of Service Centre.
2
Personal safety
Failure to completely observe these instructions will result in serious risk of personal
injury.
Safeguarding the environment
Sections marked with this symbol indicate the correct use of the vehicle to prevent dam-
aging the environment.
Vehicle intactness
The incomplete or non-observance of these regulations leads to the risk of serious
damage to the vehicle and sometimes even the invalidity of the guarantee.
The signs that you see on this page are very important. They are used to highlight parts
of the booklet that should be read with particular care. The different symbols are used
to make each topic in the manual simple and quick to locate.
3
4
INDEX
VEHICLE...................................................................................... 7
Dashboard................................................................................ 8
Instruments............................................................................... 9
Key switch................................................................................. 9
Locking the steering wheel.................................................... 10
Releasing the steering wheel................................................ 10
Switch direction indicators........................................................ 10
Horn button............................................................................... 11
Light on/of switch...................................................................... 11
Light switch............................................................................... 12
Start-up button.......................................................................... 12
Accessing the fuel tank............................................................. 12
Opening the saddle............................................................... 13
Opening the side panels........................................................... 13
Keys.......................................................................................... 14
Identification.............................................................................. 14
Rear top box opening................................................................ 15
USE.............................................................................................. 17
Checks...................................................................................... 18
Refuelling.................................................................................. 18
Tyre pressure............................................................................ 19
Running in................................................................................. 20
Starting up the engine............................................................... 21
Precautions........................................................................... 23
Difficult start up......................................................................... 23
Stopping the engine.................................................................. 24
Catalytic silencer....................................................................... 24
Safe driving............................................................................... 25
MAINTENANCE........................................................................... 27
Gearbox oil level....................................................................... 28
Tyres......................................................................................... 29
Spark plug dismantlement........................................................ 30
Removing the air filter............................................................... 31
Secondary air system............................................................... 31
Checking the brake oil level...................................................... 32
Battery....................................................................................... 34
Use of a new battery............................................................. 34
Checking the electrolyte level................................................ 35
Long periods of inactivity.......................................................... 35
Fuses........................................................................................ 37
Front light group........................................................................ 37
Headlight adjustment............................................................. 38
Front direction indicators........................................................... 39
Rear optical unit........................................................................ 39
Rear turn indicators................................................................... 40
Rear-view mirrors...................................................................... 40
Idle adjustment.......................................................................... 41
Front disc brake........................................................................ 42
Rear drum brake....................................................................... 43
Puncture.................................................................................... 43
Periods of inactivity................................................................... 44
Cleaning the vehicle.................................................................. 44
TECHNICAL DATA...................................................................... 49
Toolkit....................................................................................... 54
SPARE PARTS AND ACCESSORIES........................................ 55
Warnings................................................................................... 56
SCHEDULED MAINTENANCE.................................................... 59
Scheduled servicing table......................................................... 60
5
6
Vespa PX 125 150
Chap. 01
Vehicle
7
01_01
Dashboard (01_01)
A= Clutch control lever
B= Gearbox control
C= Turn indicator switch
D= Instrument panel
E= light switch
F= Headlight switch
8
1 Vehicle
G= Horn button
H = Starter button
I= Front brake lever
L= Acceleration knob
01_02
Instruments (01_02)
A= Spia lampeggiatori
B= Spia riserva carburante
C= Indicatore livello carburante
D= Spia luci
E= Spia abbagliante
F= Tachimetro
G= Contachilometri
01_03
Key switch (01_03)
LOCK = Ignition disabled, extractable key, mechanical anti-theft device enabled.
OFF = Ignition disabled, extractable key,mechanical anti-theft device disabled.
ON = Ready to start, non-extractable key, mechanical anti-theft device disabled.
9
1 Vehicle
Locking the steering wheel
Turn the handlebar to the left (as far as it will go), turn the key to «LOCK» and remove
the key.
CAUTION
DO NOT TURN THE KEY TO «LOCK» OR «KEY OFF» WHILE RIDING.
Releasing the steering wheel
Reinsert the key and turn it to «OFF».
CAUTION
DO NOT TURN THE KEY TO «LOCK» OR «KEY OFF» WHILE RIDING.

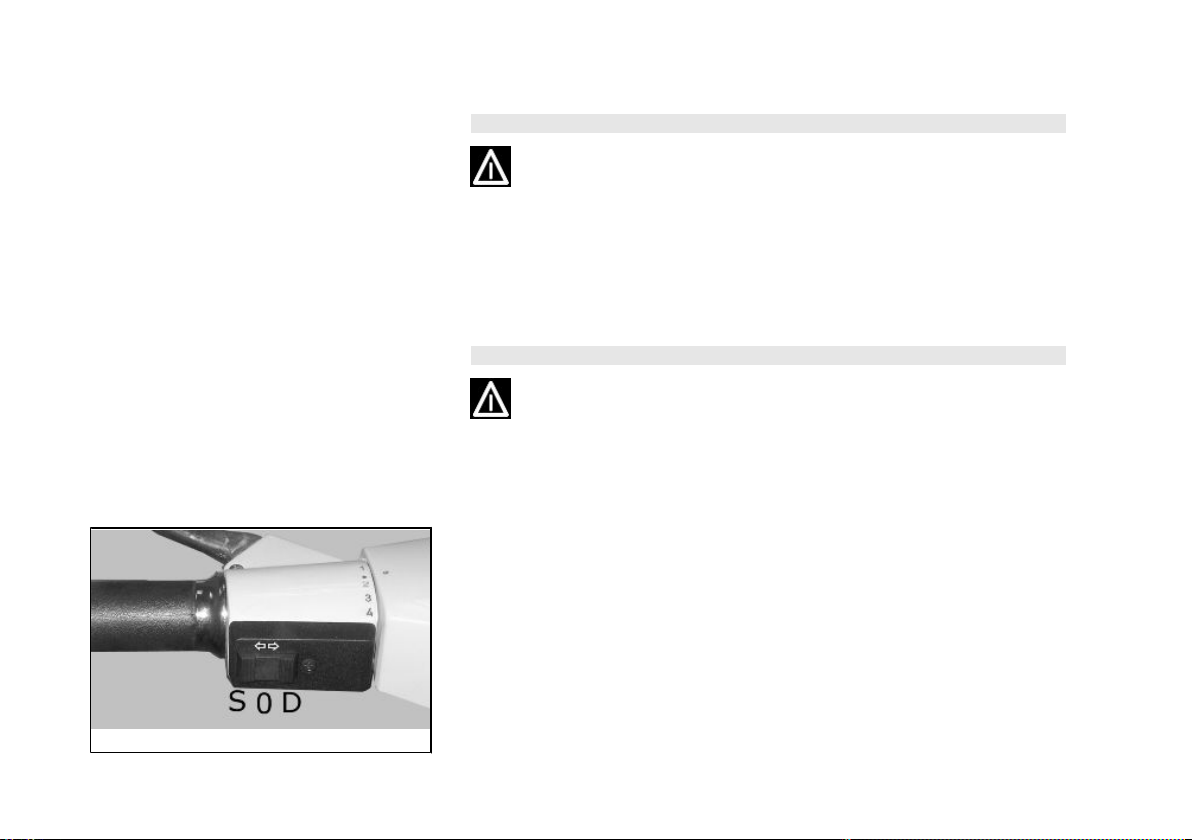

01_04
Switch direction indicators (01_04)
0= Turn signal lights off
D= Turn signal lights on (RHS)
S= Turn signal lights on (LHS)
10
1 Vehicle
