1About this document

1.1Function

This operating instructions manual provides all the information you

need for mounting,connection and setup as well as important

instructions for maintenance and fault rectiﬁcation.Please read this

information before putting the instrument into operation and keep this

manual accessible in the immediate vicinity of the device.

1.2Target group

This operating instructions manual is directed to trained qualiﬁed

personnel.The contents of this manual should be made available to

these personnel and put into practice by them.

1.3Symbolism used

Information,tip,note

This symbol indicates helpful additional information.

Caution:If this warning is ignored,faults or malfunctions can

result.

Warning:If this warning is ignored,injury to persons and/or serious

damage to the instrument can result.

Danger:If this warning is ignored,serious injury to persons and/or

destruction of the instrument can result.

Ex applications

This symbol indicates special instructions for Ex applications.

lList

The dot set in front indicates a list with no implied sequence.

àAction

This arrow indicates a single action.

1Sequence

Numbers set in front indicate successive steps in a procedure.

4Indicating and adjustment module PLICSCOM

1About this document

36433-EN-091104

2For your safety

2.1Authorised personnel

All operations described in this operating instructions manual must be

carried out only by trained specialist personnel authorised by the plant

operator.

During work on and with the device the required personal protective

equipment must always be worn.

2.2Appropriate use

The pluggable indicating and adjustment module is used for measured

value indication,adjustment and diagnoses with level and pressure

sensors.

You can ﬁnd detailed information on the application range in chapter

"Product description".

Operational reliability is ensured only if the instrument is properly used

according to the speciﬁcations in the operating instructions manual as

well as possible supplementary instructions.

2.3Warning about misuse

Inappropriate or incorrect use of the instrument can give rise to

application-speciﬁc hazards,e.g.vessel overﬁll or damage to system

components through incorrect mounting or adjustment.

2.4General safety instructions

This is a state-of-the-art instrument that fulﬁls the prevailing regulations

and guidelines.The instrument must only be operated in a technically

ﬂawless and reliable condition.The operator is responsible for the

trouble-free operation of the instrument.

During the entire duration of use,the user is obliged to determine the

compliance of the required occupational safety measures with the

current valid rules and regulations and also take note of new

regulations.

The safety instructions in this operating instructions manual,the

national installation standards as well as the valid safety regulations

and accident prevention rules must be observed by the user.

For safety and warranty reasons,any invasive work on the device

beyond that described in the operating instructions manual may be

carried out only by personnel authorised by the manufacturer.Arbitrary

conversions or modiﬁcations are explicitly forbidden.

The safety approval markings and safety tips on the device must be

also observed.

Indicating and adjustment module PLICSCOM 5

2For your safety

36433-EN-091104

2.5CE conformity

The device fulﬁlls the legal requirements of the applicable EC

guidelines.By attaching the CE mark,VEGA provides a conﬁrmation

of successful testing.You can ﬁnd the CE conformity declaration in the

download area of www.vega.com.

2.6Fulﬁllment of NAMUR recommendations

The requirements of the following NAMUR recommendations are

fulﬁlled:

lNE 21 -"Electromagnetic Compatiblity Act of the process and

laboratory control technology"

The sensors as well as the corresponding indicating and adjustment

components are generally upward and downward compatible.

2.7Environmental instructions

Protection of the environment is one of our most important duties.That

is why we have introduced an environment management system with

the goal of continuously improving company environmental protection.

The environment management system is certiﬁed according to DIN

EN ISO 14001.

Please help us fulﬁl this obligation by observing the environmental

instructions in this manual:

lChapter "Packaging,transport and storage"

lChapter "Disposal"

6Indicating and adjustment module PLICSCOM

2For your safety

36433-EN-091104

3Product description

3.1Conﬁguration

This operating instructions manual applies to the following hardware

and software versions of the indicating and adjustment module:

lHardware from 1.0.0

lSoftware from 1.0.0

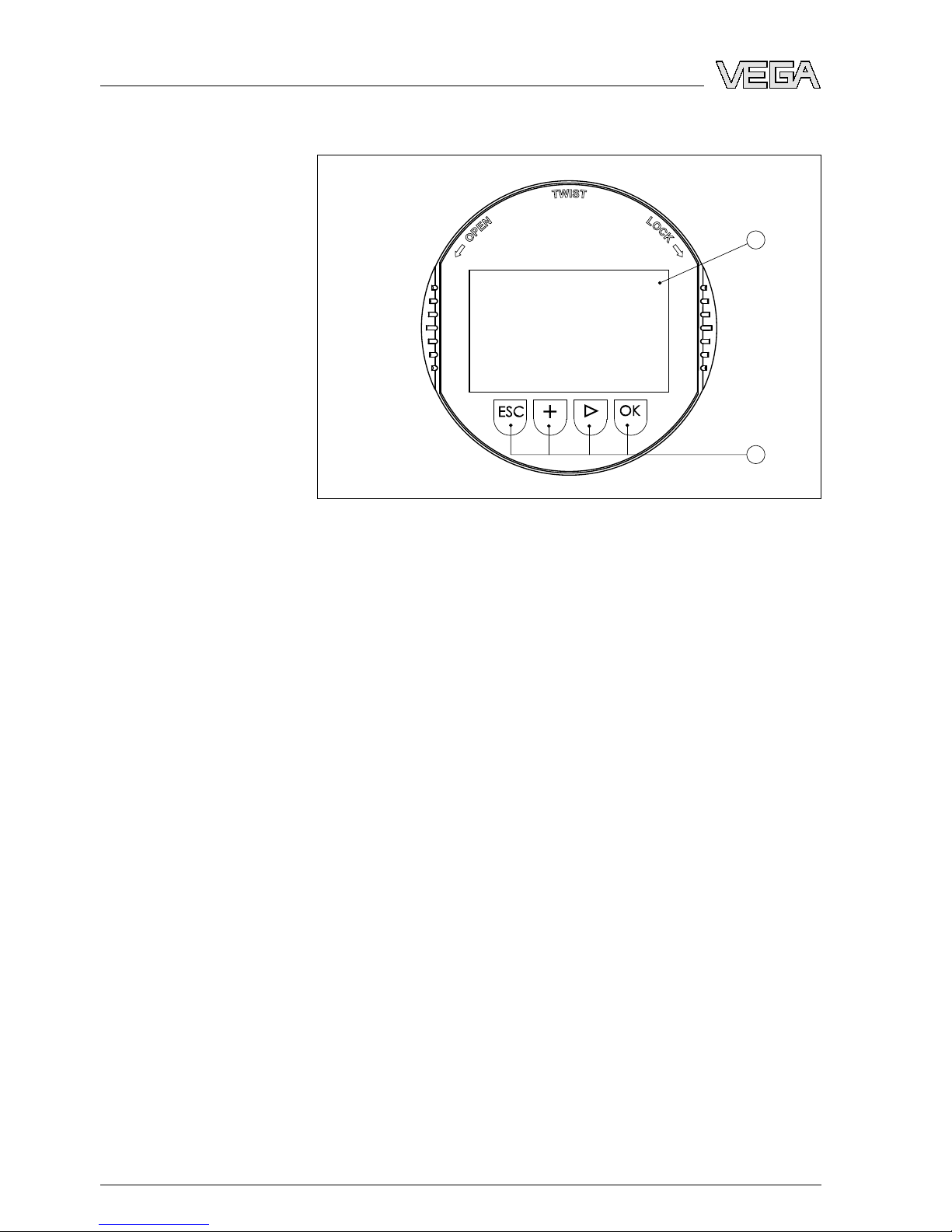

The indicating/adjustment module consists of a display with full dot

matrix as well as four keys for adjustment.

Abackground lighting is optionally integrated and can be adjusted via

the adjustment menu.

The display can be optionally equipped with heating to ensure good

readability at low temperatures down to -40 °C(-40 °F).

The scope of delivery encompasses:

lIndicating and adjustment module

lDocumentation

-this operating instructions manual

-Supplementary instructions manual 31708 "Heating for in-

dicating and adjustment module"(optional)

3.2Principle of operation

The indicating and adjustment module is used for measured value

indication,adjustment,and diagnostics for the following VEGA plics

sensors:

lVEGAPULS series 60

lVEGAFLEX series 60

lVEGASON series 60

lVEGABAR series 50 and 60

lVEGACAL series 60

The indicating and adjustment module is mounted in the sensor

housing.After installation,the sensor as well as the indicating and

adjustment module are splash-proof,even without housing cover.

Another installation possibility is the external indicating and adjustment

unit VEGADIS 61.The operation of two indicating and adjustment

module in parallel in the sensor and in VEGADIS 61 however is not

supported.

The functional range of the indicating and adjustment module is

determined by the sensr and corresponds to the respective software

version of the sensor.

Power is supplied directly by the respective sensor or by VEGADIS 61.

An additional connection is not necessary.

Scope of the operating

instructions manual

Instrument versions

Scope of delivery

Application area

Functional range

Power supply

Indicating and adjustment module PLICSCOM 7

3Product description

36433-EN-091104

The backlight is also powered by the sensor or via VEGADIS 61.

Prerequisite for this is a supply voltage at a certain level.The exact

voltage speciﬁcations can be found in the operating instructions

manual of the respective sensor.

The optional heating requires its own power supply.You can ﬁnd

further details in the supplementary instructions manual "Heating for

indicating and adjustment module".

3.3Packaging,transport and storage

Your instrument was protected by packaging during transport.Its

capacity to handle normal loads during transport is assured by a test

according to DIN EN 24180.

The packaging of standard instruments consists of environment-

friendly,recyclable cardboard.For special versions,PE foam or PE foil

is also used.Dispose of the packaging material via specialised

recycling companies.

Transport must be carried out under consideration of the notes on the

transport packaging.Nonobservance of these instructions can cause

damage to the device.

The delivery must be checked for completeness and possible transit

damage immediately at receipt.Ascertained transit damage or

concealed defects must be appropriately dealt with.

Up to the time of installation,the packages must be left closed and

stored according to the orientation and storage markings on the

outside.

Unless otherwise indicated,the packages must be stored only under

the following conditions:

lNot in the open

lDry and dust free

lNot exposed to corrosive media

lProtected against solar radiation

lAvoiding mechanical shock and vibration

lStorage and transport temperature see chapter "Supplement -

Technical data -Ambient conditions"

lRelative humidity 20 …85 %

Packaging

Transport

Transport inspection

Storage

Storage and transport

temperature

8Indicating and adjustment module PLICSCOM

3Product description

36433-EN-091104

4Prepare setup

4.1Insert indicating and adjustment module

The indicating and adjustment module can be inserted into the sensor

and removed again at any time.It is not necessary to interrupt the

power supply.

Proceed as follows:

1Unscrew the housing cover

2Place the indicating and adjustment module in the desired position

on the electronics (you can choose any one of four diﬀerent

positions -each displaced by 90°)

3Press the indicating and adjustment module onto the electronics

and turn it to the right until it snaps in.

4Screw housing cover with inspection window tightly back on

Removal is carried out in reverse order.

The indicating and adjustment module is powered by the sensor,an

additional connection is not necessary.

Fig.1:Insert indicating and adjustment module

Note:

If you intend to retroﬁt the instrument with an indicating and adjustment

module for continuous measured value indication,a higher cover with

an inspection glass is required.

Mount/Dismount indica-

ting and adjustment mo-

dule

Indicating and adjustment module PLICSCOM 9

4Prepare setup

36433-EN-091104

4.2Adjustment system

Fig.2:Indicating and adjustment elements

1LC display

2Adjustment keys

l[OK]key:

-Move to the menu overview

-Conﬁrm selected menu

-Edit parameter

-Save value

l[->]key:

-Presentation change measured value

-list entry

-Select editing position

l[+]key:

-Change value of the parameter

l[ESC]key:

-interrupt input

-Jump to next higher menu

The sensor is adjusted via the four keys of the indicating and

adjustment module.The LC display indicates the individual menu

items.The functions of the individual keys are shown in the above

illustration.Approx.10 minutes after the last pressing of a key,an

automatic reset to measured value indication is triggered.Any values

not conﬁrmed with [OK]will not be saved.

Key functions

Adjustment system

10 Indicating and adjustment module PLICSCOM

4Prepare setup

36433-EN-091104

Autres manuels pour plicscom

Table des matières

Autres manuels Vega Unité de contrôle

Vega

Vega VEGABAR series 80 Manuel utilisateur

Vega

Vega VEGADIF 65 Manuel utilisateur

Vega

Vega VEGAMIP 60 Series Manuel utilisateur

Vega

Vega VEGACAP 60 Series Manuel utilisateur

Vega

Vega plicscom Manuel utilisateur

Vega

Vega VEGAKON 66 Manuel utilisateur

Vega

Vega VEGAKON 61 Manuel utilisateur

Vega

Vega VEGABAR 80 Series Manuel utilisateur

Vega

Vega VEGADIS 176 Ex Instructions d'installation

Vega

Vega PLICSMOBILE 80 Series Manuel utilisateur

Vega

Vega VEGASWING 66 Manuel utilisateur

Vega

Vega VEGAPULS 6X Manuel utilisateur

Vega

Vega VEGASON S 62 Manuel utilisateur

Vega

Vega VEGAFLEX 66 Manuel utilisateur

Vega

Vega VEGADIS 81 Manuel utilisateur

Vega

Vega PT30E.SV Manuel utilisateur

Vega

Vega VEGACAL 60 Series Manuel utilisateur

Vega

Vega VEGATOR 132 Manuel utilisateur

Vega

Vega VEGAKON 66 Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
