Vaxcel X0090 Manuel d'instructions
Cabinet
1. Do not attempt to install fixture while plugging in.
Wall
Important to Know
1. Read all instructions carefully before installation and operation.
2. If you are not familiar with state and local electrical codes, it is recommended that you consult with
a qualified electrician.
3. Maximum number of LED cabinet lighting fixtures per run should not exceed power supply wattage
rating. (Maximum 24W)(Linkable up to 2 fixtures)
4. Do not use in wet locations, use indoors only.
5. Non-replaceable LEDs.
6. LED light output is strong enough to injure human eyes. Precautions must be taken to prevent
looking directly at the LEDs with unaided eyes.
7. Specification:
Important safety instructions.
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
X0090
Installation Steps
Fig.1.
Counter Top
NO.
1
Dimension(inch)
Item #.
X0090 24 3
ABC
0.625
Maximum
Watts
12 A
BC
Hardware Package:
(1 SET)
Page 1

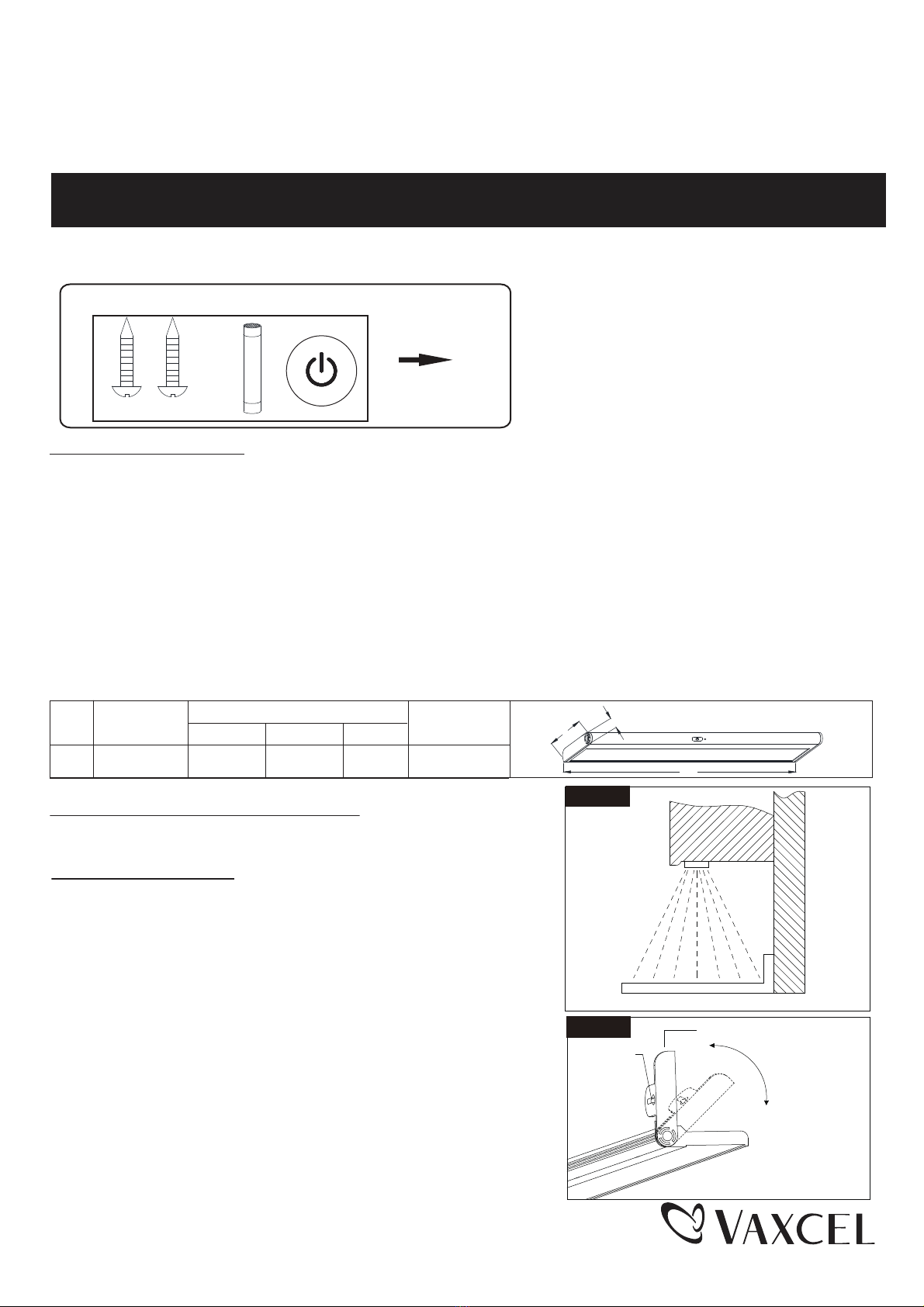

1. Find a suitable location to mount the fixture, make sure
that the 24W driver (with 5 ft. power cord) will reach the
nearest electrical outlet. The mounting surface should
be a minimum of 1/2” thick (Fig.1).
Note: The recommended mounting for the cabinet light
fixture is near the front lip of your under cabinets as
shown in the figure 1. This provides the best light
distribution across a countertop.
NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
161125
Fig.2.
Mounting Bracket
Key hole

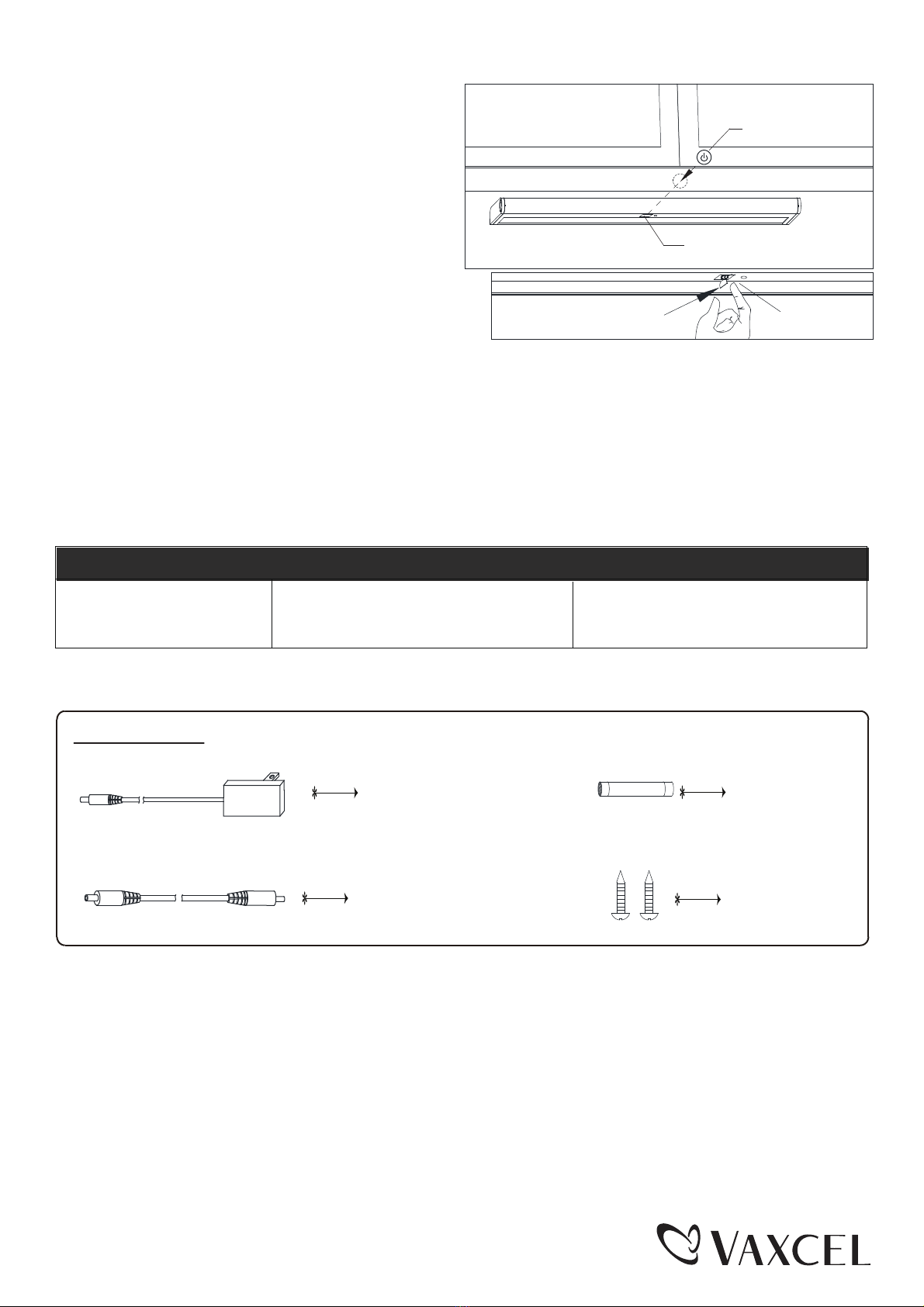

2.Use your fingernails or a small, flat-head screwdriver,
gently pry the mounting bracket until it
opens. (See Fig 2.)
Dry Wall Screw

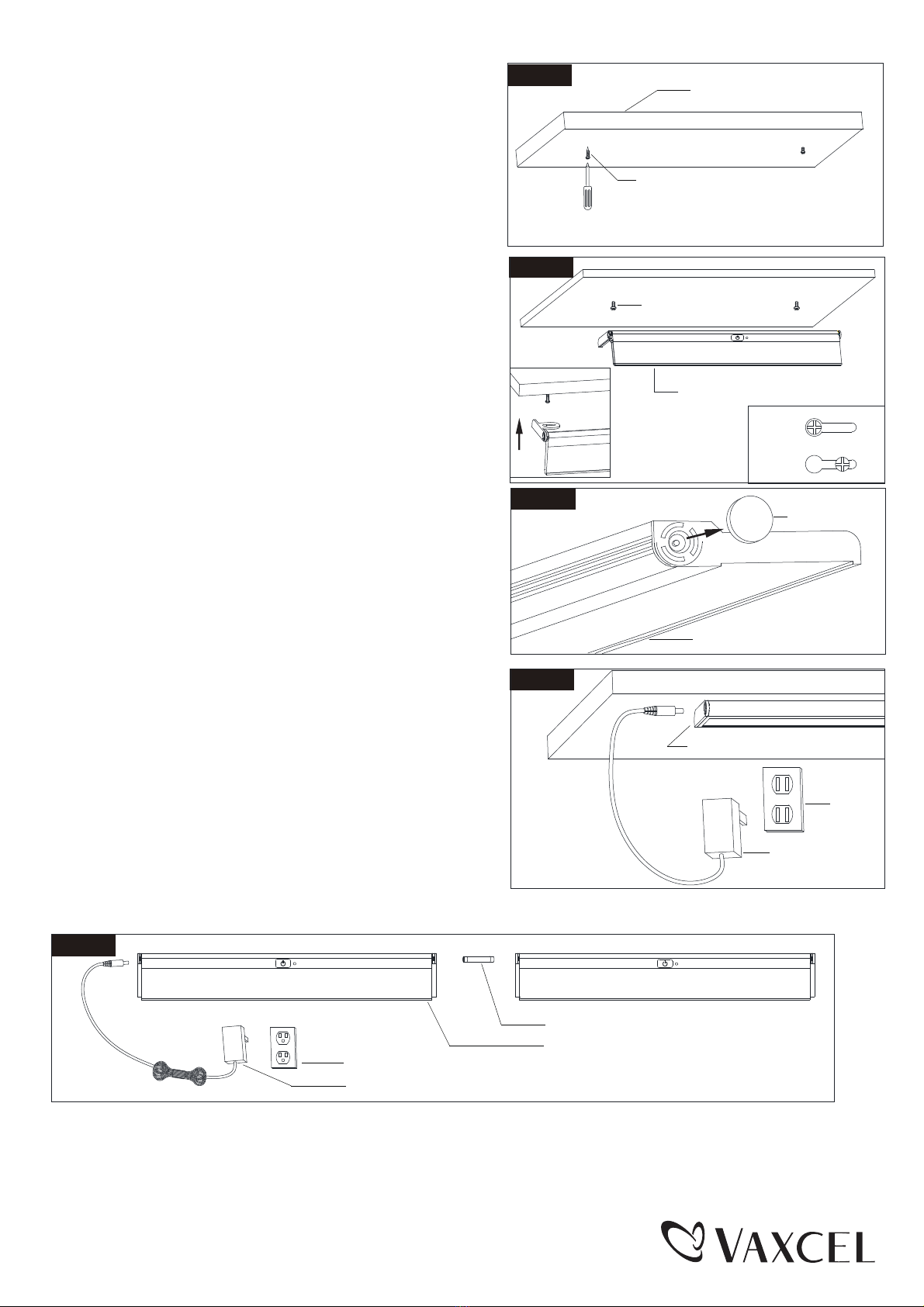

3. Place the cabinet light fixture to the mounting
surface and mark the target on the mounting
surface from the key hole, remove the cabinet
light fixture from the mounting surface. Pre-drill
holes in the mounting surface. Secure the dry
wall screws to the cabinet. (Do not over tighten
screws). Since mounting is via keyholes, the dry
wall screw heads should protrude approximately
1/4”(6.35mm) beyond surface. (See Figure 3)
4. Attach the cabinet light fixture to the cabinet by
inserting two dry wall screws heads into the key
holes, and slide the cabinet light fixture until it
locks in place. Then secure the screws tightly.
(See Figure.4)
5. Use a flathead screwdriver or other similar tool,
pry off the plastic buckle in order to insert the
power cord. (See Figure 5)
6. Plug the 24W driver into a 120VAC 60HZ outlet
and plug the linking connector into the cabinet
light fixture. (See Figure 6)
7. Adjust the cabinet lighting fixture to a desired
position, but do not rotate the cabinet light fixture
more than 90° from the original setting.
8. Turn on the power at the main fuse or circuit breaker
box. The light is ready to use.
Fig.3.
Fig.4.
Cabinet Light Fixture
Dry Wall Screw
Insert
Slide
Fig.6.
Outlet
Fig.5.
Plastic Buckle
Mounting Surface
24W driver
Cabinet Light Fixture
Cabinet Light Fixture
Page 2 161125
Connecting fixture to fixture:
When using a single 24W driver and multiple fixtures,
the cabinet light fixture units can be connected by
using a mini connector or by using a linking cord
(12 inches).
Note: a. Remove the plastic buckle from the cabinet
light fixture before installing. (See Fig.5)
b. Maximum number of cabinet light fixtures
per run should not exceed power supply
wattage rating. (Maximum 24W),
(Linkable up to 2 fixtures).
Fig.7.
Cabinet Light Fixture
Outlet
24W Driver (with 5 ft. power cord)
Mini Connector
1. Align connector on end of new fixture with connector on end of existing fixture.
2. Push new fixture to existing fixture until fixtures are flush and connectors snap together by using
mini connector. (See Fig. 7)
A. Using mini connector:
When your fingers touch the touch pad twice
continuously, the LED indicator and the fixture
will flash 2 times and then soft turn off within 1
minute.
Function and Operation
Fig.8.
12˝ Linking Cord
Cabinet Light Fixture Cabinet Light Fixture
B. Using 12˝ linking cord:
Determine location for next fixture in run. (Minimum 3” distance for linking cord should be allowed at
both ends of fixtures). Install the additional cabinet light fixture by following steps 1-5 of the instruction
steps. Once installed, attach the linking cord (12 inches) between the last cabinet light fixture and the
new one. (See Fig.8)
on-off Soft turn off
(x1)
To turn on or turn off the fixture, use your fingers
to gently touch the touch pad one time.
(x2)
Page 3 161125
1. Light will start to dim when your fingers staying
on the touch pad for longer than one second.
1a. when the LED indicator flashes 1 time, it means
the ray of light reaches maximum brightness
(100% brightness) or minimum brightness
(30% brightness).
1b. The light will lock in the brightness when the
fingers are removed from the touch pad.
Dimming
Cleaning instructions
Your fixture is made from quality materials that will last for many years with minimum care. When
cleaning, make sure you have unplugged your fixture, and have allowed sufficient time for the unit
to cool to room temperature. You should clean the housing and lense using a damp soft cloth. You
should plug your fixture back in only after the fixture has thoroughly dried.
Note:
1. This cabinet light fixture has memory function
setting. The light will stay at the same status
as the last time the power supply was turned
off.
2. When power is first applied, the light will turn
to high-level brightness (100% brightness).
3. This hardware package has a label. Please
paste the label on the cabinet, in order to
remind the position of the touch pad.
Trouble Shooting
Minor problems often can be fixed without the help of an electrician. Before doing any work on the
fixture, shut off power supply at the circuit breaker panel to avoid electrical shock.
POSSIBLE CAUSE CORRECTIVE ACTION
Light will not come ON 1. Power is off.
2. Bad plug connection.
1. Check if power supply is on.
2. Check 24W driver .
PROBLEM
24W Driver (with 5 ft. power cord)
(1 PC)
(7052DD)
12" Linking Cord
(1 PC)
(7052LC)
Mini Connector
(1 PC)
(7052MC)
Dry Wall Screw
(2 PCS)
(4847WS)
24 W
Label
Touch Pad
Remove cover before
using luminaires. Touch Pad
Page 4 161125
5-YEAR LIMITED WARRANTY:
All products are warranted to be free of defects in material and workmanship for five (5) years from date of
purchase. This warranty is limited to the correction of any such defect, or the replacement of any such defective
item(s), provided that: (a) we are properly notified and consent to return of the item(s) in question:(b) the item(s)
is / are returned with proof of purchase date; and (c) it is found upon inspection by us that the item(s) is / are defective
as noted above. This warranty does not cover labor costs, consequential damages, nor does it apply to any item(s) that
have been improperly installed, overloaded, altered, or otherwise abused by the customer, its agent(s) or employee(s).
Finishes are specially excluded from the terms of this warranty since they are subject to environmental maintenance
deemed beyond our control. Other than the described obligation, we assume no further liability with respect to the sale
or use of our products.We make no warranty, express or implied, and disclaim any warranty of merchantability or fitness
for a particular purpose.
The following parts are available for re-order if damaged or missing.
Spare Parts List:
