Vaxcel T0476 Manuel d'instructions

Turn off the power at fuse or circuit box

Installation Steps

Glass Panel

Metal Frame

Iron Plate

Threaded Pipe

1. Unscrew the loop to remove the rubber pad and cover.

2. Unscrew the hex nut and washer from the threaded

pipe to remove the upper cover.

3. Gently place four glass panels into the metal frame,

then press the clips to secure the glass panels. (Fig.1)

Note: The patterned side of faces glass out.

Fig.1

Glass Panel

Clip

Metal

Frame

4. Install a bulb (not included). See relamping label

at socket area or packaging for maximum allowed wattage.

5. Attach the upper cover, washer, hex nut, cover, rubber pad

and loop to the threaded pipe.

6. Pull out the wires and grounding wire from the post.

Make wire connections using the wire connectors (B):

---The black wire from the fixture to the black wire

from the post.

---The white wire from the fixture to the white wire

from the post.

---The grounding wire from the fixture to the grounding

wire from the post.

Carefully put the wires back into the post.

Bulb Type A Max.60W

(not included)

Grounding Wire

Fixture Wire

Wire Connector (B)

Post

Fitter

Photocell

Fitter Screw (A)

Hardware Package (included):

Wire Connector (B)

Fitter Screw (A)

Loop

Rubber Pad

Cover

Washer

Hex Nut

Upper Cover

181220

ASSEMBLY AND INSTALLATION

INSTRUCTIONS

NOTE: 1. Before installing, consult local electrical codes for wiring and grounding requirements.

2. READ AND SAVE THESE INSTRUCTIONS.

T0476

WARNING:

TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF

POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.

Turn on the power at fuse or circuit box

181220

7. Place the fitter on the post, then secure it with the fitter screws (A).

CAUTION: With silicone caulking compound, caulk completely around where the fitter meets with the

post surface to prevent water from seeping into the post.

Turn on the power at fuse or circuit box

1. Turn off the power at the fuse or circuit box before starting installation.

2. Unthread the fitter screw and plate, and then Loosen the wire connectors connected with the

wires from photocell. (See Fig.2)

Note: Do not move the photocell to prevent water from seeping into the outlet box.

3. Take a white pigtail and black pigtail and make wire connections using wire connectors (B) : (See Fig.3)

a. The black wire from the fixture to one end of the black pigtail.

b. The white wire from the fixture to one end of the white pigtail.

c. The other end of the black pigtail to the black wire from the power source.

d. The other end of the white pigtail to the white wire from the power source.

Put all wires back into the back plate of the fixture.

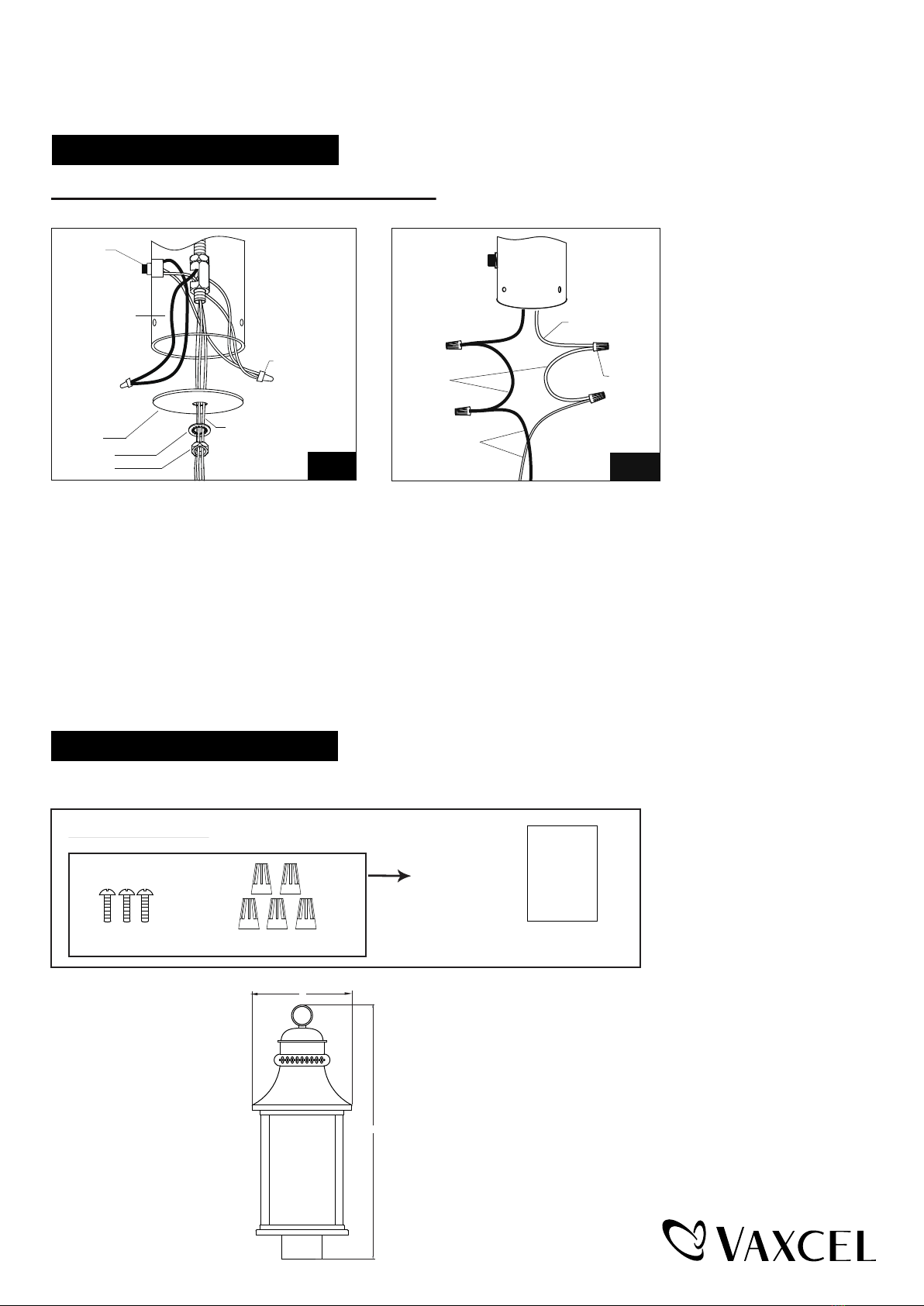

Operation the Unit Without Photocell

Photocell

White Wires From

Photocell

Wire Connector

Wire Connector (B)

Black Wire From

Fixture

Wires From Fixture

Wires From

Main Power

White Pigtail

Pigtail

Red Wires From

Photocell

Black Wires From

Photocell

Fig.2 Fig.3

White Wire From

Fixture

Plate

Fitter Screw

Photocell

Wire Connector

Black Wire From

Fixture

White Pigtail

Fig.2

Plate

Washer

Hex Nut

Assembly Kit

6062MM (1SET)

The following parts are available for re-order if damaged or missing.

Spare Parts List:

Glass Shade

10076W

Wire Connector (B)

Fitter Screw (A)

A:8"

B:21-1/2"
