Vantrue Nexus 5 Manuel utilisateur
4-Channel Voice Controlled
Smart Dash Cam
Nexus 5(N5)
122mmX130mm
70g
User Manual
Download
the full version of user manual here
CONTENTS
01
02
03
04
05
06
07
What’s in the box?
Camera Oveiew
Installation
Basic Operation
Specications
Safety Warnings
Warranty & Suppo
1
2
5
16
37
39
40
- 1 -

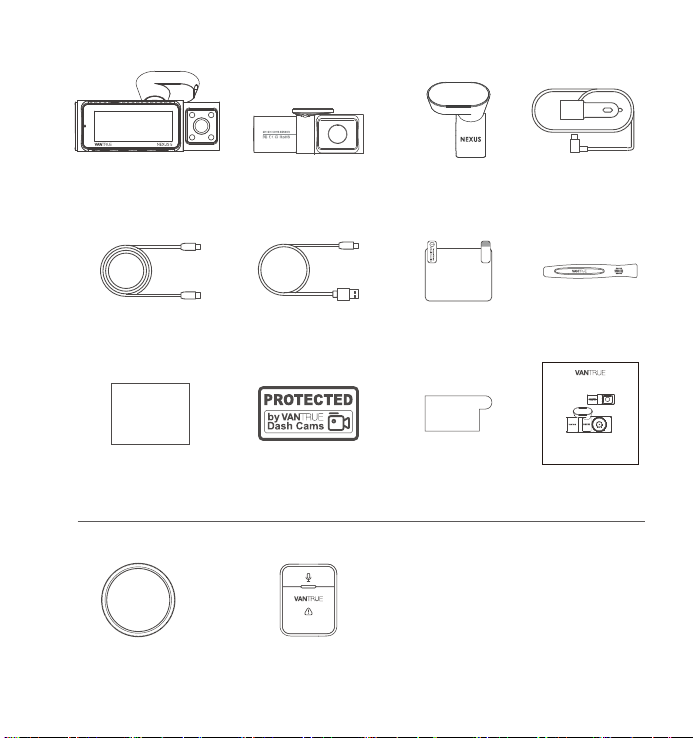

1. What’s in the box?
M. CPL Filter N. Wireless Remote
Control
A. VANTRUE N5
Dash Cam
B. Rear Camera C. GPS Mount D. Car Charger
with Built-in
Type-C Cable
(11.5ft)
Optional Accesso
E. Rear Camera
Cable (20ft)
F. Type-C USB Data
Cable (3ft, for
data transfer only)
H. CrowbarG. Electrostatic
Stickers*2
J. Warning Stickers
*2
K. 3M Adhesive
Stickers*2
I. Dust-free Cloth L. Quick User
Guide
3M
4-Channel Voice Controlled
Smart Dash Cam
Quick User Guide
Nexus 5(N5)
- 2 -

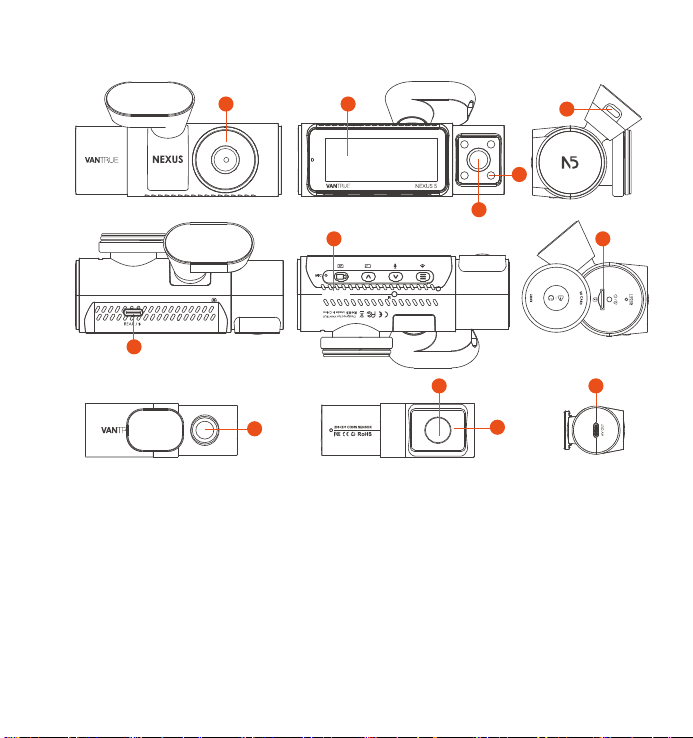

2. Camera Oveiew
Serial Number
MicroSD Card Slot
Rear Camera for Back Recording
Rear Cabin Camera
1.
2.
3.
4.
5. Type-C USB Po for Charging
Front Facing Camera
3.19 inch IPS Screen
Front Cabin Camera
Infrared Lights for Front Cabin
Camera
6. Type C USB Po for Rear Camera
Cable
12.
11.
7.
8.
9.
10.
Type-C USB Po for Rear Camera
Connection or Data Transferring
Infrared Lights for Rear Cabin
Camera
6
7
5
911
10
VTE22L1577
21
8
4
3
12
- 3 -

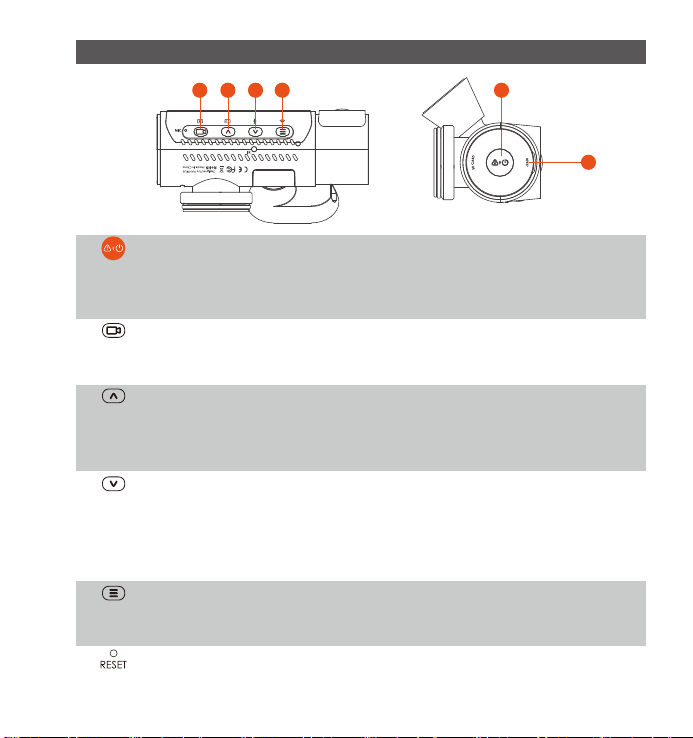

Button Instruction
1.
2.
3.
Button
Button
Button
During video recording, sho press to switch the video
window; In menu settings and le browsing, sho press to
display the previous option, long press to scroll up to display
options; In playback mode, sho press to fast forward;
During video recording, long press to quickly enter parking
mode, and sho press to turn on/o the microphone; In
menu settings and le browsing, sho press to display the
next option, long press to scroll down to display options; In
playback mode, sho press to pop up the delete le menu;
6
2 13 4 5
4.
5.
6.
Button
Button
Button
In the recording mode, long press to turn on/o WiFi; In
menu settings and le browsing, sho press to return to
the previous inteace；
In power-on status, long press to turn o the dash cam；
In power-o status, sho press to turn on dash cam;
During video recording, sho press to capture a picture;
In playback mode, sho press to pop up the delete Menu;
Sho Press to force reset the device.
During video recording, sho press to sta/stop recording;
In menu settings, sho press to conrm the action;
In playback mode, sho press to play/pause the le;
- 4 -
LED Indicator

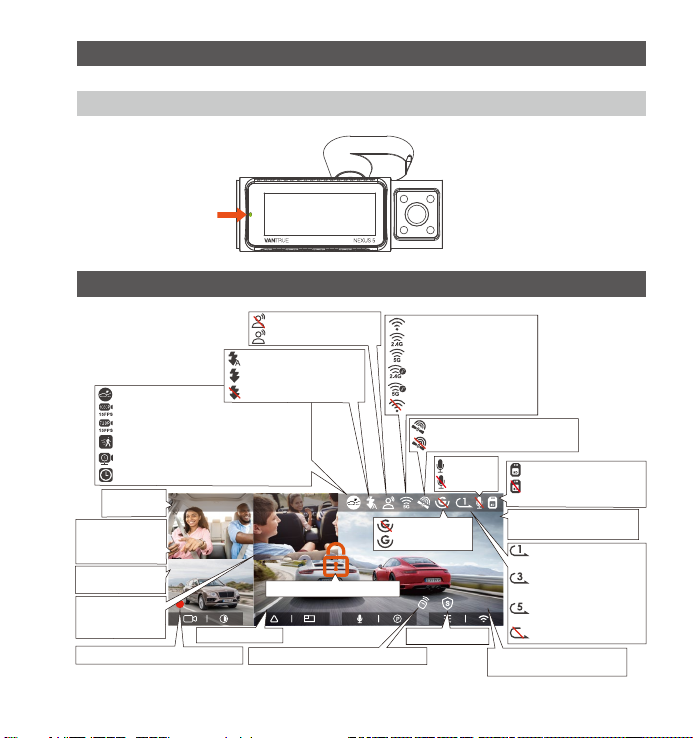

Screen Oveiew
Steady green light In standby status
Blinking green light Camera is recording
FC
R
RC
F
MP/H
14:25:35 06-01-202300:00:37
35
1440P+1080P+1080P+1080P 30FPS
WiFi Status
2.4G WiFi ON
5G WiFi ON
2.4G WiFi is connected
5G WiFi is connected
WiFi OFF
GPS is located successfully
GPS OFF
Memo card inseed
Loop Recording for
1 min;
Loop Recording for
3 min;
Loop Recording for
5 min;
Loop Recording OFF
Video
Resolution
R means Rear
Camera Display
Time and Date
F means Front Camera
Display
Voice Assistant OFF
Voice Assistant ON
Recording Time (Current Clip)
Collision Detection
1080P Low Bitrates Recording ON
720P Low Bitrates Recording ON
Motion Detection
Low Framerate Recording ON
Time Lapse On
IR LED AUTO ON/OFF
IR LED ON
IR LED OFF
MIC ON
MIC OFF
FC means Front
Cabin Camera
Display
RC means Rear
Cabin Camera
Display
Emergency File Locked
G-sensor OFF
G-sensor ON
NO Memo card/SD
card error
Privacy Mode
Recorded driving speed
(KMH or MPH)
Remote control is connected
- 5 -
3. Installation
3.1 Installing a Memo Card (Recommended Vantrue U3 high-speed microSD
card).
Please inse a memo card (memo card capacity: 32GB-512GB, card
speed: U3/Class10/A2) into the card slot according to the direction indicated
in below picture, until a "click" sound is heard in the card slot, indicating that
the memo card is inseed properly.
After inseing the memo card, if the screen prompts "Card error, please
format" (please note that the recorder does not record at this time), please
directly press the button to enter the menu, then go to 'system setup' and
choose 'format' to sta the formatting process.

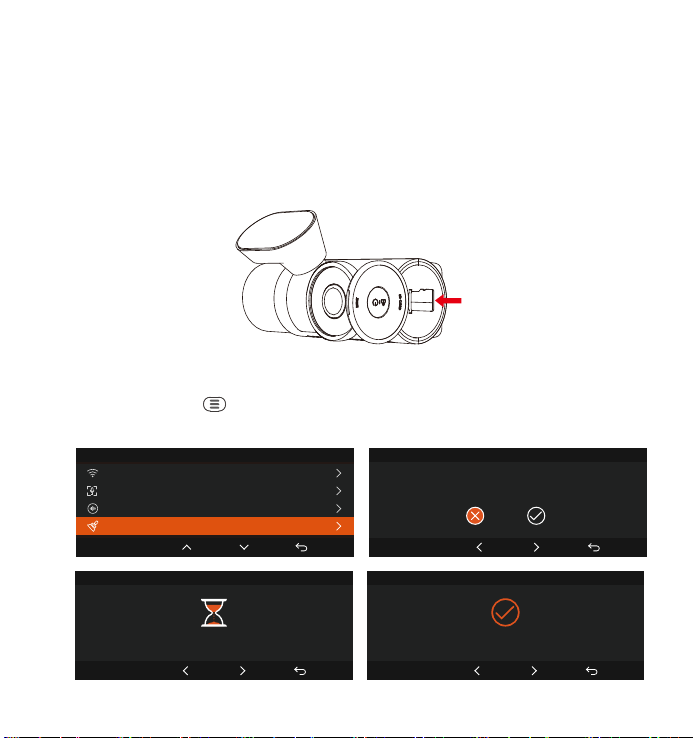

Format SD Card
OK
All data will be deleted!
OK
System Setup 5/14
Format SD Card
Wi-Fi
Voice Control
Voice Content
Format SD Card
OK
Format SD Card
Format SD Card
OK
Format successful
- 6 -
The dashcam has ceain requirements on the card speed of the memo
card. For reliable operation, please use memo card speed: U3/Class10/A2,
we recommend using a VANTRUE SD card(sold separately).
The microSD card should be formatted once a month to maximize the
lifetime of the memo card.
Pleasedonottakethecardoutwhenthecameraisrecordingincasethe
impoantvideole missing.
Note:
3.2 Installation

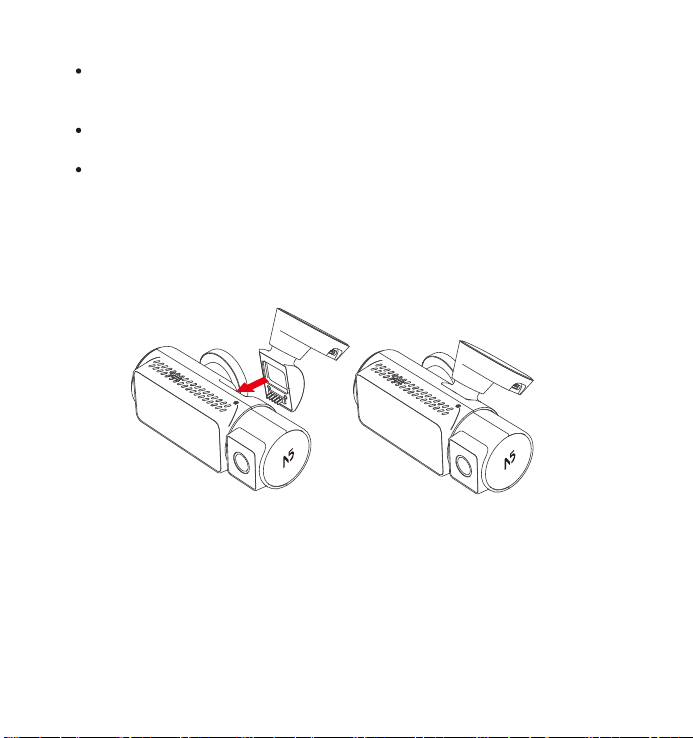

3.2.1 lnstallation of Camera Mount
Align the mount with the dash cam mount inteace then push in until the
mount is installed.
3.2.3 Power On Dash Cam, Select the Installation Position
Before installation, please power on the dash cam and check whether the
shooting angle of the front and interior lens are appropriate through the
recording view.
- 7 -

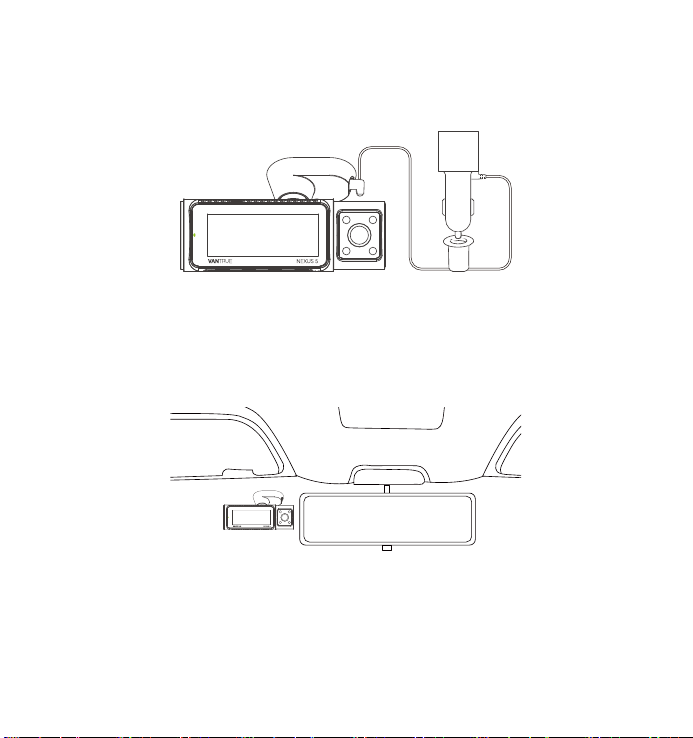

3.2.2 Car Charger Installation
Connect one end of the car charger to the car cigarette lighter and the other
end to the Type C po on the front camera mount. Sta the ignition, waiting
for the dash cam to sta.
