Vantec NEXSTAR 2 355UF Manuel utilisateur

EXTERNAL ENCLOSURE

www.vantecusa.com

USER MANUAL

Package Contents:

NexStar 2 External 3.5” HDD Enclosure:

(NST-355U2, NST-355UF):

• Driver CD

• User Manual

• NexStar 2 External 3.5“ HDD Enclosure

• Power Adaptor

• Power Cable

• USB Cable

• FireWire Cable (NST-355UF Only)

• Screws

• Vibration Dampeners

NexStar 2 External 5.25” IDE Enclosure:

(NST-525U2, NST-525UF):

• Driver CD

• User Manual

• NexStar 2 External 5.25“ IDE Enclosure

• Power Cable

• USB Cable

• FireWire Cable (NST-525UF Only)

• Screws

• Mounting Brackets

TRADEMARKS

MS-DOS, Microsoft, Windows 95/98/NT/2000/ME/XP are trademarks of Microsoft Corporation.

Apple, Macintosh and Mac are trademarks of Apple Computer

*All other third-party brands and names are the property of their respective owners.

Table of Contents 1

Table of Contents:

1. Introduction ...................................................................................................................................... pg. 2

2. Specifications/Features

2.1. NexStar 2 External 3.5” HDD Enclosure .......................................................................... pg. 3

2.2. NexStar 2 External 5.25” IDE Enclosure ........................................................................... pg. 3

3. System Requirements .................................................................................................................... pg. 4

4. Parts Layout

4.1. NexStar 2 External 3.5” HDD Enclosure .......................................................................... pg. 5

4.2. NexStar 2 External 5.25” IDE Enclosure ........................................................................... pg. 5

5. Installation

5.1. NexStar 2 External 3.5” HDD Enclosure

5.1.1. Hardware Installation ................................................................................................. pg. 6

5.1.2. Driver Installation ......................................................................................................... pg. 8

5.2. NexStar 2 External 5.25” IDE Enclosure

5.2.1. Hardware Installation ................................................................................................. pg. 11

5.2.2. Driver Installation ......................................................................................................... pg. 14

6. Disconnecting the NexStar 2

6.1. NexStar 2 External 3.5” HDD Enclosure .......................................................................... pg. 16

6.2. NexStar 2 External 5.25” IDE Enclosure ........................................................................... pg. 17

7. Creating A New Partition .............................................................................................................. pg. 18

8. Troubleshooting/FAQ

8.1. NexStar 2 External 3.5” HDD Enclosure .......................................................................... pg. 20

8.2. NexStar 2 External 5.25” IDE Enclosure ........................................................................... pg. 22

9. Warranty ............................................................................................................................................. pg. 23

10. Contact ............................................................................................................................................. pg. 23

Introduction

1. Introduction:

With its NexStar 2 series of enclosures, Vantec literally puts technology in your hands.

Whether you’re looking for the ideal portable storage device or simply a convenient way

to share hardware (hard drives, DVD burners, etc), the NexStar 2 series of enclosures is

the perfect solution.

Sleek and stylish, the NexStar 2 External 3.5” Hard Drive Enclosure is a great way to

upgrade any internal 3.5” hard drive into an external storage solution. Installing a new

hard drive can be a hassle, especially if you are trying to add storage to a notebook

computer. With the NexStar 2, you can upgrade your storage in minutes. The NexStar 2

takes advantage of USB 2.0 or FireWire (NST-355UF only) to offer speeds up to 480Mbps.

Because the NexStar 2 is plug & play, you can easily transfer data between Windows

XP/2000 systems without worrying about drivers or rebooting.

With the Vantec NexStar 2 External 5.25” Enclosure, you can easily add any 5.25” IDE

Device to your existing system. This unit also connects to your computer through USB

2.0 or FireWire (NST-525UF only) offering speeds up to 480Mbps and eliminating the

need to open your system. The NexStar 2 is perfect for anyone looking to add any 5.25”

device, such as a CD/DVD burner, to a notebook or desktop computer. Because you

don’t have to open your computer, you don’t have to worry about voiding your existing

warranty or dealing with messy wires. The integrated fan also keeps your device cool

and operating at optimum conditions. The NexStar 2 External 5.25” Enclosure is the

smart way to upgrade your computer.

Specifications/Features 3

2. Specifications/Features:

2.1. NexStar 2 External 3.5” HDD Enclosure:

Specifications:

• Interface: IDE to USB 2.0/FireWire (NST-355UF only)

• Dimension: 210 X 135 X 40 mm

Features:

• Dampens Hard Drive vibration

• Transfer Rates Up to 12Mbps With USB 1.1

• Transfer Rates Up to 480Mbps With USB 2.0

• Transfer Rates Up to 400Mbps With FireWire (NST-355UF only)

• Easily add storage to any system with USB or Firewire (NST-355UF only)

• Hot-swappable: Plug and play without rebooting!

• Attractive blue LED indicates power/HDD activity

2.2. NexStar 2 External 5.25” IDE Enclosure:

Specifications:

• Interface: IDE to USB 2.0/FireWire (NST-525UF only)

• Dimension: 251.5 x 173 x 47 mm

Features:

• Integrated 40x40mm Cooling Fan

• Transfer Rates Up to 12Mbps With USB 1.1

• Transfer Rates Up to 480Mbps With USB 2.0

• Transfer Rates Up to 400Mbps With FireWire (NST-525UF only)

• Easily Add A 5.25” Device to Any System With USB or FireWire

(NST-525UF only)

• Hot-Swappable: Plug & Play Without Rebooting!

• Easy Installation: No Need To Open Computer!

System Requirements

3. System Requirements:

• Intel Pentium II 350MHz-compatible or Apple G3 processor and greater

• Microsoft Windows 98SE/ME/2000/XP or Mac OS 8.6 and greater

• USB-equipped system

• For USB 2.0 speeds, the system must support USB 2.0 specifications

• For FireWire, the system must support FireWire (IEEE 1394) specifications

• CD Rom drive (if drivers are needed)

Parts Layout 5

4. Parts Layout:

4.1. NexStar 2 External 3.5” HDD Enclosure:

4.2. NexStar 2 External 5.25” IDE Enclosure:

IDE Cable

Power Cable

Audio Cable

Left Vibration Dampener

Right Vibration Dampener

Right Mounting Bracket

Left Mounting Bracket

Power Cable

IDE Cable

Installation: NexStar 2 External 3.5” HDD Enclosure

5. Installation:

5.1. NexStar 2 External 3.5” HDD Enclosure:

5.1.1. Hardware Installation:

Preparing the hard drive:

1) Set the hard drive jumpers to MASTER or SINGLE DRIVE ONLY. Please refer to

the documentation included with your hard drive for information on how to

accomplish this.

2) Place the vibration dampener on the hard drive as pictured below and screw

it in place. (note: The lip of the vibration dampener is on the bottom of the

hard drive.)

3) Repeat with the second vibration dampener so that the hard drive appears

as below.

Vibration Dampener

Installation: NexStar 2 External 3.5” HDD Enclosure 7

Note: When removing the hard drive from the NexStar 2, be careful not to yank on the IDE

cable or the power cable. To remove the IDE cable, grasp the cable between your thumb

and index finger and gently pull at the sides until the cable comes loose. To remove the

power cable, grasp the sides of the plug and pull.

Installing the hard drive in the NexStar 2:

1) Remove the top cover of the NexStar 2 (the side with the logo and text).

2) Connect the IDE cable and power cable to the hard drive as pictured below.

3) Place the hard drive inside the NexStar 2 so that the vibration dampeners

line up with the sides as pictured below.

4) Place the top cover of the NexStar 2 back

on as pictured on the right.

5) Screw the cover in place (optional)

6) Install the clamp/stand over the screw

holes with the rubber feet on the bottom

(as pictured on the right).

Installation: NexStar 2 External 3.5” HDD Enclosure

Connecting the NexStar 2 to your computer:

1) Connect the appropriate interface cable between the NexStar 2 and your

computer

a. USB: Connect the type B connector to the NexStar 2 and the type A

connector to an available USB 1.1/2.0 port on your system.

b. FireWire (NST-355UF only): Connect one end of the FireWire cable to the

NexStar 2 and the opposite end to an available FireWire port.

2) Connect the power cable to the NexStar 2 and plug the cable into an

available outlet.

3) Turn on the NexStar 2 via the power switch.

4) Your operating system should detect the NexStar 2 and automatically install

the necessary drivers (if you have Windows 98SE/MacOS 8.6, you will need to

install drivers). Once your operating system finishes setting up the NexStar 2,

it will mount your hard drive. On Mac OS systems, the new volume should

appear on the desktop. On a Windows PC, the new volume will appear under

My Computer. If the drive does not appear, you may need to partition your

hard drive first.

5) Your NexStar 2 External Hard Drive is now ready for use.

5.1.2. Driver Installation:

Windows ME/XP/2000 - (NST-355U2, NST-355UF):

1) No drivers are necessary when using Windows ME/XP/2000. If the hard drive

does not appear under My Computer, be sure to partition your hard drive.

Windows 98SE

USB (NST-355U2 – USB only):

1) The first time you plug in the NexStar 2 into a USB port of your computer, the

[Add New Hardware Wizard] dialog box will appears.

2) Click on [Next]. Check the [Search for the best driver for your device] and

click on [Next] again.

3) Insert the device driver CD into your CD-ROM drive if you have not already

done so and click on [Next], a screen should be appears to show which

Storage Device you installed. Click on [Next].

4) After the needed files are copied into your system, click on [Finish].

5) You should now be able to see the new hard drive under My Computer. A

green Unplug or Eject hardware icon will appear in the system tray as well. If

the drive does not appear, you may need to partition your hard drive first.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Vantec Enceinte

Vantec

Vantec NexStar MX NST-225MX-S3 Manuel utilisateur

Vantec

Vantec NexStar 3.1 Manuel utilisateur

Vantec

Vantec NexStar 3 Manuel utilisateur

Vantec

Vantec NexStar NST-266SU3 Manuel utilisateur

Vantec

Vantec NexStar-HX4 Manuel utilisateur

Vantec

Vantec EZ-Swap MRK-200ST-BK*C Manuel utilisateur

Vantec

Vantec NEXSTAR.2 NST-530U2 Manuel utilisateur

Vantec

Vantec NexStar LX ULTRA Manuel utilisateur

Vantec

Vantec NexStar MX Manuel utilisateur

Vantec

Vantec NexStar NST-D100UFS Manuel utilisateur

Vantec

Vantec NexStar Dual Bay Hard Drive Dock NST-D200SU Manuel utilisateur

Vantec

Vantec NexStar - HX4R Manuel utilisateur

Vantec

Vantec NexStar NST-D300SU3-BK Manuel utilisateur

Vantec

Vantec NST-400MX-53 Manuel utilisateur

Vantec

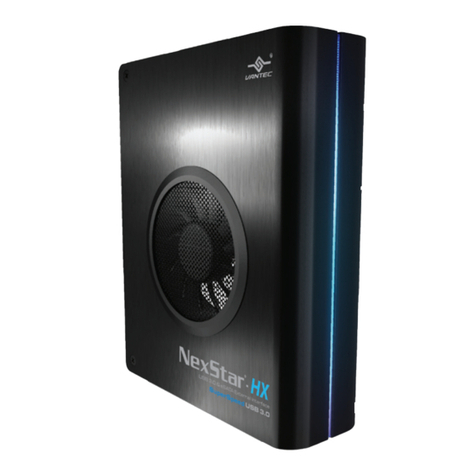

Vantec Vantec HX Manuel utilisateur
