USER’S MANUAL
NST-400MX-S3
NST-400MX-S3R
USB 3.0 Interface
USB 3.0&eSATA Interface
www.vantecusa.com
3
1 NexStar MX
2 USB 3.0 Cable
3 Power Adapter
4 User’s Manual
5 Enclosure Stand
6 Installation Screws
1 NexStar MX
2 USB 3.0 & eSATA Cable
3 Power Adapter
4 User’s Manual
5 Enclosure Stand
6 Installation Screws
Package Contents:
3
3
2
TRADEMARKS
MS-DOS, Microsoft, Windows NT/2000/XP/Vista/7/8 are trademarks of Microsoft Corporation.
Apple, Macintosh and Mac are trademarks of Apple Computer.
NexStar is a registered trademark of Vantec Thermal Technologies.
*All other third-party brands and names are the property of their respective owners.
5
5
1
1
6
6
4
4
NST-400MX-S3
Dual 3.5” SATA to USB 3.0 with JBOD
External Hard Drive Enclosure
NST-400MX-S3R
Dual 3.5” RAID Enclosure w/Fan
USB 3.0 & eSATA Interface
2
Table of Contents:
Table of Contents
1
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Introduction
Specications/Features
System Requirements
Parts Layout
Installation
LED Indicator
Mode Conguration
Disconnecting the NexStar MX
Hardware Formatting Guide
Warranty
Contact
02
03
04
05
06
09
10
14
15
21
21
Introduction
2
1.Introduction:
Vantec NexStar® MX Dual Bay External HDD
Enclosure now in USB 3.0 only or USB 3.0 plus
eSATA interface is a quick and simple way to
expand storage capacity to your computer.
It comes without the hassle of diving inside
the PC and messing with all those wires,
cables and connections. It provides maximum
storage with the increased capacity of two
spanning hard drives for your precious family
photos, music, video, and games. For 400MX-
S3, it will support Individual and JBOD modes;
and for 400MX-S3R, it will support Individual,
JBOD, RAID 0 and RAID 1 modes for eective
storage management. The sturdy drive cage
protects your hard drive while the aluminum
case eectively draws away the heat; the
front vents and the rear fan keep your hard
drive(s) cool and improve performance. The
Vantec NexStar® MX is a high performance,
high capacity, and durable portable storage
solution and lets you store your personal data
in an enclosure with style!
Specications/Features
3
2.Specications/Features:
Dual 3/5” RAID Enclosure w/FAN USB 3.0 (S3) or USB3 & eSATA (S3R) interface
Features:
• Aluminum Casing Cools Down Your Hard Drive
• 40mm Rear Heat Exhaust Fan
• Easily Add Storage to Any System with USB 2.0, 3.0 or eSATA (for 400MX-S3R only)
• Hot-Swappable: Plug & Play Without Rebooting
• Attractive LED Indicates Power & HDD Activity
• Support Individual, JBOD (for 400MX-S3); Individual, JBOD, RAID 0, RAID 1 (for 400MX-S3R)
Specications:
• Model: NST-400MX-S3
• Device Support: SATA I/II/III Hard Drives
• Device Size: 3.5”
• Internal Interface: SATA
• External Interface: USB 3.0
• HDD Capacity: Up To 8TB*
• Power Supply: AC Adapter
• Fan: 40mm
• Material: Aluminum & Plastic
• Dimension: 197 x 123 x 72 mm
*Check our website www.vantecusa.com for any updates
Specications:
• Model: NST-400MX-S3R
• Device Support: SATA I/II/III Hard Drives
• Device Size: 3.5”
• Internal Interface: SATA
• External Interface: USB 3.0 & eSATA
• HDD Capacity: Up To 8TB*
• Power Supply: AC Adapter
• Fan: 40mm
• Material: Aluminum & Plastic
• Dimension: 197 x 123 x 72 mm
*Check our website www.vantecusa.com for any updates
eSATA Cable
USB 3.0 Cable
USB 3.0 Cable
Power Adapter
Power Adapter
Syetem Requirements
4
3.System Requirements:
Microsoft Windows XP/Vista/7/8
1. For USB 2.0 speeds, the system must
support USB 2.0 specications
2. For USB 3.0 speeds, the system must
support USB 3.0 specications
3. For eSATA Speeds, the System Must
Support eSATA Specications
4. Port Multiplier Is Required For eSATA
Mac OS 10.4 & greater
1. For USB 2.0 speeds, the system must
support USB 2.0 specications
2. For USB 3.0 speeds, the system must
support USB 3.0 specications
3. For eSATA Speeds, the System Must
Support eSATA Specications
4. Port Multiplier Is Required For eSATA
Parts Layout
5
4.Parts Layout:
Power ON/OFF Switch
eSATA Port
USB 3.0 Port
Power Jack
1
2
3
4
Power ON/OFF Switch
USB 3.0 Port
Power Jack
1
2
3
NST-400MX-S3
NST-400MX-S3R
Installation
6
5.Installation:
Dual 3/5” RAID Enclosure w/FAN USB 3.0 (S3) or USB3 & eSATA (S3R) interface
5.1.Hardware Installation:
Installing the hard drive:
(1) Release the four screws then
pull out the rear panel and tray
of the NexStar MX.
(3) Place the second HDD onto the
drive caddy then insert the HDD
into the SATA connector.
(2) Place the rst HDD onto the
drive caddy then insert the HDD
into the SATA connector.
( gure 5.1-A )
( gure 5.1-C )
( gure 5.1-B )
( gure 5.1-A )
( gure 5.1-C )
( gure 5.1-B )
Installation
7
(5) Choose the Mode Conguration
for the NexStar MX. Connect the
power adapter and power on the
unit. Press the reset button and
hold for 10-15 seconds.
*Please note, changing mode will
erase all data on the drives in this
400MX enclosure. Please backup
any important data before you
continue. For Mode Conguration
details, see page 10.
(4) Secure the hard drive onto
the drive caddy with the
provided screws.
(6) Insert the drive caddy back into
the aluminum housing. Be sure to
align and secure with the provided
screws.
( gure 5.1-E )
( gure 5.1-D )
( gure 5.1-F )
( gure 5.1-E)
( gure 5.1-D)
( gure 5.1-F)
ON
12
NOTE:
For new hard drives, you will need to initialize and
partition your hard drive before it will appear in
Windows Explorer or on your Mac desktop. Please
refer to your hard drive manufacturer’s documentation
or read the”Creating a New Partition” section of this
manual.
NOTE:
If you can see the USB icon in the system tray, but there
is no any disk appear in your computer, please conrm
your hard disk is partitioned.
DC12V
POWER
eSATA
ONOFF
USB3.0
Installation
8

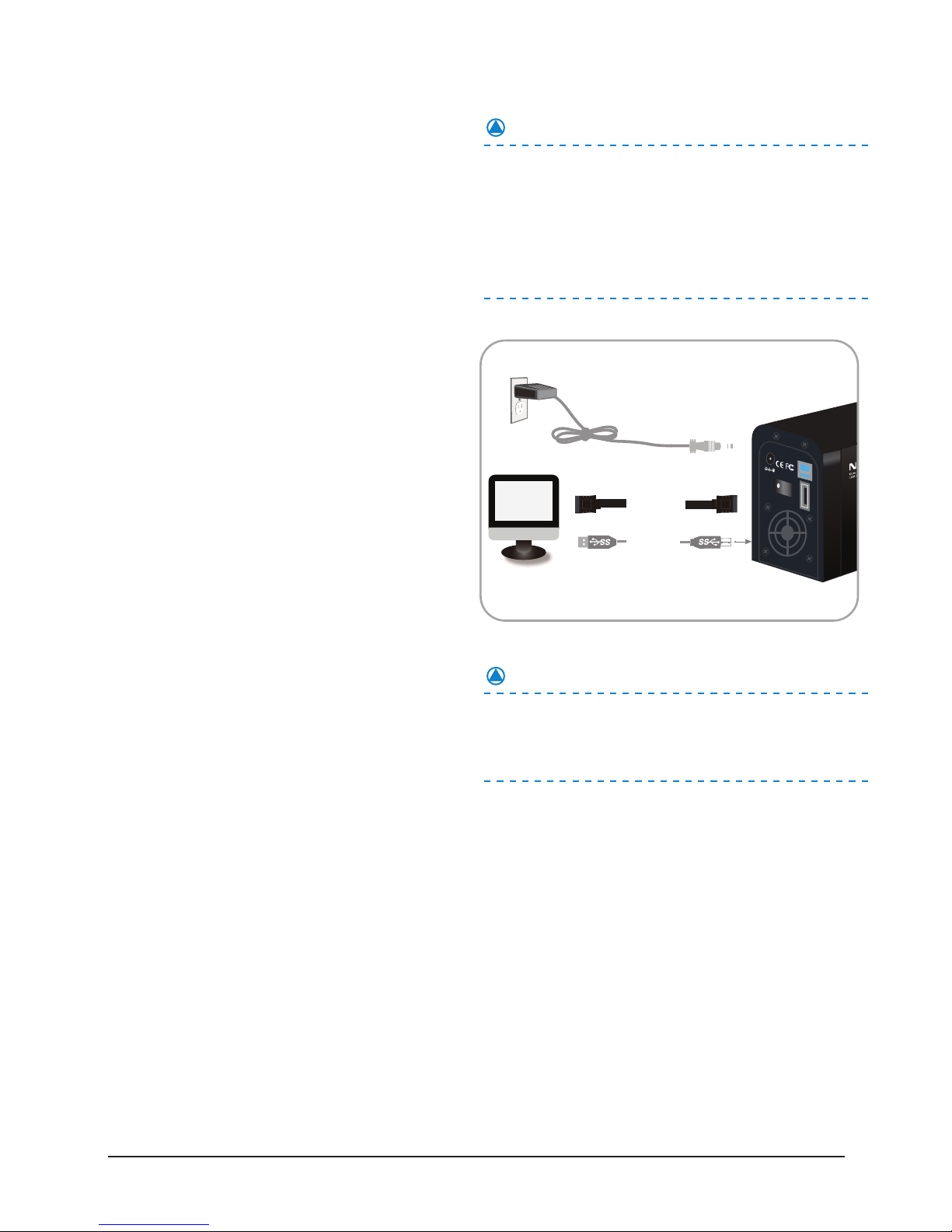

Connecting the NexStar to your computer:
USB 3.0(S3 and S3R)
eSATA (S3R)
Connect the type (B) USB connector to the
NexStar and the type (A) USB connector to an
available USB port on your system.
Connect the power cable to the NexStar and
plug the cable into an available outlet.
Turn on the NexStar via the power switch.
Your operating system should detect
the NexStar and automatically install the
necessary drivers. Once your operating system
nishes setting up the NexStar , it will mount
your hard drive. On Mac OS systems, the
new volume should appear on desktop. On
a Windows PC, the new volume will appear
under My Computer.
Your NexStar External Hard Drive is now ready
for use.
USB3.0 Cable
eSATA Cable
or
Connect the eSATA to the NexStar and to an
available eSATA port on your system.
Connect the power cable to the NexStar and
plug the cable into an available outlet.
Turn on the NexStar via the power switch.
Your operating system should detect
the NexStar and automatically install the
necessary drivers. Once your operating system
nishes setting up the NexStar, it will mount
your hard drive. On Mac OS systems, the
new volume should appear on desktop. On
a Windows PC, the new volume will appear
under My Computer.
Your NexStar External Hard Drive is now ready
for use.
(1)
(2)
(3)
(4)
(5)
(1)
(2)
(3)
(4)
(5)
