Vacron VVG-CBE57 Manuel utilisateur
H.264 FULL HD 1080P
WIFI Vehicle Video Recorder
User Manual
2018 FEB. V2.0
WIFI Vehicle Video Recorder User Manual
1
Safety Precautions
Dear Vacron user,
Appreciate for you purchase Vacron products. Please contact your local
distributor if you meet any questions or need any assistance. We will offer you
complete and in time service via a local distributor. However, we still have the
rights to upgrade software and hardware without any kind notice beforehand.
Please read this manual carefully before use of this product.
Installation Precautions
Before installation, please ensure wires and cables connect correctly.
Device has to install in a ventilated environment and the installation has to
be guided or helped by any professional device installer.
Please use a storage device that recommended by the manufacture, and
purchase the storage device from the official purchase channel.
Please contact local distributor and technical support service if you have any
question and need any help during product usage
In Use Precautions
Please avoid any solid or liquid drop into the inner components.
Please do not disassemble the equipment for warranty issues. Please
contact local dealers or the manufacturer for prompt service.
Please remove the battery if remote control keeps idle for quite a long while.
The equipment best connection is with ground wire in case of outdoor
cameras connection or alarm I/O connection. This is to keep the DVR away
from static electricity damage.
Surrounding
Please have the DVR under the recommended temperature and set it away
from the sun and heating source.
Please keep this equipment away from the humid surrounding.
Please keep this equipment away from the smoke and dust environment.
Please avoid strong collision and do not drop the equipment.
Please set this equipment in ventilation space, and do not block the
ventilator of device.
Please use the device under rated voltage and Amp.
Please keep flammable objects away from the equipment.
WIFI Vehicle Video Recorder User Manual
2
Table of Contents
A. Product Accessories ......................................................................................................... 3
B. Features ................................................................................................................................ 3
C. Specifications ..................................................................................................................... 4
D. Appearance/ Dimensions .............................................................................................. 5
E. Installation diagram ......................................................................................................... 6
F. Micro SD Card .................................................................................................................... 7
G. Record / Stop record ....................................................................................................... 8
H. WIFI connection ................................................................................................................ 9
I. APP connection: ............................................................................................................. 10
J. Playback ............................................................................................................................. 17
K. PC Player ............................................................................................................................ 18
L. Data Backup ..................................................................................................................... 20
M. SD Card .............................................................................................................................. 22
N. Playback ............................................................................................................................. 26
O. Screenshot tools ............................................................................................................ 28
P. Format / Restore SD card ........................................................................................... 29
WIFI Vehicle Video Recorder User Manual
3
A. Product Accessories
Please check every accessory we listed below, make sure everything is included
in the product package before use. If you found anything is missing, please
contact the local distributor.
Note：The product set does not come with a memory card, please purchase
the memory card separately.
Standard Set:
1. DVR Host
2. Bracket holder with 4-meter power cable
3. 5V / 2A cigarette power adaptor
B. Features
View angle approx. 110 ˚，built-in microphone to record video and audio sync.
H.264 image compress technology, which ensures image dose not distorted. Full HD video
resolution. Support Micro SD card 64GB。
Low power consumption and efficient heat dissipation, no build-in Lithium battery to
prevent possible danger and heat explosion.
Devices start recording automatically when the engine is on; the device will save file and
turn off automatically when the engine is off.
Built-in WIFI, capable to watch live video, playback and backup files by download APP in
IOS or Android system
Made in Taiwan, 1 year product warranty。
WIFI Vehicle Video Recorder User Manual
4
C. Specifications
Terms Specifications
System NTSC \ PAL
Image sensor 1/2.9" SONY CMOS Image Sensor
Resolution 1920(H)×1080(V)
Picture elements 2.12 Mega Pixel
Resolution 1080P
Synchronization internal
Scanning system 2:1interlace
Low lux 0.1LUX
Noise Min 58db
AGC ON
AEX Auto: (1/25NTSC)(1/25 PAL)sec TO 1/50,000 sec
BLC Auto
MIC Built-in high sensitivity microphone
Lens Board Lens 3.3mm F1.8
View Angle 110˚ (Horizontal)/140˚ (Diagonal)/80˚ (vertical)
WLAN IEEE802.11b/g/n, Wi-Fi compliant
Wi-Fi (Option) WPA,WPA-PSK,WPA2,WPA2-PAK,WEP
64bit&128bit, IEEE802.11x,IEEE802.11i
SD card Micro SD card 64GB
Power input USB type A 5V /mount DC 5V 4meters USB
Power Consumption 400mA
Storage temp. - 20° C ~ + 80°C
Working temp. - 10° C ~ + 60°C
Dimension (L x W x D) L64.03 x W33 x H66.46mm (mount includes)
Notes: The product specification is subject to change without prior notice
WIFI Vehicle Video Recorder User Manual
5

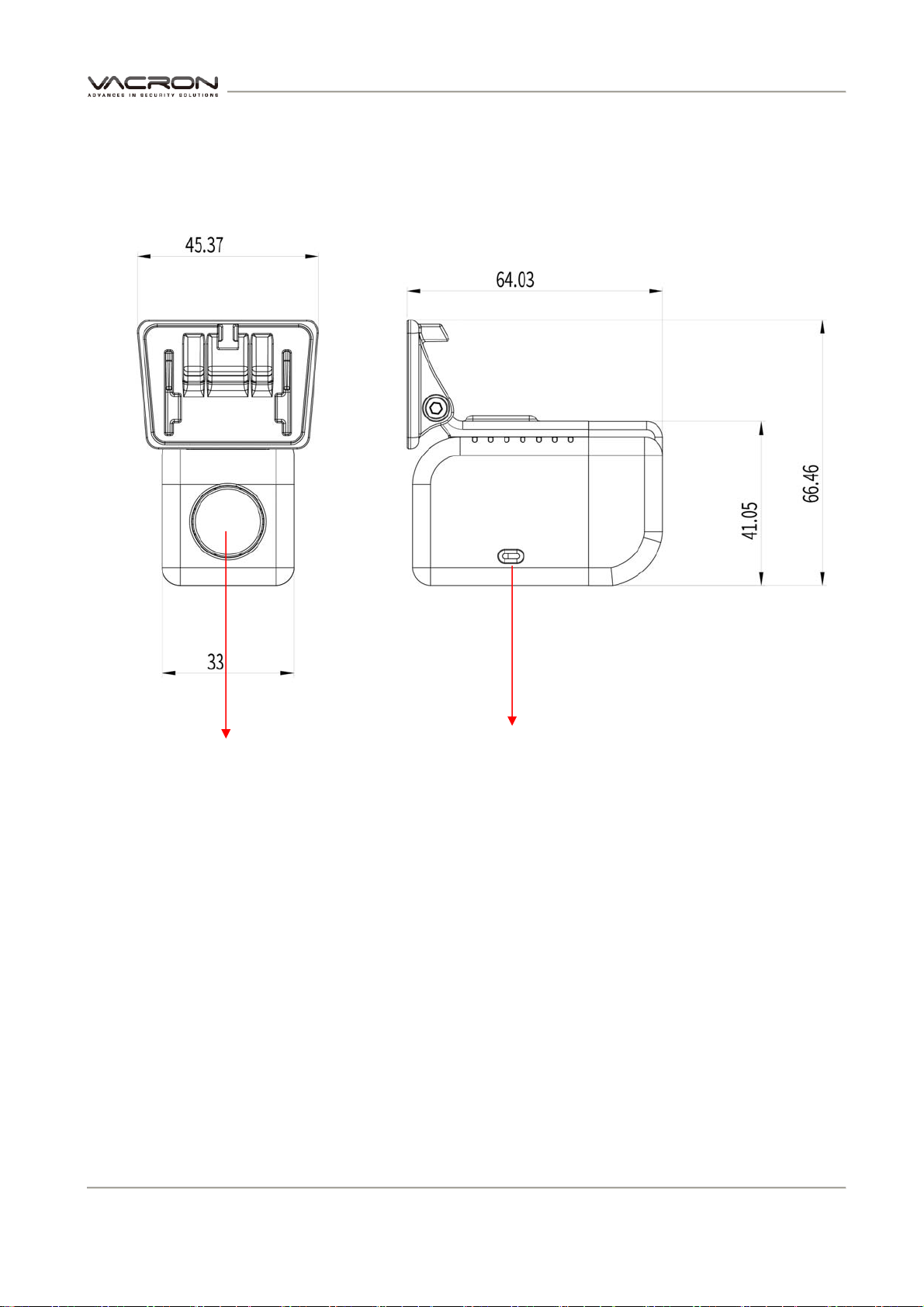

D. Appearance/ Dimensions
Dimension：mm
LED indicator
Lens
WIFI Vehicle Video Recorder User Manual
6
E. Installation diagram
Install the device in windshield position.，connect the power USB cable to the power adaptor, and
plug it in the cigarette adapter. When the engine turns on, the DVR starts recording. The DVR can be
removed from the bracket holder if no uses.
windshield
Bracket holder
DVR host
Power USB cable
Power adaptor
Best installation
Connect car
WIFI Vehicle Video Recorder User Manual
7
F. Micro SD Card
1. SD card format
When the user to purchase a new memory card, or use their existing card, is required after
the first card is formatted before use.
Attention
1. Backup the data before format the Micro SD Card.
2. Make sure if SD Card is on unlock mode before executing the
format.
3. Please execute format as administrator if fail to format SD card
which is on un-lock mode.
4. Suggest using class 10, 8GB above SD card
5. All memory disks have a limited lifespan. Please regularly watch videos on
the PC and check the memory disk to ensure proper functioning.
6. Not support hot-plugging, please power off the device before
removing the SD card.
Micro SD 卡插槽
WIFI Vehicle Video Recorder User Manual
8
G. Record / Stop record
REC. Indicator
Power on, around 15s, Red LED Flashing means continuous recording.
RED LED is lighted constantly means systems error.
1. Make sure if SD card is plugged.
2. Verify SD cards health statues.
Attention
(1). The device will not work properly without Micro SD Card.
(2). Please format the SD card before use.
(3). It takes around 60s for first power on with new a SD Card, during
this period the RED LED is lighted constantly, after that the
system will reboot, the RED LED will be flashing, it means system
work properly.
WIFI indicator
Green LED flashing means WIFI connected.
LED indicator
WIFI Vehicle Video Recorder User Manual
9
H. WIFI connection
Search WIFI SSID
WLAN connection, SSID is DIRECT-SSID-xxxxxx as user ID.
WIFI password: 12345678
