Vacron CDR-E26 Manuel utilisateur



Features and operations may vary in different models.

ALL IN ONE

VEHICLE VIDEO RECORDER

USER MANUAL

2011 JUN V1.0

TYPE C

TYPE A

2.9 mm Lens

TYPE B / TYPEC

4 mm Lens

optional



Features and operations may vary in different models.

Index

A. Features..................................................................................................1

B. Specifications..........................................................................................2

C. Product Appearance................................................................................3

D. Product Dimensions................................................................................4

E. Installation Instructions............................................................................5

F. Start / Stop Recording.............................................................................6

G. Playback..................................................................................................7

1. Onsite Playback ..................................................................................7

2. Playback On PC Client........................................................................9

H. Recording Set Up..................................................................................12

I. Snapshop..............................................................................................14

J. SD Card Formatting ..............................................................................14



Features and operations may vary in different models.

A. Features

1. Suitable for all personal vehicles, taxi, buses, trucks and etc.

2. Easy to install and compact size to prevent blocking the driver's

view.

3. Video record on outside driving conditions and audio record inside

the vehicle simultaneously.

4. TYPE A: 2.9mm lens, apx. 120 degrees viewing angle;

TYPE B/C: 4mm lens, apx. 90 degrees viewing angle.

Optional: M12 lens

5. Image data is securely stored on Micro-SDHC Card, and sudden

disconnection from unexpected shock is completely prevented.

6. Simply Plug-n-Play.

7. Date/Time can be shown on the display.

8. Quick search on ALL event log.

9. Precisely recorded driving event to the very last second right

before the power is cutoff.

10. G-sensor, GPS and Image data are recorded and playable on

client software.

11. Provide G-sensor activates when system detects a strong

shock. Emergency recording starts automatically and the data

is securely saved and cannot be overwritten.

12. User-friendly client software.

13. Multiple recording formats and recording frames per second

(FPS) selections.

14. Built-in synchronous single-channel microphone.

15. AV connection from the main unit to the LCD displays for onsite

playback and operates with an IR remote controller.

16. TYPE C (equipped with GPS capability): Back track and

routes of the vehicle on Google map.

17. Special recording format. No built-in lithium battery required

and may sustain exposing under the sunlight for a period of

time without causing explosion.

18. Use extraordinary compression engine with data files unmodified to

construct the best recorder. A well built machine with sophisticated

compression engine to protect valuable data.

19. Without any electromagnetic radiation or any electromagnetic

interference, the car will not interfere with GPS or wireless devices.

No electromagnetic radiation leaked out or electromagnetic

interference to any electronic devices.



Features and operations may vary in different models.

B. Specifications

Items Specification

System NTSC/PAL

Chipset H.264 compression chipset

Sensor VGA CMOS Sensor

View Angel 2.9mm lens apx. 120 degrees viewing angle. (TYPE A)

4mm lens apx. 90 degrees viewing angle. (TYPE B / TYPE C)

(optional: M12 lens)

Voltage 5V±5%; 400mA

Operating Temp -10℃~ +70℃(Inside vehicle)

Storage Device Silicon Power or Transcend Micro SDHC card Class 6 or above,

(min capacity 4G or above)

Recording

Frame 640x480 auto-cycling record , highest 30fps(NTSC) / 25fps(PAL)

Content Date, video, voice, G-sensor data.

GPS positing and routing data. (TYPE C)

Recording

Format Specific format for player software.

Microphone Built-in s

nchronous sin

le-channel micro

hone.

Microphone on/off, adjustable setting via player or remote controller.

Time Setting (a)Time setting on micro SD card via player.

(b) Auto-calibrating by GPS signals. (TYPE C)

Input / Output

Device

(a)TV-Out (1 Vp-p composite video output，75 ohms)

(b) red light: recording

Power. (TYPE A / TYPE B)

Power and GPS registering light. Flashing: GPS

registering; still light: GPS registering complete.

(

TYPE C

)

(d) emergency button

G-Sensor built-in Internal 3D G-Sensor

Accessories (a) Driver CD (b) USB power cable (c) 5V USB Converter

cigarette Power adapter (d) Remote controller

(e) AV output cable (f) User manual (g) Card reader

Important Notice

(a) SD card must be formatted by client software first to be used

properly.

(b) Machine must be installed in the area that windshield wipers can

be reached.

correctly.

(d) Independent partition storage space reserved for emergenc

recording data which cannot be overwritten by normal cycling

data.

(e) 80MB is reserved for other data storage purpose and it is normal

PC detecting this much space.

(f) Switchable video signal: NTSC and PAL on SETUP page on client

software.

(g) Weather, tinted window and etc may interfere performance of

GPS.

(

TYPE C

)



Features and operations may vary in different models.

C. Product Appearance

Front View

Optional lens for selecting Aperture models Viewing angle

2.9mm-12mm Small aperture 90-120 degree

4mm-12mm Large aperture 90-105 degree

Back View

Side View

Lens Lens

TYPE A：2.9 mm lens TYPE B/TYPE C：4 mm lens

TYPE A / TYPE B / TYPE C

TYPE A

DC5V

AV output

MICRO SD card

Normal recording

Power light

Emergency button



Features and operations may vary in different models.

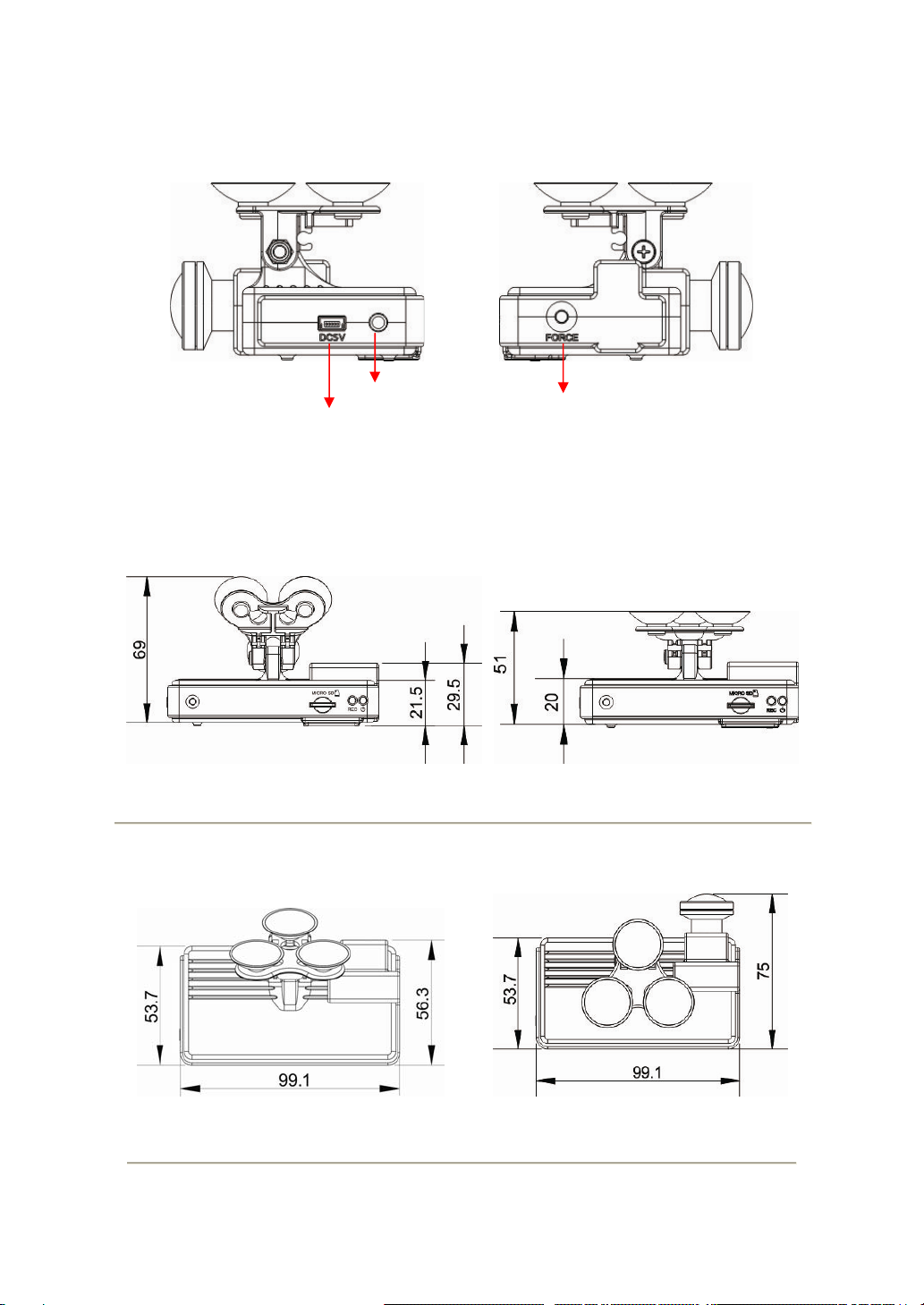

D. Product Dimensions

TYPE B / TYPE C

unit：mm

TYPE B / TYPE CTYPE A

DC5V

AV output Emergency button



Features and operations may vary in different models.

E. Installation Instructions

Make the bracket facing upward. Assemble the suction discs and

insert Micro SD card.

Set up the machine in a proper

position. Tilt to adjust the viewing angle.

Connect the power cable. Plug in the cigarette adapter.

Connect the power cable. The green indicator will light up.

Flashing red light: recording in

progress.



Features and operations may vary in different models.

F. Start / Stop Recording

After powering up the unit and a display device connected properly,

the display will show the welcome screen as below follow up

Firmware Version: XXXX. Then enter the live mode.

OSD screen when Power-on

★The OSD and led lights may vary in different models.

1. Power on / Recording

When power up, please wait about one minute to complete start

up process. When complete, the red light flashes and recording

begins automatically.

Light TYPE A / TYPE B

(non-GPS model) TYPE C

(GPS model)

Red

Light

Red Steady flashing: normal

recording.

Rapid flashing: force recording.

Steady flashing: normal

recording.

Rapid flashing: force recording.

Green

Light Steady green light: Power

Flashing green light: GPS

registering.

Steady green light: indicates

GPS registered.

2. Audio recording On/Off

You can select On/Off audio record function on Live view screen.

Press the “MUTE” key on the remote controller. The pop-up

MUTE icon appears on top right of screen indicating stop

audio recording. Otherwise, the voice recording is on.

3. Turn Off/Stop Recording

Power off to stop recording. The memory card is safe to remove

from the unit and play the saved data.



Features and operations may vary in different models.

G. Playback

Two operating methods: Onsite playback with remote controller and

playback via client software on PC.

1. Onsite Playback

Operating with Remote Control.

a. Description of Remote Controller as below.

Key Icon Function Description

arrow key Upward file selection, enter password.

arrow key Downward file selection, enter password.

arrow key Left file selection, enter password.

arrow key Right file selection, enter password.

Enter key Confirm file to display & password.

Menu key Display close, show firmware version.

Mute key Volume On/Off.

Play key Enter into playback page and playback

files.

Fast

Forward key Fast forward.

Back

Forward key Rewind.

Pause key Pause.

Stop key Stop and return to menu.

★The function keys on remote control not listed above are

invalid.

b. Description of password operation in playback menu

Log-in password to onsite playback menu (shown as below

figure)



Features and operations may vary in different models.

i. Choose to enter log-in page, choose to key-in

password, select to next step. After log-in password,

choose to enter playback page.

ii. While exiting playback page, select to go back to LIVE

view.

★ If there is no password setup for software of PC client,

select to enter menu of playback page directly.

★ The first password string is shown as * for protection of

host info. After key-in the first password and move forward

to next one.

c. Operating description of playback page

i. Use to move and highlight the file you wish to view.

ii. Use to move to next playback page.

iii. After selecting the desired file to playback, press to

enter playback.

iv.Press to pause. Press to resume playback mode.

v. Press to exit and back to playback page.

★ Select to exit playback page and enter into LIVE view.
