V-tech LS6204 - Cordless Extension Handset Manuel utilisateur

User’s manual

Accessory handset for use with

VTech model LS6245

w w w.v t e c h p h o n e s .c o m

Model: LS6204

Congratulations

on purchasing your new VTech product. Before using this telephone, please

read the Important safety instructions on page 8 of this manual.

This manual has instructions for setup and registration of your new handset.

For full instructions on using the handset, see the user’s manual that came

with your telephone base.

If you cannot nd your user’s manual, you can view or download it at

www.vtechphones.com.

For support, shopping, and everything new at VTech, visit our website at

www.vtechphones.com. In Canada, please visit www.vtechcanada.com.

The ENERGY STAR®program (www.energystar.gov) recognizes

and encourages the use of products that save energy and help

protect our environment. We are proud to mark this product with

the ENERGY STAR®label indicating it meets the latest energy

efciency guidelines.

The Bluetooth®word mark and logos are owned by Bluetooth SIG, Inc. and any use

of such marks by VTech Holdings Limited is under license. VTech Holdings Limited is

a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their

respective owners.

Table of contents

Getting started ................................... 1

Parts checklist...................................... 1

Battery installation ............................... 2

Battery charging................................... 3

Add and register a handset.................. 4

Replace a handset ............................... 5

Cleaning tips for your touch

screen telephone .............................. 5

Handset layout ..................................... 6

Appendix ............................................. 7

Battery.................................................. 7

Important safety instructions................ 8

Operating range ................................... 9

Maintenance......................................... 9

About cordless telephones................. 10

The RBRC®seal................................. 10

Warranty............................................. 11

FCC, ACTA and IC regulations .......... 13

Technical specications ..................... 15

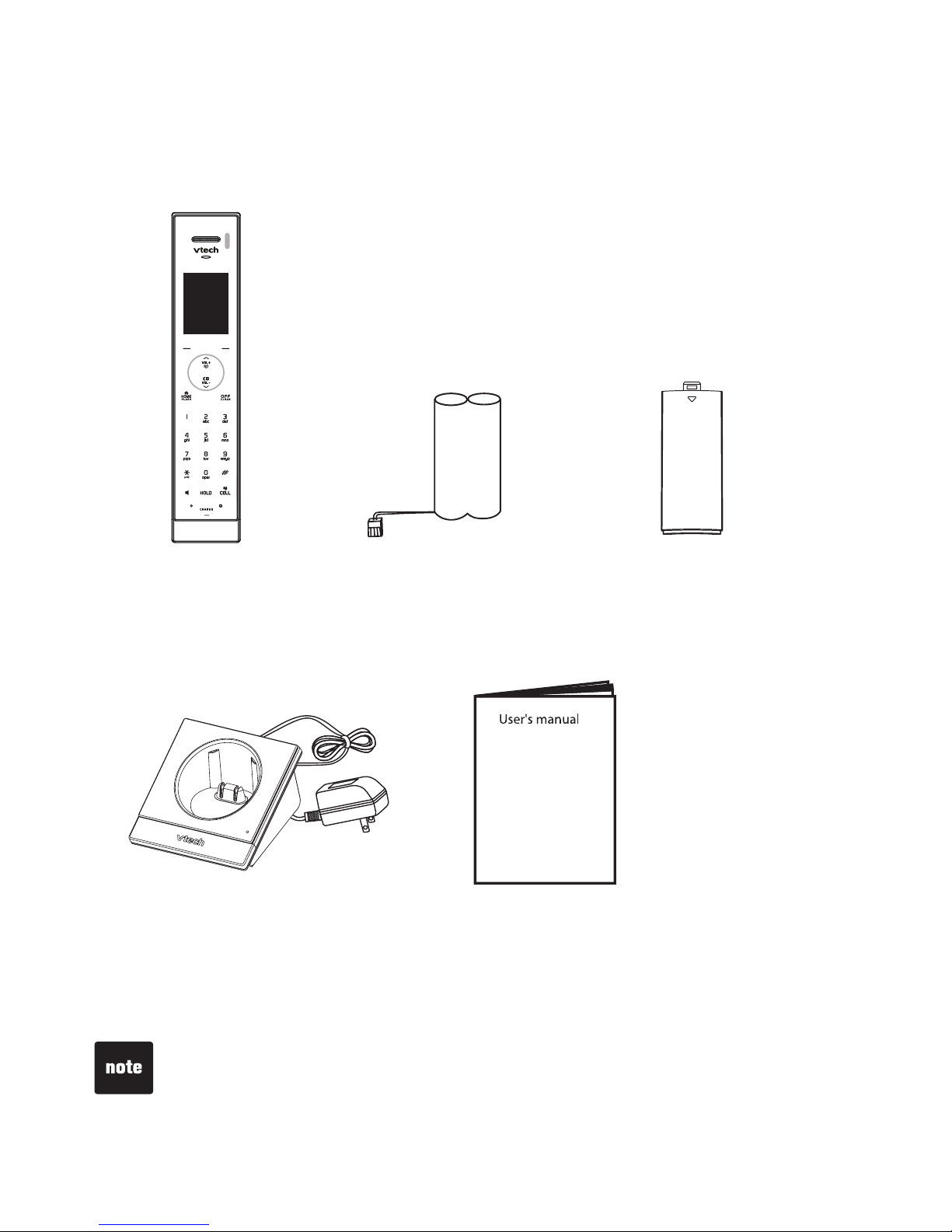

Parts checklist

Your telephone contains the following items. Save your sales receipt and

original packaging in the event warranty service is necessary.

Handset Battery

User’s manual

To purchase a replacement battery or a power adapter, visit our website at

www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to

www.vtechcanada.com or dial 1 (800) 267-7377.

Getting started

Charger and power adapter

Battery

compartment

cover

Getting started

If the handset will not be used for a long time, disconnect and remove the

battery to prevent possible leakage.

To purchase a replacement battery, visit our website at

www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to

www.vtechcanada.com or dial 1 (800) 267-7377.

•

Battery installation

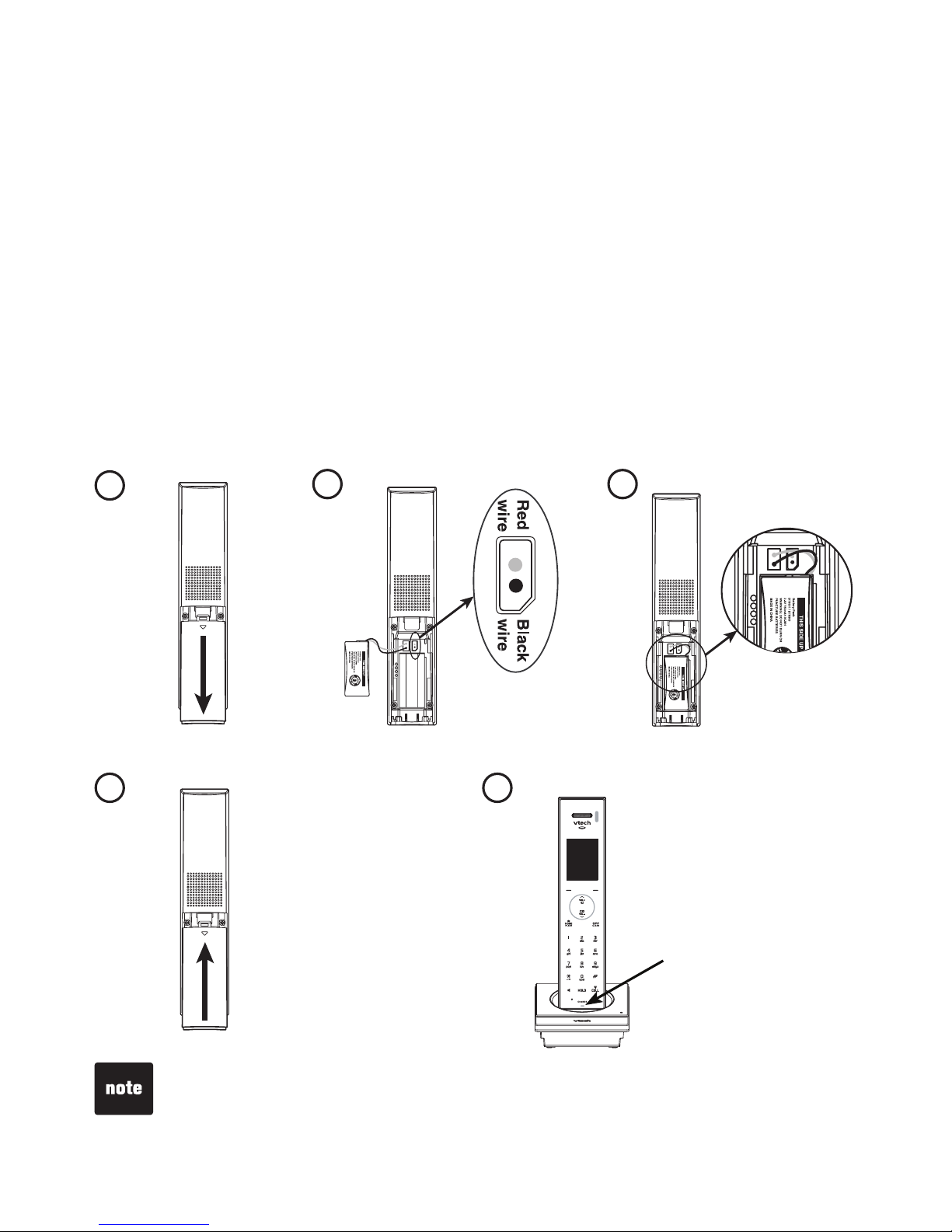

Install the battery as shown below.

If the battery compartment cover is on the handset, press on the triangle

and slide the cover to remove.

Plug the battery connector securely into the socket inside the handset

battery compartment, matching the color-coded label.

Place the battery with the label THIS SIDE UP facing up and the wires

inside the battery compartment.

Align the cover at against the battery compartment, then slide it towards

the center of the handset until it clicks into place.

Charge the handset by placing it in the telephone base or charger. The

CHARGE light is on when the handset charges.

CHARGE light

Getting started

Battery charging

Once you have installed the battery, the screen indicates the battery status

(see the table below). If necessary, place the handset in the telephone base

or charger to charge the battery. For best performance, keep the handset in

the telephone base or charger when not in use. The battery is fully charged

after 16 hours of continuous charging. See the table on page 7 for battery

operating times.

If the screen is blank, you need to charge the handset without interruption for

at least 10 minutes to give the handset enough charge to use the telephone

for a short time. The handset beeps and shows Low battery. If you are on a

call in low battery mode, the handset beeps every minute.

The following table summarizes the battery charge indicators and actions

to take.

Battery indicators Battery status Action

The screen is blank. Battery has no charge

and the handset cannot

be used.

Charge without interruption

until the screen shows

HANDSET X (at least

10 minutes).

The screen shows

Place in charger and

ashes.

Battery has very little

charge and the handset

cannot be used.

Charge without interruption

until the screen shows

HANDSET X (at least

four minutes).

The screen shows

Low battery,

ashes, and the

handset beeps.

Battery has enough

charge to be used for a

short time.

Charge without interruption

until the screen shows

HANDSET X (at least

30 minutes).

The screen shows

HANDSET X.

Battery is charged. To keep the battery charged,

place it in the telephone base

or charger when not in use.

Important notes

Auto keylock: To prevent accidental key presses, the

handset keys automatically lock after 10 seconds without

presses. Press the UNLOCK softkey to unlock the keypad.

Dialing 911: You must unlock the keypad before you can

dial 911 or any other number on the handset.

HANDSET X

On

Press UNLOCK

to use keys

UNLOCK

Getting started

Add and register a handset (optional)

Each newly purchased handset (LS6204) must be registered to your

telephone system (LS6245) before use. When rst purchased, each

expansion handset shows NOT REGISTERED. You may need to charge

the handset before registering to the telephone base. For more details on

battery charging, see the table on page 3.

To register a handset:

Place the unregistered handset in the telephone base. If To register,

press HOLD on BASE for 4 sec does not appear on the handset screen

after a few seconds, remove the handset and place it in the telephone

base again.

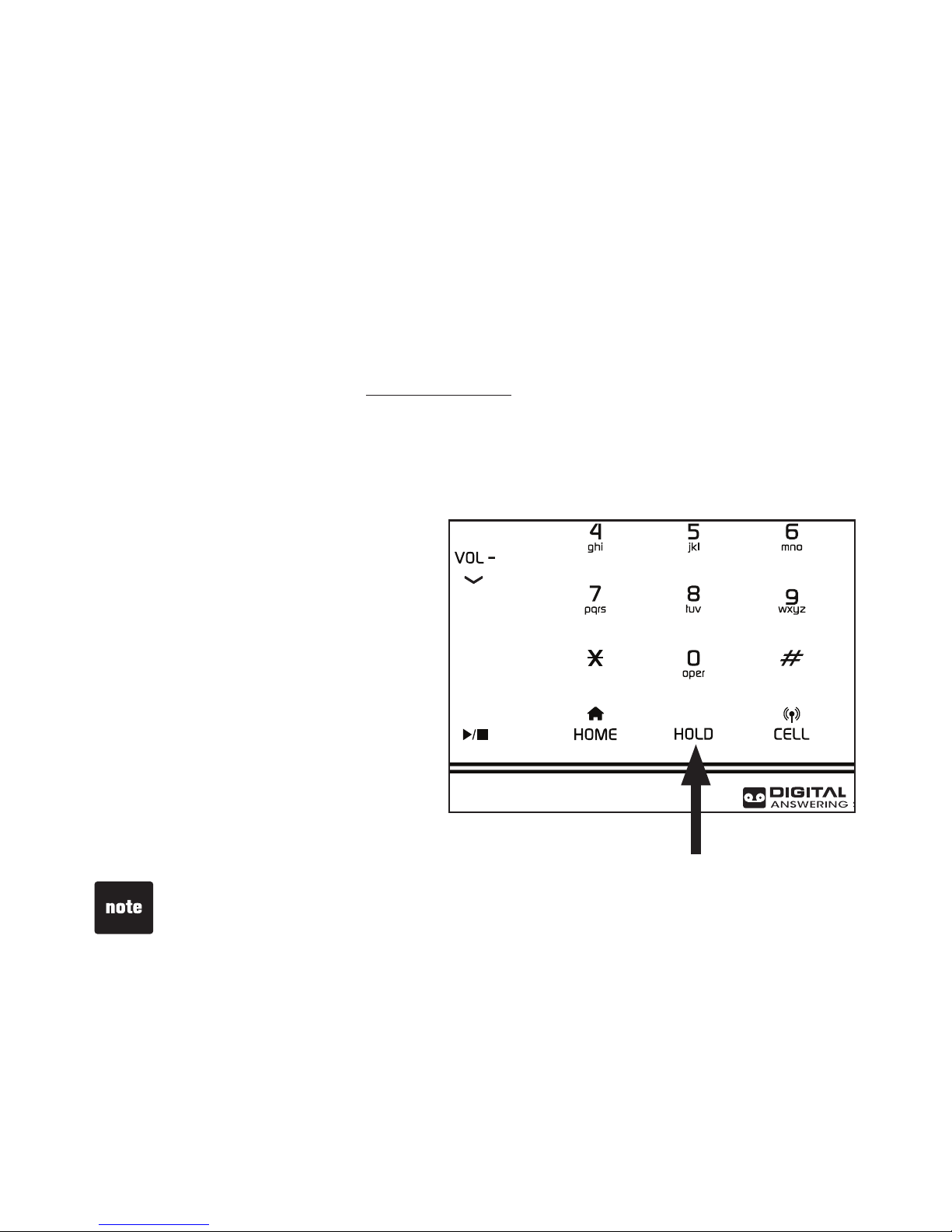

On the telephone base, press and hold HOLD for about four seconds until

the telephone base displays Registering handset. The handset shows

Please wait... and it takes up to 60 seconds to complete the registration.

The handset shows HANDSET X Registered (Xrepresents the handset

number assigned) and you hear a beep when the registration completes.

If the registration fails, the handset shows NOT REGISTERED. To reset

the handset, remove the handset from the telephone base and place it back

in. Try the registration process again.

You cannot register a handset if any other system handset is in use.

•

Getting started

Replace a handset

If you want to replace a handset or re-assign the designated handset number

of a registered handset, you must deregister all the handsets and then

individually register each handset.

To make deregistration easier, read all of the instructions on this page before

you begin.

To deregister all handsets:

Press and hold HOLD on the telephone base for about 10 seconds until

the telephone base displays Deregister all handsets?

Press the YES softkey.

All system handsets show Searching for BASE.The deregistration

process takes about 10 seconds to complete. All handsets show

NOT REGISTERED when the deregistration completes.

If deregistration fails, the handset displays Registration failed and then

To register, pick up handset from CHARGER. Pick up the registered

handset and try the deregistration process above again.

You cannot deregister a handset if any system handset is in use.

Cleaning tips for your touch screen telephone

Use the cleaning cloth provided with your LS6245 to clean your telephone.

Clean your telephone only with a dry non-abrasive cloth. The use of a

dampened cloth, cleaning uids or liquids of any type may permanently

damage the touch panel of your telephone.

If you unplug the telephone before cleaning, remember to reset the clock

when done.

Getting started

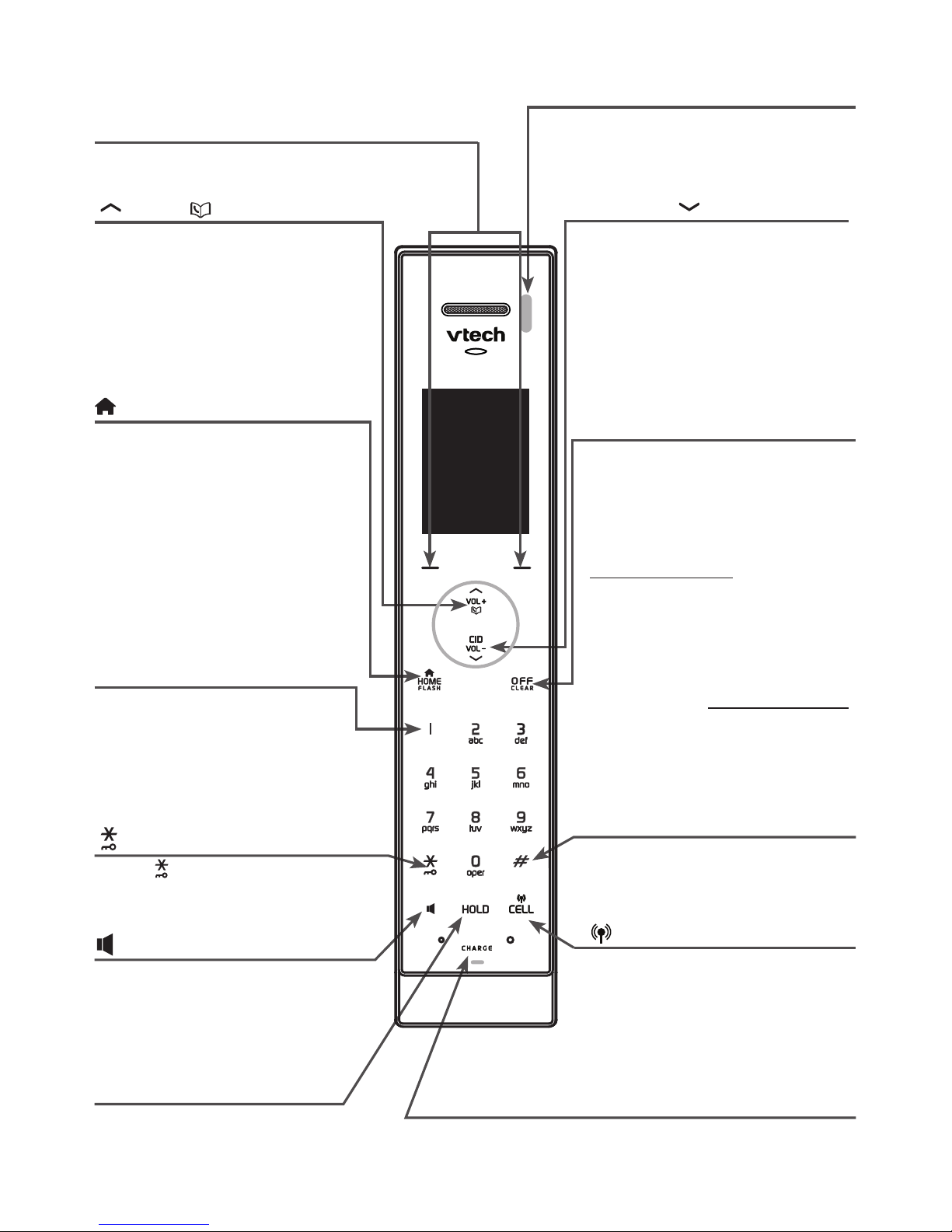

Handset layout

CID/VOL-/

While in a menu, press to

scroll down.

During a call, press to

decrease the listening

volume.

When the handset is not in

use, press to review the

call log.

Infrared sensor

When the infrared sensor is

covered during a call, all keys

on the dial pad are disabled.

OFF/CLEAR

During a call, press to

hang up.

While the handset is

ringing, press to silence the

ringer temporarily.

Press and hold while the

telephone is not in use

to erase the missed calls

indicator.

While in a menu, press

to exit without making

changes, or press and hold

to return to idle mode.

While entering or editing

a directory entry, press to

erase a digit or character.

/VOL+/

While in a menu, press to

scroll up.

During a call, press to

increase the listening volume.

When the handset is not

in use, press to enter the

directory.

While reviewing a call log

entry, press repeatedly to

add or remove 1 in front

of the telephone number

before dialing or saving it in

the directory.

/HOME/FLASH

Press to make or answer a

home call.

Flashes quickly when there

is an incoming home call.

Flashes slowly when a

home call is on hold.

During a home call, press

to receive an incoming call

when you receive a call

waiting alert.

/CELL

Press to make or answer a

cell call.

Flashes quickly when there

is an incoming cell call.

Flashes slowly when a cell

call is on hold.

Softkeys (2)

Press to select a menu item

displayed above the key.

Press to make or answer a

home call.

During a call, press to switch

between speakerphone

and handset.

HOLD

Press to put a call on hold.

Press repeatedly to show

other dialing options when

reviewing a call log entry.

Press , then the LOCK

softkey to activate the keypad

lock manually.

CHARGE light

On when the handset is charging in

the telephone base or charger.

Appendix

Battery

It takes up to 16 hours for the battery to be fully charged. When it is fully charged, you

can expect the following performance:

Operation Operating time

While in handset use (talking*) Up to 11 hours

While in speakerphone mode (talking*) Up to six hours

While not in use (standby**) Up to ve days

*Operating times vary depending on your actual use and the age of the battery.

**Handset is not charging or in use.

The battery needs charging when:

A new battery is installed in the handset.

The handset beeps every minute while on a call.

The handset beeps and Low battery displays on the handset.

Place in charger displays on the handset.

A battery is properly installed but the screen is blank.

CAUTION:

To reduce the risk of re or injury, read and follow these instructions:

Use only the battery(ies) provided or equivalent. To order a replacement, visit our

website at www.vtechphones.com or call 1 (800) 595-9511.

In Canada, go to

www.vtechcanada.com or dial 1 (800) 267-7377.

Do not dispose of the battery(ies) in a re. Check with local waste management

codes for special disposal instructions.

Do not open or mutilate the battery(ies). Released electrolyte is corrosive and

might cause burns or injury to the eyes or skin. The electrolyte might be toxic if

swallowed.

Exercise care in handling batteries in order not to create a short circuit with

conductive materials.

Charge the battery(ies) provided with or identied for use with this product only in

accordance with the instructions and limitations specied in this manual.

Observe proper polarity orientation between the battery and metallic contacts.

To prevent re or shock hazard, do not expose this product to water or any type

of moisture.

•

Autres manuels pour LS6204 - Cordless Extension Handset

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels V-tech Combiné

V-tech

V-tech CTM-A2116 Manuel utilisateur

V-tech

V-tech 17450 Manuel utilisateur

V-tech

V-tech DS6071 Manuel utilisateur

V-tech

V-tech GIGAPHONE Manuel utilisateur

V-tech

V-tech QW2603 Guide de l'utilisateur

V-tech

V-tech Five Handset Expandable Cordless Phone System with BLUETOOTHA Wireless... Manuel utilisateur

V-tech

V-tech I5808 - Cordless Extension Handset Guide de l'utilisateur

V-tech

V-tech CS6400 Manuel utilisateur

V-tech

V-tech DS6101 Manuel utilisateur

V-tech

V-tech DECT 6.0 CS6219 Manuel utilisateur

V-tech

V-tech 15750 Manuel utilisateur

V-tech

V-tech I5808 - Cordless Extension Handset Manuel utilisateur

V-tech

V-tech vt2422 Manuel utilisateur

V-tech

V-tech ErisTerminal VDP801 Manuel utilisateur

V-tech

V-tech IS7101 Manuel utilisateur

V-tech

V-tech CS6199-4 Manuel utilisateur

V-tech

V-tech CTM-S2110 Manuel utilisateur

V-tech

V-tech LS5105 - Cordless Extension Handset Manuel utilisateur

V-tech

V-tech LS6002 Manuel utilisateur

V-tech

V-tech DS6600 Manuel utilisateur

V-tech

V-tech Analog Contemporary Series Manuel utilisateur

V-tech

V-tech CS6219 Manuel utilisateur

V-tech

V-tech DS6250 Manuel utilisateur

V-tech

V-tech ES1500A Manuel utilisateur

Manuels Combiné populaires d'autres marques

Swissvoice

Swissvoice ePure HD Manuel utilisateur

Philips

Philips TD6736/BH051P Manuel utilisateur

ASCOM

ASCOM I62 - Manuel utilisateur

LG-Ericsson

LG-Ericsson LIP-9010 Manuel utilisateur

GE 1583 Manuel utilisateur

iiNet

iiNet Handset Manuel utilisateur

ASCOM

ASCOM 9p23 Manuel utilisateur

AT&T

AT&T DLP70110 Manuel utilisateur

AirCell

AirCell ST 3100 Manuel utilisateur

Eaton

Eaton HHIR-LCD-PROG Instructions de montage

Mitel

Mitel 112 Manuel utilisateur

SBC

SBC SBC-381H Manuel utilisateur

Mitel

Mitel 5602 Manuel utilisateur

ASCOM

ASCOM d81 Messenger Instructions d'installation

SpectraLink

SpectraLink 7522 Manuel utilisateur

Avaya

Avaya L100 Series Comment utiliser

ooma

ooma HD2 Handset Manuel utilisateur

Yealink

Yealink IPW56 Manuel utilisateur
