UTStarcom UT-300R2 Manuel utilisateur

UT-300R2 ADSL2/2+Modem

USER GUIDE

UTStarcom, Inc.

No part of this documentation may be reproduced in any form or by any means or

used to make any derivative work (such as translation, transformation, or

adaptation) without prior, express and written permission from UTStarcom, Inc.

UTStarcom, Inc. reserves the right to revise this documentation and to make

changes in content from time to time without obligation on the part of UTStarcom,

Inc. to provide notification of such revision or changes.

UTStarcom, Inc. provides this documentation without warranty of any kind, implied

or expressed, including but not limited to, the implied warranties of merchantability

and fitness for a particular purpose. UTStarcom may make improvements or

changes in the product(s) and/or the program(s) described in this documentation

at any time.

UNITED STATES GOVERNMENT LEGENDS:

If you are a United States government agency, then this documentation and the

software described herein are provided to you subject to the following:

United States Government Legend: All technical data and computer software is

commercial in nature and developed solely at private expense. Software is

delivered as Commercial Computer Software as defined in DFARS 252.227-7014

(June 1995) or as a commercial item as defined in FAR 2.101(a) and as such is

provided with only such rights as are provided in UTStarcom's standard

commercial license for the Software. Technical data is provided with limited rights

only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June

1987), whichever is applicable. You agree not to remove or deface any portion of

any legend provided on any licensed program or documentation contained in, or

delivered to you in conjunction with, this User Guide.

UTStarcom, the UTStarcom logo, PAS, mSwitch, Airstar, WACOS, Netman, Total

Control, and CommWorks are registered trademarks of UTStarcom, Inc. and its

subsidiaries. The UTStarcom name, AN-2000, and the CommWorks logo are

trademarks of UTStarcom, Inc. and its subsidiaries.

Other brand and product names may be registered trademarks or trademarks of

their respective holders.

Any rights not expressly granted herein are firmly reserved.

Contents

1Overview......................................................................................... 1

Device Introduction ...................................................................................... 1

Features ...................................................................................................... 2

2Installation Planning...................................................................... 5

Packing List ................................................................................................. 5

Interfaces Introduction ................................................................................. 6

Front Panel .............................................................................................. 6

Rear Panel............................................................................................... 7

Cable Connections....................................................................................... 7

Connecting the ADSL Line....................................................................... 7

Connecting the UT-300R2 to the Ethernet LAN........................................ 8

Computer to UT-300R2 Connection ......................................................... 9

Hub or Switch to UT-300R2 Connection................................................... 9

Power on ................................................................................................... 10

3Before Configuring UT-300R2..................................................... 13

Set up TCP/IP on Your PC......................................................................... 13

Set up Proxy Service ................................................................................. 14

Configure IP Settings on Your PC.............................................................. 14

First Time Log on....................................................................................... 15

4Web-based Management............................................................. 17

Summary................................................................................................... 17

Configuring the WAN Connection .............................................................. 19

Configuring a Bridged Connection for the WAN...................................... 21

Configuring a Routed/Bridged Connection for the WAN ......................... 24

Configuring a PPP Connection for the WAN........................................... 26

Dynamic IP Address for the WAN Connection........................................ 28

Static IP Address for WAN......................................................................30

DHCP Configuration ...................................................................................32

DHCP Server Settings for the LAN..........................................................33

Use the UT-300R2 for DHCP..................................................................34

Disabling the DHCP Server.....................................................................34

DNS Server Setting ....................................................................................34

Configuring the LAN Connection.................................................................35

Save New Settings .....................................................................................37

5Advanced Configuration / Network Management......................39

Virtual Server Configuration........................................................................41

Special Application Configuration ...............................................................45

Configure a Filter Rule-IP Filters.................................................................48

Configuring a Filter Rule- MAC Filters.........................................................53

Configuring a Filter Rule-URL Blocking.......................................................56

Configuring a Filter Rule-Domain Blocking..................................................59

Firewall.......................................................................................................62

DMZ ...........................................................................................................64

DDNS.........................................................................................................65

RIP.............................................................................................................66

6Tools..............................................................................................67

Administrator’s Settings..............................................................................67

Configure System Time ..............................................................................68

Save UT-300R2 Configuration Settings ......................................................69

Save Configuration File to PC.....................................................................70

Load Saved Configuration Files..................................................................71

Restore Factory Default Settings ................................................................72

Firmware Update........................................................................................72

7UT-300R2 Status Information ......................................................75

Log .............................................................................................................75

iii

Traffic Statistics ......................................................................................... 76

Diagnostics................................................................................................ 77

8Attachments ................................................................................. 79

Technical Specifications............................................................................. 79

Glossary .................................................................................................... 82

1 Overview

The UT-300R2 provides integrated voice and data services over

ADSL (Asymmetrical Digital Subscriber Loop) WAN (Wide Area

Network) connection.

Device Introduction

The UT-300R2 ADSL UT-300R2 is designed to provide a

simple and cost-effective ADSL Internet connection for

individual computers through the Ethernet ports, or use it to

bridge your Ethernet LAN to the Internet. The UT-300R2

combines the benefits of high-speed ADSL technology and LAN

IP management in one compact and convenient package.

ADSL technology enables many interactive multi-media

applications such as video conferencing and collaborative

computing.

The UT-300R2 is easy to install and use. The UT-300R2

connects to computers or an Ethernet LAN via a standard

Ethernet interface. The ADSL connection is made using

ordinary twisted-pair telephone line with standard connectors.

Multiple PCs can be networked and connected to the Internet

using a single Wide Area Network (WAN) interface and single

global IP address.

2 Chapter 1 Overview

Figure 1 Device Appearance

Features

• Data rates up to 26 Mbps downstream

• Bridging and routing capabilities

• PPP and tunneling features

• Firewall with Dynamic Host Configuration Protocol (DHCP),

Network Address Translation (NAT), Point-to-Point

Tunneling Protocol (PPTP), and Layer 2 Tunneling

Protocol (L2TP).

• Supports ADSL, ADSL2, ADSL2+

• DSL Forum TR-048-compliant DSL CPE auto-

configuration

• UPnP for seamless network interconnectivity

• Comprehensive networking protocol support includes

DHCP, PPPoE, PPPoA, and RIP

• Friendly web-based graphical user interface for

configuration and management

Chapter 1 Overview

• Supports up to eight simultaneous virtual connections for a

single ADSL account

• Supports T1.413 issue 2, G.dmt and G.lite standards

• Auto-handshake and rate adaptation for different ADSL

flavors

• Widest range of DSLAM interoperability

• Supports bridged Ethernet over ATM (RFC 2684)

• Upgradeable firmware through web

2 Installation Planning

Before installing the UT-300R2, you should gather information

and equipment needed to install the device, then Install the

hardware as instructed, connect the cables to the device and

power on the UT-300R2. Prior to accessing the web-based

software built into the UT-300R2, you should check the IP

settings on your computer and change them if necessary.

Packing List

Please check the package contents by comparing them with the

following list:

• One UT-300R2

• One telephone line

• One straight-through Ethernet Cable

• One Power Adapter

• One User CD-ROM

• One Splitter

6 Chapter 2 Installation Planning

Interfaces Introduction

Front Panel

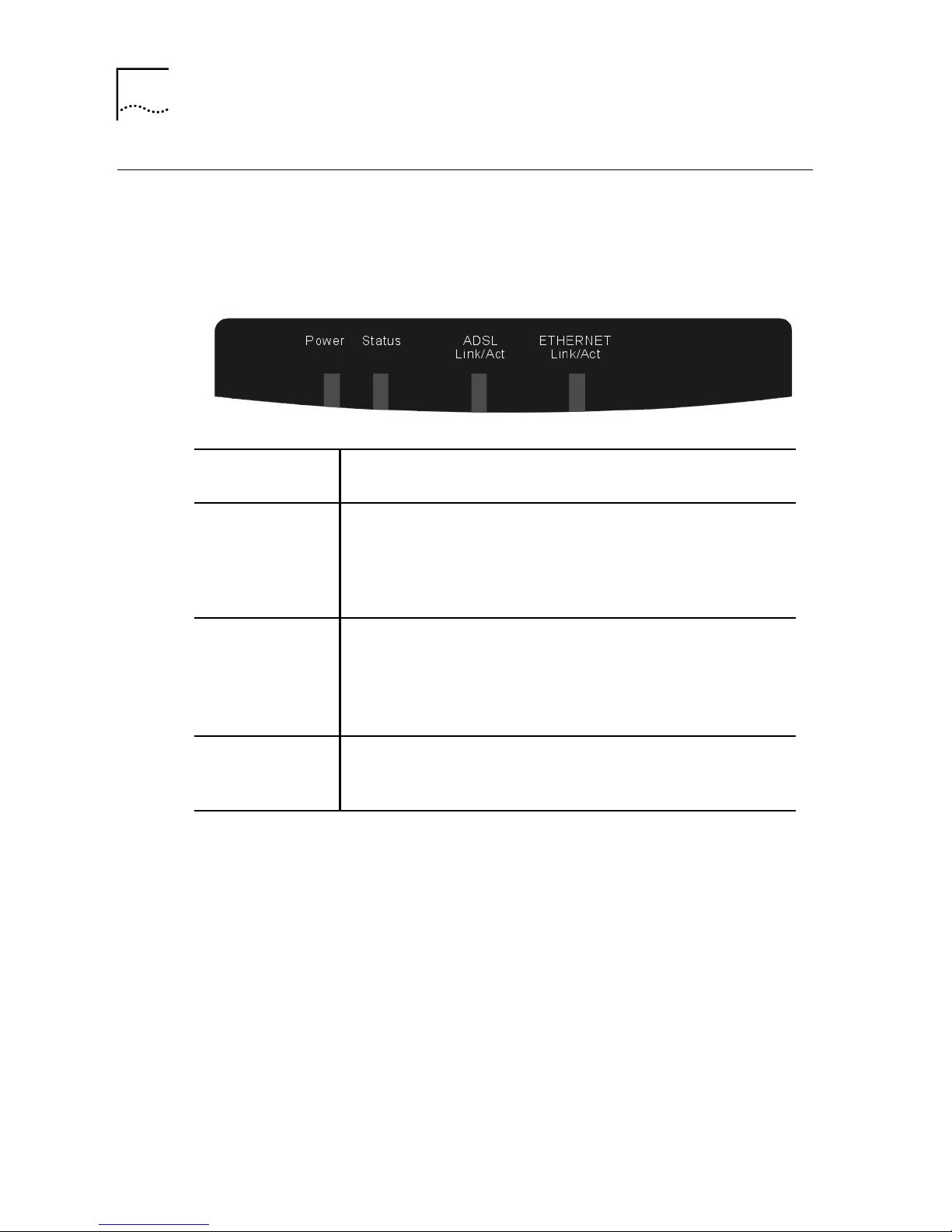

Figure 2 Front Panel

Power Steady green light indicates the unit is powered on.

When the device is powered off this remains dark.

Status

Lights steady green during power on self-test

(POST). Once the connection status has been

settled, the light will blink green. If the indicator

lights steady green after the POST, the system has

failed and the device should be rebooted.

ADSL:

Link/Act

Steady green light indicates a valid ADSL

connection. This will light after the ADSL

negotiation process has been settled. A blinking

green light indicates activity on the WAN (ADSL)

interface.

ETHERNET:

Link/Act

A solid green light indicates a valid link on startup.

This light blinks when there is activity currently

passing through the Ethernet port.
