Universal Remote Control COMPLETE CONTROL MXW-920 Manuel utilisateur

MXW-920

Splash Proof Controller

Owner's Manual

The information in this manual is copyright protected. No part of this man-

ual may be copied or reproduced in any form without prior written consent

from Universal Remote Control, Inc.

UNIVERSAL REMOTE CONTROL, INC. SHALL NOT BE LIABLE FOR OPER-

ATIONAL, TECHNICAL OR EDITORIAL ERRORS/OMISSIONS MADE IN

THIS MANUAL.

The information in this manual may be subject to change without prior notice.

Complete Control is a registered trademark of Universal Remote Control, Inc.

Entertainment Made Simple is a trademark of Universal Remote Control, Inc.

All other brand or product names are trademarks or registered trademarks of

their respective companies or organizations.

Universal Remote Control, Inc.

500 Mamaroneck Avenue, Harrison, NY 10528

Phone: (914) 835-4484 Fax: (914) 835-4532

TABLE OFCONTENTS

Congratulations! 1

Using the MXW-920 2

Displaying the Settings Screen 3

Selecting from the Setup Screen 3

Setting the LCD 4

Light Settings 6

Sound Volume 6

System Settings 7

Version Information Displays 7

Selecting from the Edit Screen 8

Adjusting the Text 8

Learn commands 9

Erasing learned data 9

Performing a Factory Default 9

Battery Installation 10

Specifications 10

USA Limited Warranty Statement 11

Federal Communication Commission

Interference Statement 13

Page 1

MXW-920 OWNER’SMANUAL

Congratulations!

Thank you for purchasing the Complete Control MXW-920 splash

proof wand-style controller. This unit can directly control every

IR device in your home. You can also control devices located in

different rooms by integrating an MRF base station. Controlling your

home is simple with the MXW-920 remote.

Splash Proof IR/RF wand-style controller

The Splash Proof MXW-920 wand-style controller can be used

outside as well as indoors. It’s the perfect controller for kitchen, bath

and poolside use. It is not intended for underwater use or exposure

to sugar-based substances (e.g., soda or lemonade). Make sure the

MXW-920 is dry when changing batteries. IP Code 54, JIS Class 4.

Ideally suited for poolside control

Entertain your guests by controlling your sound system or more

while poolside. Use the MXW-920 by the pool without the worry

of damaging your remote.

Controls up to 40 devices

The MXW-920 has the capacity to control up to 40 devices

throughout your home. Turn off devices that are not in use when

walking by a room. It’s like having a master key for your electronic

devices.

Ultra-reliable narrow band RF - compatible with URC

418 MHz RF Base Stations

The MXW-920 can communicate directly to RF base stations, such

as the MRF-350 and the MRF-260. It also natively communicates

with URC Lighting via 418MHz RF. This gives the MXW-920 the

ability to control your system without being in direct line-of-sight.

Fast setup of complex systems via Complete Control PC editor

To fully automate an audio/video system, and integrate one way

automation of servers etc., the programmer must have detailed

knowledge of each component, LAN configuration, WiFi

optimization and how the system is connected and operated. Only

a trained and certified professional audio/video installer can install

an MXW-920 remote control in a timely and efficient manner.

MXW-920 OWNER’SMANUAL

Using the MXW-920

The MXW-920 displays the Main or Device page at the top of the

screen. Below the title, the LCD displays the device or command names.

All the hard buttons of the MXW-920 are changed to control the functions

of the selected device.

The Title displays

the Main or device

pages you can

control.

Press either of the

Page buttons to see

any other available

choices.

The LCD button

labels describes

the functions

available for the

current activity or

device.

The Channel and

Previous Channel

buttons adjust

channels for devices

with channel functions

(i.e. cable boxes)

The 5-way cursor

buttons enable you

to navigate on

screen guides and

menus with ease.

The Number keypad

enters numbers for

the devices you’ve

selected. When

watching Cable TV,

use the number

keypad to enter

channel numbers.

When listening to a

CD, the number

keypad enters track

numbers.

The Volume and

Mute buttons always

control the sound

regardless of what

screen is displayed.

The Transport buttons

(Play, Stop, Skip-,

Skip+, FF, REW and

Pause) operate when

the selected device

requires them. When

watching Cable

TV, use the number

keypad to enter

channel numbers.

When listening to a

CD, the number

keypad enters track

numbers.

The Light button

backlights all the

buttons and activates

the LCD screen

Page 2

MXW-920 OWNER’SMANUAL

Displaying the Setup Screen

You can adjust the settings of the MXW-920

controller whenever you like. Simply press and

hold both the Main and the Enter buttons at the

same time for three seconds. The screen displays

the Setup and the Edit screens. Press the Page +

and - buttons to toggle between both screens.

If you do not press any button on the Setup screen

within 30 seconds, the MXW-920 times out and

automatically returns to normal operation. You can

return to normal operation before that by pressing

the Main button.

Selecting from the Setup Screen

Simply touch the button for the setting you’d like to adjust:

At the same time, press and

hold both the Main and the

Enter buttons. When the Setup

screen appears, release the two

buttons.

Page 3

LCD - Adjustments for the LCD screen

(brightness, contrast, light)

Light - Adjustments for backlight of the

buttons.

Sound - The volume of the beeps.

System - Set the threshold for the low

battery warning

Version - Displays factory info.

Page 4

Setting the LCD

With these settings, you can set the MXW-920 to constantly display

the LCD or have it turn off when not in use. Additionally, you can control

the contrast of the screen and the color of the backlighting.

MXW-920 OWNER’SMANUAL

To activate the LCD On/Off setting, press

this button. See below.

To activate the Contrast setting, press this

button. See the next page.

To activate the Brightness setting, press

this button. See the next page.

To exit without saving any changes you

have made, press Exit.

LCD Timer Setting:

If you set the LCD to OFF, the timer settings

appear. The LCD turns off after the set

amount of time set by adjusting the Left

and Right arrow keys.

The timer can be set to turn off the LCD

between 10 seconds and 20 minutes.

The Timer Interval is displayed here.

To save any changes you have made,

press Save.

To exit without saving any changes you

have made, press Exit.

To change the timer interval, press the

Left or Right arrow keys.

Page 5

MXW-920 OWNER’SMANUAL

Setting LCD Contrast

You can adjust the contrast of the LCD screen using the Left and

Right arrow keys once the LCD Contrast screen has been selected

(shown on the previous page).

Setting LCD Brightness

You can adjust the brightness of the LCD screen using the Left and

Right arrow keys once the LCD Brightness screen has been selected

(shown on the previous page).

The current contrast is displayed here

via a bar graph.

To save any changes you have made,

press Save.

To exit without saving any changes you

have made, press Exit.

Adjust the Contrast setting with the Left

and Right keys as shown in the previous

pages.

The current brightness is displayed here

as a bar graph.

To save any changes you have made,

press Save.

To exit without saving any changes you

have made, press Exit.

Adjust the LCD brightness with the Left

and Right keys as shown in the previous

pages.

MXW-920 OWNER’SMANUAL

Page 6

Light Settings

You can adjust the backlighting of the remote in two additional ways:

1. You can turn on/off the LCD and the hard button backlighting.

2. You can select the length of time the lighting stays on after the

last button press from a range of values between 10 seconds

and 90 seconds.

Sound Volume

Your MXW-920 beeps whenever a button is pressed. However, you

can adjust the volume of the beep to one of four levels as shown here.

Change whether the backlighting is on or

off by pressing this button.

If you want the backlighting always off,

set it to OFF.

If you would like the backlighting on,

select ON.

The current timer setting is displayed

here in seconds.

Adjust the backlighting timer setting with

the Left and Right keys as shown in the

previous pages.

The current Beep volume is displayed

here as a “bar.”

Adjust the volume of the beep by

tapping the Left and Right arrow keys

as shown in the previous pages.

MXW-920 OWNER’SMANUAL

Page 7

System Settings

You can set your MXW-920 to display the Low Battery warning at a

power level between 0% and 20% (in 5% increments).

Version Information Displays

Should you be curious, the Version indicates what firmware and

software versions were used to program your MXW-920.

The Power bar indicates available power

in black.

Press here to adjust the battery warning

level.

The Memory bar indicates available

memory in black. The memory in use is

white.

To exit, press Main.

Autres manuels pour COMPLETE CONTROL MXW-920

Table des matières

Autres manuels Universal Remote Control Télécommande

Universal Remote Control

Universal Remote Control Easy Clicker UR3L-SR4 Manuel utilisateur

Universal Remote Control

Universal Remote Control UR4-P360SI Manuel utilisateur

Universal Remote Control

Universal Remote Control UR4-DSR - MOTOROLA DSR400 Manuel utilisateur

Universal Remote Control

Universal Remote Control UR5-MDVR Manuel utilisateur

Universal Remote Control

Universal Remote Control MX-800 Manuel utilisateur

Universal Remote Control

Universal Remote Control PHAZR-5 Manuel utilisateur

Universal Remote Control

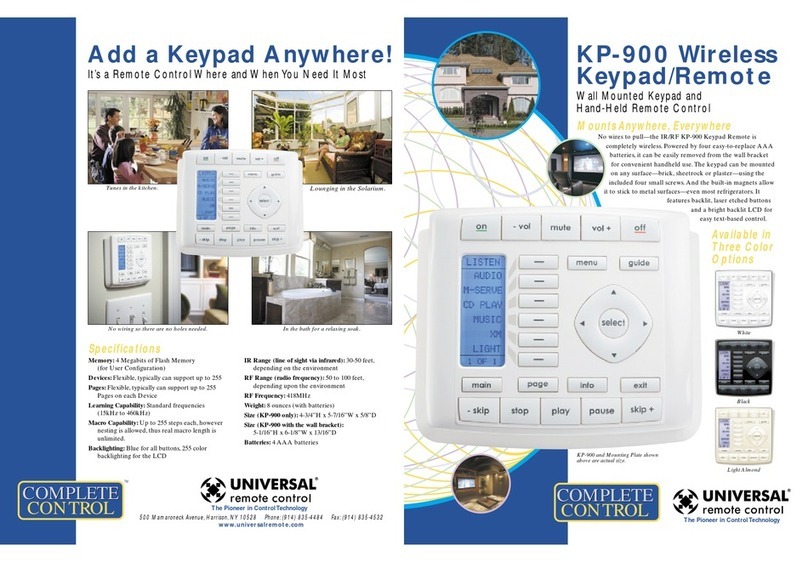

Universal Remote Control Complete Control KP-900 Manuel utilisateur

Universal Remote Control

Universal Remote Control UR5L-9000L Manuel utilisateur

Universal Remote Control

Universal Remote Control MX-900 Manuel utilisateur

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Manuel utilisateur

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8500 Manuel utilisateur

Universal Remote Control

Universal Remote Control AVEX Manuel utilisateur

Universal Remote Control

Universal Remote Control UR-J2000TVE Manuel utilisateur

Universal Remote Control

Universal Remote Control Clikr-5 UR5U-8820L Manuel utilisateur

Universal Remote Control

Universal Remote Control CABLEVISION UR2-CBL-CV04 Manuel utilisateur

Universal Remote Control

Universal Remote Control PHAZR-5 Manuel utilisateur

Universal Remote Control

Universal Remote Control Easy Clicker UR2-211 Manuel utilisateur

Universal Remote Control

Universal Remote Control INSIGHT M2067BX3 Manuel utilisateur

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR3-DTA Manuel utilisateur

Universal Remote Control

Universal Remote Control CLIKR-5 UR5U-8700L Manuel utilisateur

Universal Remote Control

Universal Remote Control Medius TX-1000 Complete Control Manuel utilisateur

Universal Remote Control

Universal Remote Control Easy Clicker UR3-SR2 Manuel utilisateur

Universal Remote Control

Universal Remote Control Complete Control KP-900 Manuel utilisateur

Universal Remote Control

Universal Remote Control total control TRC-780 Manuel utilisateur

Manuels Télécommande populaires d'autres marques

Panasonic

Panasonic EUR7622KB0 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen Beo4 Manuel utilisateur

Sunwave Tech.

Sunwave Tech. RemoteComm SRC-7000 Manuel utilisateur

Multiplex

Multiplex PROFI TX 9 Manuel utilisateur

One Remote

One Remote RMB4 Manuel utilisateur

FUTABA

FUTABA 9ZAP - PART2 Manuel utilisateur

HR Matic

HR Matic HR MULTI 3 Manuel utilisateur

Yamaha

Yamaha ACC-GNRST-30-20 Manuel utilisateur

EisSound

EisSound KBSOUND Manuel utilisateur

Marantz

Marantz RC101 Manuel utilisateur

Conrad

Conrad FS20 TC6 Manuel utilisateur

Anritsu

Anritsu MP1777A Manuel utilisateur

Niles

Niles WVC100 Guide de dépannage

RCA

RCA RCU1300 Manuel utilisateur

Bang & Olufsen

Bang & Olufsen BEO6 Manuel utilisateur

GE 94901 Manuel utilisateur

Onbon

Onbon YQ1-75 Manuel utilisateur

FUTABA

FUTABA R7108SB Instructions d'installation
