IO-DI16 I/O Expansion Module 16 Digital Inputs

The IO-DI16 is an I/O expansion module

that can be used in conjunction with

specific Unitronics OPLC controllers.

The module offers 16 digital inputs in 2

groups, type pnp/npn (source/sink).

The interface between the module and

the OPLC is provided by an adapter.

The module may either be snap-mounted

on a DIN rail, or screw-mounted onto a

mounting plate.

Component identification

1 Module-to-module connector

2 Communication status indicator

3 Input connection points: I8-I15

4 Input status indicators

5 Module-to-module connector port

6 Input connection points: I0-I7

1 5

IO -D I1 6

98101112131415

I7I6I5I4I3I2I1I0

I8 I9 I1 0 I1 1 I1 2 I1 3 I1 4 I1 5

PN0V

User safety and equipment protection guidelines

This document is intended to aid trained and competent personnel in the installation of this equipment as defined

by the European directives for machinery, low voltage and EMC. Only a technician or engineer trained in the

local and national electrical standards should perform tasks associated with the electrical wiring of this device.

 Under no circumstances will Unitronics be liable or responsible for any consequential damage that may

arise as a result of installation or use of this equipment, and is not responsible for problems resulting from

improper or irresponsible use of this device.

 All examples and diagrams shown in the manual are intended to aid understanding. They do not guarantee

operation.

 Unitronics accepts no responsibility for actual use of this product based on these examples.

 Only qualified service personnel should open this device or carry out repairs.

 Please dispose of this product in accordance with local and national standards and regulations.

 Check the user program before running it.

 Do not attempt to use this device with voltage exceeding permissible levels.

 Install an external circuit breaker and take appropriate safety measures against short-circuiting in

external wiring.

 Failure to comply with appropriate safety guidelines can result in severe personal injury or

property damage. Always exercise proper caution when working with electrical equipment.

IO-DI16 I/O Expansion Module 11/00

2 Unitronics Industrial Automation Systems

Mounting the Module

Mounting Considerations

 Do not install in areas with: excessive or conductive dust, corrosive or

flammable gas, moisture or rain, excessive heat, regular impact shocks

or excessive vibration.

 Provide proper ventilation by leaving a minimum space of 10mm

between the top and bottom edges of the device and the

enclosure walls.

 Do not place in water or let water leak onto the unit.

 Do not allow debris to fall inside the unit during installation.

DIN-rail mounting

Snap the device onto the DIN rail as shown below; the module will be squarely situated on the DIN rail.

60mm

3.5mm

14mm

80mm

93mm

44.5mm

IO -D I1 6

98 101112 1314 15

I7I6I5I4I3I2I1I0

I8 I9 I1 0 I1 1 I1 2 I1 3 I1 4 I 1 5

PN0V

Screw-Mounting

The figure on the next page is drawn to scale. It may be used as a guide for screw-mounting the module.

Mounting screw type: either M3 or NC6-32.

11/00 IO-DI16 I/O Expansion Module

Unitronics Industrial Automation Systems 3

4mm

5.8mm

85mm

80mm

68.4mm

93mm

4mm (x2)

IO-DI16 I/O Expansion Module 11/00

4 Unitronics Industrial Automation Systems

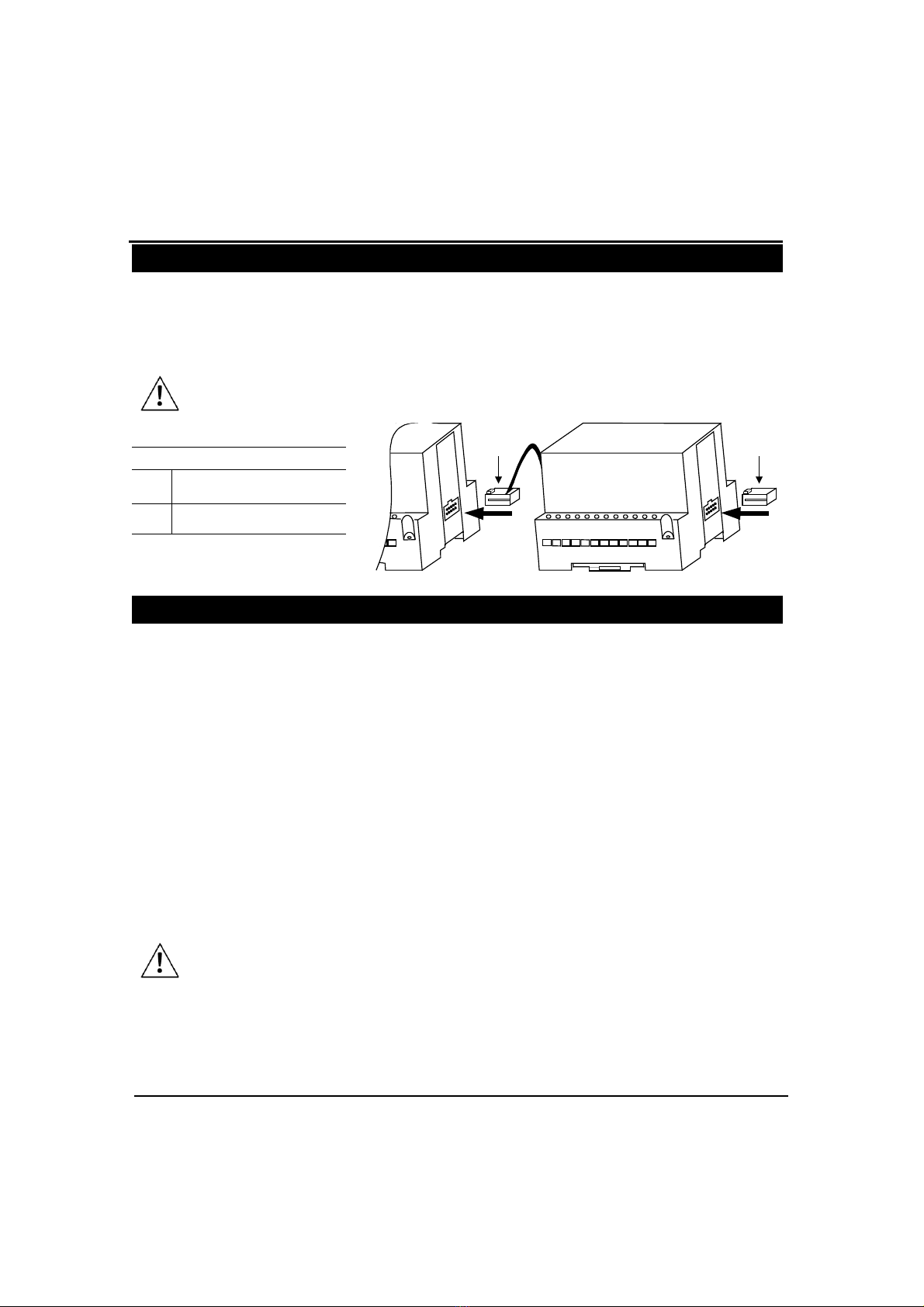

Connecting Expansion Modules

An adapter provides the interface between the OPLC and an expansion module. To connect the I/O module to the

adapter or to another module:

1 Push the module-to-module connector into the port located on the right side of the device.

Note that there is a protective cap provided with the adapter. This cap covers the port of the final

I/O module in the system.

 To avoid damaging the system, do not connect or disconnect the device when the

power is on.

Component identification

1 Module-to-module

connector

2 Protective cap

1 2

Wiring

Wire Size

Use 26-12 AWG wire (0.13 mm 2–3.31 mm2) for all wiring purposes.

Wiring Considerations

 Note that the adapter and input signals must be connected to the same 0V signal.

 Do not use tin, solder or any other substance on the stripped wire that might cause the wire strand to break.

 We recommend that you use crimp terminals for wiring.

 Install at maximum distance from high-voltage cables and power equipment.

General Wiring Procedures

1 Strip the wire to a length of 7±0.5mm (0.250–0.300 inches).

2 Unscrew the terminal to its widest position before inserting a wire.

3 Insert the wire completely into the terminal to ensure that a proper

connection can be made.

4 Tighten enough to keep the wire from pulling free.

To avoid damaging the wire, do not exceed a maximum torque of 0.5 N·m (5 kgf·m).

 Do not touch live wires.

 Double-check all the wiring before turning on the power supply.

11/00 IO-DI16 I/O Expansion Module

Unitronics Industrial Automation Systems 5

Input Wiring

 Input or output cables should not be run through the same multi-core cable or share the same wire.

 Allow for voltage drop and noise interference with input lines used over an extended distance. Use wire

that is properly sized for the load.

 Each group of inputs may be wired as either pnp or npn inputs.

npn (sink) input wiring

(shown in top group of inputs)

high-speed counter/frequency measurer

npn (sink)

I8 I9 I10 I1 1 I1 2 I1 3 I1 4 I15PN0V

Circuit Protection Device

High-speed

Counter

Reset

High-speed

Counter

pnp (source)

IO-DI16

98 1011 12 1314 15

I7I6I5I4I3I2I1I0

I8 I9 I10 I11 I12 I13 I14 I15

PN0V

Circuit Protection Device

I8 I9 I10 I11 I12 I13 I1 4 I15PN0V

High-speed

Counter

Reset

High-speed

Counter

pnp (source) input wiring

(shown in bottom group of inputs)

IO-DI16 I/O Expansion Module 11/00

6 Unitronics Industrial Automation Systems

IO-DI16 Technical Specifications

Max. current consumption 75mA maximum from the adapter’s 5VDC

Typical power consumption 0.2W @ 5VDC

Status indicator

(RUN) Green LED:

—Lit when a communication link is established between module and OPLC.

—Blinks when the communication link fails.

Inputs

Number of inputs 16 (in two groups)

Input type pnp (source) or npn (sink)

Galvanic isolation None

Status indicators (IN) Green LEDs—Lit when the corresponding input is active.

Nominal input voltage 24VDC

Input voltage

pnp (source) 0-5VDC for Logic ‘0’

17-28.8VDC for Logic ‘1’

npn (sink), voltage/current 17-28.8VDC/<1.1 mA for Logic ‘0’

0-5VDC/>4.3mA for Logic ‘1’

Input current 6mA@24VDC

Response time 10mSec typical

Input #15 The specifications below apply when this input is wired for use as a high-speed

counter input/frequency measurer. See Notes 1 and 2.

Resolution 16-bit

Frequency 5kHz maximum

Minimum pulse width 80µs

Environmental IP20

Operating temperature 0°to 50°C

Storage temperature -20°to 60°C

Relative Humidity (RH) 5% to 95% (non-condensing)

Dimensions (WxHxD) 80mm x 93mm x 60mm

Weight 141g (4.9oz.)

Mounting Either onto a 35mm DIN-rail or screw- mounted.

Notes:

1. Input #15 can function either as a high-speed counter, a frequency measurer, or as a normal digital

input. When Input #15 is used as a normal digital input, normal input specifications apply.

2. Input #14 can function either as the counter’s reset, or as a normal digital input; in either case, its

specifications are those of a normal digital input.

11/00 IO-DI16 I/O Expansion Module

Unitronics Industrial Automation Systems 7

Addressing I/Os on M90 Expansion Modules

Inputs and outputs located on I/O expansion modules that are connected into an M90 OPLC are assigned

addresses that comprise a letter and a number. The letter indicates whether the I/O is an input (I) or an

output (O). The number indicates the I/O’s location in the system. This number relates to both the position

of the expansion module in the system, and to the position of the I/O on that module.

Expansion modules are numbered from 0-7 as shown in the figure below.

01234567

Expansion module

identification number

Adapter

The formula below is used to assign addresses for I/O modules used in conjunction with the M90 OPLC.

X is the number representing a specific module’s location (0-7). Y is the number of the input or output on

that specific module (0-15).

The number that represents the I/O’s location is equal to:

32 + x • 16 + y

Examples

 Input #3, located on expansion module #2 in the system, will be addressed as I 67,

67 = 32 + 2 • 16 + 3

 Output #4, located on expansion module #3 in the system, will be addressed as O 84,

84 = 32 + 3 • 16 + 4.

EX90-DI8-RO8 is a stand-alone I/O module. Even if it is the only module in the configuration, the EX90-DI8-

RO8 is always assigned the number 7.

Its I/Os are addressed accordingly.

Example

 Input #5, located on an EX90-DI8-RO8 connected to an M90 OPLC will be addressed

as I 149, 149 = 32 + 7 • 16 + 5

High-speed counter/

Frequency

measurement

Analog output

resolution

Analog

outputs

Digital

outputs

Analog input

resolution

Analog

inputs

Digital inputs

(24VDC)

One

—

8 pnp

(source)

—

8 pnp/npn

(source/sink)

IO-DI8-TO8

One

—

16 pnp/npn

(source/sink)

IO-DI16

—

16 pnp

(source)

—

IO-TO16

Digital I/O (transistor)

One

—

4 relay

outputs

—

8 pnp/npn

(source/sink)

IO-DI8-RO4

—

8 relay

outputs

—

IO-RO8

One

—

8 relay

outputs

—

8 pnp

(source)

EX90-DI8-RO8*

Digital I/O (relay)

* Stand-alone module. Other modules are used in conjunction with the EX-A1 adapter

—

12 bit

+ sign

2 outputs

±10V,

0-20mA, 4-20mA

—

12 bit

4 inputs

0-10V,

0-20mA , 4-20mA

—

IO-AI4-AO2

Analog I/O

To order the expansion module that best fits your system, contact your local distributor.

For a list of Unitronics distributors, check our website: http://www.unitronic.com/contact.htm

—

12 bit

4 PT100

-50° to 460°C

—

IO-PT4

PT 100
