Unitech EA520 Manuel utilisateur

EA520 Vehicle Cradle

Quick Start Guide

609574G V1.0

Package

Please make sure the following contents are in the

EA520 vehicle cradle gift box.

If something is missing or damaged, please contact

your Unitech representative.

• EA520 Vehicle Cradle

• USB Type-C Cable (power input: 5V/2A)

*Note: The package does not include USB car charger

(cigarette charger). Please apply the car charger with

power output 5V/2A to match with EA520 vehicle cradle.

The Package Contents

Install EA520 into the Vehicle Cradle

Insert the Attached Cover into the Cradle

Optional Accessories

• Attached Cover (for EA520 without boot case)

• HD AMPs Bracket with 26mm Ball Joint Part

(with AMPs screws)

• Dashboard Mount Only

• HD AMPs Mount

Product View

Charging port

Insert EA520 from top to bottom until it reach the bottom.

Put the attached cover into the cradle and make

sure the arrows of the attached cover are pointing

upward and match with the cradle.

How to use the Vehicle Cradle

•Insert EA520 with boot case into the vehicle cradle

directly.

* It is suggested to charge EA520 without boot case

after putting the attached cover into the vehicle

cradle to prevent noise while shaking. The attached

cover is optional for securing EA520 without the boot

case more firmly.

• To ensure the unit working properly, please keep all

connectors away from the contaminants staying inside

of them such as dust, grease, mud, and water.

The negligence may cause the unit with no communication,

short circuited, overheated and so on.

• If the connector is damaged, please ensure the connector is

being fully repaired before using the unit to avoid causing

short circuited.

CAUTION!

Unitech is a registered trademark of Unitech Electronics Co., Ltd.

http://www.ute.com/

Remap the Volume Key

How to Remove Wearable Kit

Charging through Vehicle Cradle

Connect one end of the USB Type-C cable to the USB

port on EA520 vehicle cradle, and the other end to

USB car charger (cigarette charger).

The power key is not accessible while EA520 is in

the vehicle cradle, so it's suggest to “remapping” the

volume key to wake up the screen. Please follow the

directions below to remap the volume key to wake

up screen.

1. Enter StageGo from the Apps.

2. Scan the barcode on the right.

Note:This barcode is designated to be scanned by

StageGo. Scanning through USS is not effective.

3. The screen will show as below.

The number of success is “1”, meaning you have

successfully finish key remap setting.

Type-C

Go back to Original Setting

1. Click on KeyRemap in the Apps.

2. Click on VOLUME_UP.

3. Select Action, then select Default key: VOLUME_UP.

Autres manuels pour EA520

Autres manuels Unitech PDA

Unitech

Unitech PA600 Manuel utilisateur

Unitech

Unitech PA600 Manuel utilisateur

Unitech

Unitech PA500 Manuel du propriétaire

Unitech

Unitech PA690 Manuel utilisateur

Unitech

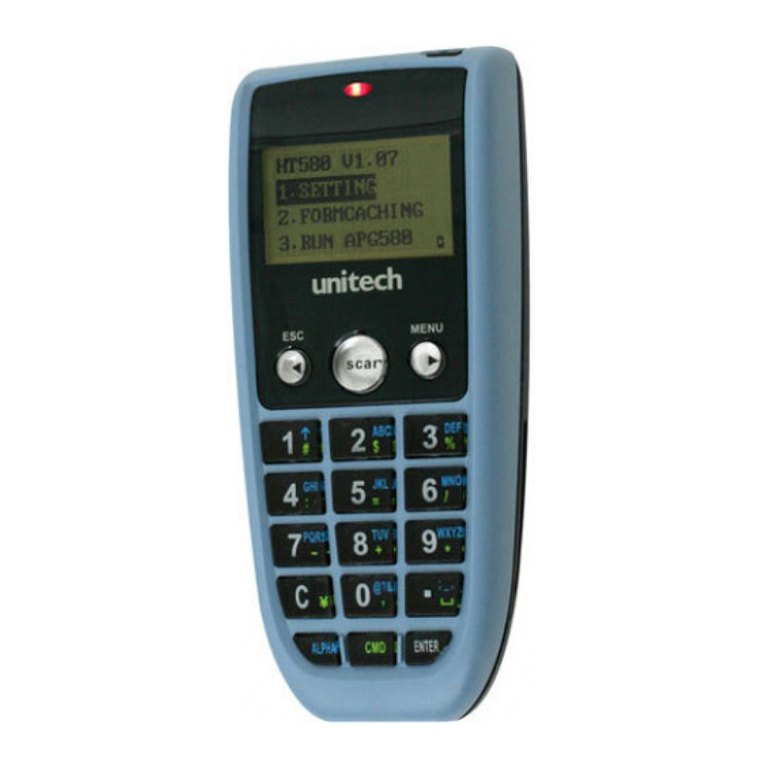

Unitech HT580 Manuel utilisateur
