UNIDEN UH8060NB UHF CB Transceiver

The Uniden UH8060NB is designed to provide you with years of trouble

free service. Its rugged components and materials are capable of

withstanding harsh environments. Please read this Operating Manual

carefully to ensure you gain the optimum performance of the unit.

NOTE

The citizen band radio service is licenced in Australia by

ACMA Radio-communications (Citizen Band Radio Stations)

Class Licence and in New Zealand by MBIE General User

Licence for Citizen Band Radio and operation is subject to

conditions contained in those licenses.

Features

• NarrowBand(NB)80Channel

Radio*

• MiniCompactBlackBox

• RemoteLCDSpeaker

Microphone (Remote SPK/MIC)

and Extension Cable

• 12VDCPowerInput

• Built-inAVSCircuitry†

• TransmissionPower5W

• LCDDisplaywithBacklight

• LCDBacklightbrightnesscontrol

(“HI”, “LO”, “Off”)

• SignalStrength/PowerMeter

• InstantChannelProgramming

• OnetouchInstantChannelrecalling

• DualWatchwithInstantChannel

• DuplexCapability*

• GroupScanandPriorityChannel

Watch

• OpenScan

• ScanChannelMemoryOn/Off

separately with Open Scan,

Group Scan

• ChannelSelect

• BusyChannelLock-outFunction

• RogerBeepFunctionOn/Off

• 5DifferentCallTones

• 38Built-inCTCSS(Continuous

Tone Coded Squelch System)

and 104 additional DCS (Digital

Coded Squelch) codes that are

user selectable

• VolumeControl

• 7LCD&KeyBacklightColours

• BaseSpeaker

• ExternalSpeakerJack

• PowerOn/OffPushSwitch

• FrontMICJack

• AutoSquelch

• Underandovervoltagealert

function

* Refer to p.27 - p.29 for channel

information

† AVS-AutomaticVolumeStabilizer

detects and manages incoming

audio to comparable levels.

Introduction

UHF CB TransceiverUNIDEN UH8060NB

Controls & Connectors

UNIDEN UH8060NB

UHF CB Transceiver

Controls & Connectors

UNIDEN UH8060NB UHF CB Transceiver

1 MICJack

2Speaker

3Power Input Connection

 (13.8VDC)

4EXT SP - External Speaker

 Jack

5UHF Antenna Connection

6CALL - Call Tone Button

7INST - Instant Channel Button

8PTT - Push To Talk Button

9MENU - Menu Button

/ENTER - Enter Button

10 DIMMER (press & hold)

11 POWER - Power Button

12 SCAN - Scan Button

/ OS/GS - Open Scan/

Group Scan

- Move selection left

13 MICROPHONE

14 SPEAKER

15 Liquid Crystal Display (LCD)

16 VOL -VolumeUpButton

17 VOL -VolumeDown

Button

18 SQL - Auto Squelch

/MON - Monitor Button

19 COLOUR (press & hold)

20 MEM - Memory Scan

Channel

21 DCS/CTCSS - DCS &

CTCSS Button

/DUAL - Dual Watch Button

- Move selection right

22 / - Select Up and

Down Buttons

23  RJ45typeplug

24  FrontMICJackCover

Base (Front & Rear)

Remote LCD Speaker MIC

Indicators

UNIDEN UH8060NB

1TX/BUSY - Transmit/Busy

2CALL - Call Tone

3M- Channel in Memory

4Channel Number

5DCS/CTCSS - DCS/CTCSS

selected

6MON/SQT - Flashing:

Monitor/Tight Squelch

7INST - Instant Channel

8DUAL - Dual Watch

9SCAN - Scan mode

10 Signal Power Level

11 GS - Group Scan

12 S/RF- Receive Signal or

Transmit

13 PRI - Priority Channel Watch

14 Channel Frequency

15 BCL - Busy Channel Lockout

16 DCS/CTCSS Code Number

13 14

1 2 3 4 5

UHF CB Transceiver

Optional Accessories:

• UHFAntenna

• ExternalSpeaker

VisittheUH8060NBpageonthewebsiteformoreinformationonthe

availability of optional accessories;

www.uniden.com.au for Australia

www.uniden.co.nz for New Zealand

Included in your UH8060NB Transceiver

UNIDEN UH8060NB

Remote LCD Speaker

Microphone

(RM800)

Owner’s Manual Microphone Hanger

with screws, washers

Mounting Bracket with

mounting screws

DC Power Cord

with fuse

Extension Cable

(EC770)

UH8060NB

Remote Speaker MIC

UHF CB Transceiver

For more exciting new products please visit our website:

Australia: www.uniden.com.au

New Zealand: www.uniden.co.nz

UHF CB Transceiver

MIC Jack

BeforeconnectingtheMicrophoneJackdecideifyouneedtousethe2

metre Extension Cable - simply connect the MIC plug into the jack end of

the Extension Cable.

Push the MIC plug or Extension Cable plug into the MIC jack of the radio

until the connection locks into place. Gently tug the MIC or Extension

Cable cord to test that the connection is locked. Use the rubber cover

which is on the cord to seal the MIC jack entry from dust.

Disconnecting the MIC from the MIC Jack

Pull back the rubber cover and move it down along the cord. Using the

atbladeofascrewdriverorsimilarobjectcarefullypushthelocktabof

the MIC plug towards the MIC cord and at the same time tug on the MIC

cord to draw back the MIC plug.

Connecting the Microphone

UNIDEN UH8060NB UHF CB Transceiver

The Microphone Hanger comes in two parts. How and where you mount

the MIC hanger will determine which parts to use.

Conventional Mounting with Screws

Use the front part of the MIC Hanger only.

Locate a suitable mounting position and mark and drill two 3mm holes.

Fix the MIC Hanger into place with screws.

Mounting the MIC Hanger

UNIDEN UH8060NB UHF CB Transceiver

UNIDEN UH8060NB

Conventional Mounting with Double Sided Tape

(not supplied)

High quality Double-Sided tape can be found at good retail stores.

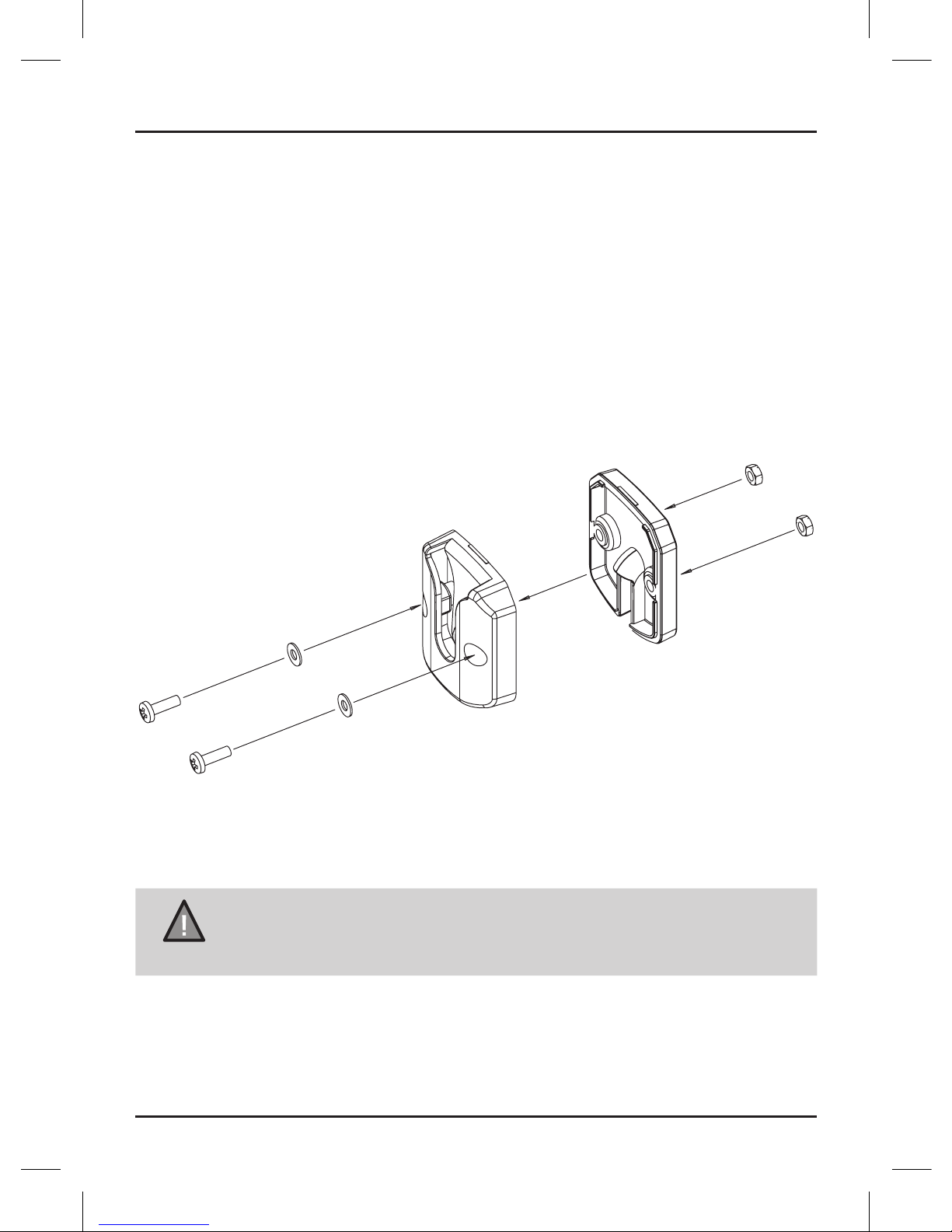

Secure the front and back pieces of the MIC Hanger using the supplied

binding screws.

Locate a suitable mounting position.

ApplyhighqualityDouble-SidedtapeontotheatareaoftheMIC

Hangerbackpieceandthenpressrmlytothemountingposition.

Mounting the MIC Hanger

MIC Hanger mounted over MIC Cable

NOTE

The curly cord of the Remote SPK/MIC can extend up to

1.5m. For practical installation of the MIC Hanger mounted

over MIC Cable use this method with the Extension Cable.

UHF CB Transceiver
