Introduction 3

Controls & Connectors 4

Indicators 6

Included with your Transceiver 7

Windshield Mount 9

Connecting the Microphone 10

Mounting the MIC Hanger 11

Operation 12

Turning on the Power 12

Setting the Squelch Level 12

Monitor 14

Selecting a Channel 14

Programming the Instant Priority Channel 14

Recalling the Instant Channel 15

Transmitting 15

Call Function 15

Using Repeater Channels 15

Operating the UHF CB Radio in Duplex Mode 17

Scanning 18

Add/Remove Channels from SCAN Memory 19

Master Scan (MS) Mode 19

Open Scan (OS) Mode 23

Group Scan (GS) Mode & Priority Watch 23

CTCSS & DCS 24

Busy Channel Lockout 25

Selecting the Call tone 25

Roger Beep 26

Beep On/Off 26

Backlight Colours 26

Backlight Brightness 27

LCD Flip 27

CTCSS Codes Table 28

DCS Codes Table 29

UHF CB Channel Guidelines 30

UHF CB Channels & Frequencies 31

Warranty 33

Contents

UNIDEN UH8010S/UH8020S UHF CB Transceiver

The Uniden UH8010S/UH8020S is designed to provide you with years

of trouble free service. Its rugged components and materials are capable

of withstanding harsh environments. Please read this Operating Manual

carefully to ensure you gain the optimum performance of the unit.

NOTE

The citizen band radio service is licenced in Australia by

ACMA Radio-communications (Citizen Band Radio Stations)

Class Licence and in New Zealand by MED General User

Licence for Citizen Band Radio and operation is subject to

conditions contained in those licenses.

Features

• NarrowBand(NB)80Channel

Radio*

• 12VDCPowerInput

• Built-inAVSCircuitry†

• Transmissionpower5W

• LCDdisplay

• SignalstrengthandRFpower

(S/RF) meter

• Instantchannelprogramming

• OnetouchInstantchannel

recalling

• Selectablescanningtypefrom

group scan (GS) and open scan

(OS).

• ScanchannelmemoryOn/Off

function separately divided into

OS, GS and MS

• MonitorOn/Offfunction

• Duplexcapability*

• KeyBeepOn/Offfunction

• RotaryChannelselectknob

• BusyChannellock-outfunction

• RogerbeepfunctionOn/Off

• 5differentCALLTones

• 38builtinCTCSS(Continuous

Tone Coded Squelch System)

codes and 104 DCS (Digital

Coded Squelch) are selectable

• Autosquelchdetection

threshold control (“oF”, “1” ~ “9”)

• Volumecontrol(“oF”,“1”~“40”)

• PowerOn/OffcontrolSW

• OptionalExternalSpeaker

• FlipLCDfunction

• 7LCD/KeyBacklightColour

Options

• 4LCD/KeyBacklightBrightness

Levels

• Underandovervoltagealert

function

• MasterScan

* Refertop.31-p.32for

channel information

† AVS-AutomaticVolumeStabilizer

detects and manages incoming

audio to comparable levels.

Introduction

UHF CB TransceiverUNIDEN UH8010S/UH8020S

Controls & Connectors

543

11 12

UHF CB TransceiverUNIDEN UH8010S/UH8020S

1Menu Button

/ Monitor function

(press & hold)

2PUSH control - Squelch

Select (press)

/Power On/Off (press & hold)

ROTARY control - CHANNEL

Selector

3/ -VolumeUp/Down

control

4Channel Scan button

/ Scan Memory

(press & hold)

5Liquid Crystal Display (LCD)

6MIC - Front Microphone Jack

7Speaker

8Power Input Connection

 (13.8VDC)

9EXT SP - External Speaker

Jack

10 UHF Antenna Connection

11 CALL - Call Tone Button

12 INST - Instant Channel

Button

13 PTT - Push To Talk Button

14 MICROPHONE

15  RJ45typeplug

16 Front MIC Jack Cover

Controls & Connectors

UHF CB TransceiverUNIDEN UH8010S/UH8020S

Mounting Bracket with

mounting screws*

1- Receive Signal Level (Channel Busy Indicator)

- Transmit Signal Power Level

2- Channel Number / Menu Item Setting

3- CTCSS/DCS Code number / Menu Item

4- Scan mode

5- Channel in Memory

6- Instant Channel

Indicators

UHF CB TransceiverUNIDEN UH8010S/UH8020S

Heavy Duty

Microphone

Owner’s Manual Microphone Hanger

with screws, washers

Mounting Bracket with

mounting screws*

DC Power Cord

with fuse*

Included with your Transceiver

UHF CB Transceiver

Magnetic Antenna

and M Adaptor**

Radio Bracket** Windshield Mount** Power Cable

(Ciger lead type)**

* For UH8010S and UH8010S+ANT

** For UH8020S

UNIDEN UH8010S/UH8020S

Mini Compact

UHF Mobile Radio

For more exciting new products please visit our website:

Australia: www.uniden.com.au

New Zealand: www.uniden.co.nz

UH8020S

UH8010S+ANT

UH8010S

ElevatedFeed6.5dBAntennakit(AT-870)***

Not Pictured:

*** For UH8010S+ANT

Optional Accessories:

• UHFAntenna

• ExternalSpeaker

VisittheUH8010S/UH8020Spageonthewebsiteformoreinformation

on the availability of optional accessories;

www.uniden.com.au for Australia

8UHF CB TransceiverUNIDEN UH8010S/UH8020S

Windshield Mount

Attaching the Windshield Mount - An Example

1. Attach the windshield mount to the radio bracket as shown in the

image above.

2.Pressthesuctioncupatagainstthewindshieldandpushthelever

up to secure position.

9UHF CB TransceiverUNIDEN UH8010S/UH8020S

Radio Bracket

Windshield Mount

(Attach to windshield)

Lever

Slide & Lock

NOTE

Suction cups will not stick well on a curved/textured or wet

surfaces.

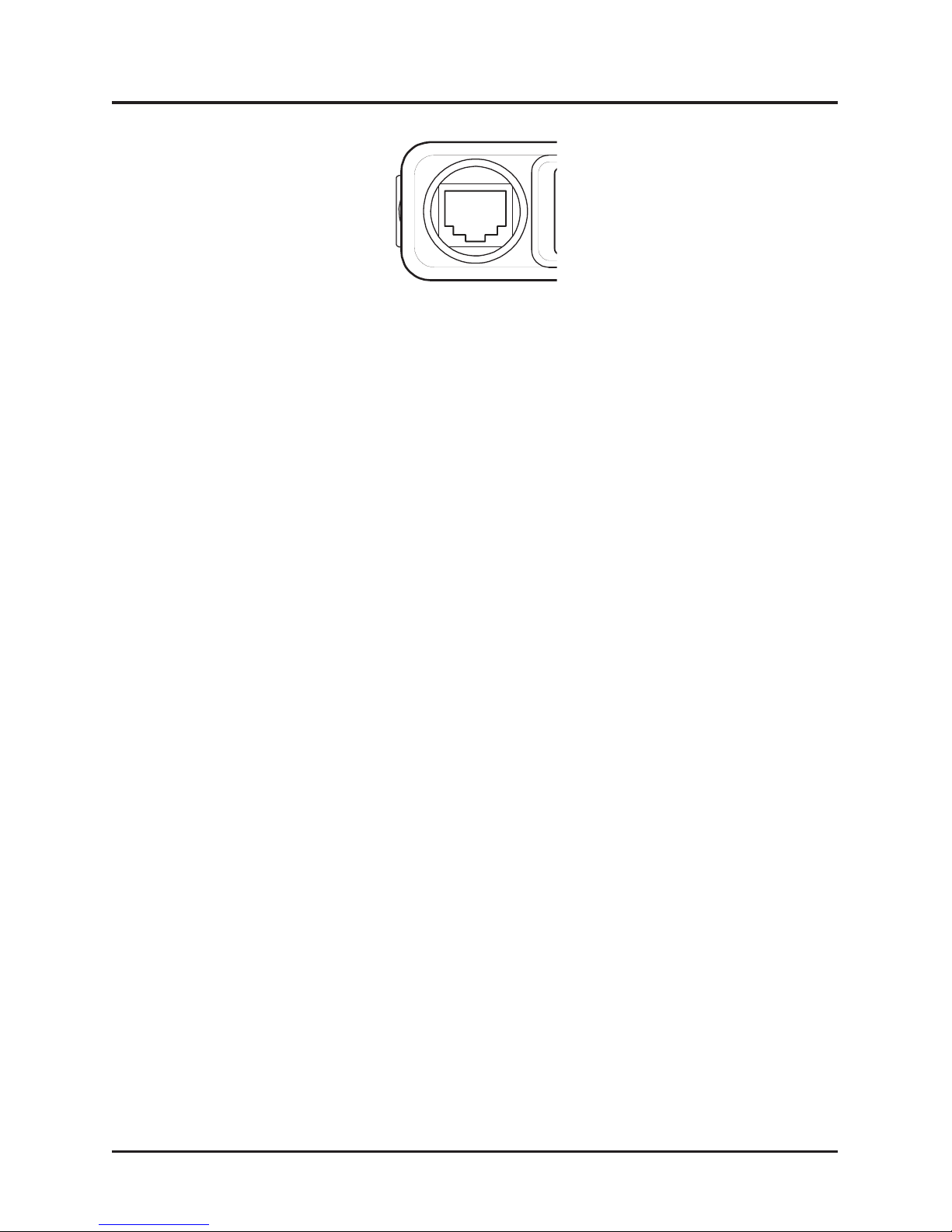

MIC Jack

Push the MIC plug at the end of the microphone into the MIC jack until

the connection locks into place. Gently tug the MIC cord to test that the

connection is locked. Use the rubber cover which is on the MIC cord to

seal the MIC jack entry from dust.

Disconnecting the MIC from the MIC Jack

Pull back the rubber cover and move it down along the cord. Using the

atbladeofascrewdriverorsimilarobjectcarefullypushthelocktabof

the MIC plug towards the MIC cord and at the same time tug on the MIC

cord to draw back the MIC plug.

Connecting the Microphone

UHF CB TransceiverUNIDEN UH8010S/UH8020S
