Uniden UDRC24 Manuel utilisateur

DIGITAL WIRELESS 7” LCD

MONITORING SYSTEM

WITH SD CARD RECORDING

MODEL:UDR744

Feature list:

850nm IR Led visible distance up to 10m

7” TFT Lcd Digital panel (800 RGB x 480)

Two way audio

Scan function

PIR trigger or Video motion detect recording

Manual recording

Touch button operation

Schedule recording separate settings from Monday to Sunday

SD Card external storage, up to128GB supported

One Lcd monitor can pair four cameras

Individual recording files

Pre-recording

Lcd : 5v DC 2A Power adaptor (+/-5%)

Camera: 9v DC 600mA(+/-5%)

RF range: 150 meter (Line of sight)

New recording indicator/ Memory card full indicator

Quad view

PIR trigger and Video motion detect alert

Touch panel

Remote view and playback from Android or iOS Smartphone

Wireless Receiver

Front View

1. LCD Screen – Displays video from the camera(s) or displays system operations.

2. Microphone

Back controls

3. Wireless Antennas: Position the antennas as needed for best reception.

4. Power Button/ Scan Button: Press and hold to turn the receiver on / off. Press and release while the

unit is powered on to turn Scan mode.

5. Speaker

6. Power Port: Connect to a local power outlet using the included power adapter.

7. Ethernet Port (RJ45): Connect the receiver to your router using the included Ethernet cable to

enable smartphone / tablet connectivity.

8. Reset: Using a paper clip or other thin object, push the reset button to restore the system to its

default settings.

9. Receiver Stand

10. Battery Cover

Side controls

11. Volume Up

12. Volume Down

13. Talk - Press and hold talk button in single channel view mode to talk back to camera side.

14. SD Card Slot- insert SD card for recording videos.

Wireless Camera

1. Camera Antenna – Sends & receives signals to or from the receiver.

2. IR LEDs – Infrared LEDs provide viewing in no/low light conditions

3. Camera Lens –Catches the video in front of the lens and transmits video from camera to receiver.

4. Light Sensor- sense brightness for changing between daytime vision and night vision.

5. Microphone- transmit audio to receiver

6. Pair Button – The pair button is located on the back of the camera, it is used to pair the camera with

receiver.

7. PIR Sensor – Detects motion in front of the lens and emits detection signal to transmitter.

8. Wall Mounting Bracket – Use the bracket to mount the camera on a wall or other flat surfaces.

9. AC Adaptor Jack – Plug theAC adaptor to the jack for camera’s power supply.

10. Speaker – Produces the sound transmitted from the receiver.

Note:This camera includes an Auto Mechanical IR Cut Filter. When the camera changes between day

mode and night vision mode, an audible clicking noise may be heard coming from the camera. This

clicking is normal, and indicates that the camera filter is working.

Camera Installation

Before you install the camera, carefully plan where and how it will be positioned, and where you will

route the cable that connects the camera to the power adaptor.

Before starting permanent installation, verify its performance by observing the image on the receiver

when camera is positioned in the same location/position where it will be permanently installed and the

receiver is placed in the location where it will be used most of the time.

Installation Warnings

Aim the camera(s) to best optimize the viewing area: Select a location for the camera that provides a

clear view of the area you want to monitor, which is free from dust, and is not in line-of-sight to a strong

light source or direct sunlight.

Avoid installing the cameras where there are thick walls, or obstructions between the Cameras and the

Receiver.

Night Vision

This camera has built-in IR LEDs, which provides the camera with the ability to view images in no/low

light conditions.

Installing the Camera

1. Carefully unpack the camera.

NOTE: If you are installing cameras that did not come with the system,

please see the pairing camera section of this manual for details on

installation.

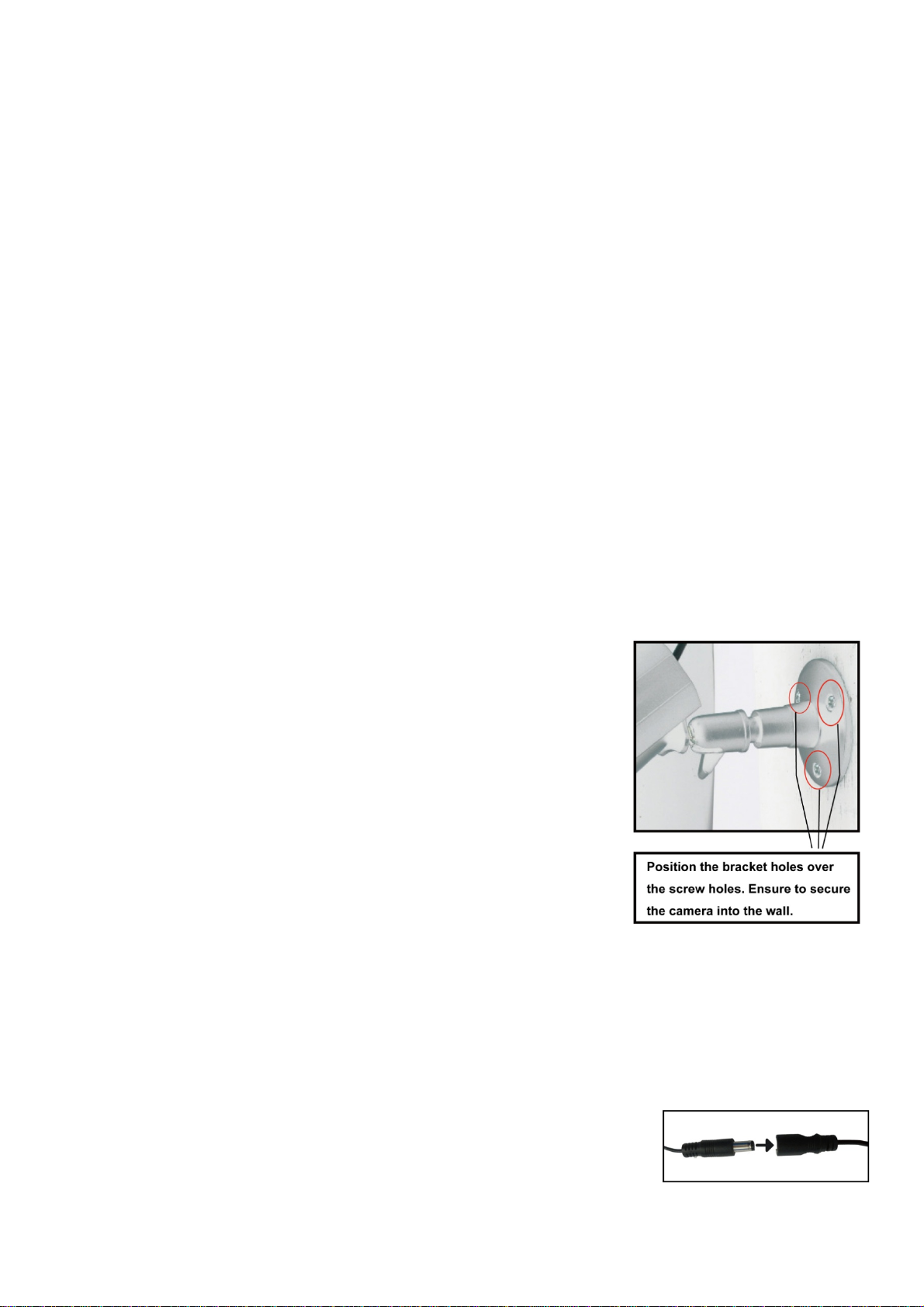

2. Mount the camera to the wall.

Mark the position of the screw holes on the wall, and drill holes and insert

3 screws, then firmly attach the camera to the wall. Make sure to strongly

secure the screw the mounting bracket into the wall

NOTE: The camera can also be placed on a flat surface, such as a Table

or Shelf, and no mounting hardware is required.

3. Adjust the viewing angle of the camera. You can adjust camera angle

to desired viewing area.

NOTE: You can install additional cameras (maximum of 4 cameras).

When adding cameras that were not included in the original box, you will need to pair up the cameras

with the receiver. Refer to the camera pairing section of this manual.

Connecting Camera Power

The camera can be powered by using the provided power adaptor

Power Adaptor

Connect the power adaptor to the camera.

Make sure is the DC 9V for camera, and DC 5V for Receiver

Make sure the power adaptor is placed into a grounded outlet or surge bar to

protect the camera from power fluctuations.

1 Using the system

By default, the camera(s) included with your system are automatically paired to the receiver.The

camera(s) and receiver will communicate with each other once they are powered on.

Note:It is recommended to power on the cameras before powering on the receiver.

1.1 Understanding the On-screen Display

With camera 1 properly connected and powered on, the system displays a full-screen live view of the

camera.

1. Signal Indicator –The signal indicator shows the strength of the signal being received from the

camera. The number of bars in the Signal Indicator shows the strength of the signal. One, or no bars

indicates the signal is poor, and 4 bars indicate a very strong signal.

Note:

•If the signal is low (e.g.,1 or 2 bars) adjust the antennas, or reposition the cameras or receiver for

best performance.

•The signal indicator is not shown during Quad mode.

Signal Indicators:

OOUT OF RANGE Warning

When the receiver can’t get signal from cameras, warning message will be displayed. Reposition the

camera, or check the camera power connection.

2. SD Card Indicator – When a SD card is inserted into the SD card slot, the indicator will be shown on

the LCD screen. A blue icon shows that a SD card with available recording space is inserted in the

receiver.A red icon indicates the SD card is full.

3. New Record Indicator- Indicates that there are new recordings saved to the microSD card.

4. Recording Indicator–When this icon flash in red and blue, it says that the system is recording vedio

into the SD card.

5. Network status Indicator –A red icon shows that the connection has failed or the system is

not connected to a network. A green icon shows that the system is connected to the Internet

and tell you the monitor connect with internet mode. A yellow icon shows that the system is

connected to the intranet and tell you the monitor connect with intranet mode.

6. Time stamp-The current date and time on the system(month/date/year, hour/minute/second)

7. Channel Indicator–Displays the current channel number you are presently viewing. If viewing

multiple cameras at once, the camera indicator will appear above each video display.

8. Battery Indicator-Indicates the battery life of LCD monitor in low battery will show red and the green

LED under the indicator light will flash.

9. Zoom Indicator-Press the icon on the screen, the monitor will show in 5 areas, press the area

you want to see in Zoom, the screen will show that area in x2 size. Press the icon again to exit zoom

mode.

10. Volume indicator-Shows the current volume of the receiver. You must be in single channel viewing

mode to change volume, indicate that the volume is 0.

11. Talk back Indicator- Press and hold Talk Button on the monitor then talk back to the camera, the

indicator will be shown on the LCD screen.

12. New download icon- appears on the screen if new firmware is available.

13. Sequence view indicator: when “SEQ” shows on the screen, it means the monitor is auto switch

mode. The monitor will change channel automatically.

14. Change Channel- Press this icon to change channel manually. When you have manually view all

the channels, press this icon again, the monitor will enter auto switch mode, the “SEQ” icon will

shows on the screen. Press again to exit auto switch mode, the “SEQ” icon will disappear.

Note: If you want to enter Quad mode, just press the central part of the screen. The screen will

split into quad or half quad mode. And choose the channel you want to view and press, the

monitor will be back to single channel view.

15. Motion recording indicator- Indicates that motion recording is turned on

16. Menu- Press this icon to access menu system.

2 Viewing Modes

There are four different viewing modes available on the system: single channel viewing, Auto Sequence

Viewing mode (view individual channels automatically in sequence), Quad mode, and Scan mode.

Note: Auto Sequence Viewing mode cycles through connected channels in full-screen.

Use Quad mode to view up to four cameras simultaneously.

Use Scan mode, the receiver’s LCD screen and speaker will turn off unless motion is detected by one of

the cameras. The LCD screen turns on and displays video from the camera where motion was detected

for 15 seconds before turning off again. This conserves battery power and alerts you only when needed.

You can configure how much motion is needed to turn the display on in Scan mode by changing a

camera’s video motion detection settings. When exiting Scan mode, the receiver resumes live viewing in

Auto Sequence Viewing mode.

To change viewing modes:

Press cental part of the screen to enter Quad mode (half-Quad mode when only 2 cameras are

connected). OR Press change channel icon to switch between channels 1~4 in single channel view.

Quadmode half-Quadmode

Note: When you only pair a camera or set one camera on(other three is off), there is no access to see

QUAD mode.

3 SD Card Recording

The system records video to the SD card (not included). You can manually record the video at your

desire or the receiver records when there is motion detected by the cameras and under the A/REC

function, or schedule recording based on the scheduled you set for each camera. Before recording, you

need to insert a SD card to the SD card slot. The system can support up to 128GB SD card.

Recording Prerequisites: A SD card must be inserted into the receiver in order to record video. You

should always format the SD card prior to initial recording.

The following recording modes are available on the system: manual recording, schedule recording, and

motion recording. Record up to 4 channels at the same time.

3.1 Motion Recording

System only records when motion is detected by a camera(s).Press Motion on the front panel of the

receiver to start motion recording. There is a on the bottom left corner. In this mode the receiver

starts recording prior to 5 seconds when motion detected by any activated camera. The recording time

can be set to 15s,30s or 1minitus after last detection. (Receiver support recording 4 camera at the same

time in quad mode)

3.2 Manual Recording

,Press Record on the up-left part of the receiver to starts manual recording. Press the icon again to stop

manual recording.

Note: In Quad view,it can continuous record from up to 4 cameras at a time.

3.3 Schedule Recording

Continuous or motion event recording from up to four cameras according to a weekly schedule. Set the

recording start time and end time, then switch on schedule recording in the menu to enable schedule

recording. In this mode the receiver records at a certain time every day.

3.4 Overwrite

Enter recording menu—overwrite—choose “yes” to activate overwrite function. Overwrite function can

automatically delete previous records when the SD card is full, and record new films.

4 Playback

Playback mode allows you to playback recorded video files from the micro SD card. You can view videos
