Uniden UWS1113 Manuel utilisateur

UWS1113

UWS1113 OM.indd 1 28/9/11 10:14:34 AM

UWS1113 OM.indd 2 28/9/11 10:14:34 AM

If any items are missing or damaged, contact

your place of purchase immediately.

Never use damaged products!

Need Help? Get answers at our website:

www.uniden.com.au for Australian model or

www.uniden.co.nz for New Zealand model.

What's in the box?

UWS 1113 Digital Wireless Surveillance System

Owner’s Manual

UWS1113 receiver with 3.5-inch

colour display

Software CD AC adapter

USB cable

AV cable

Weatherproof

video camera

Camera

stand

AC adapter

Antenna

1.8m

Extension

cord

Portable

indoor video

camera Camera

stand

AC adapter

UWS1113

Owner’s Manual

PC Software

Manual

UWS1113 OM.indd 3 28/9/11 10:14:38 AM

Important Safety Instructions!

This manual contains important information about this product’s operation. If you are installing

this product for others, you must leave this manual or a copy with the end user.

When using your equipment, always follow basic safety precautions to reduce the risk of re, electric shock

and injury to persons, including the following:

This equipment is NOT waterproof. DO NOT expose it to rain or moisture (for the weatherproof video

►

camera: DO NOT expose it to excessive water or moisture).

DO NOT immerse any part of the product in water. Do not use this product near water, e.g., near a bath

►

tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

To avoid any risk of electric shock from lightning, avoid handling any electronic devices (except battery

►

powered ones) during an electrical storm.

Use only the power cord and/or batteries indicated in this manual. Never dispose of any batteries in a re:

►

they may explode. Check with local codes for possible special disposal instructions.

Never tug or pull on any power cord: be sure to leave some slack in the cord when placing your

►

equipment, and always use the plug to unplug cord from the wall outlet.

Never leave power cords where they can become crushed, cut, or frayed; when running power cords,

►

avoid letting them rub against any sharp edges or lie across any high trac areas where people might trip

over them.

Do not use the device if the adapter cords or plugs have been damaged, the unit has been exposed to

►

liquids, or the unit has been dropped or is damaged.

Warnings to Parents and Other Users

Failure to follow these warnings and the assembly instructions could result in serious injury or death. This

product is not designed or intended for use as a medical monitor, nor should this product be used as a

substitution for medial or parental supervision. Always be sure that both the transmitter and receiver are

working properly and are within range of each other.

STRANGULATION HAZARD. Keep the adapter cords out of the reach of children.

►

WARNING: KEEP OUT OF THE REACH OF CHILDREN. Allow for proper ventilation when units are in use. Do►

not cover the camera or receiver with any object such as a blanket. Do not place it in a drawer or in any

location which would mue the sound or interfere with the normal ow of air.

SAVE THESE INSTRUCTIONS!

UWS1113 OM.indd 4 28/9/11 10:14:38 AM

Contents

Important Safety Instructions! . 4

Warnings to Parents and Other

Users ............................................4

For best results: ............................5

Getting Started ..........................4

Connect the Power............................6

Check the Video Signal ....................6

Learning Your System...............7

Get to know the Indoor Camera ...9

What the lights mean ...................9

Get to Know the Outdoor

Camera............................................ 10

What the lights mean.............. 10

Using the Camera Stand............... 10

Switch the bracket

(Outdoor Camera Only)...... 11

Mount the stand ....................... 11

Attach the camera.................... 12

Adjusting the Sun Shield

(Outdoor Camera Only)............. 12

Get to Know the Receiver and

Remote............................................ 13

What the buttons do............... 13

What the lights mean.............. 14

What the connections do...... 14

Using the Menu................................ 15

Using Zoom Mode .......................... 16

Pan and tilt in zoom mode.... 16

Understanding Night Vision........ 16

Connecting to Your TV.................. 17

Reducing pixellation ............... 17

Multiple Camera Features.......18

Pairing Cameras ............................... 18

Some things to know about

pairing cameras:.................... 18

Changing to a Dierent Camera 19

Setting Up a Scan ............................ 20

Using Quad Display ........................ 21

To enter quad display ............. 21

To exit quad display ................21

Solving Problems.....................22

Unstable or Weak Signal............... 23

Weak signal and video

performance........................... 23

Noise or Static................................... 24

Resetting Your System .................. 25

Additional Information...........25

Product Specications................... 25

One-year Limited Warranty....27

For best results:

To avoid damage to your equipment, follow these simple precautions:

Do not drop, puncture or disassemble any part of the equipment. There are no user-serviceable parts

►

inside.

Do not expose the equipment to high temperatures, and avoid leaving the equipment in direct sunlight

►

for more than a few minutes. Heat can damage the case or electrical parts.

Do not place heavy items on top of the equipment or expose the equipment to heavy pressure.

►

Remove the power adapter during long periods between usages.►

Clean only with a dry cloth.►

Failure to follow the instructions in this operating manual will void the warranty. Uniden assumes

no liability for damages to property or injury to persons caused by improper handling or failure to

comply with these safety instructions.

UWS1113 OM.indd 5 28/9/11 10:14:39 AM

POWER

button

Getting Started

Connect the Power

Connect one AC adapter with small 3mm plug to the receiver’s power input.1.

Outdoor Camera: Attach the antenna to the rear2.

of the outdoor camera and connect the AC adapter

with large 5mm plug to the camera’s power input

pigtail. (If necessary, connect the 1.8m extension

cord to the camera’s pigtail and connect the AC

adapter to the extension cord.)

Indoor Camera: Connect one AC adapter with small 3mm3.

plug to the camera’s power input

LINK

POWER

button

Using the Correct AC Adapter

Use either of the 2 AC adaptors with small 3mm

plug for the monitor or indoor camera.

Use the AC adaptor with large 5mm plug for the

outdoor camera only.

The adapter plugs will t only into the

appropriate device.

UWS1113 OM.indd 6 28/9/11 10:14:39 AM

Connect the other end of each adapter4.

to a 240 volt AC (standard indoor) power

outlet, and press the

POWER

button on

the front of the receiver or on the remote

control.

Make sure the5.

Power status

lights on the

front of the receiver and each camera all

turn on.

If... Try...

Power status

light doesn’t

come on

reconnecting the AC adapter-

seeing if the power outlet is-

controlled by a wall switch

Check the Video Signal

As soon as the receiver powers on, it

detects the camera and shows the

video on the display. The icons at the

top of the screen tell you what’s

going on with the camera and

receiver.

The table below shows the different

status icons and what they mean.

Since the icons appear based on the

state of the camera and receiver, you

won’t see all of these icons at the

same time.

Signal status Channel status

Power status

lights

VOL+

VOL−

UWS1113 OM.indd 7 28/9/11 10:14:40 AM

Icon What it means

The signal from the camera is 1-low, 2-fair, 3-good, or 4-perfect.

There is no signal from the camera.

The video currently on the display comes from the camera connected

to channel 1, 2, 3, or 4.

The video is currently zoomed in.

If... Try...

the signal status icon shows no bars

or the display says

No Signal

making sure the camera is turned on-

re-pairing the camera and receiver (see page- 18)

the signal status icon shows one or

two bars or the video quality is poor see page 23 for tips on improving video quality

there is a lot of static on the receiver see page 24 for tips on avoiding interference

UWS1113 OM.indd 8 28/9/11 10:14:40 AM

Learning Your System

Get to Know the Indoor Camera

What the buttons do

Button What it does

POWER

Turn the camera on. Press

and hold to turn it off.

LINK

Enter pairing mode.

What the lights mean

Power Status

light

State What it means

On The camera is on.

Off The camera is off.

Link Status

light

State What it means

Flashing The camera is in pairing mode.

Orange The camera is connected to the receiver.

Off The camera is in standby.

Battery Status

light

State What it means

Green The battery is charging.

Red The battery is low; the camera will turn off in 3 minutes.

Off The battery is fully charged.

LINK

POWER

Power

connector

Link

status

LINK

Antenna

Stand

Lens

Battery

status

Power

status

UWS1113 OM.indd 9 28/9/11 10:14:41 AM

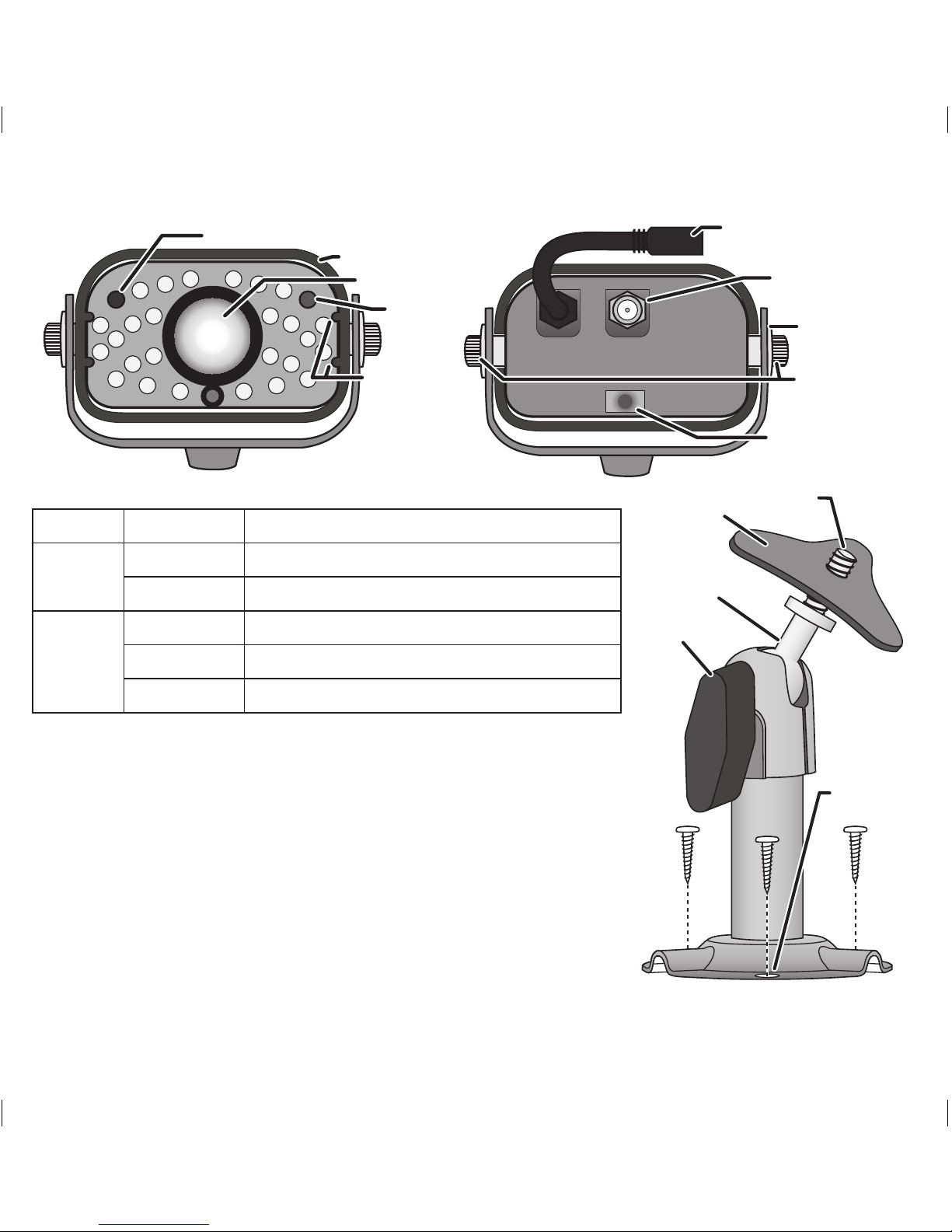

Get to Know the Outdoor Camera

Front view Back view

Lens

Link

status

Power status

Grooves

for sun

shield

Sun shield

Power connector

pigtail

Antenna

connector

Pairing

button

Bracket

screws

Mounting

bracket

What the lights mean

Light State What it means

Power

status

On The camera is on.

Off The camera is off.

Link

status

Flashing The camera is in pairing mode.

Green The camera is connected to the receiver.

Off The camera is in standby.

Placing the Weatherproof Video Camera

The weatherproof video camera is not waterproof. If using outside a

suitable location would be under an eave or roof overhang. Avoid

placing it in a location exposed to direct sunlight or direct weather

conditions.

Using the Camera Stand

You can mount the camera with the stand on the bottom (on a wall

or table-top) or on the top (on the ceiling).

Camera

brace

Mounting

screw

Mounting

post

Post

lock

Screw

holes

UWS1113 OM.indd 10 28/9/11 10:14:41 AM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Uniden Système de sécurité

Uniden

Uniden GUARDIAN G766 Manuel utilisateur

Uniden

Uniden Guardian G955 Manuel utilisateur

Uniden

Uniden UDRC24 Manuel utilisateur

Uniden

Uniden GDVR 43 Series Manuel utilisateur

Uniden

Uniden UDR744 Manuel utilisateur

Uniden

Uniden UDW-10003 Manuel utilisateur

Uniden

Uniden G2701 Manuel utilisateur

Uniden

Uniden UDW-10003 Manuel de service

Uniden

Uniden UDR780HD Manuel utilisateur

Uniden

Uniden G17xx Series Manuel utilisateur

Uniden

Uniden GDVR 4A Series Manuel utilisateur

Uniden

Uniden BC6440D Manuel utilisateur

Uniden

Uniden WDVR4-2 HDD Manuel utilisateur

Uniden

Uniden UDW10055 Manuel de service

Uniden

Uniden Guardian G455 Manuel utilisateur

Uniden

Uniden UDW10055 Manuel utilisateur

Uniden

Uniden GDVR 20 Series Manuel utilisateur

Uniden

Uniden UDW20553 Guide de l'utilisateur

Uniden

Uniden UDW20055 Manuel utilisateur

Uniden

Uniden GDVR 42 Series Manuel utilisateur

Uniden

Uniden B6440D Manuel utilisateur

Uniden

Uniden G17xx Series Manuel utilisateur

Uniden

Uniden Guardian G455 Manuel utilisateur

Uniden

Uniden UDW20553 Manuel de service

Manuels Système de sécurité populaires d'autres marques

Inner Range

Inner Range Concept 2000 Manuel utilisateur

Climax

Climax Mobile Lite R32 Instructions de montage

CADDX

CADDX NX-6 Manuel utilisateur

FBII

FBII XL-31 Series Manuel utilisateur

Johnson Controls

Johnson Controls PENN Connected PC10 Manuel utilisateur

Aeotec

Aeotec Siren Gen5 Manuel utilisateur

Blaupunkt

Blaupunkt SA 2700 Manuel utilisateur

IDEAL

IDEAL Accenta Manuel du propriétaire

AJAX

AJAX DoubleButton Manuel utilisateur

Swann

Swann SW-P-MC2 Manuel utilisateur

Ecolink

Ecolink Siren+Chime Manuel utilisateur

Digital Monitoring Products

Digital Monitoring Products XR150 Manuel utilisateur

EDM

EDM Solution 6+6 Wireless-AE Manuel utilisateur

Highway Safety Group

Highway Safety Group EA401 Manuel utilisateur

Siren

Siren LED GSM Manuel utilisateur

Detection Systems

Detection Systems 7090i Instructions de montage

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuel utilisateur

Siemens

Siemens FDM273 Manuel utilisateur
