OWNER’S MANUAL

UNIDEN

CORDLESS

TELEPHONES

AWorldWithoutWires®

DCX200

Series

DCX200.indd 1 2007/07/04 13:51:43

Welcome

Congratulations on your purchase of the Uniden DCX200

accessory handset and charger. You can place this fully featured

cordless handset anywhere your home has AC power.

Note: Illustrations in this manual are used for explanation

purposes. Some illustrations may differ from the actual unit.

Accessibility

Uniden provides a customer service hotline for accessibility

questions. If you have a disability and need customer service

assistance or if you have any questions about how Uniden's

products can accommodate persons with disabilities, please call

the accessibility voice/TTY line: 1-800-874-9314.

Our customer care hours as well as accessibility information

can be found on our website, www.uniden.com, under the

"Accessibility" link. If your call is received outside of our business

hours, you can leave us a message and we will call you back.

Important!

The DCX200 accessory handset will not operate until it is

registered to a Uniden main base. This manual describes how

to set up your new handset; for more detailed instructions on

operating your new handset, please refer to the manual supplied

with your base.

Terminology Used in this Manual

Base The main part of the phone that connects to your phone

line, and lets you make and receive calls.

Charger A cradle that charges an accessory handset. It connects to

power but not to a phone line.

Accessory

Handset A handset that works with an expandable phone base.

Accessory handsets must be registered to a base.

Standby The handset is not in use. If it is off the cradle, no line has

been activated. No dial tone is present.

Station Any handset or the base.

Talk A telephone line has been activated on the handset or the

base, enabling a dial tone.

Uniden®is a registered trademark of Uniden America Corporation.

DCX200.indd 1 2007/07/04 13:51:43

Compatible Bases

This handset is compatible with Uniden's 1.9 GHz DECT6.0

Expandable phone system: the DECT2000 series.

Please visit our website at www.uniden.com for the most up-to-

date list of compatible bases.

Installing the Accessory Handset

Checking the Package Contents

Make sure your package contains the following items. If any

items are missing or damaged, contact our Customer Service

Hotline. See inside the back cover page for contact information.

• Cordless Handset • Belt Clip

• Charger • Printed Material

• AC Adapter (model # AD-0005: Input 120V AC, 60 Hz; Output

9V DC, 210 mA)

• Rechargeable NiMH Battery Pack (model # BT-1008: Capacity

650 mAh, 2.4V)

Installing the Battery

Follow the steps below to install the

rechargeable battery pack.

Using the nger indentation, press in on

the battery case cover and slide it down

to remove it.

Plug the battery connector into the

battery compartment jack. Be sure to

match the red and black wires to the

label near the jack.

Gently pull on the battery wires. If the

battery connector comes loose, try

connecting it again.

Replace the battery case cover and

slide it up until it clicks into place.

Note: Use only the Uniden BT-1008

rechargeable battery pack supplied

with your cordless telephone.

DCX200.indd 2 2007/07/04 13:51:43

Installing the Belt Clip

Line up the tabs with the holes on each side of

the handset. Press the belt clip down until both

tabs click into place.

To remove the belt clip, pull both sides of the clip

to release the tabs from the holes.

Installing the Optional Headset

Your phone may be used with an optional

headset. To use a headset, insert the headset

plug into the headset jack. Headsets may

be purchased by calling the Uniden Parts

Department. See inside the back cover page for

contact information.

Charging the Accessory Handset

The handset is powered by a rechargeable battery pack that

automatically recharges when the handset is placed in the

charger.

Connect the AC adapter to the DC IN 9V jack and to a 120V

AC outlet that is not controlled by a wall switch.

Caution: Use only the Uniden AD-0005 adapter.

Set the charger on a

desk or tabletop, and

place the handset in the

charger with the keypad

facing forward.

Make sure that the

charge LED illuminates.

If the LED does not

illuminate, check to see

that the AC adapter

is plugged in and

the handset makes

good contact with the

charging contacts on the charger.

Charge the handset battery pack for at least 15-20 hours

before using your new handset for the rst time.

To AC outlet To DC IN 9V

AC adapter (supplied)

Route the cord.

Caution: Use only the Uniden AD-0005 adapter.

To AC outlet To DC IN 9V

AC adapter (supplied)

Route the cord.

Caution: Use only the Uniden AD-0005 adapter.

DCX200.indd 3 2007/07/04 13:51:44

Registering the Handset

You must register the handset to the base before you can use it.

Only one handset can be registered at a time. (If an accessory

handset has ever been registered to a base, you must reset the

handset before you can register it to a new base.)

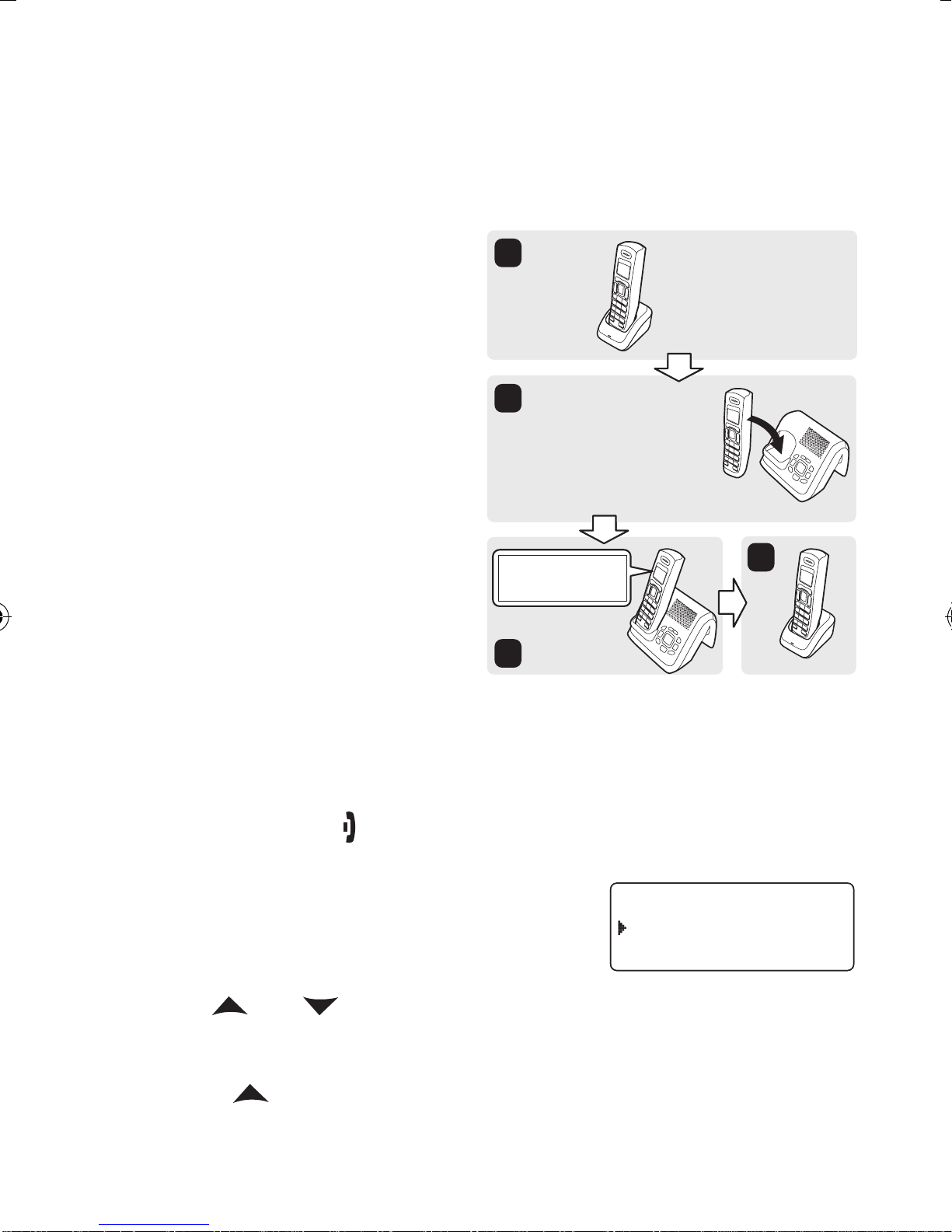

To register to a DECT2000

series base, place the

accessory handset in the base.

While the handset is registering,

HANDSET REGISTERING

appears in the LCD. When

REGISTRATION COMPLETE is

displayed, the handset has been

registered to the base.

If REGISTRATION FAILED

appears, pick up the handset

from the base and try again.

Resetting the Handset

If you want to register the handset to a different base or replace

a handset with another one, you must rst clear the registration

information from the base and the handset.

Press and hold [ ] and [#] for at least ve seconds, until the

SYSTEM RESET menu appears.

Select the DEREGISTER HS

submenu by pressing [Menu/Select].

WHICH HANDSET? appears in the

display.

Use [ ] or [ ] to select the handset ID to be de-registered

from the list, and then press [Menu/Select]. DEREGISTER

HS appears.

Press [ ] to move the cursor to YES, and then press

[Menu/Select]. You will hear a conrmation tone.

Extra Handset

Charger

Main Base

Extra Handset

Main Base

Charge the handset

for 15-20 hours.

Place the extra handset

in the main base to

Registration

Complete.

Base #1

Extra Handset

Charger

Main Base

Extra Handset

Main Base

Charge the handset

for 15-20 hours.

Place the extra handset

in the main base to

Registration

Complete.

Base #1

9JKEJ*CPFUGV!

*CPFUGV

*CPFUGV

9JKEJ*CPFUGV!

*CPFUGV

*CPFUGV

DCX200.indd 4 2007/07/04 13:51:46

Resetting the Handset Without the Base

If the original base this handset was registered to is not

available for some reason (for example, it is lost or somehow

incapacitated), you can still reset the handset and use it with

another base.

Press and hold [ ] and [#] for more than ve seconds, until

the SYSTEM RESET menu appears.

Press [ ] to move the cursor to BASE UNAVAILABLE and

then press [Menu/Select]. WHICH BASE? appears.

Press [ ] to move the cursor to the base which you want

to de-register from, and then press [Menu/Select]. BASE

UNAVAILABLE appears.

Press [ ] to move the cursor to YES, and then press

[Menu/Select]. You hear a conrmation tone, and the

handset deletes its own link to the base without trying to

contact the base.

Now you are ready to register the handset to the new base.

DCX200.indd 5 2007/07/04 13:51:46

Using the Interface

Parts of the Handset

Headset jack cover

Belt clip hole

Speakerphone speaker

and ringer

Handset battery

compartment

new message LED

Handset earpiece

LCD display

[Clear/Int’com] key

[ ] key (up)

[ /Flash] key (talk/ash)

[ ] key (phonebook/left)

10.

11.

[

/tone] key

[Redial/Pause] key

[Menu/Select] key

[ /Mute] key (messages/

mute)

[ ] key (caller ID/right)

[ ] key (end call)

[ ] key (down)

[#] key

[ ] key (speaker)

Handset microphone

Handset charging contacts

12.

13.

14.

15.

16.

17.

18.

19.

20.

21.

22.

DCX200.indd 6 2007/07/04 13:51:47

Reading the Display

The handset display uses icons to tell you the status of your

phone. The table below lists the icons and what they mean.

Icon Status Description

Standby/

Talk The battery icon indicates the handset

battery status: full, medium, low, and empty.

:OFF

Standby The ringer off icon indicates that the ringer

is turned off.

Talk The mute icon appears while the handset

microphone is muted.

Talk The speaker icon appears when the handset

speaker phone is in use.

Talk The privacy icon appears when the Privacy

Mode is turned on.

Standby The voice mail icon appears when you have

messages waiting in your voice mailbox.

The Standby Screen

When the phone is in standby, the handset display shows the

following items:

1((

*CPFUGV

0GY%+&

battery icon

Ringer off icon

(when the ringer is off) Handset ID

Number of new Caller ID calls received

Using the Four-way Function Key

Your handset has a four-way

function key that allows you

to move the cursor or pointer

on the display and access the

most commonly used features

at the touch of a button.

Press the left side of the

key to open the phonebook.

Press the right side to open

the Caller ID list.

To use this four-way key, place your thumb over the key on the

handset and move to the four positions to get the feel of how it

moves and operates.

View the

phonebook

Four-way

Function Key

View the

Caller ID

Down

View the

phonebook

Four-way

Function Key

View the

Caller ID

Down

DCX200.indd 7 2007/07/04 13:51:48

Using the Handset Menus

To open the menu, press [Menu/Select]. Highlight the option

you want by pressing the four-way function key. This will move

the cursor; the option currently highlighted has a triangle beside

it. Activate the highlighted option by pressing [Menu/Select].

To go back to the previous screen, press [left] on the four-way

function key. To exit the menu and return to standby, press [ ].

If you do not press a key within thirty seconds, the phone will

time out and exit the menu.

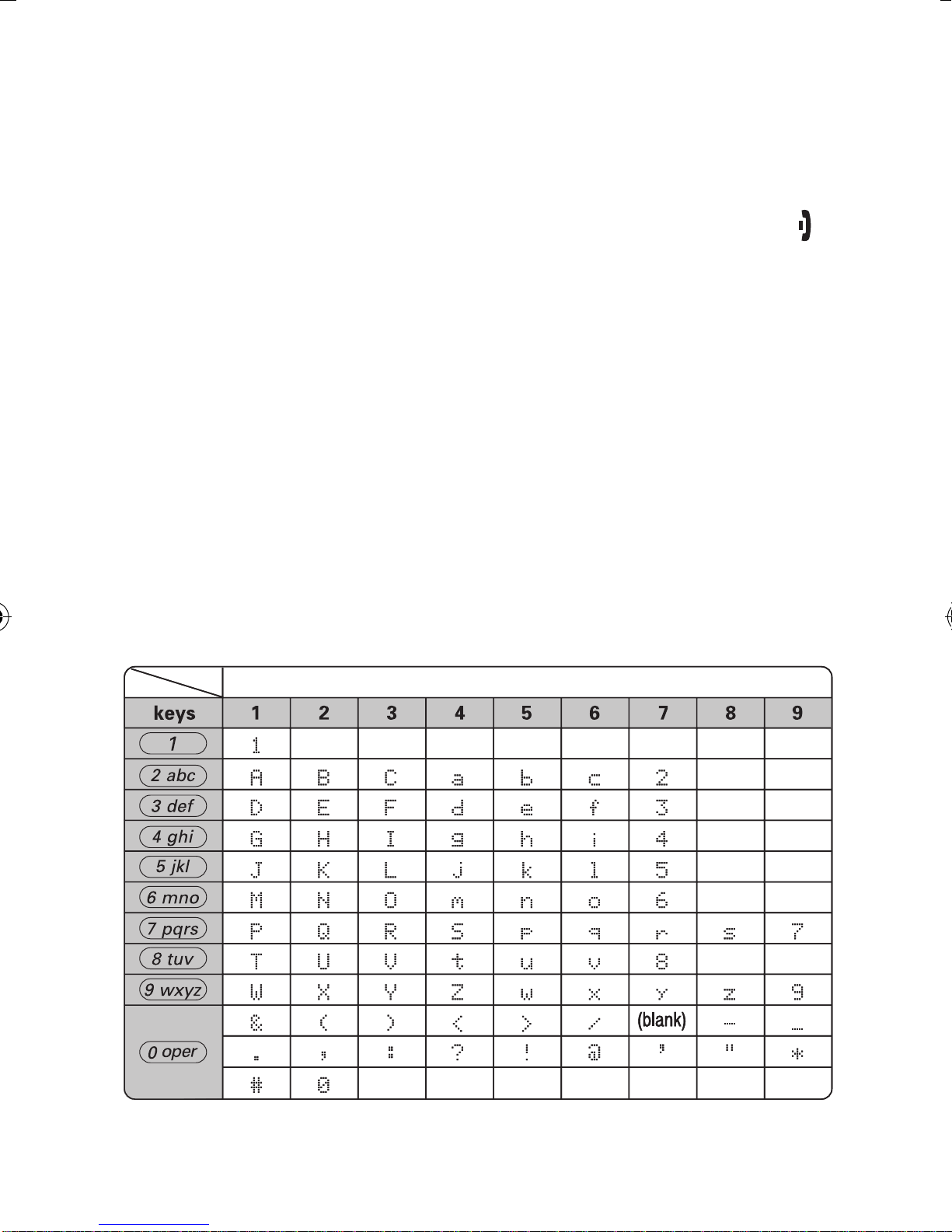

Entering Text from Your Handset

You can use the number keypad on your handset to enter text

by referring to the letters printed on each number key. When you

press the number key in a text entry eld, the phone displays

the rst letter printed on the number key. Press the number key

twice to display the second letter and three times to display the

third. Capital letters are displayed rst, then lower case letters,

and then the number on the key.

If two letters in a row use the same number key, enter the rst

letter, then use [right] on the four-way function key to move the

cursor to the next position to enter the second letter.

Number of times key is pressedNumber of times key is pressed

DCX200.indd 8 2007/07/04 13:51:49

For example, to enter the word "Movies":

Press [6] once to enter M.

Use [right] on the four-way function key to move the cursor

to the right.

Press [6] six times to enter o.

Press [8] six times to enter v.

Press [4] six times to enter i.

Press [3] ve times to enter e.

Press [7] eight times to enter s.

Press [Menu/Select] to end your text entry.

If you make a mistake while entering a name, use [right] or [left]

on the four-way function key to move the cursor to the incorrect

character. Press [Clear/Int’com] to erase the wrong character,

and then enter the correct character. To delete all characters,

press and hold [Clear/Int’com].

Note: When you enter the text, you can also use [#] to move the

cursor to right and [*/tone] to move the cursor to left.

DCX200.indd 9 2007/07/04 13:51:49

Autres manuels pour DCX200 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Uniden Combiné

Uniden

Uniden DECT1820 Manuel utilisateur

Uniden

Uniden DCX400 Manuel utilisateur

Uniden

Uniden XC631Plus Manuel utilisateur

Uniden

Uniden XDECT 8305WP Manuel utilisateur

Uniden

Uniden WDECT3315 Manuel utilisateur

Uniden

Uniden DCX 520 Manuel utilisateur

Uniden

Uniden DCX291 Manuel de service

Uniden

Uniden XDECT 8105 Manuel utilisateur

Uniden

Uniden DSS3405 Manuel utilisateur

Uniden

Uniden WDECT2380 Manuel utilisateur

Uniden

Uniden XS1455/1455+1 Manuel utilisateur

Uniden

Uniden DCX170 Manuel de service

Uniden

Uniden DCX170 Manuel utilisateur

Uniden

Uniden DCX400 Manuel utilisateur

Uniden

Uniden Elite 8805 Manuel utilisateur

Uniden

Uniden DS 805 Manuel utilisateur

Uniden

Uniden DCX150 Series Manuel utilisateur

Uniden

Uniden DECT 3105 Manuel utilisateur

Uniden

Uniden DCX320 Manuel utilisateur

Uniden

Uniden WDECT2380 Manuel utilisateur

Uniden

Uniden ELX500 Manuel utilisateur

Uniden

Uniden DCX309 Manuel de service

Uniden

Uniden TRUc46 Manuel utilisateur

Uniden

Uniden DCX309 Manuel utilisateur

Manuels Combiné populaires d'autres marques

Swissvoice

Swissvoice ePure HD Manuel utilisateur

Philips

Philips TD6736/BH051P Manuel utilisateur

ASCOM

ASCOM I62 - Manuel utilisateur

LG-Ericsson

LG-Ericsson LIP-9010 Manuel utilisateur

GE 1583 Manuel utilisateur

iiNet

iiNet Handset Manuel utilisateur

ASCOM

ASCOM 9p23 Manuel utilisateur

AT&T

AT&T DLP70110 Manuel utilisateur

AirCell

AirCell ST 3100 Manuel utilisateur

Eaton

Eaton HHIR-LCD-PROG Instructions de montage

Mitel

Mitel 112 Manuel utilisateur

SBC

SBC SBC-381H Manuel utilisateur

Mitel

Mitel 5602 Manuel utilisateur

ASCOM

ASCOM d81 Messenger Instructions d'installation

SpectraLink

SpectraLink 7522 Manuel utilisateur

Avaya

Avaya L100 Series Comment utiliser

ooma

ooma HD2 Handset Manuel utilisateur

Yealink

Yealink IPW56 Manuel utilisateur
