Welcome

Congratulations on your purchase of the Uniden DCX150

accessory handset and charging cradle. You can place this fully

featured cordless handset anywhere your home has AC power.

Note: Illustrations in this manual are used for explanation purposes.

Some illustrations may differ from the actual unit.

Accessibility

Uniden provides a customer service hotline for accessibility

questions. If you have a disability and need customer service

assistance or if you have any questions about how Uniden's

products can accommodate persons with disabilities, please call

the accessibility voice/TTY line: 1-800-874-9314.

Our customer care hours as well as accessibility information

can be found on our website, www.uniden.com, under the

"Accessibility" link. If your call is received outside of our business

hours, you can leave us a message and we will call you back.

Important!

The DCX150 accessory handset will not operate until it is

registered to a Uniden main base. This manual describes how

to set up your new handset; for more detailed instructions on

operating your new handset, please refer to the manual supplied

with your base.

Terminology Used in this Manual

Accessory

Handset A handset that works with an expandable phone base.

Accessory handsets must be registered to a base.

Base The main part of the phone that connects to your phone

line, and lets you make and receive calls.

Charging

cradle A cradle that charges an accessory handset. It connects to

power but not to a phone line.

Standby The handset is not in use. No line has been activated.

(It doesn’t matter whether the handset is in the cradle.)

No dial tone is present.

Station Any registered handset or the base.

Talk A dial tone has been enabled, so you can dial and carry on

a conversation with an outside party.

Uniden®is a registered trademark of Uniden America Corporation.

UU683BH(DCX150) OM_0807.indd 1 8/7/2008 11:37:53 AM

Compatible Bases

This handset is compatible with Uniden's 1.9 GHz DECT 6.0

Expandable phone system: the DECT1500, DECT2000 and

DECT3000 series.

Please visit our website at www.uniden.com for the most up-to-

date list of compatible bases.

Installing the Accessory Handset

Checking the Package Contents

Make sure your package contains the following items. If any

items are missing or damaged, contact our Customer Service

Hotline. See the back cover page for contact information.

• Cordless Handset • Printed Material

• Charging cradle with AC Adapter (model # PS-0007: Input

120V AC, 60 Hz; Output 9V DC, 210 mA)

• Rechargeable Ni-Cd Battery Pack (model # BT-1015: Capacity

650 mAh, 2.4V)

UU683BH(DCX150) OM_0807.indd 2 8/7/2008 11:37:53 AM

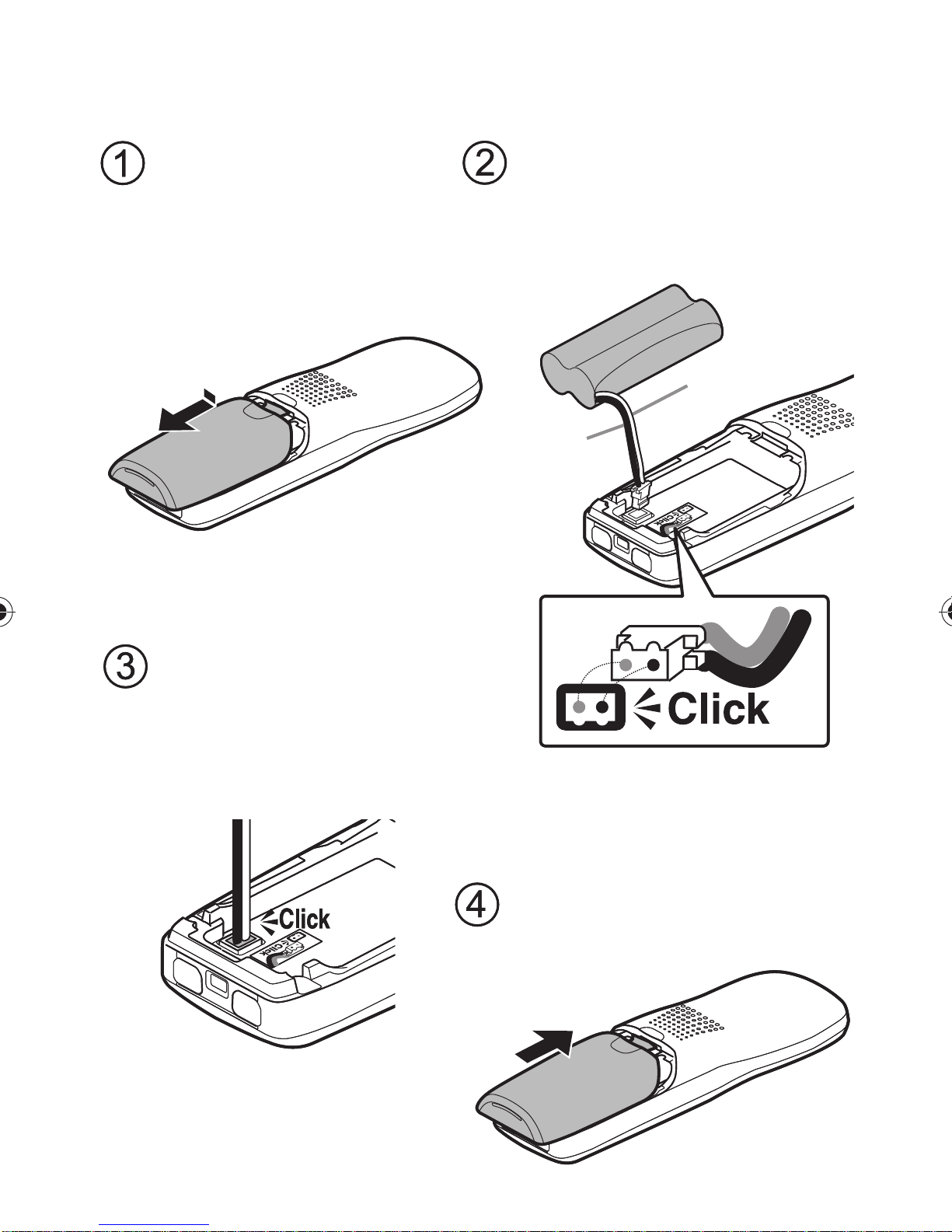

Installing the Battery

Use only the Uniden BT-1015 rechargeable battery pack

supplied with your cordless telephone.

BLACK

RED

Unpack all hand-

sets, battery packs,

and battery covers.

(If the battery cover

is on the handset,

press in on the

notch and slide the

cover off.)

Push the battery pack

connector in firmly. (You

should hear it click into

place.) Gently tug on the

battery wires to make sure

the connection is secure.

Place the cover over the

battery compartment and

slide it up into place.

Line up the red and black

wires on the battery pack

connector with the sticker in

the handset’s battery

compartment.

BLACK

RED

Unpack all hand-

sets, battery packs,

and battery covers.

(If the battery cover

is on the handset,

press in on the

notch and slide the

cover off.)

Push the battery pack

connector in firmly. (You

should hear it click into

place.) Gently tug on the

battery wires to make sure

the connection is secure.

Place the cover over the

battery compartment and

slide it up into place.

Line up the red and black

wires on the battery pack

connector with the sticker in

the handset’s battery

compartment.

UU683BH(DCX150) OM_0807.indd 3 8/7/2008 11:37:54 AM

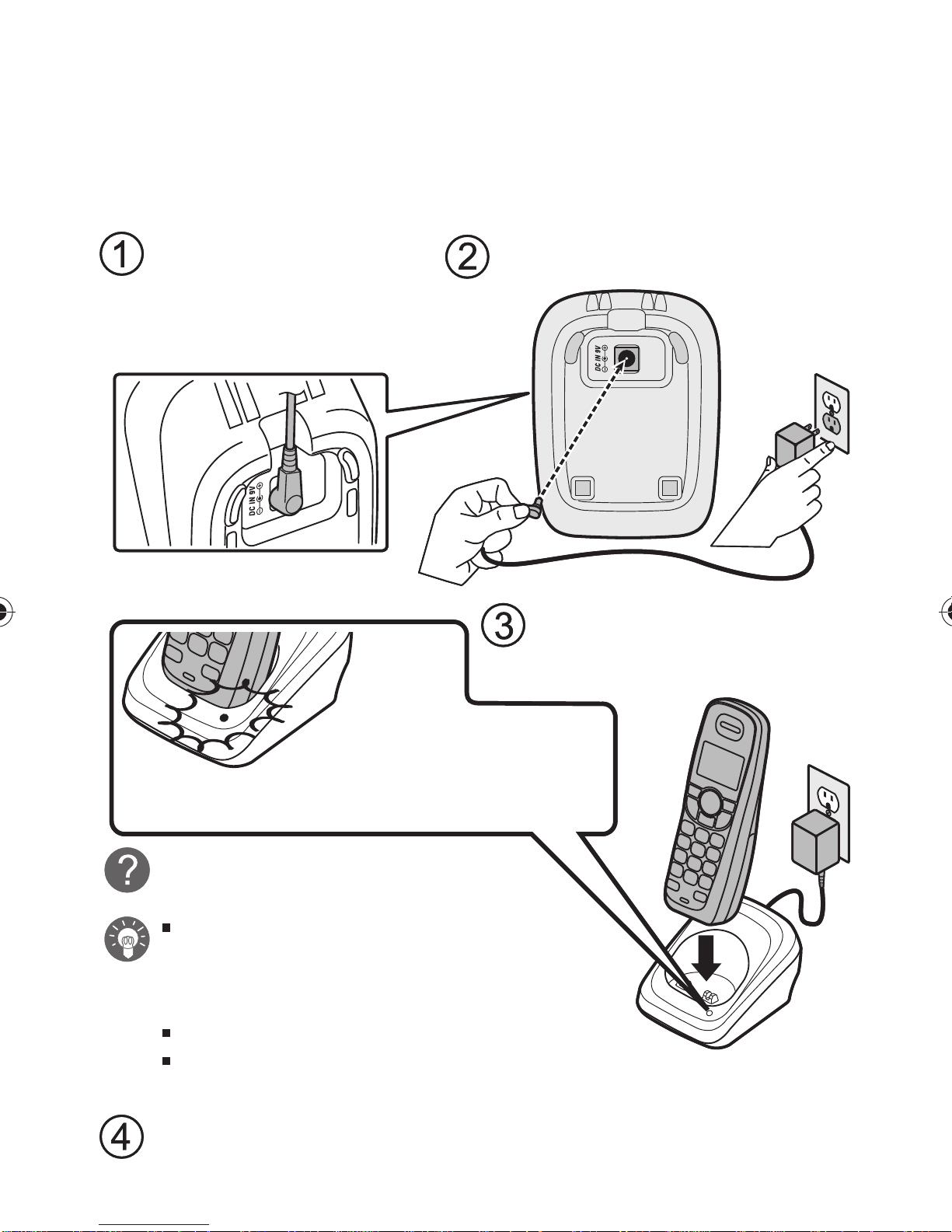

Charging the Accessory Handset

The handset is powered by a rechargeable battery pack that

automatically recharges when the handset is placed in the

charging cradle.

Use only the Uniden PS-0007 AC adapter with the charging

cradle.

What if the charge LED

doesn’t light up?

Reseat the handset; make sure

the contacts on the bottom of

the handset are lined up with

the contacts in the cradle.

Check the AC adapter connection.

Make sure you are not using an outlet

that’s controlled by a wall switch.

Connect the AC adapter to a

standard 120V AC wall outlet.

Connect the AC

adapter to the DC IN

9V jack as shown.

(It may already be

connected.)

Place the handset in the

charging cradle with the

display facing forward.

Charge your handset at least 15 to 20 hours

before using it for the first time.

Make sure that the charge

LED illuminates when the

handset is seated.

What if the charge LED

doesn’t light up?

Reseat the handset; make sure

the contacts on the bottom of

the handset are lined up with

the contacts in the cradle.

Check the AC adapter connection.

Make sure you are not using an outlet

that’s controlled by a wall switch.

Connect the AC adapter to a

standard 120V AC wall outlet.

Connect the AC

adapter to the DC IN

9V jack as shown.

(It may already be

connected.)

Place the handset in the

charging cradle with the

display facing forward.

Charge your handset at least 15 to 20 hours

before using it for the first time.

Make sure that the charge

LED illuminates when the

handset is seated.

UU683BH(DCX150) OM_0807.indd 4 8/7/2008 11:37:54 AM

Registering the Handset

You must register the handset to the base before you can use it.

Only one handset can be registered at a time. (If an accessory

handset has ever been registered to a base, you must reset the

handset before you can register it to a new base.)

To register to a DECT 1500 series base with no corded

handset:

Place the accessory handset in the base. While the handset

is registering, Handset Registering appears in the LCD. When

Registration complete is displayed, the handset has been

registered to the base.

Extra Handset

Main Base

Extra Handset

Main Base

Charge the handset

for 15-20 hours.

Place the extra handset

in the main base to

Charging cradle

What if the

display shows

Registration

failed?

Pick up the

handset from

the base and

try again.

4GIKUVTCVKQP

%QORNGVG

$CUG

Extra Handset

Main Base

Extra Handset

Main Base

Charge the handset

for 15-20 hours.

Place the extra handset

in the main base to

Charging cradle

What if the

display shows

Registration

failed?

Pick up the

handset from

the base and

try again.

4GIKUVTCVKQP

%QORNGVG

$CUG

UU683BH(DCX150) OM_0807.indd 5 8/7/2008 11:37:55 AM

To register to any other compatible base:

If the other base has an LCD display:

• With the phone in standby, press MENU/SELECT on the

base. Press to move the cursor to Register Handset

and then press MENU/SELECT. Handset Registering

appears.

If the other base does not have an LCD display:

• Disconnect the base AC adapter. Then press and hold

Find Handset key* while you reconnect the adapter. Keep

pressing Find Handset key until the charge LED starts to

blink.

* This key might be labeled Find or Find HS.

On the handset, press and hold #until the handset beeps

and displays Handset Registering.

When the handset nishes registering, it shows Registration

complete in the display.

What if the display shows Registration failed?

Repeat the process starting with step 1.

What if the display shows Registration failed?

Repeat the process starting with step 1.

UU683BH(DCX150) OM_0807.indd 6 8/7/2008 11:37:55 AM

Resetting the Handset Without the Base

If the original base this handset was registered to is not

available for some reason (for example, it is lost or somehow

incapacitated), you can still reset the handset and use it with

another base.

Press and hold END and # for at least ve seconds, until the

SYSTEM RESET menu appears.

Press to move the cursor to Base Unavailable and then

press MENU/SELECT.

Press to move the cursor to the base which you want

to de-register from, and then press MENU/SELECT. Base

Unavailable appears.

Press to move the cursor to Yes, and then press

MENU/SELECT. You hear a conrmation tone, and the

handset deletes its own link to the base without trying to

contact the base.

Now you are ready to register the handset to the new base.

Resetting the Handset

If you want to register the handset to a different base or replace

a handset with another one, you must rst clear the registration

information from the base and the handset.

Press and hold END and # for at least ve seconds, until the

SYSTEM RESET menu appears.

Select the Deregister HS

submenu by pressing MENU/

SELECT. Which Handset?

appears in the display.

Use or to select the

handset ID to be de-registered from the list, and then press

MENU/SELECT. Deregister HS appears.

Press to move the cursor to Yes, and then press

MENU/SELECT. You will hear a conrmation tone.

9JKEJ*CPFUGV!

*CPFUGV

*CPFUGV

9JKEJ*CPFUGV!

*CPFUGV

*CPFUGV

UU683BH(DCX150) OM_0807.indd 7 8/7/2008 11:37:56 AM

Using the Interface

Parts of the Handset

Twelve-key dial pad

key (down)

key

(caller ID/right)

MENU/SELECT key

/MUTE key

(messages/mute)

END key

#key

key (speaker)

Microphone

Charging contacts

/TONE key

key (up)

new message LED

Earpiece

Display (LCD)

CLEAR/INT'COM key

(clear/intercom)

key (phonebook/left)

REDIAL/PAUSE key

TALK/FLASH key

Twelve-key dial pad

key (down)

key

(caller ID/right)

MENU/SELECT key

/MUTE key

(messages/mute)

END key

#key

key (speaker)

Microphone

Charging contacts

/TONE key

key (up)

new message LED

Earpiece

Display (LCD)

CLEAR/INT'COM key

(clear/intercom)

key (phonebook/left)

REDIAL/PAUSE key

TALK/FLASH key

UU683BH(DCX150) OM_0807.indd 8 8/7/2008 11:37:56 AM

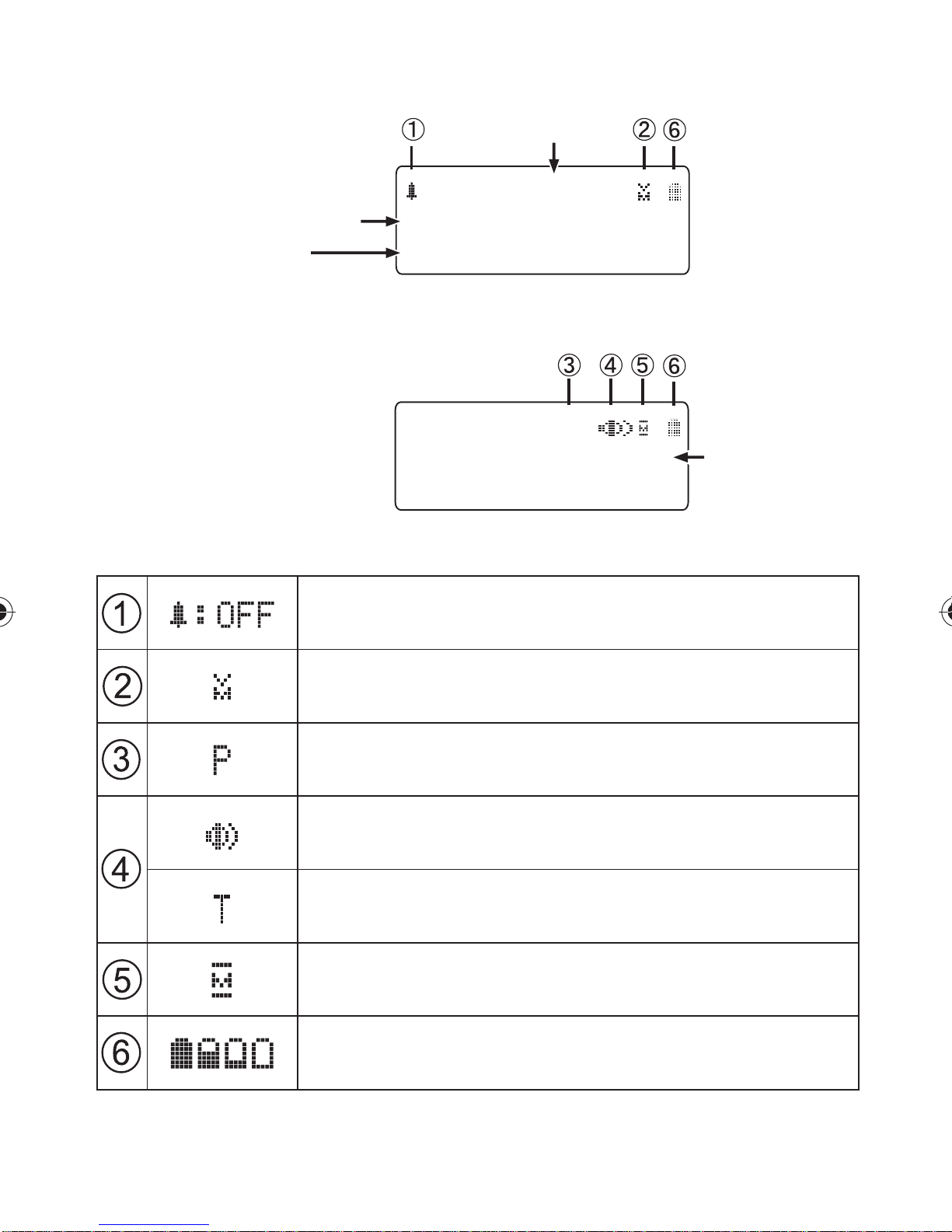

Reading the Display

In standby

During a call

1((#

*CPFUGV

0GY%+&

Handset ID and banner

Number of new

Caller ID calls received

6CNM2





Call duration

Time

The ringer off icon indicates that the ringer is

turned off.

The voice mail icon appears when you have

messages waiting in your voice mailbox.

The privacy icon appears when the Privacy

Mode is turned on.

The speaker icon appears when the speaker

phone is in use.

The T-coil icon appears when the T-coil

Mode is turned on.

The mute icon appears while the microphone

is muted.

The battery icon indicates the handset

battery status: full, medium, low, and empty.

UU683BH(DCX150) OM_0807.indd 9 8/7/2008 11:37:57 AM

Table des matières

Autres manuels Uniden Combiné

Uniden

Uniden DCX309 Manuel utilisateur

Uniden

Uniden XDECT SSE35 Series Manuel utilisateur

Uniden

Uniden DECT 1715+1 Manuel utilisateur

Uniden

Uniden DCT646 Series Manuel utilisateur

Uniden

Uniden DCX170 Manuel utilisateur

Uniden

Uniden DCX309 Manuel utilisateur

Uniden

Uniden DCX 490 Manuel utilisateur

Uniden

Uniden DCX170 Manuel utilisateur

Uniden

Uniden TCX860 Manuel utilisateur

Uniden

Uniden MULTIRANGE DRX332 Manuel utilisateur

Uniden

Uniden XS1455/1455+1 Manuel utilisateur

Uniden

Uniden ELX500 Manuel utilisateur

Uniden

Uniden DCX170BT Manuel de service

Uniden

Uniden DCX320 Manuel utilisateur

Uniden

Uniden XS1215 Series Manuel utilisateur

Uniden

Uniden TRUc46 Manuel utilisateur

Uniden

Uniden Elite 8805 Manuel utilisateur

Uniden

Uniden DCX 520 Manuel utilisateur

Uniden

Uniden DCX291 Manuel utilisateur

Uniden

Uniden DCX220 Manuel utilisateur

Uniden

Uniden XDECT SSE07 Manuel utilisateur

Uniden

Uniden DECT 6015 Manuel utilisateur

Uniden

Uniden XC631Plus Manuel utilisateur

Uniden

Uniden WDECT 2355 Manuel utilisateur

Manuels Combiné populaires d'autres marques

Swissvoice

Swissvoice ePure HD Manuel utilisateur

Philips

Philips TD6736/BH051P Manuel utilisateur

ASCOM

ASCOM I62 - Manuel utilisateur

LG-Ericsson

LG-Ericsson LIP-9010 Manuel utilisateur

GE 1583 Manuel utilisateur

iiNet

iiNet Handset Manuel utilisateur

ASCOM

ASCOM 9p23 Manuel utilisateur

AT&T

AT&T DLP70110 Manuel utilisateur

AirCell

AirCell ST 3100 Manuel utilisateur

Eaton

Eaton HHIR-LCD-PROG Instructions de montage

Mitel

Mitel 112 Manuel utilisateur

SBC

SBC SBC-381H Manuel utilisateur

Mitel

Mitel 5602 Manuel utilisateur

ASCOM

ASCOM d81 Messenger Instructions d'installation

SpectraLink

SpectraLink 7522 Manuel utilisateur

Avaya

Avaya L100 Series Comment utiliser

ooma

ooma HD2 Handset Manuel utilisateur

Yealink

Yealink IPW56 Manuel utilisateur
