Ubiquiti UAP-Outdoor Manuel utilisateur
Outdoor WiFi System
Model: UAP-Outdoor
i
Table of ContentsUniFi™AP-Mini User Guide
Ubiquiti Networks, Inc.
Table of Contents
Chapter 1: Product Overview .......................................1
Package Contents ................................................................1
System Requirements ............................................................1
Network Topology Requirements .................................................1
Hardware Overview ..............................................................2
Front.............................................................................2
Chapter 2: Installation ..............................................3
Hardware Installation.............................................................3
Antenna Installation ..............................................................5
Software Installation..............................................................5
Chapter 3: Using the UniFi Controller Software ......................8
Interface Tabs ....................................................................8
Common Interface Options .......................................................8
Recent Events ....................................................................8
Settings ..........................................................................9
Admin ..........................................................................13
Chapter 4: Map Tab................................................14
Adding Custom Maps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Adding a Google Map ...........................................................15
Placing Access Points on the Map ................................................17
Setting the Map Scale ...........................................................19
Chapter 5: Statistics Tab ...........................................21
Clients ..........................................................................21
Quick Look ......................................................................21
Current Usage - Top Access Points ...............................................22
Recent Activities.................................................................22
Chapter 6: Access Points Tab.......................................23
Chapter 7: Users Tab...............................................24
Chapter 8: Guests Tab .............................................25
Chapter 9: Offline Clients Tab ......................................26
Chapter 10: Access Point Details ...................................27
Details .........................................................................27
Users ...........................................................................28
Guests .........................................................................29
Configuration ..................................................................29
ii
Table of ContentsUniFi™AP-Mini User Guide
Ubiquiti Networks, Inc.
Chapter 11: User/Guest Details ....................................35
Details ..........................................................................35
Statistics ........................................................................35
History ..........................................................................36
Configuration ...................................................................36
Chapter 12: Hotspot Manager .....................................37
Appendix A: Portal Customization .................................39
Overview........................................................................39
Enabling Portal Customization...................................................39
Viewing the Default Portal .......................................................39
Setup ...........................................................................39
Appendix B: UniFi Discovery Utility ................................41
Overview........................................................................41
Appendix C: Specifications ........................................43
Appendix D: Safety Notices........................................44
Electrical Safety Information .....................................................44
Appendix E: Warranty .............................................45
General Warranty................................................................45
Appendix F: Compliance Information ..............................46
Installer Compliance Responsibility ..............................................46
FCC .............................................................................46
Industry Canada.................................................................46
RF Exposure Warning ............................................................46
CE Marking......................................................................46
RoHS/WEEE Compliance Statement ..............................................47
Appendix G: Declaration of Conformity ............................48
Appendix H: Contact Information..................................49
Ubiquiti Networks Support ......................................................49
1
Chapter 1: Product OverviewUniFi™AP-Outdoor User Guide
Ubiquiti Networks, Inc.
Chapter 1: Product Overview
Thank you for purchasing the Ubiquiti UniFi AP-Outdoor.
The UniFi AP-Outdoor also works with the UniFi AP, AP-LR,
and AP-Mini.
The UniFi AP-Outdoor includes the UniFi Controller
software that allows you to manage your wireless network
using your Web browser. This User Guide is for use with
the UniFi AP-Outdoor and version 2.0 or above of the UniFi
Controller software.
The UniFi AP-Outdoor also includes the necessary
hardware for mounting the unit on a wall or a ceiling. The
UniFi AP-Outdoor supports Passive PoE, which works with
the included PoE adapter. If you want to power the UniFi
AP-Outdoor from an 802.3af compliant switch, Ubiquiti
Networks offers the optional Instant 802.3af Adapter to
instantly transform any PoE device into a fully 48V 802.3af
compliant product. Product details are available on our
website at http://ubnt.com/8023af

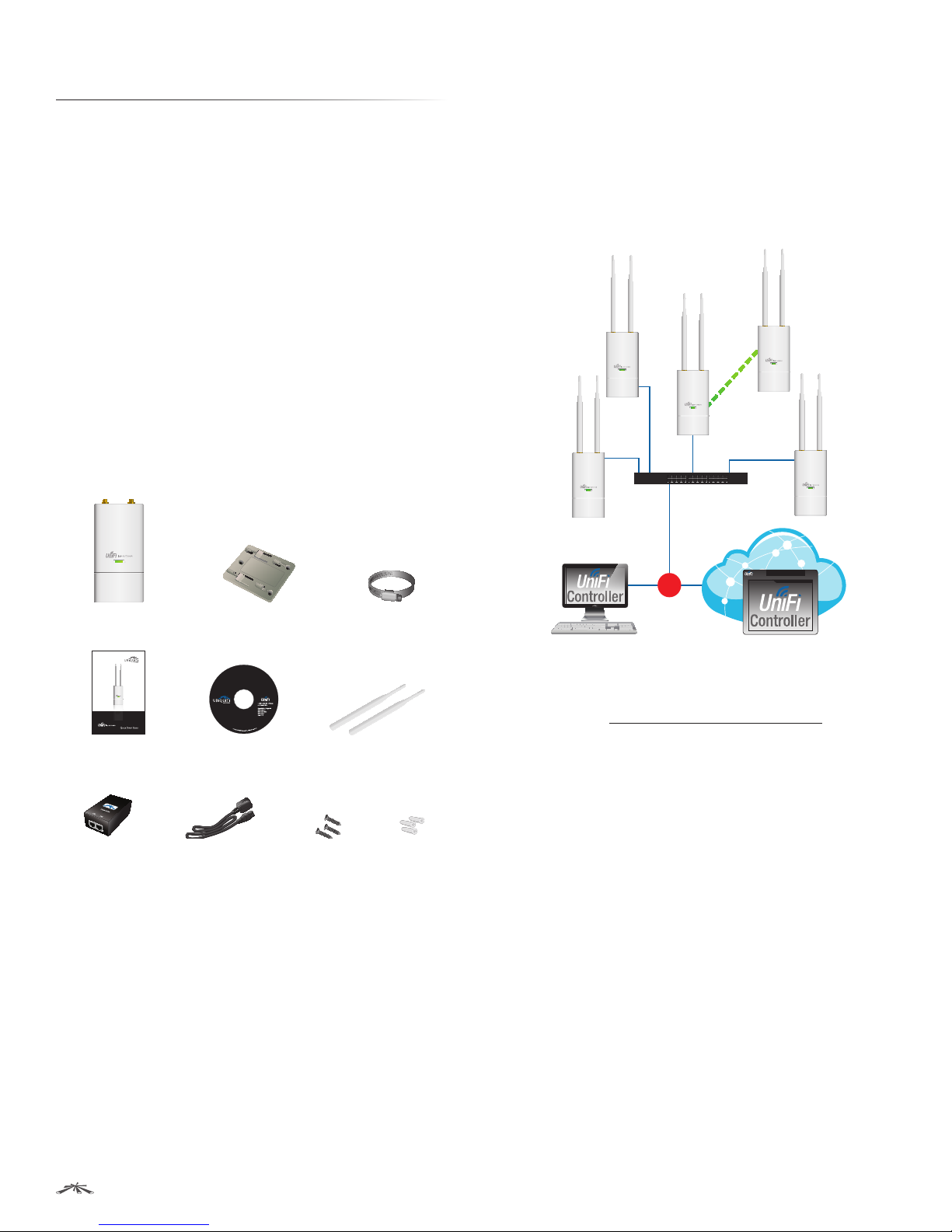

Package Contents
UniFi AP-Outdoor Wall-Mount Bracket Metal Strap
Outdoor WiFi System
Quick Start Guide UniFi Controller
CD with User Guide
Antennas
24V PoE Adapter Power Cord Screws (Qty. 3) Anchors
System Requirements
• Microsoft Windows XP, Windows Vista, Windows 7, or
Mac OS X
• Java Runtime Environment 1.6 (or above)
• Web Browser: Mozilla Firefox, Google Chrome, or
Microsoft Internet Explorer 8 (or above)
Network Topology Requirements
• A DHCP-enabled network (for the wired Access Point to
obtain an IP address as well as for the wireless Access
Points after the deployment).
• Access Point(s) and either an on-site management
station computer running the UniFi Controller software
connected to the same Layer-2 network or located in an
off-site cloud or NOC.
or
Router
O-Site
Cloud/NOC
2
On-Site
Management Station
Wired
UAP-Outdoor
Wireless
Uplinked
1
UAP-Outdoor
Sample Network Topology
¹ Please refer to “Wireless Uplinks” on page 32 for
setting up Wireless-Linked APs.
² All UniFi APs support Off-Site Management Controllers.
2
Chapter 1: Product OverviewUniFi™AP-Outdoor User Guide
Ubiquiti Networks, Inc.

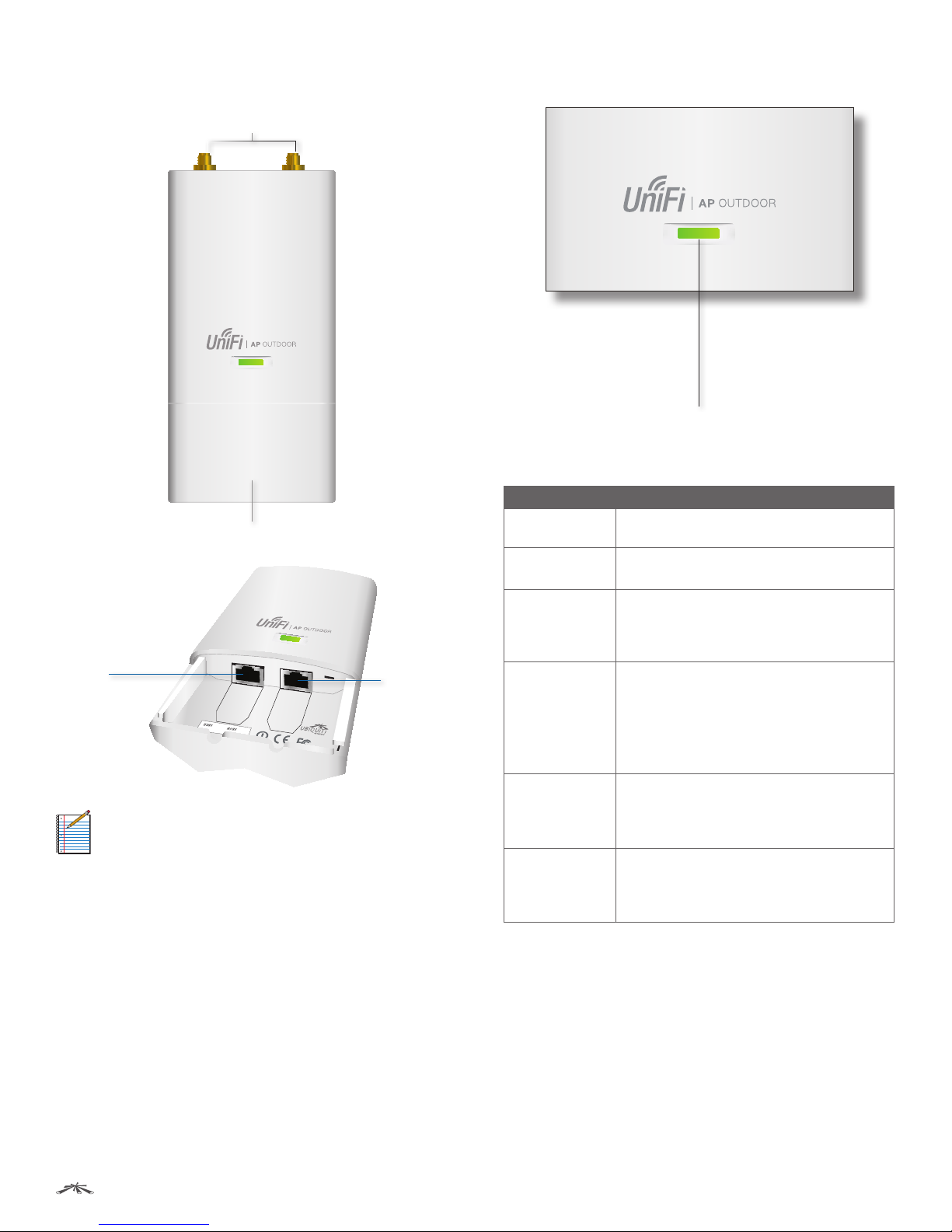

Hardware Overview
Connect to
Antennas
Removable Cover
Secondary
Ethernet Port
Primary
Ethernet Port
Note: The Secondary Ethernet Port is reserved for
future use.
Front
LED Indicates the status of the device. See
the table below for details.
LED Color Status
Flashing Amber Initializing after startup.
Steady Amber Factory default, waiting to be integrated.
Alternating
Amber/Green
Device is busy; do not touch or unplug it.
This usually indicates a process such as a
firmware upgrade is taking place.
Quickly Flashing
Green
This is used to locate an AP.
When you click Locate in the UniFi
Controller software, the AP will flash. It will
also display the location of the AP on the
map.
Steady Green
Indicates the device has been successfully
integrated into a network and is working
properly.
Steady Green
with occasional
flashing
Indicates the device is in an isolated state
(all WLANs are brought down until an
uplink is found).
3
Chapter 2: InstallationUniFi™AP-Outdoor User Guide
Ubiquiti Networks, Inc.
Chapter 2: Installation

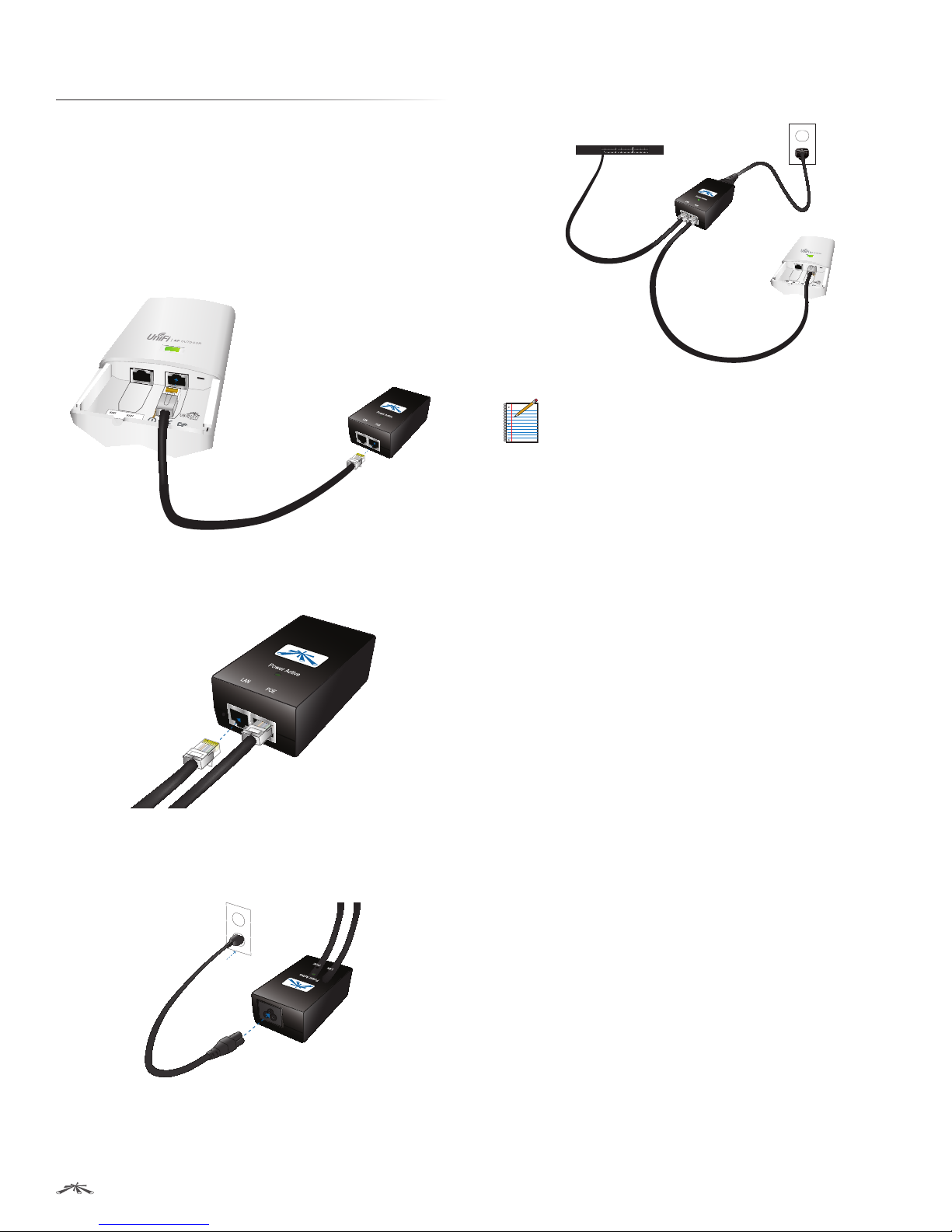

Hardware Installation
The UniFi AP-Outdoor is powered by the included PoE
(Power over Ethernet) Adapter. To install the AP, perform
the following steps:
1. Connect an Ethernet cable to the primary Ethernet port
on the UniFi AP-Outdoor, and connect the other end of
the Ethernet cable to the Ethernet port labeled POE on
the PoE Adapter.
2. Connect an Ethernet cable from your LAN to the
Ethernet port labeled LAN on the PoE Adapter.
3. Connect the power cord to the power port on the PoE
Adapter. Connect the other end to of the power cord to
a power outlet.
Below is an overview of the Power over Ethernet
connections.
Power Connection Diagram
Note: The UniFi AP-Outdoor supports Passive PoE,
which works with the included PoE adapter. If
you want to power the UniFi AP-Outdoor from an
802.3af compliant switch, Ubiquiti Networks offers
the optional Instant 802.3af Adapter to instantly
transform any PoE device into a fully 48V 802.3af
compliant product. Product details are available on
our website at http://ubnt.com/8023af

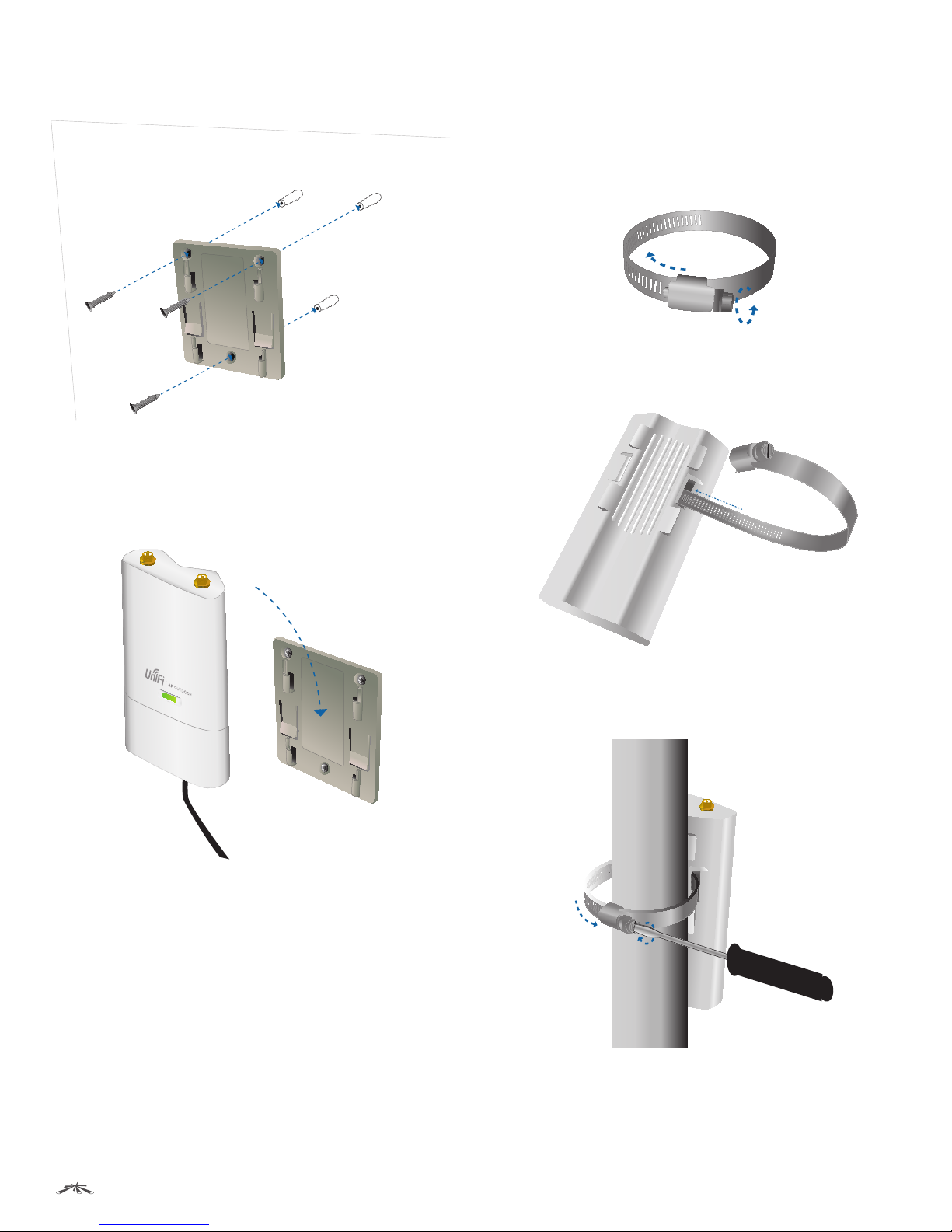

Mounting the UniFi AP-Outdoor
The UniFi AP-Outdoor can be wall mounted or pole
mounted.
Wall Mount
To mount the UniFi AP-Outdoor on a wall, use the
included Wall Mount Bracket, screws, and anchors. Perform
the following steps:
1. Align the Wall Mount Bracket to the desired position on
a wall.
2. Use a pencil to mark the holes on the wall.
3. Use a 6 mm drill bit to drill the holes in the wall.
4. Insert the 3 screw anchors into the wall.
4
Chapter 2: InstallationUniFi™AP-Outdoor User Guide
Ubiquiti Networks, Inc.
5. Secure the Wall Mount Bracket to the wall by inserting
the self tapping screws into the anchors.
6. Align the notches on the UniFi AP-Outdoor with the
notches on the Wall Mount Bracket, and slide the UniFi
AP-Outdoor down until it locks into place.
Pole Mount
To mount the UniFi AP-Outdoor on a pole, use the
included Metal Strap and perform the following steps:
1. Open the Metal Strap by turning the locking
mechanism counter-clockwise. You can loosen it by
hand or use a flathead screwdriver.
2. Straighten out the end of the Metal Strap and slide it
through the back of the UniFi AP-Outdoor.
3. Wrap the Metal Strap around the pole and use a
flathead screwdriver to tighten the locking mechanism
by turning it clockwise.
5
Chapter 2: InstallationUniFi™AP-Outdoor User Guide
Ubiquiti Networks, Inc.

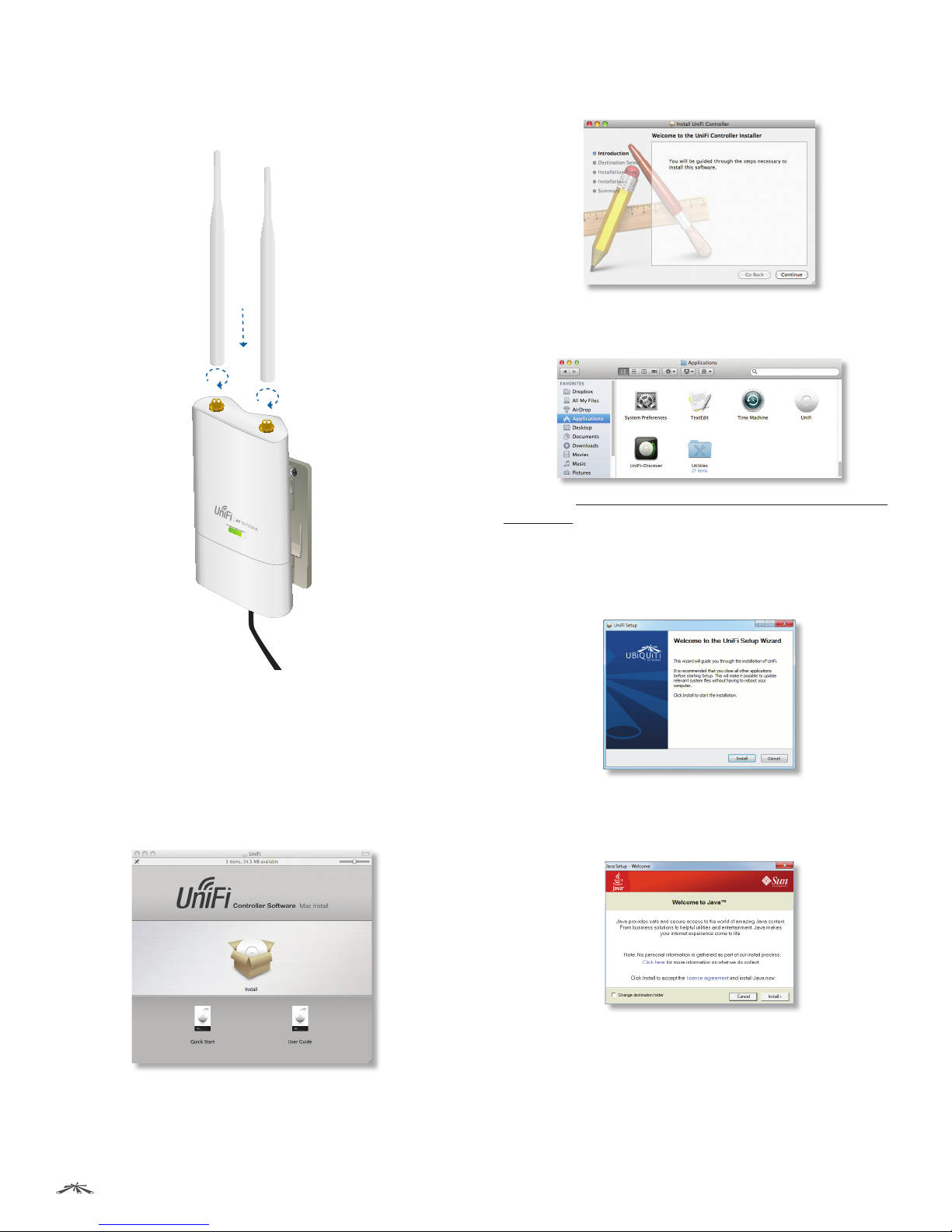

Antenna Installation
Connect each antenna to an antenna connector by
rotating it clockwise.
Software Installation
Insert the UniFi Controller software CD into your CD-ROM
drive and follow the instructions for your specific
computer type.
Mac Users
1. Click the Install icon.
2. Click Continue and follow the on-screen instructions to
install the software.
3. Go to Go > Applications and double-click the UniFi
icon.
Proceed to”Configuring the UniFi Controller Software”
on page 6.
PC Users
1. Launch UniFi-installer.exe.
2. Click Install.
3. If your computer doesn’t have Java 1.6 or above
installed, you will be prompted to install it. Click Install
to continue.
6
Chapter 2: InstallationUniFi™AP-Outdoor User Guide
Ubiquiti Networks, Inc.

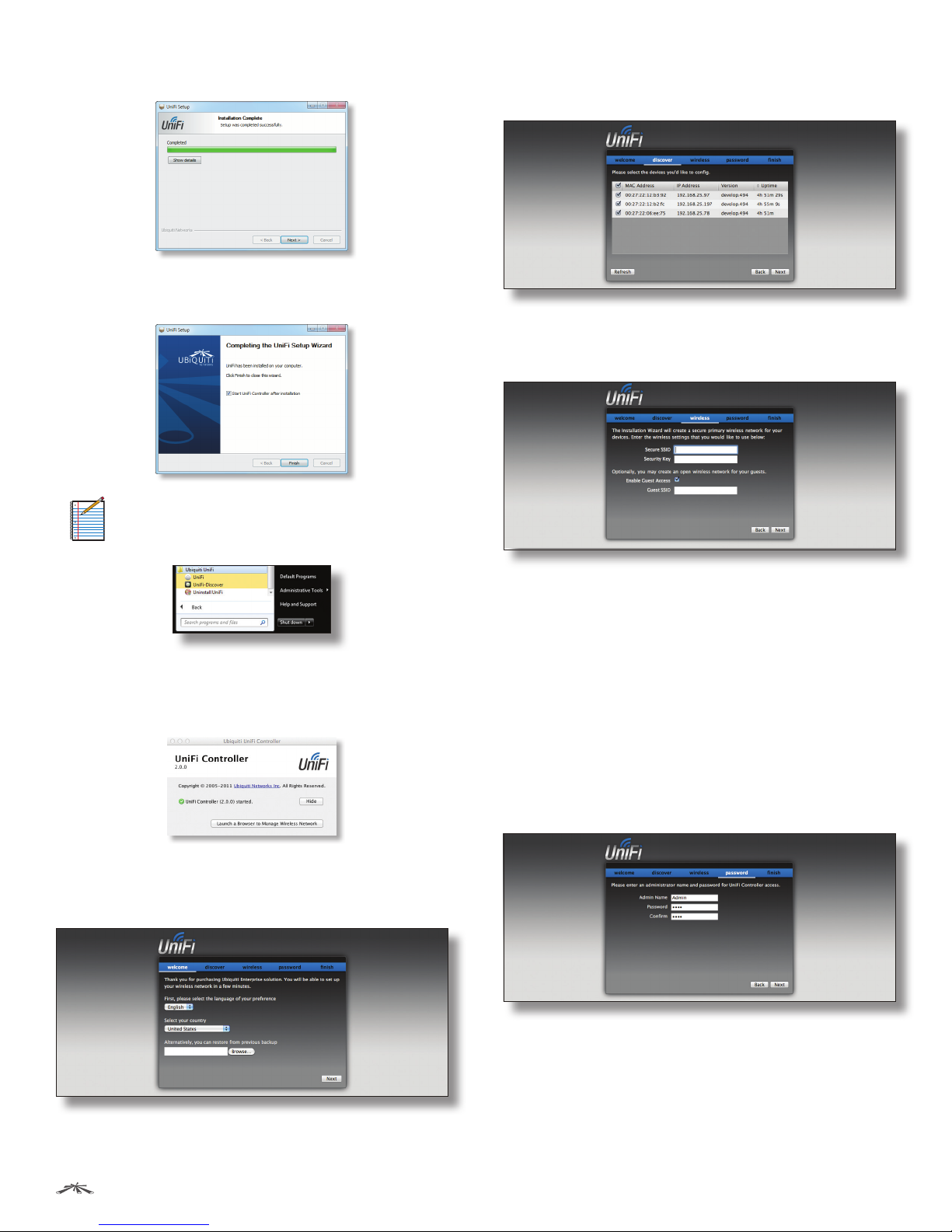

4. Click Next.
5. Ensure that the Start UniFi Controller after installation
option is checked and click Finish.
Note: The UniFi Controller software can also be
launched from Start > All Programs.
Configuring the UniFi Controller Software
1. The UniFi Controller software startup will begin. Click
Launch a Browser to Manage Wireless Network.
2. Select your language and country. Alternatively, you
can restore from a previous backup by clicking Browse.
Click Next.
3. Select the devices that you want to configure and click
Next.
4. The UniFi Installation Wizard will create a secure
primary wireless network for your devices. Perform the
following steps:
a. Enter the wireless network name (SSID) in the Secure
SSID field.
b. Enter a passphrase to be used for your primary
network in the Security Key field.
c. To enable guest access, select Enable Guest Access
and enter a guest network name in the Guest SSID
field.
d. Click Next.
5. Enter an admin name in the Admin Name field and
password in the Password field to use when accessing
the management interface. Confirm your password in
the Confirm field. Click Next.
7
Chapter 2: InstallationUniFi™AP-Outdoor User Guide
Ubiquiti Networks, Inc.

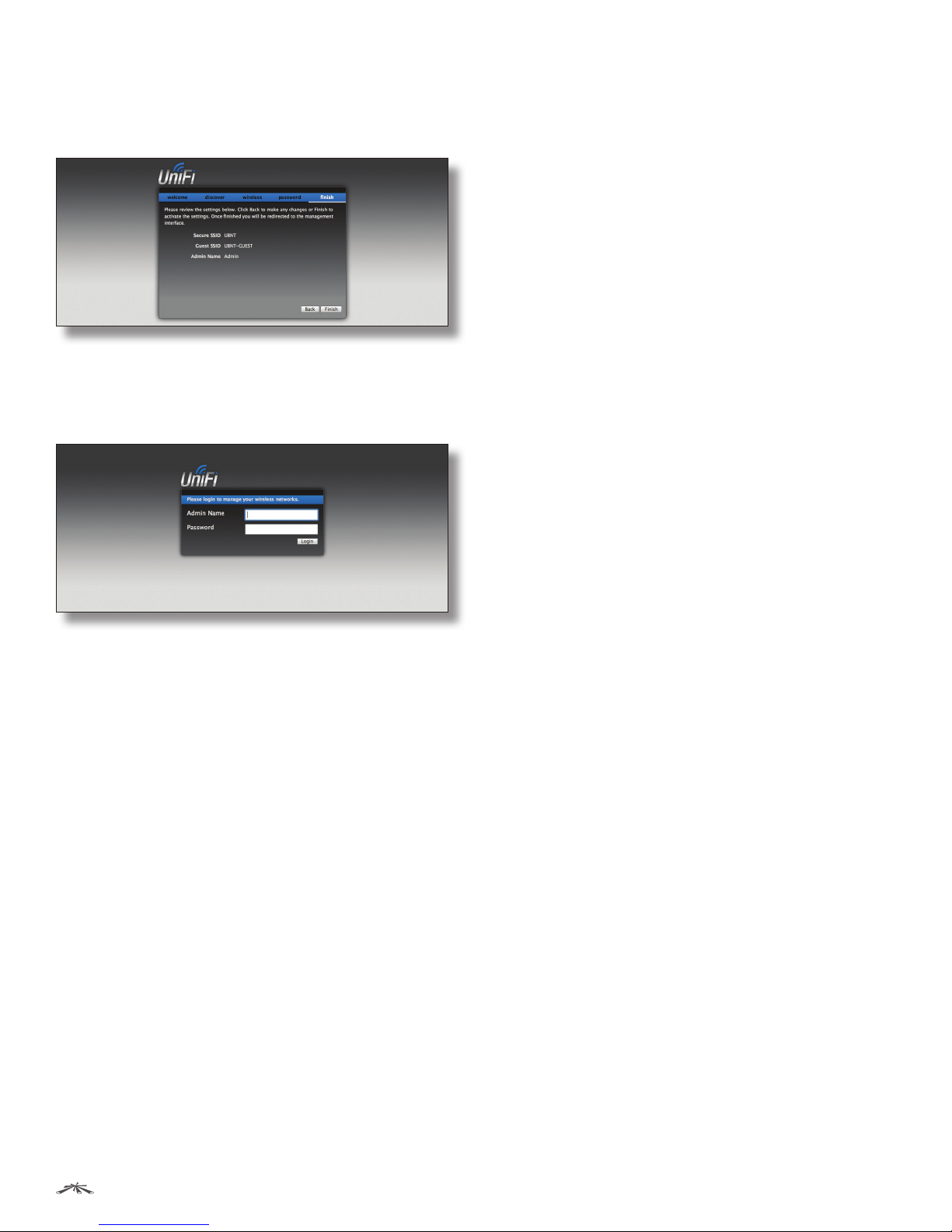

6. Review your settings. Click Back to make changes or
Finish to save your settings. Once finished you will be
redirected to the management interface via your Web
browser.
Congratulations, your wireless network is now configured.
A login screen will appear for the UniFi Controller
management interface. Enter the admin name and
password that you created and click Login.
Proceed to the next chapter for information on using the
UniFi Controller software.
Autres manuels pour UAP-Outdoor
1
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Ubiquiti Point d'accès sans fil
Ubiquiti
Ubiquiti NanoStation NSM365 Manuel utilisateur
Ubiquiti
Ubiquiti UniFi Wifi BaseStationXG Manuel utilisateur
Ubiquiti
Ubiquiti UniFI UAP-AC Manuel utilisateur
Ubiquiti
Ubiquiti LTU-Pro Manuel utilisateur
Ubiquiti
Ubiquiti airFiber AF-11 Manuel utilisateur
Ubiquiti
Ubiquiti UniFi AC SHD Manuel utilisateur
Ubiquiti
Ubiquiti GigaBeam Manuel utilisateur
Ubiquiti
Ubiquiti Rocket R5AC-Lite Manuel utilisateur
Ubiquiti
Ubiquiti UniFi AP AC EDU Manuel utilisateur
Ubiquiti
Ubiquiti UniFi UAP-AC-LITE Manuel utilisateur
Ubiquiti
Ubiquiti UniFi Manuel utilisateur
Ubiquiti
Ubiquiti UniFi AP XG Manuel utilisateur
Ubiquiti
Ubiquiti NanoStation M Series Manuel utilisateur
Ubiquiti
Ubiquiti UniFi nanoHD UAP-nanoHD Manuel utilisateur
Ubiquiti
Ubiquiti LTU-Lite Manuel utilisateur
Ubiquiti
Ubiquiti PowerBeam AC PBE-5AC-300 Manuel utilisateur
Ubiquiti
Ubiquiti PrismStation 5AC Manuel utilisateur
Ubiquiti
Ubiquiti U-Installer Manuel utilisateur
Ubiquiti
Ubiquiti UAP-AC-PRO-5 Manuel utilisateur
Ubiquiti
Ubiquiti UF-Nano Manuel utilisateur
Manuels Point d'accès sans fil populaires d'autres marques
D-Link
D-Link DWL-2100AP - AirPlus Xtreme G Manuel utilisateur
Cisco
Cisco Aironet 1550 Series Manuel utilisateur
Aruba
Aruba IAP-335 Manuel utilisateur
Advantek Networks
Advantek Networks AWN-AP-54MR Manuel utilisateur
IP-COM
IP-COM AP355 Manuel utilisateur
Buffalo
Buffalo AirStation WLA-L11G Manuel utilisateur
