Ubiquiti AirCam Manuel utilisateur

Security Camera

Camera Configuration Interface

airCam™User Guide

Table of Contents

Ubiquiti Networks, Inc.

Table of Contents

Chapter 1: Product Overview .......................................1

Package Contents ................................................................1

Installation Requirements ........................................................1

System Requirements ............................................................1

Hardware Overview ..............................................................1

Chapter 2: Installation ..............................................2

Indoor Installation................................................................2

Outdoor Installation ..............................................................3

Connecting the Power............................................................4

Camera Configuration Interface...................................................4

Adjusting the Camera View .......................................................5

Chapter 3: Using the airCam Configuration Interface ................6

Navigation .......................................................................6

Chapter 4: Main Tab ................................................7

Status ............................................................................7

Monitor ..........................................................................7

Chapter 5: Video Tab ...............................................9

Video Settings....................................................................9

Chapter 6: Network Tab ...........................................10

Network Settings ................................................................10

VLAN Network Settings..........................................................11

Firewall Settings.................................................................11

Static Routes ....................................................................12

Advanced Ethernet Settings .....................................................12

Chapter 7: Services Tab ...........................................13

Ping Watchdog..................................................................13

SNMP Agent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Web Server......................................................................14

SSH Server ......................................................................14

Telnet Server ....................................................................14

NTP Client.......................................................................14

Dynamic DNS ...................................................................15

System Log......................................................................15

airCam™User Guide

Table of Contents

Ubiquiti Networks, Inc.

Chapter 8: System Tab ............................................16

Device ..........................................................................16

Date Settings....................................................................16

System Accounts ................................................................17

Configuration Management .....................................................17

Device Maintenance.............................................................17

Tools ............................................................................18

Appendix A: Specifications ........................................19

Appendix B: Safety Notices ........................................20

Electrical Safety Information .....................................................20

Appendix C: Warranty .............................................21

General Warranty................................................................21

Appendix D: Compliance Information .............................22

Installer Compliance Responsibility ..............................................22

FCC .............................................................................22

Industry Canada.................................................................22

Class B Korea ....................................................................22

CE Marking......................................................................22

RoHS/WEEE Compliance Statement ..............................................23

Appendix E: Declaration of Conformity ............................24

Appendix F: Contact Information ..................................25

Ubiquiti Networks Support ......................................................25

Chapter 1: Product OverviewairCam™User Guide

Ubiquiti Networks, Inc.

Chapter 1: Product Overview

Thank you for purchasing the airCam™, by Ubiquiti

Networks. The airCam is a professional-grade H.264 IP

indoor/outdoor camera that features 1MP/HDTV 720p/30

FPS capabilities and works in low-light and night-viewing

environments.

This User Guide is designed to provide intructions about

installation of the airCam and to provide details about

how to set up and use the airCam configuration interface.

The airCam includes the airVision™software. airVision is a

comprehensive camera management software solution

from Ubiquiti Networks, Inc. that is designed to work with

Ubiquiti’s airCam product line. The software interface

design is based on the popular and easy to use UniFi

software interface.

For instructions on using the software, refer to the

documentation included on the CD-ROM.

The airCam includes the necessary hardware for properly

mounting the unit to a wall both indoors and outdoors.

The airCam supports Passive PoE which works with the

included PoE adapter.

The hardware installation process is different for indoor

and outdoor installations. After familiarizing yourself

with the airCam in the Hardware Overview section, please

proceed to the appropriate installation section:

• “Indoor Installation” on page 2

• “Outdoor Installation” on page 3

Package Contents

Camera Mounting Bracket 24V PoE Adapter Power Cord

Security Camera

Self Tapping Screws

(Qty. 3)

Screw Anchors

(Qty. 3)

Quick Start Guide CD-ROM

Installation Requirements

• Pencil

• Drill and 6mm drill bits

System Requirements

• Microsoft Windows XP, Windows Vista, Windows 7, or

Mac OS X

• Java Runtime Environment 1.6 (or above)

• Web Browser: Mozilla Firefox, Google Chrome, or

Microsoft Internet Explorer 8 (or above)

Hardware Overview

Front

Sun Shade

Lens

Back

Indoor Ethernet

Port Cover

Outdoor Ethernet

Port Cover

Mounting Slots

LEDs

Power The Power LED will light steady orange

when the airCam is connected to a power source.

Ethernet The Ethernet LED will light steady green

when an active Ethernet connection is made and

flash when there is activity.

Chapter 2: InstallationairCam™User Guide

Ubiquiti Networks, Inc.

Chapter 2: Installation

The installation process is different depending on if you

are mounting the camera indoors or outdoors. Follow the

instructions for the installation that you are performing.

Indoor Installation

1. Remove the screw and knob that connect the Mounting

Bracket Base to the camera attachment by turning the

knob counter-clockwise.

Mounting Bracket Base

2. Insert an Ethernet cable through the Mounting Bracket

Base.

3. Reconnect the Mounting Bracket Base to the camera

attachment by reconnecting the screw and knob. Turn

the knob clockwise to lock the camera attachment

back to the Mounting Bracket Base.

4. Unscrew the Indoor Ethernet Port Cover on the back of

the airCam.

5. Connect the Ethernet cable to the Ethernet port.

6. Position the Mounting Bracket in the desired location

and use a pencil to mark the holes on the wall.

7. Use a 6 mm drill bit to drill the holes in the wall.

8. Insert the 3 screw anchors into the wall.

9. Secure the wall-mount bracket to the wall by inserting

the self tapping screws into the anchors.

Note: There are three recessed areas for the

Ethernet cable on the Mounting Bracket Base.

Place the Ethernet cable in the recessed area that

will be nearest to your power source.

Chapter 2: InstallationairCam™User Guide

Ubiquiti Networks, Inc.

10.Insert the Mounting Bracket into the airCam until a click

is heard to confirm a secure installation.

Continue to “Connecting the Power” on page 4.

Outdoor Installation

Important: The ideal outdoor location for mounting

the airCam would be under an overhang/eave that

shelters the camera. If the airCam is located in a

completely open outdoor environment without an

overhang/eave, do not install camera with a down

tilt of more than 45 degrees.

45°

Celing Mount

Wall-Mount

Camera is at 45

degrees when the

indicator on the joint is

aligned with the corner

of the mounting arm.

1. Press down on the release to remove the Outdoor

Ethernet Port Cover.

2. Connect the Ethernet cable to the Ethernet port.

3. Reconnect the Outdoor Ethernet Port Cover to the

airCam leaving the Ethernet cable fed through the

bottom of the camera.

4. Position the Mounting Bracket in the desired location

and use a pencil to mark the holes on the wall.

5. Use a 6 mm drill bit to drill the holes in the wall.

6. Insert the 3 screw anchors into the wall.

Chapter 2: InstallationairCam™User Guide

Ubiquiti Networks, Inc.

7. Secure the wall-mount bracket to the wall by inserting

the self tapping screws into the anchors.

Note: There are three recessed areas for the

Ethernet cable on the Mounting Bracket Base.

Place the Ethernet cable in the recessed area that

will be nearest to your power source.

8. Insert the Mounting Bracket into the airCam until a click

is heard to confirm a secure installation.

Connecting the Power

1. Connect the other end of the Ethernet cable to the

Ethernet port labeled POE on the PoE Adapter.

2. Connect an Ethernet cable from your LAN to the

Ethernet port labeled LAN on the PoE Adapter.

3. Connect the power cord to the power port on the PoE

Adapter. Connect the other end of the power cord to

a power outlet. The Power LED should light up on the

airCam.

Camera Configuration Interface

Verify connectivity in the Camera Configuration Interface.

1. Make sure that your host machine is connected to the

same LAN as the airCam.

2. The airCam is set to DHCP by default. If you have a

router or DHCP server providing addresses on your

network, check your DHCP Client Table to obtain the

address of the airCam.

Note: If you do not have a DHCP server, the

airCam defaults to the IP address 192.168.1.20.

3. Launch your Web browser and in the address field,

type http:// and then the IP address of the airCam,

for example: http://192.168.1.20. Press enter (PC) or

return (Mac).

Chapter 2: InstallationairCam™User Guide

Ubiquiti Networks, Inc.

4. The login screen will appear. Enter ubnt in the

Username and Password fields and click Login.

5. The Main screen will appear and you should see a live

stream of video from the airCam.

Adjusting the Camera View

Side to Side

Up and Down

Hardware installation is complete. For details on using the

airVision software or the Camera Configuration Interface,

refer to the documentation included on the CD-ROM.

Chapter 3: Using the airCam Configuration InterfaceairCam™User Guide

Ubiquiti Networks, Inc.

Chapter 3: Using the airCam

Configuration Interface

The software that comes with your airCam has a browser-

based interface for easy configuration and management.

To access the interface, perform the following steps:

1. Launch your Web browser and type

http://192.168.1.20 in the address field and press

Enter (PC) or Return (Mac).

2. The login screen will appear. Enter the admin name and

password in the appropriate fields and click Login.

The airCam configuration interface appears.

Navigation

The airCam configuration interface contains five main

tabs, each of which provides a web-based management

page containing configurable parameters that affect a

specific aspect of the airCam:

• Main The Main tab displays airCam status/statistical

information and provides video and client monitoring

links.

• Video The Video tab allows you to configure Video

Settings including the Bit Rate, Quality, Frame Rate, and

Refresh Frequency for the airCam.

• Network The Network tab covers the configuration

of the Network Settings, VLAN Network Settings,

Firewall Settings, Static Routes, TCP Explicit Congestion

Notification and Advanced Ethernet Settings.

• Services The Services tab covers the configuration of

system management services including Ping Watchdog,

SNMP Agent, Web Server, SSH Server, Telnet Server, NTP

Client, Dynamic DNS, and System Log.

• System The System tab contains controls for airCam

Device Settings, Date Settings, System Accounts,

Configuration Management and Device Maintenance.

The airCam configuration interface also contains network

administration and monitoring tools including:

• Ping

• Traceroute

Chapter 4: Main TabairCam™User Guide

Ubiquiti Networks, Inc.

Chapter 4: Main Tab

The Main tab displays airCam status/statistical information and

provides video and client monitoring links.

Status

Device Name Displays the customizable name (ID) of the

airCam. The Device Name can be modified on the System tab.

Version Displays the version of the airVision software installed.

Uptime This is the total time the airCam has been running since

last power up (reboot) or software upgrade. The time is displayed

in days, hours, minutes and seconds.

Date Displays the current system date and time. The

date and time are displayed in YEAR-MONTH-DAY

HOURS:MINUTES:SECONDS format. The system date and time is

retrieved from the Internet using NTP (Network Time Protocol).

The NTP Client is enabled by default on the Services tab. The

device doesn’t have an internal clock and the date and time

may be inaccurate if the NTP Client is disabled or the device isn’t

connected to the Internet.

MAC Address Displays the Media Access Control (MAC) address

of the airCam.

LAN Indicates the current status of the Ethernet port(s)

connection. This can indicate that a cable is not plugged into a

device and there is no active Ethernet connection. When cable is

plugged in, negotiated data rate will be displayed; possible rates

are 10Mbps or 100Mbps, or else Half duplex or Full duplex.

Monitor

Live View

Displays a live video view based on the settings configured on

the Video tab.

Autres manuels pour airCam

Table des matières

Autres manuels Ubiquiti Caméra de sécurité

Ubiquiti

Ubiquiti UVC--G4--BULLET Manuel utilisateur

Ubiquiti

Ubiquiti UVC-G3-DOME Manuel utilisateur

Ubiquiti

Ubiquiti UVC-G3-AF Manuel utilisateur

Ubiquiti

Ubiquiti UVC G3 Manuel d'instructions

Ubiquiti

Ubiquiti UniFi UVC-G4-PRO Manuel utilisateur

Ubiquiti

Ubiquiti airCam MINI Manuel utilisateur

Ubiquiti

Ubiquiti airCam Manuel utilisateur

Ubiquiti

Ubiquiti UVC-G3-PRO Manuel utilisateur

Ubiquiti

Ubiquiti airCam Manuel utilisateur

Ubiquiti

Ubiquiti airCAM DOME Manuel utilisateur

Ubiquiti

Ubiquiti UniFi G3 PRO Manuel utilisateur

Ubiquiti

Ubiquiti UVC--G4--BULLET Manuel utilisateur

Ubiquiti

Ubiquiti airCam MINI Manuel utilisateur

Ubiquiti

Ubiquiti UVC-G3-PRO-3 Manuel utilisateur

Ubiquiti

Ubiquiti airCam Manuel utilisateur

Ubiquiti

Ubiquiti UniFi Protect UVC-G3-Flex-3 Manuel utilisateur

Ubiquiti

Ubiquiti UniFi Protect Manuel utilisateur

Ubiquiti

Ubiquiti UVC-G3-DOME-3 Manuel utilisateur

Ubiquiti

Ubiquiti airCAM DOME Manuel utilisateur

Ubiquiti

Ubiquiti UVC-G3-BULLET Manuel utilisateur

Ubiquiti

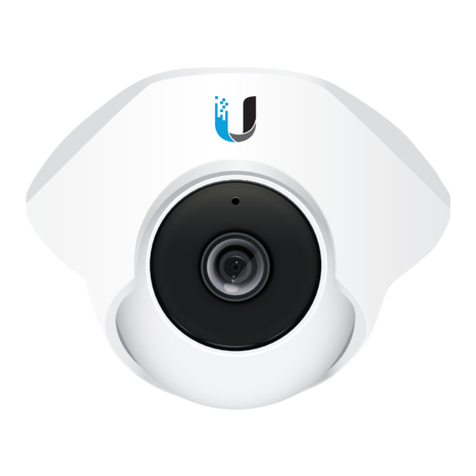

Ubiquiti UVC-Dome Manuel utilisateur

Ubiquiti

Ubiquiti airCam MINI Manuel utilisateur

Ubiquiti

Ubiquiti UniFi UVC-G4-PRO Manuel utilisateur

Ubiquiti

Ubiquiti UniFi UVC-G4-PRO Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
