UVC-G3-PRO Quick Start Guide

https://dl.ui.com/qsg/UVC-G3-PRO/UVC-G3-PRO_EN.html

1/15

Camera Tightening Tool Screw Anchors (Qty. 2)

Self-Tapping Screws (Qty. 2) Pole Mount Bracket Machine Screws (Qty. 2)

Package Contents

Installation Requirements

Pole-mounting: Two metal straps / hose clamps (not included)

Shielded Category 5 (or above) cabling with drain wire should be used for all

outdoor wired Ethernet connections and should be grounded through the AC

ground of the PoE.

We recommend that you protect your networks from harmful outdoor

environments and destructive ESD events with industrial-grade, shielded

Ethernet cable from Ubiquiti. For more details, visit ui.com/toughcable

Surge protection should be used for all outdoor installations. We recommend

that you use two Ethernet Surge Protectors, model ETH-SP, one near the

camera and the other at the entry point to the building. The ETH-SP will absorb

power surges and safely discharge them into the ground.

Hardware Overview

UVC-G3-PRO Quick Start Guide

2022/09/01 23:27

UVC-G3-PRO Quick Start Guide

https://dl.ui.com/qsg/UVC-G3-PRO/UVC-G3-PRO_EN.html

2/15

Ethernet Port

Reset Button

10/100 RJ45 port connects to an 802.3af/802.3at or 24V Passive PoE switch

for PoE power and data.

To reset to factory defaults, press and hold the Reset button for more than 10

seconds while the camera is powered on.

Hardware Installation

Wall/Ceiling Mount

1.

UVC-G3-PRO Quick Start Guide

2022/09/01 23:27

UVC-G3-PRO Quick Start Guide

https://dl.ui.com/qsg/UVC-G3-PRO/UVC-G3-PRO_EN.html

3/15

2.

3.

UVC-G3-PRO Quick Start Guide

2022/09/01 23:27

UVC-G3-PRO Quick Start Guide

https://dl.ui.com/qsg/UVC-G3-PRO/UVC-G3-PRO_EN.html

4/15

4.

5.

UVC-G3-PRO Quick Start Guide

2022/09/01 23:27

UVC-G3-PRO Quick Start Guide

https://dl.ui.com/qsg/UVC-G3-PRO/UVC-G3-PRO_EN.html

5/15

Or

UVC-G3-PRO Quick Start Guide

2022/09/01 23:27

UVC-G3-PRO Quick Start Guide

https://dl.ui.com/qsg/UVC-G3-PRO/UVC-G3-PRO_EN.html

6/15

6.

7.

UVC-G3-PRO Quick Start Guide

2022/09/01 23:27

UVC-G3-PRO Quick Start Guide

https://dl.ui.com/qsg/UVC-G3-PRO/UVC-G3-PRO_EN.html

7/15

8.

9.

10. Proceed to the Connecting Power section.

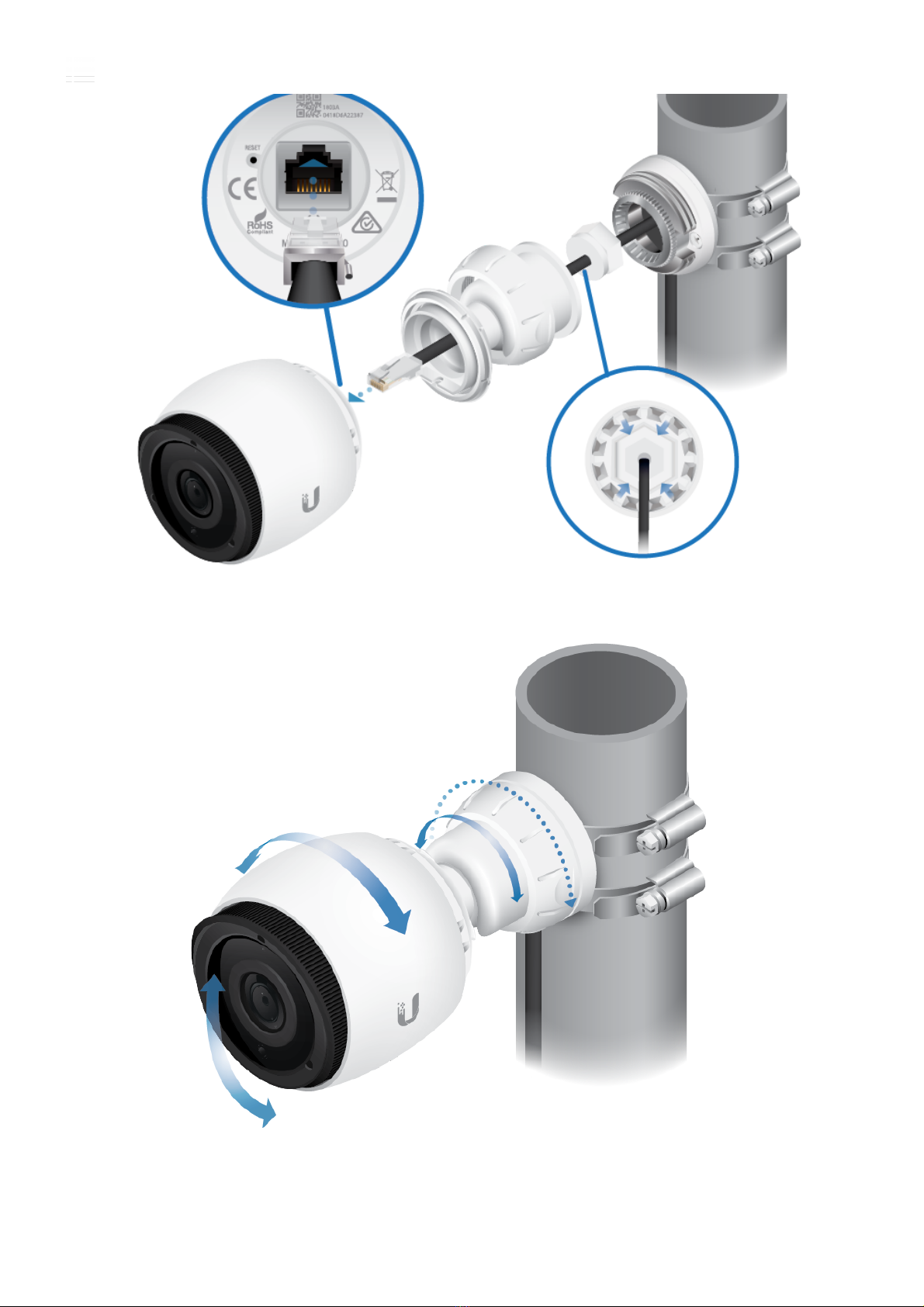

Pole Mount

1.

2.

UVC-G3-PRO Quick Start Guide

2022/09/01 23:27

UVC-G3-PRO Quick Start Guide

https://dl.ui.com/qsg/UVC-G3-PRO/UVC-G3-PRO_EN.html

8/15

3.

4.

UVC-G3-PRO Quick Start Guide

2022/09/01 23:27

UVC-G3-PRO Quick Start Guide

https://dl.ui.com/qsg/UVC-G3-PRO/UVC-G3-PRO_EN.html

9/15

5.

Connecting Power

The UVC G3 Pro supports 802.3af, 802.3at, and 24V Passive PoE and can be

powered by any 802.3af/802.3at or 24V Passive PoE compliant switch, such as a

UVC-G3-PRO Quick Start Guide

2022/09/01 23:27

UVC-G3-PRO Quick Start Guide

https://dl.ui.com/qsg/UVC-G3-PRO/UVC-G3-PRO_EN.html

10/15

UniFi PoE Switch.

Connect the Ethernet cable from the camera directly to a PoE port on the switch.

Setting Up UniFi Protect via App

Download and install the UniFi Protect Mobile App to configure the UVC-G3-PRO.

Launch the UniFi Protect Mobile App and follow the on-screen instructions to

complete setup.

Adjusting the Camera View

1.

UVC-G3-PRO Quick Start Guide
