Ubiquiti USG Manuel utilisateur

Enterprise Gateway Router

with Gigabit Ethernet

Model: USG

Introduction

Thank you for purchasing the Ubiquiti Networks® UniFi®

Security Gateway, which is part of the UniFi Enterprise System.

The UniFi Enterprise System includes the UniFi Controller

software, which allows you to manage your network using a

web browser. The UniFi Controller software and User Guide are

available for download at downloads.ubnt.com/unifi

This Quick Start Guide includes the warranty terms and is for

use with the UniFi Security Gateway, model USG.

Package Contents

UniFi Security Gateway Power Adapter

(12V, 1A)

Power Cord

Screws

(M2.9x20, Qty. 2)

Screw Anchors

(M2.9, Qty. 2)

Quick Start Guide

responsibility to follow local country regulations and indoor cabling requirements.

UniFi Controller System Requirements

• Microsoft Windows 8, MacOSX, or Linux

• Java Runtime Environment 1.6 (or above)

• Web Browser: Google Chrome, Mozilla Firefox, or Microsoft

Internet Explorer 10 (or above)

Network Requirements

A management station computer running the UniFi Controller

software, located either on-site and connected to the same

Layer-2 network, or off-site in a cloud or NOC.

UniFi Switch

UniFi

Security

Gateway

Internet

O-Site

Cloud/NOC

On-Site

Management

Station

UAP-AC UAP-PRO

UAP-Outdoor

LAN

WAN

Sample Network Diagram

All UniFi devices support off-site management controllers.

For setup details, see the User Guide on our website at:

documentation.ubnt.com/unifi

Hardware Overview

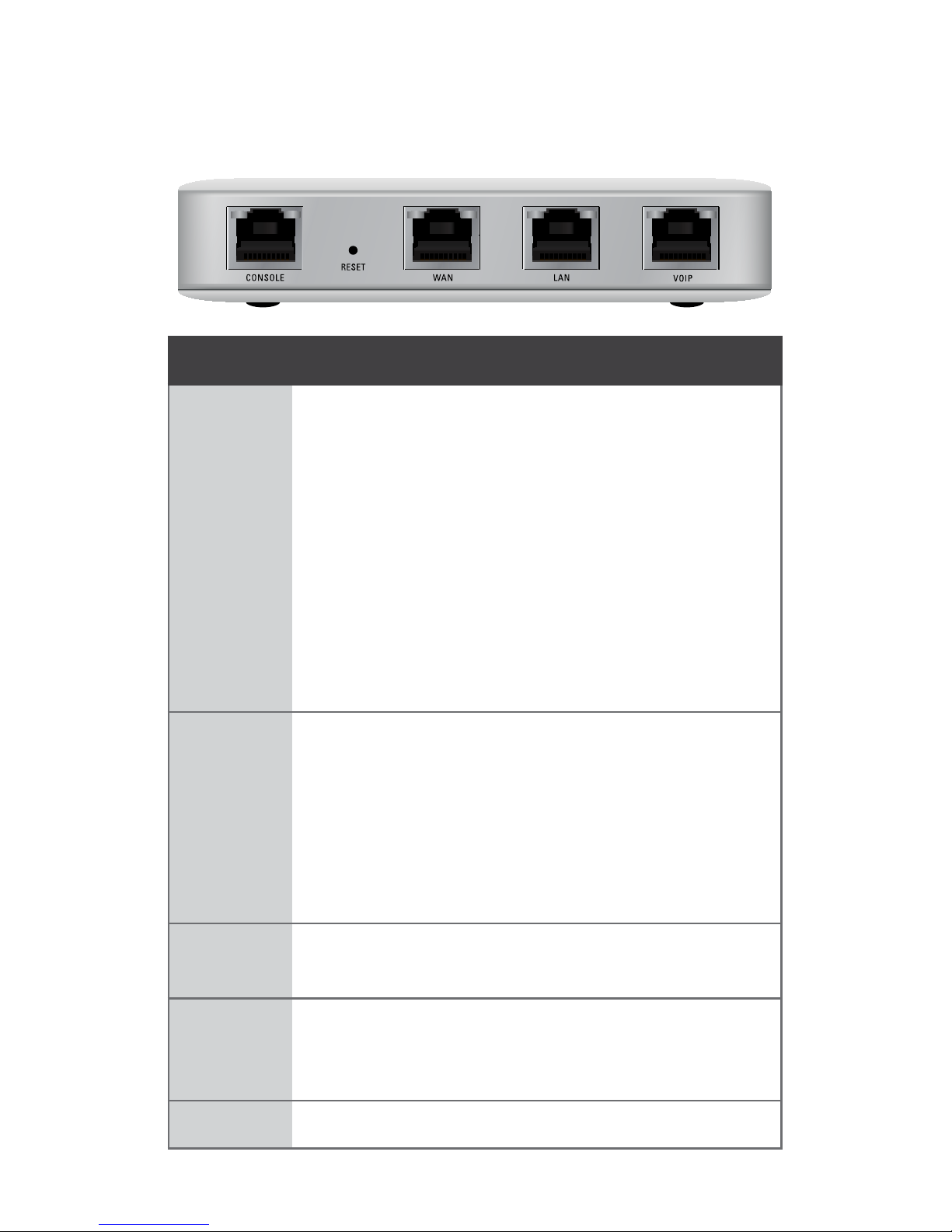

Ports Panel

Interface Description

Console

RJ45 serial console port for Command

Line Interface (CLI) management. Use a

RJ45-to-DB9, serial console cable, also known

as a rollover cable, to connect the Console

port to your computer. Then configure the

following settings as needed:

• Baud rate 115200

• Data bits 8

• Parity NONE

• Stop bits 1

• Flow control NONE

Reset

Resets to factory defaults. The UniFi Security

Gateway should be powered on. Press and hold

the Reset button for about 10seconds until the

right LED on the VOIP port starts flashing and

then becomes solidly lit. After a few seconds,

the LED will turn off, and the UniFi Security

Gateway will automatically reboot.

WAN Supports 10/100/1000 Ethernet connections.

Default setting is DHCP client.

LAN

Supports 10/100/1000 Ethernet connections.

Default setting is DHCP Server.

Server IP: 192.168.1.1/24

VOIP Disabled and reserved for future use.

LEDs

Power Speed/Link/Act

Status

LED State Status

Status Indicator

Status

White Fully Booted; Not Adopted

Blue Adopted and Provisioned

Alternating

White/Blue

Device Firmware is

Upgrading

Blue

Flashing

Device Locator Activated

from UniFi Controller

Console

Power

Off Power Off

Green Power On

Ethernet

Speed/

Link/

Act

Off No Link

Amber Link Established at

10/100 Mbps

Amber

Flashing

Link Activity at

10/100 Mbps

Green Link Established at

1000 Mbps

Green

Flashing

Link Activity at

1000 Mbps

Hardware Installation

The UniFi Security Gateway can be used on a level, stable

surface, or mounted to a wall with the included screws

and anchors. If the UniFi Security Gate is not going to be

wall-mounted, skip to the section, Connecting Power.

Note: Keep 20 mm of clearance around the UniFi

Security Gateway for adequate airflow.

Wall-Mounting

To mount the UniFi Security Gateway on a wall, you will need a

drill, a 6mm drill bit, and a Phillips screwdriver.

1. Use a 6 mm drill bit to drill two holes 90 mm apart. Insert a

Screw Anchor into each hole.

90 mm

2. Use a Phillips screwdriver to secure a Screw into each

anchor. Leave a clearance of approximately 3 mm between

the screw head and the wall.

3 mm

*640-00120-01*

640-00120-01

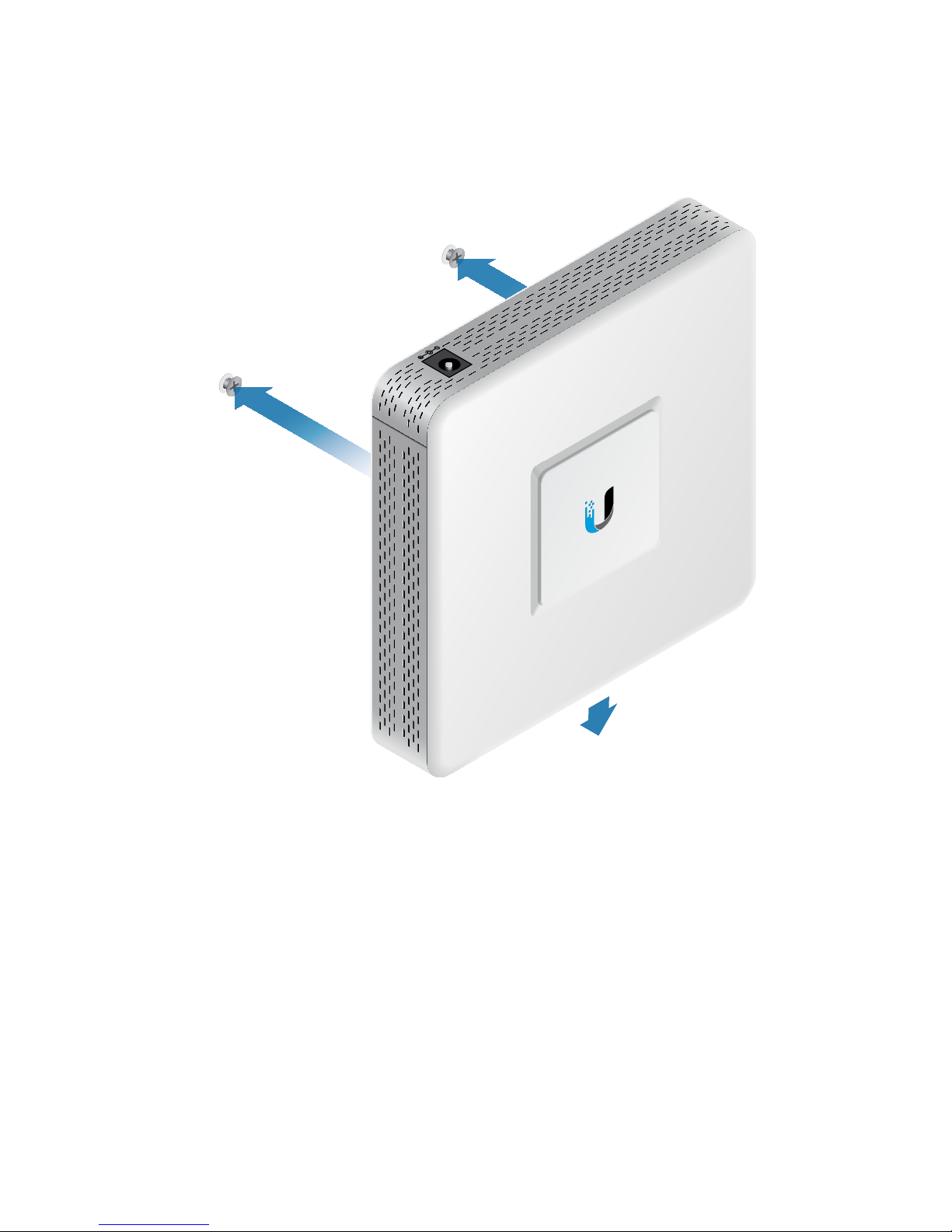

3. Position the UniFi Security Gateway over the Screws, and

insert the Screws into the wall-mount slots located on the

bottom of the UniFi Security Gateway. Then slide the UniFi

Security Gateway down to lock it into place.

12V DC

Connecting Power

1. Connect the Power Adapter to the power port.

2. Connect the Power Cord to the Power Adapter. Connect the

other end of the Power Cord to a grounded powersource.

Network Connections

1. Connect an Ethernet cable from a broadband modem or

WAN to the WAN port.

2. Connect an Ethernet cable from a network switch to the

LAN port.

Note: The LAN port is set to DHCP Server

by default.

Software Installation

Download and install the latest version of the UniFi Controller

software at: downloads.ubnt.com/unifi From a management

station computer connected to the same Layer 2 network,

launch the installer and follow the on-screen instructions.

Note: If you already have UniFi Controller v4.x or

higher installed, skip to the section, Adopting the

UniFi Security Gateway.

1. Launch the UniFi Controller. The Ubiquiti UniFi Controller

window will appear. Click Launch a Browser to Manage

the Network.

2. The UniFi Setup Wizard will appear. Select your preferred

language and country. Click NEXT.
