U-Line H-7906 Manuel utilisateur

PAGE 1 OF 3 0319 IH-7906

πH-7906

3-STEP ALUMINUM

STEP STAND

1-800-295-5510

uline.com

ASSEMBLY INSTRUCTIONS

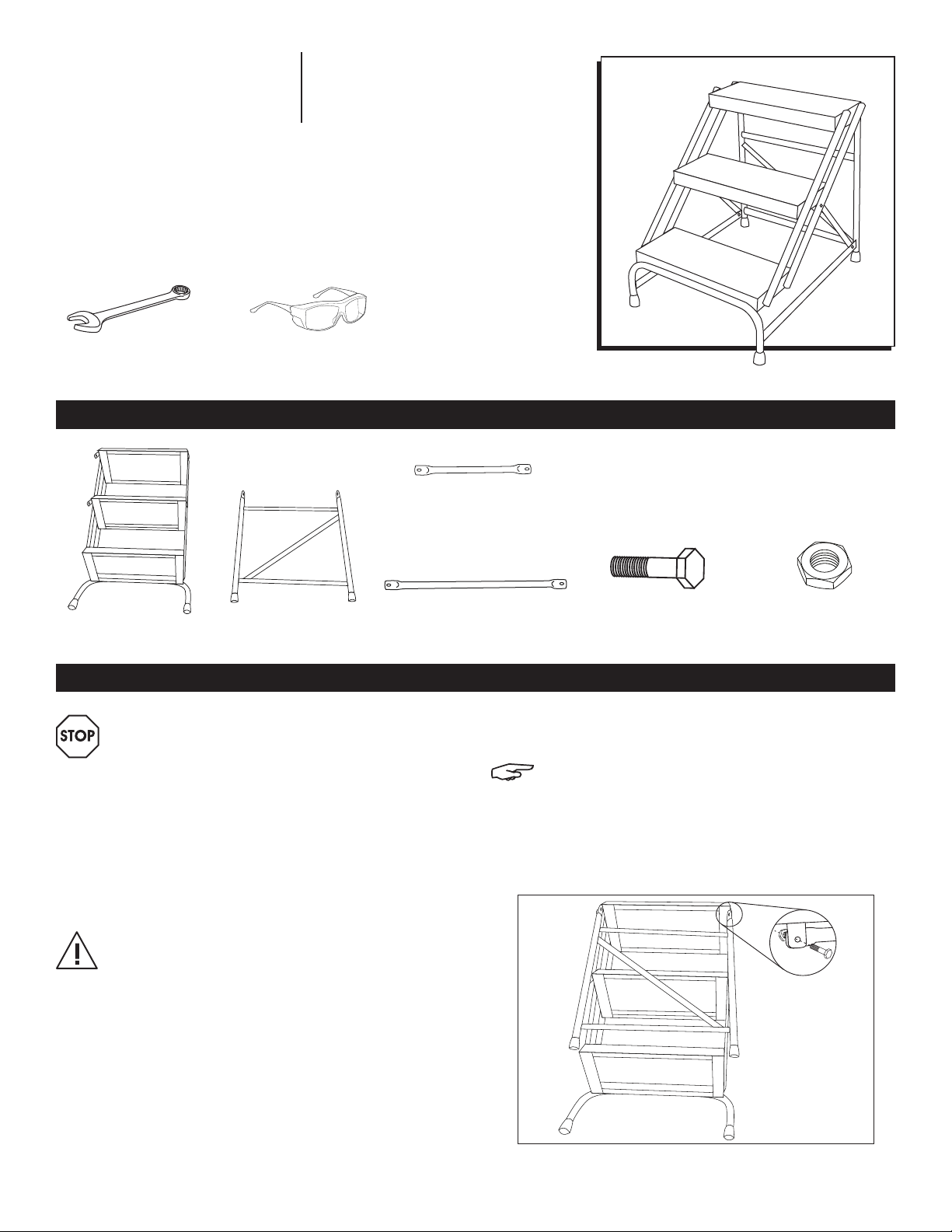

TOOLS NEEDED

9/16" (14 mm) Wrench

WARNING! Please read and save these

instructions. Read carefully before attempting

to assemble, install, operate or maintain

the product described. Protect yourself and

others by observing all safety information.

Failure to comply with instructions could

result in personal injury and/or death. Retain

instructions for future reference. Assembly

and installation of the 3-Step Stand can be

inherently dangerous. Take all precautions

necessary during assembly and installation.

DANGER! Death or serious injury may occur if

improperly assembled or used.

• Assembly can be dangerous.

• Read all instructions thoroughly before

assembling and using.

• Take necessary precautions during the

assembly process.

• Do not fully tighten mounting bolts until

instructed to do so.

1. Remove the step stand from the packaging and

place on a level surface.

NOTE: If any parts appear damaged in any

way, STOP, do not proceed with assembly and

contact Uline.

2. Attach back panel to top of steps with 3/8-16 x 1/"

hex head cap screws and hex nuts. Do not fully

tighten. (See Figure 1)

Figure 1

PARTS

Safety Glasses

Steps x 1 3/8-16 x 1/" Hex Head Cap

Screw x 6 (Included)

3/8-16 Hex Nut x 6

(Included)

Back Panel x 1 Long Brace x 2

Short Brace x 2

PAGE 2 OF 3 0319 IH-7906

3. Connect the end of long brace to front leg using

3/8-16 x 1/" hex head cap screw and hex nut.

(See Figure 2)

4. Pivot the rear panel upward and pivot the long

bottom brace upward. Connect the other end of

long bottom brace to rear panel lug using the

3/8-16 x 1/" hex head cap screw. Do not attach

hex nut. (See Figure 3)

5. Connect the short brace to middle panel lug using

3/8-16 x 1/" hex head cap screw and hex nut.

(See Figure 4)

6. Pivot short brace up and connect to rear panel lug

over the long bottom brace, using the same hex

head cap screw. The short brace will be installed

over the long brace. Place hex nut onto hex head

cap screw where the braces connect to the rear

panel lug. Do not fully tighten. (See Figure 5)

7. Repeat steps three through eight for the remaining

long bottom and short middle braces on opposite

side. (See Figure 6)

DANGER! Do not use step stand unless all

components and the cap screws are in place

and nuts are securely tightened.

Figure 3

ASSEMBLY INSTRUCTIONS CONTINUED

Figure 5

Figure 6

Figure 2

Figure 4

PAGE 3 OF 3 0319 IH-7906

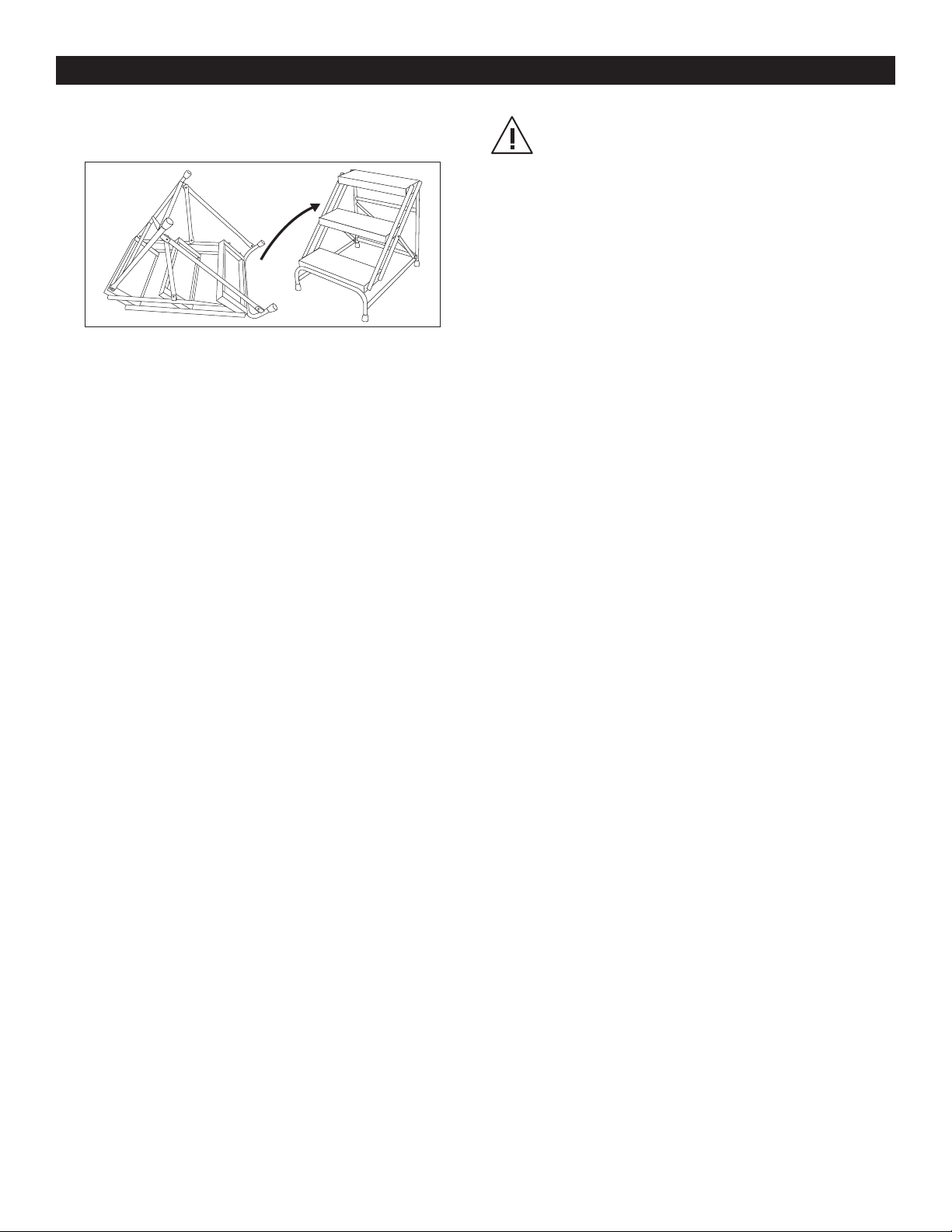

8. Turn the step stand over onto a level surface.

(See Figure 7)

9. Tighten all of the hex nuts onto hex head cap screws.

All of the braces and connections should be tight

and not loose.

DANGER! Inspect the step stand for any

permanent deformation, corrosion, degradation

or any condition impairing protective capability.

If any of these conditions are suspected,

remove from service with warnings prohibiting

use prominently displayed on the step stand

until step stand can be replaced.

πCHICAGO • ATLANTA • DALLAS • LOS ANGELES • MINNEAPOLIS • NYC/PHILA • SEATTLE • MEXICO • CANADA

1-800-295-5510

uline.com

ASSEMBLY INSTRUCTIONS CONTINUED

Figure 7
