General

Description

The Model G1 & G4 Sprinkler Guards

(Ref. Figure 1) are designed for use

with specific types of Series TY-B, TY-

FRB, TY-L, and TY-FRL Sprinklers that

may be located in areas that make

them susceptible to mechanical or

physical damage. Table A provides

compatibility details.

The Model G1/S1 & G4/S3 Sprinkler

Guards with Shields (Ref. Figure 2), in

addition to providing protection from

mechanical or physical damage,

shields the sprinkler from water spray

of higher elevation sprinklers (e.g.,

rack storage sprinkler installations).

When the G1/S1 and G4/S3 are used

with the Series TY-B, TY-FRB, TYL,

and TY-FRL Sprinklers shown in Table

A, the assemblies form Upright Inter-

mediate Level Sprinklers intended for

use in fire sprinkler systems designed

in accordance with the standard instal-

lation rules recognized by the applica-

ble Listing agency (i.e., UL Listing is

based on NFPA requirements).

The G1 and G4 are a redesignation for

the Gem F938 & F937, and the G1/S1

& G4/S3 are a redesignation for the

Gem F938/Q-76 and F937/Q-75.

WARNINGS

The Model G1 & G4 Sprinkler Guards

and G1/S1 & G4/S3 Sprinkler Guards

with Shields described herein must be

installed and maintained in compli-

ance with this document, as well as

with the applicable standards of the

National Fire Protection Association,

in addition to the standards of any

other authorities having jurisdiction.

Failure to do so may impair the integ-

rity of these devices.

The owner is responsible for maintain-

ing their fire protection system and de-

vices in proper operating condition.

The installing contractor or manufac-

turer should be contacted relative to

any questions.

Technical

Data

Approvals

UL and C-UL Listed. FM Approved.

(Refer to Table A)

Finishes

Red Painted and Zinc Chromate

Physical Characteristics

Welded assembly fabricated from

carbon steel

Design Criteria

In accordance with the requirements

of the NFPA, sprinkler guards shall be

listed. Guards are only listed for use

with specified sprinklers; therefore, the

G1, G4, G1/S1, and G4/S3 must only

be used with the Series TY-B, TY-FRB,

TY-L, and TY-FRL Sprinklers shown in

Table A.

Installation

The Models G1, G4, G1/S1, and

G4/S3 are to be installed as follows:

Step 1. TheG1,G4,G1/S1,orG4/S3

is to be mounted on the sprinkler after

the sprinkler has been installed in ac-

cordance with its applicable technical

data sheet.

Step 2. With the Clips loose, first

spread the two halves of the Sprinkler

Guard just enough to pass by the

sprinkler deflector from the side. Then,

once again spread the two halves of

the Sprinkler Guard just enough to

pass over the sprinkler “thread relief”

or “wrenching area”, as applicable,

portion of the sprinkler. (Refer to Table

A, as well as Figures 1 and 2.)

Step 3. With the Sprinkler Guard posi-

tionedonthe“thread relief” or

“wrenching area” portion of the

sprinkler, as applicable, engage the

Clips and then slide the Clips until they

Model G1 & G4 Sprinkler Guards

Model G1/S1 & G4/S3 Guards with Shields

Series TY-B, TY-FRB, TY-L, and TY-FRL Sprinklers

Page 1 of 4 TFP780

DECEMBER, 2003

Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

seat against the Base to complete the

installation as shown in Figures 1 and

To help assist with the sliding of the

Clips the Guard Installation Tool may

be used as shown in Figure 3. In addi-

tion, pliers can be used to facilitate the

final seating of the Clips.

NOTES

The Clips must seat against the Base

in order to be considered fully seated

and in order to complete the installa-

tion.

The G1,G4, G1/S1, and G4/S3 may be

located in any position relative to the

sprinkler frame arms.

Page2of4 TFP780

TABLE A — LABORATORY LISTINGS AND APPROVALS

8.0 (3/4" NPT)

8.0 (1/2" NPT)

8.0 (3/4" NPT)

8.0 (1/2" NPT)

8.0 (3/4" NPT)

HSW 5.6

G7578TY3351

Listed by Underwriters Laboratories Inc.

Approved by Factory Mutual Research Corporation.

G7575

G7330

G7331

G7371

G7390

G7391

G7378

G7370

G3111

G3112

G3113

G3101

G3102

G8973

G8971

G8974

G7375

G8972

G8946

G8174

G8172

APPROVALS & NOTES:

TY-FRL

TY1121

TY1221

TY3121

TY3221

TY3321

TY4121

TY4221

TY-FRB

TY3331

TY3431

TY3111

TY3211

TY3311

TY4811

TY4911

TY4111

TY4211

TY-L

TY3451

TY1131

TY1231

TY3131

TY3231

TY4131

TY4231

Upright

Pendent

Upright

HSW

Upright

Pendent

S1879

S1880

S1864

S1865

S1878

S1866

S1867

5.6

2.8

5.6

2.8

5.6

VSW

HSW

VSW

Pendent

Upright

Pendent

Upright

Pendent

Upright

Pendent

Upright

Pendent

Upright

S1800

S1801

S1803

S1805

S1810

S1811

S1806

5.6

2.8

GEM

SIN

G7571

G7560

G7561

G7590

G7570

G7591

SPRINKLER

SERIES TFP

TY3151

TY3251

TY4851

TY4951

TY4151

TY4251

TY-B

SIN TYPE

SPRINKLER

Pendent

Upright

Pendent

Upright

Pendent

STAR

SIN

SPRINKLER

K-FACTOR

5.6

N/A

G4 (1)Thread Relief

N/A

G1/S1 (1)

N/A

G1/S1 (1)

N/A

Wrench Area

G4 (1, 2)

G4 (1)

G4 (1, 2)

G4 (1)

Thread Relief

Wrench Area

Thread Relief

G4 (1)

G4 (1, 2)

G4 (1)

G1 (1, 2)

G4 (1)

G1/S1 (1)

N/A

G1/S1 (1)

(APPROVALS)

GUARD WITH

SHIELD MODEL

N/A

(APPROVALS)

MOUNTING

Thread Relief

LOCATION

Thread Relief

GUARD

G1 (1, 2)

MODEL

G1 (1, 2)

Not Applicable for noted sprinkler.N/A

No SIN, Listing or Approval

N/A

G1 (1, 2)

G1 (1)

G1 (2) & G4 (1)

G1 (2) & G4 (1) G4/S3 (1)

G4 (1)

G4 (1, 2)

G4 (1)

G4/S3 (1)

G4 (1)

G7531

G7530

TY1251

TY1151 Upright

Pendent 2.8

2.8 N/A

N/A

Thread Relief

G1 (1)

Care and

Maintenance

The Models G1, G4, G1/S1, and

G4/S3 do not require any regularly

scheduled maintenance; however,

proper installation of the Sprinkler

Guards should be verified during the

annual visual inspection of the sprin-

klers.

The owner is responsible for the in-

spection, testing, and maintenance of

their fire protection system and de-

vices in compliance with this docu-

ment, as well as with the applicable

standards of the National Fire Protec-

tion Association (e.g., NFPA 25), in

addition to the standards of any other

authorities having jurisdiction. The in-

stalling contractor or sprinkler manu-

facturer should be contacted relative to

any questions.

It is recommended that automatic

sprinkler systems be inspected,

tested, and maintained by a qualified

Inspection Service.

Limited

Warranty

Products manufactured by Tyco Fire

Products are warranted solely to the

original Buyer for ten (10) years

against defects in material and work-

manship when paid for and properly

installed and maintained under normal

use and service. This warranty will ex-

pire ten (10) years from date of ship-

ment by Tyco Fire Products. No war-

ranty is given for products or

TFP780 Page 3 of 4

FIGURE 1

MODEL G1 AND G4 SPRINKLER GUARDS — DIMENSIONS

FIGURE 2

MODEL G1/S1 AND G4/S3 SPRINKLER GUARDS WITH SHIELDS — DIMENSIONS

(87,3 mm)

PLATE (73,0 mm)

Model G1 Guard

Shown with Series TY-FRB Sprinkler

(58,7 mm)

2-5/16"

GUARD

BAR

CLIP

SPRINKLER

BASE PLATE

ENGAGED BY

THREAD RELIEF

2-7/8" DIA.

BASE

SPRINKLER

BASE PLATE

ENGAGED BY

WRENCH AREA

BAR

Shown with Series TY-FRL Sprinkler

Model G4 Guard

3-7/16"

(73,0 mm)

2-7/8" DIA.

BASE

PLATE

(ENGAGED)

GUARD

CLIP

(88,9 mm)

3-1/2"

ENGAGED BY

THREAD RELIEF

SPRINKLER

BASE PLATE

2-7/8" DIA.

(73,0 mm)

4" DIA.

With Model S1 Shield

Shown with Series TY-B Sprinkler

Model G1 Guard

(101,6 mm)

PLATE

BASE

2-3/8"

(60,3 mm)

BAR

SPRINKLER

WRENCH AREA

ENGAGED BY

BASE PLATE

WITH

SCREW

S1 SHIELD

WITH

SCREW

GUARD

S3 SHIELD

(73,0 mm)

2-7/8" DIA.

Model G4 Guard

With Model S3 Shield

Shown with Series TY-L Sprinkler

BASE

PLATE

4-3

4" DIA.

(120,7 mm)

(ENGAGED)

CLIP

(ENGAGED)

CLIP

GUARD

BAR

components manufactured by compa-

nies not affiliated by ownership with

Tyco Fire Products or for products and

components which have been subject

to misuse, improper installation, corro-

sion, or which have not been installed,

maintained, modified or repaired in ac-

cordance with applicable Standards of

the National Fire Protection Associa-

tion, and/or the standards of any other

Authorities Having Jurisdiction. Mate-

rials found by Tyco Fire Products to be

defective shall be either repaired or

replaced, at Tyco Fire Products’ sole

option. Tyco Fire Products neither as-

sumes, nor authorizes any person to

assume for it, any other obligation in

connection with the sale of products or

parts of products. Tyco Fire Products

shall not be responsible for sprinkler

system design errors or inaccurate or

incomplete information supplied by

Buyer or Buyer’s representatives.

IN NO EVENT SHALL TYCO FIRE

PRODUCTS BE LIABLE, IN CON-

TRACT, TORT, STRICT LIABILITY OR

UNDER ANY OTHER LEGAL THE-

ORY, FOR INCIDENTAL, INDIRECT,

SPECIAL OR CONSEQUENTIAL

DAMAGES, INCLUDING BUT NOT

LIMITED TO LABOR CHARGES, RE-

GARDLESS OF WHETHER TYCO

FIRE PRODUCTS WAS INFORMED

ABOUT THE POSSIBILITY OF SUCH

DAMAGES,ANDINNOEVENT

SHALL TYCO FIRE PRODUCTS’ LI-

ABILITY EXCEED AN AMOUNT

EQUAL TO THE SALES PRICE.

THE FOREGOING WARRANTY IS

MADE IN LIEU OF ANY AND ALL

OTHER WARRANTIES EXPRESS OR

IMPLIED, INCLUDING WARRANTIES

OF MERCHANTABILITY AND FIT-

NESS FOR A PARTICULAR PUR-

POSE.

Ordering

Procedure

Contact your local distributor for avail-

ability.

G1 Sprinkler Guard:

Specify: Model G1 Sprinkler Guard

having a (specify) finish, P/N (specify).

Red Painted . . . . . . . . . . . . . . P/N 56-938-1-001

Zinc Chromate . . . . . . . . . . . . P/N 56-938-9-001

G4 Sprinkler Guard:

Specify: Model G4 Sprinkler Guard

having a (specify) finish, P/N (specify).

Red Painted . . . . . . . . . . . . . . P/N 56-937-1-001

Zinc Chromate . . . . . . . . . . . . P/N 56-937-9-001

G1/S1 Guard with Shield:

Specify: Model G1/S1 Sprinkler Guard

with Shield having a (specify) finish,

P/N (specify).

Red Painted . . . . . . . . . . . . . . P/N 56-938-1-066

Zinc Chromate . . . . . . . . . . . . P/N 56-938-9-066

G4/S3 Guard with Shield:

Specify: Model G4/S3 Sprinkler Guard

with Shield having a (specify) finish,

P/N (specify).

Red Painted . . . . . . . . . . . . . . P/N 56-937-1-066

Zinc Chromate . . . . . . . . . . . . P/N 56-937-9-066

Additonal* Clip Installation Tool:

Specify: Clip Installation Tool for

G1 & G4 Sprinkler Guards,

P/N (56-000-8-597).

* The Clip Installation Tool is included with

orders in original cartons.

Page4of4 TFP780

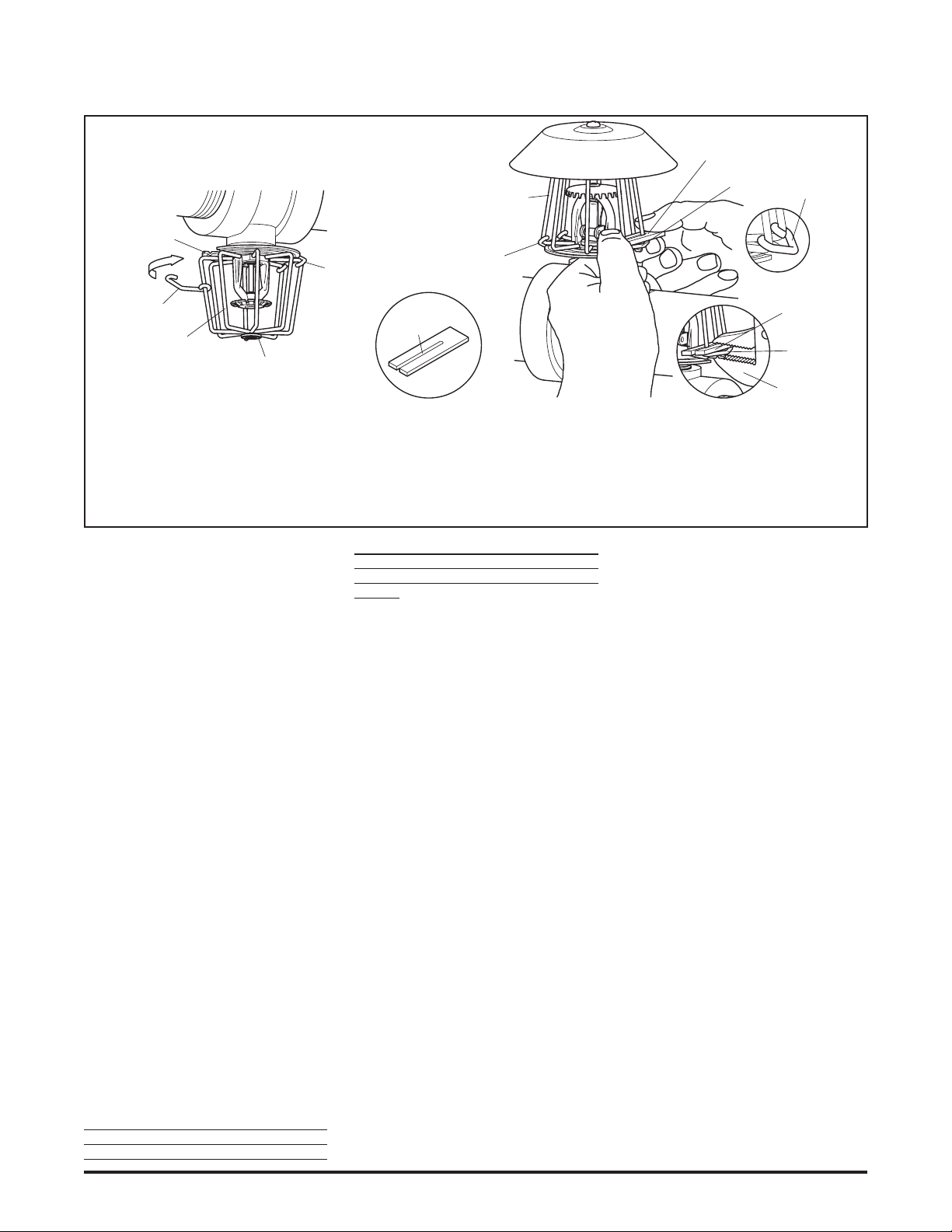

FIGURE 3

INSTALLATION PROCEDURE

TYCO FIRE PRODUCTS, 451 North Cannon Avenue, Lansdale, Pennsylvania 19446

ADJACENT BARS, PRESS SECOND CLIP

CAREFULLY SPREAD BASE PLATES APART AND FIT

SPRINKLER SHOWN

MODEL G1 GUARD &

SERIES TY-FRB PENDENT

BARS AND SLIDE TOWARD BASE

PLATES

NTIL SN

LOCATION PER TABLE A AND FIGURES 1 or 2

ONTO SPRINKLER AT APPROPRIATE MOUNTING

WITH SPRINKLER PROPERLY INSTALLED,

SWIVEL CLIPS OVER ADJACENT

ADJACENT

BAR

CLIP

PLATES

BASE

TOOL (SHIPPED WITH

SLOT

CLIP FULLY

ENGAGED

FIRST

GUARDS)

ENGAGED

CLIP FULLY

FIRST

CLIP INSTALLATION

BAR

& SERIES TY-L UPRIGHT

WITH MODEL S3 SHIELD

MODEL G4 GUARD

SPRINKLER SHOWN

CLIP

TOOL

INSTALLATION

MAY BE

USED

A PLIER

SECOND

ENGAGED

CLIP FULLY

WARD BASE PLATES

NTIL F

LLY EN

WITH INSTALLATION TOOL APPLIED OVER

CLIP

INSTALLATION

TOOL

CLIP

Autres manuels pour TY-B Series

Ce manuel convient aux modèles suivants

Autres manuels Tyco Système d'irrigation

Tyco

Tyco ESFR-17 Manuel utilisateur

Tyco

Tyco DSC WTK5504 Manuel utilisateur

Tyco

Tyco LFII Series Manuel utilisateur

Tyco

Tyco TY-FRL Series Manuel utilisateur

Tyco

Tyco 16.8 K-factor Manuel utilisateur

Tyco

Tyco TY-FRB Series Manuel utilisateur

Tyco

Tyco TY-FRB Series Mode d’emploi

Tyco

Tyco TY-L Series Manuel utilisateur

Tyco

Tyco Ultra K17 K-factor Manuel utilisateur

Tyco

Tyco RAPID RESPONSE Series Manuel utilisateur

Tyco

Tyco LFII Series Manuel utilisateur

Tyco

Tyco ESFR-25 Instructions d'utilisation et d'entretien

Tyco

Tyco ESFR-22 Manuel utilisateur

Tyco

Tyco Ultra K17 K-factor Manuel utilisateur

Tyco

Tyco DS-1 Series Manuel utilisateur

Tyco

Tyco Rapidresponse LFII Series Manuel utilisateur

Tyco

Tyco ESFR-17 Manuel utilisateur

Tyco

Tyco Rapidresponse LFII Series Manuel utilisateur

Tyco

Tyco TY7158 Manuel utilisateur

Tyco

Tyco F950 Manuel utilisateur

Tyco

Tyco ESFR-17 Manuel utilisateur

Tyco

Tyco TY-B Series Manuel utilisateur

Tyco

Tyco DS-8 Series Manuel utilisateur

Tyco

Tyco TFP PH2 Manuel utilisateur

Manuels Système d'irrigation populaires d'autres marques

Hunter

Hunter Institutional Series Manuel utilisateur

Cellfast

Cellfast 52-305 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Star Galaxy SGQR Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL A Manuel utilisateur

Oral Care Technologies

Oral Care Technologies Hydro Floss Manuel utilisateur

Reliable

Reliable F1-300 Manuel utilisateur

Tyco Fire Product

Tyco Fire Product Gem F892 Manuel utilisateur

Netafim

Netafim NETBEAT Manuel utilisateur

Irrigation-Mart

Irrigation-Mart KIT-GK100-RV-B Manuel utilisateur

Reliable

Reliable F4FR Manuel utilisateur

OpenSprinkler

OpenSprinkler OSPi Manuel utilisateur

EINHELL

EINHELL GE-WW 5537 E Manuel utilisateur

Valley

Valley Bender160 Manuel utilisateur

Reliable

Reliable F1FR42 Series Manuel utilisateur

Reliable

Reliable F1FR-300 Manuel utilisateur

Toro

Toro 730 Series Guide rapide

Eden

Eden 97063-EDAMZ Manuel utilisateur

Tyco Fire Product

Tyco Fire Product CENTRAL ELO-231 Manuel utilisateur
