Troy Built Models Aichi D3A1 Manuel utilisateur

Aichi D3A1

Specification:

Length: 1540mm(60.6＂)

Wing span: 2057mm(81＂)

Wing area: 76.1sq.dm(8.2sq.ft)

Wing loading: 99.9g/sq.dm(32.8oz/sq.ft)

Flying weight: 7.6kg(16.7lbs)

Radio: 6ch & 7servos

Engine: 120 4-cycle

C.G: 135mm

SAFETY PRECAUTIONS

INSTRUCTION MANUAL

First-time builders should seek advice from people having building

experience.If misused or abused,it can cause serious bodily injury

and damage to property.

Fly only in open areas and preferably at a dedicated R/C flying site.

We suggest having a qualified instructor carefully inspect your

airplane before its first flight.Please carefully read and follow all

instructions included with this airplane,your radio control system

and any other components purchased separately.

(The people under 18 years old is forbidden from flying this model)

This R/C airplane is not a toy!

4-cycle .180

15″X7

6 channel radio for aiplane is highly recommended for this model.

Optional parts: rubber wheel with metal hub.

We strongly recommen you use the thread lock for all the screws when you build your model.

Spinner nut

Clevis

Retainer

Rod (2x300mm)

Screw (2x10mm)

Clevis

Rod (2x300mm)

Retainer

TP Screw (2.3x12mm)

Pin hinge(24x24mm)

Screw (3x40mm)

Washer(3x15mm)

Lock Nut (3mm )

Pin hinge(24x24mm)

Make sure hinges are

mounted in the same line.

1mm

Aileron

Tailing

edge

Make sure they are in

the right position while

installing.

Keep about 1mm width space between aileron

and trailing edge.

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

Fix the aileron servo to the serve tray with epoxy.

Install the nylon control horn and connect the linkage.

Apply instant type CA glue to appropriate position of

aileron and pin hinge.

Apply instand type CA glue to appropriate position of

trailing edge and pin hinge.

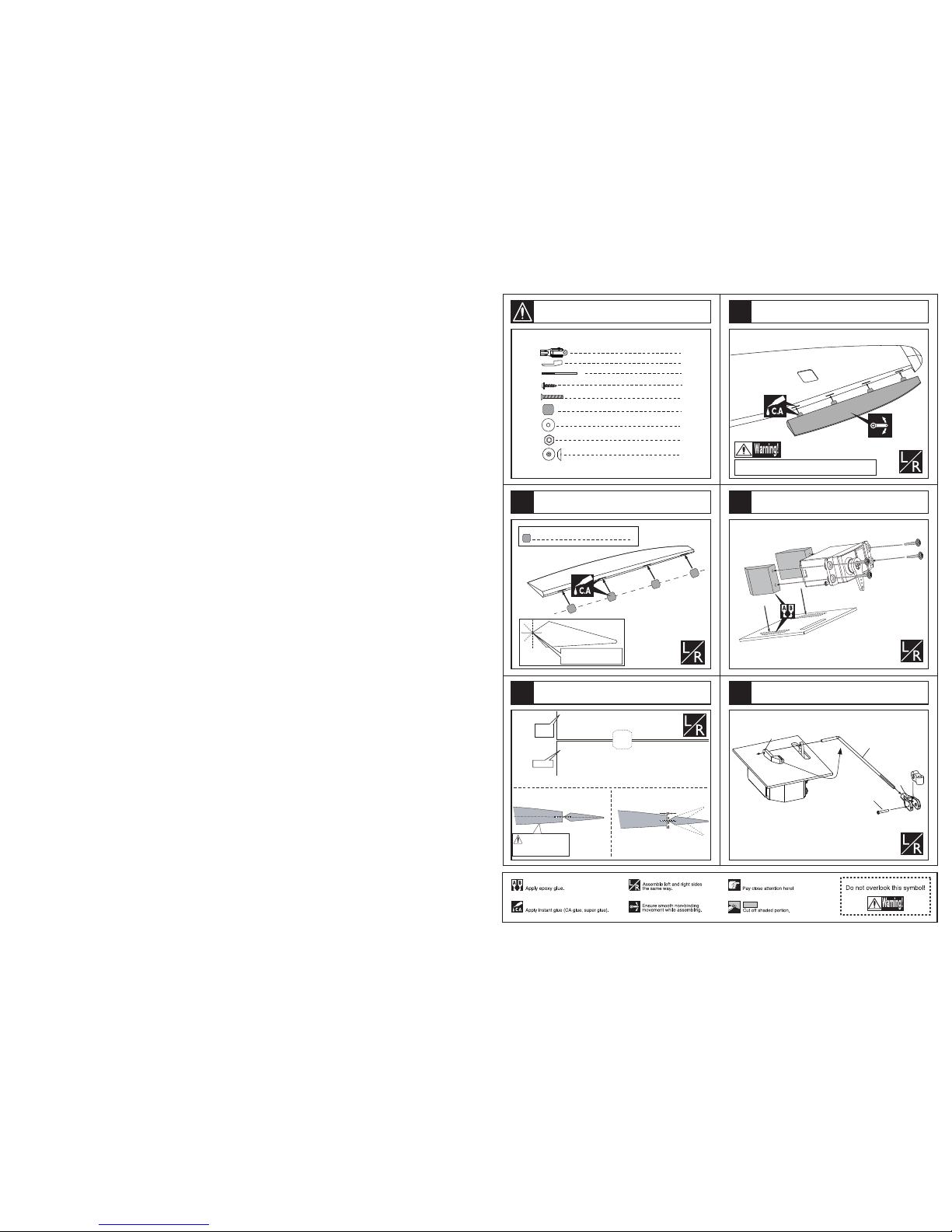

Accessory list for the coming installation steps.

1.5mm

3mm

Rod (2x300mm)

Clevis

Washer(3x15mm)

Washer

Lock Nut (3mm )

Screw (3x40mm)

Wooden Block(20x20x8mm)

Servo tray(68.5x56.5x2mm)

TP Screw (2.3x12mm)

Rib template (2mm ply)

Wood dowel (6x30mm)

Fix the flap servo to the servo tray with epoxy.

Main wing joiner

TP Screw (2.3x12mm)

6mm

Wood dowel (6x30mm)

Rib template (2mm ply)

Main wing joiner

Rib template (2mm ply)

TP Screw (2.3x12mm)

Secure the servo.Install the nylon control horn

and connect the linkage. Assemble the flap servo to the main wing with screws.

According to the rib template drill holes in the outer

wings and epoxy wood dowel in them.

According to the rib template drill holes to the center wing.

Accessory list for the coming installation steps.

AILERON

FLAP

AILERON

30mm

FLAP

20mm

Side View

Top View

135mm

Top view

20mm

RUDDER

Side View

Adjustment.

Centre of Gravity.

Adjustment.

Top view

Position for

right diagram.

ELEVATOR

Side View

15mm

Adjustment.

5mm

Plastic tube (5x30mm)

Drill holes to appropriate in the bomb.

Epoxy plastic tube into the holes.

Drill holes to relevant pesition in the centet wing.

Epoxy the bomb to the bottom wing.

90mm

135mm

5mm

20mm

Washer (3x6mm)

Screw (3x30mm)

Fix the fairing part to the fuselage with screw.

73 76

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

A A"

A = A"

Steel wire (1.7x210mm)

Clevis

Rod (2x300mm)

Retainer

Screw (3x45mm)

Washer(3x15mm)

Lock Nut (3mm )

Pin hinge(36x20x1mm)

173o

Connect the two flaps with metal wire,keep some space

between them and epoxy the pinned hinges to the flaps

as below.

2mm

Keep some space

between the flaps.

Steel wire (1.7x210mm)

Pin hinge(24x24mm)

Flap

1mm

Make sure they are in

the right position while

installing.

Trailing

edge

Keep some space about 1mm width between

trailing edge and flap.

Wood dowel (6x50mm)

Reinforcement Plate 2

Epoxy main wings to the centre wing by main wing

joiners.

B=B'

A=A'

A`A

The sketch when the wings assemble finished.

Epoxy the flaps to the wings as illustration.

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

Blind Nut (6mm)

Screw (6x50mm)

Accessory list for the coming installation steps.

Rod (2x300mm)

Clevis

Washer(3x15mm)

Washer

Lock Nut (3mm )

Screw (3x45mm)

Retainer

3mm

6mm

Wood dowel (6x50mm)

97mm

6mm

97mm

7.2mm

Blind Nut

35mm 120mm

Screw(6x50mm)

Reinforcement Plate

Reinforcement Plate 2

Epoxy the dowel on the leading edge of wing.

Assemble the arms in the flaps the servo arms to them

with rods as below.

Trim two holes to pull the servo extension

lines and fuel tube from the holes.

200mm

50mm

Center

line

Blind Nut (6mm)

Drill holes in the fuselage for installing the wings.

Drill holes in the appropriate position through the wing

to fuselage,set blind nut in the fuselage.

Put the reinforcement plate on the holes and fix the

wings to the fuselage with screws as illustration.

TP Screw (2.3x8mm)

Ply (15x15x3mm) 12

1.5mm

TP Screw (2.3x8mm)

Epoxy plies inside the fuselage under the cowing and

mount the cowing with TP screw as illustration.

Dummy flap

15mm

45mm

3mm

4.2mm

Blind Nut

Wooden Block(66x60x9mm)

Epoxy plies under the canopy and assemble the

canopy to fuselage with screw.

Trim slots in right position in the bottem wing.

70mm

100mm 123mm 123mm

Epoxy the dummy flaps to the wings.

3mm

Epoxy the dummy parts to the appropriate position

in the mid wing.

Epoxy the wooden block to the appropriate position in the

fuselage,drill holes through the the wooden block from the

dummy fairing and set blind nut in the big hole as illustration.

Epoxy the fairing part to the fuselage.

fairing part

2mm

16mm

TP Screw (3x20mm)

WssherTP (3x6mm)

1.8mm

TP Screw (3x20mm)

WssherTP (3x6mm)

155mm

15mm

147mm 180mm

TP Screw (2.3x8mm) 1

Canopy

Ply (15x15x3mm) 12

Dummy flap

Add a rubber ring to the

clevis for insuring safety

Assembly of the switch servo.

Linkage Stopper

Washer (2mm)

Nut (2mm)

Set screw (3x4mm)

Plastic tube (5x30mm)

Wooden Block(66x60x9mm)

Former

fairing part 1

Washer (3x6mm) 1

Screw (3x30mm)

Former

Mounting of the receiver and the battery.

Elevator servo

Throttle servo

Switch servo

Rudder servo

Assemble the cowl to the fuselage with TP screws.

Epoxy the wooden form to appropriate in the cowling.

Cut off the surplus parts along the shaded

line of the canopy.

Accessory list for the coming installation steps.

TP Screw (3x20mm)

Landing gear straps 8

TP Screw (3x10mm)

Collar (6mm)

Wheel (140mm)

Landing gear(6mm) 1

Wooden Block(110x82x9mm)

Wheel pants

TP Screw (3x20mm)

1.5mm

Landing gear 1

TP Screw (3x20mm)

Landing gear straps 4

Collar (6mm)

Wheel (140mm)

Wooden Block(110x82x9mm)

Mount wheel pant and tire.

TP Screw (3x10mm)

Landing gear straps 4

1.5mm

TP Screw (3x10mm)

1.5mm

6mm

10mm

Wooden Block(110x82x9mm)

20mm

35mm

15mm 45mm

Mount landing gear on the underside of wing.

According to the back steps,epoxy the Wheel pants

to the appropriate place.

Mount wheel pant and tire.

Attach landing wire to wheel pant steadily.

Accessory list for the coming installation steps.

4mm

Steel wire (0.5x3000mm)

U-style wire (150x3mm)

Stab joiner

(12x280mm)

Wood dowel (4x30mm)

Rib template (2mm ply)

Pin hinge(24x24mm)

4mm

Rib template (2mm ply)

Stab joiner

(12x280mm)

Rib template (2mm ply)

Stab joiner

(12x280mm)

Wood dowel (4x30mm)

Rib template (2mm ply)

Pin hinge(24x24mm)

3mm

U-style wire (150x3mm)

Steel wire (0.5x3000mm)

Clevis

Copper joiner

Screw (2x10mm)

Nut (2mm )

Washer(2x5mm)

Set the U-style wire through the tail of fuselage as

below.

According to the rib template drill holes

in the stabilizer and fuselage!

Drill holes in the stabilizer root base on rib template

and epoxy the wood dowel in them.

According to the rib template drill holes to the tail of

fuselage as below.

Epoxy the horizontal to fuselage and take care to

keep all the surface clean.

Glue the pin hinges to the elevator and trim slot in the

right position for fitting the U-style wire.

Accessory list for the coming installation steps.

Linkage Stopper

Washer (2mm)

Nut (2mm)

Set screw (3x4mm)

Washer (2mm)

Set screw (3x4mm)

Fuel supply line

Fuel spray line

Air pressure line

Mount the fuel tank into the fuselage.

Assembly of the fuel tank.

Assemble the servos and switch .

Assemble the servo to fuselage.

Fuel tank (550cc) 1

Set Screw (3x4mm)

Set Screw (2mm)

Rod (2x400mm)

Set Screw (2mm)

Washer (2mm)

Linkage Stopper

Washer (4x8mm)

Rod (2x400mm)

Blind Nut (4mm)

Screw (4x25mm)

Set Screw (3x4mm)

Assemble the throttle linkage.

Install the engine.

54 57

Washer (4x8mm)

Screw (4x35mm) Screw (4x25mm)

Nut (4mm)

Spring Washer (4mm)

4mm

Blind Nut (4mm)

Engine mount (68x105mm)

Linkage Stopper

Washer(4x8mm)

Screw (4x35mm)

Spring Washer (4mm)

Nut (4mm)

Screw (4x25mm)

Plastic tube (2x400mm)

Fuel tank (550cc) 1

157 mm

In case of 2-cycle & 4-cycle engine.

Assemble the engine.

5.2mm

Blind Nut

Blind Nut (4mm)

Collar

Tail landing gear

TP Screw (2.3x8mm)

Ply (15x15x3mm) 6

TP Screw (2.3x8mm)

1.5mm

Epoxy plies to appropriate position in the fuselage.

Then assemble the wheel as illustration.

Collar (3mm) 2

Tow degree downthrust

Ply

The front view of the engine install completion.

The side view of the engine install completion.

Drill four holes at the diameters as shown

for engine mount.

Accessory list for the coming installation steps.

C=C'

D=D'

Make sure to glue securely.

If not properly glued, a failure in flight may occur.

Temporarily fasten down the main wing and

check its correct position.

Securely glue together.If coming off during flights,

you'll lose control of your airplane which leads

to accidents!

1mm

Elevator

Make sure they are in

the right position while

installing.

Trailing

edge

Securely glue together. If coming off during flights, you 'll

lose control of your airplane which leads to accidents!

2x20mm

Clevis

Copper joiner

Screw (2x10mm)

Nut (2mm )

Washer(2x5mm)

Steel wire

Copper joiner

Lock Nut (2mm )

Screw (2x10mm)

Ball joint

Washer(2x5mm)

Install the nylon control ring for switch and

connect the linkage.

Assemble horizontal tail, vertical tail,

tail gear separately.

Keep some space about 1mm width between the

elevator and horizontal tail edge.

Glue the elevator to the stabilizer by CA and epoxy. Assemble the elevator servo to the appropriate

position in the fuselage.

The sketch map for the wires of elevator servo

in the fuselage.

Accessory list for the coming installation steps.

Tail landing gear(3mm)

Tail wheel (45mm)

TP Screw(3x10mm) 2

TP Screw (2.3x8mm)

Ply (15x15x3mm) 6

1x20mm

3x6mm

Ply3mm

1.5mm

TP Screw (3x10mm)

3x10mm

25mm

50mm

Pin hinge

Metal arms

Steel wire (0.5x3000mm)

Pin hinge 31

Wooden Block (3mm Ply)

Collar (3mm) 2

Washer (3x6mm) 2

Washer (3x6mm)

The sketch map when assemble the tail landing

gear to the wheel steeling mount.

Tail landing gear(3mm)

Let the tail landing gear go through the fuse tail until to

the proper position,and cut off the surplus parts of the

landing gear as illustration.

Epoxy a wooden block to inner fuse tail for helping

fix the landing gear mount.

Trim a slot in the vertical fin for epoxying the pin hinge

of tail landing gear in it.

Fix the tail landing gear mount with TP screws.

Tail landing gear mount

39 42

Accessory list for the coming installation steps.

1mm

Rudder

Tailing

edge

Cut away the rubber tube when

the epoxy glue dried.

Make sure they are in

the right position while

installing.

Pin hinge 3

Make sure hinges are

mounted in the same line.

25mm

49mm

2.5mm

Epoxy pin hinges to rudder.

2.5mm

Clevis

Copper joiner

Screw (2x10mm)

Nut (2mm )

Washer(2x5mm)

Steel wire

Copper joiner

Lock Nut (2mm )

Screw (2x10mm)

Ball joint

Washer(2x5mm)

3mm

Rudder servo

Elevator servo

Steel wire (0.5x3000mm)

Drill holes to appropriate position in the vertical tail

and epoxy the rudder to the vertical tail steadily.

Epoxy the pin hinge to the rudder steady.

Install the rudder servo.

Install the rudder servo in the fuselage.

The sketch map of the steel wires run through

in the fuselage.

Table des matières

Autres manuels Troy Built Models Jouet

Troy Built Models

Troy Built Models 105” Curtiss JN-4 Manuel utilisateur

Troy Built Models

Troy Built Models Stinson 108 Manuel utilisateur

Troy Built Models

Troy Built Models BF-110C ZERSTORER Manuel utilisateur

Troy Built Models

Troy Built Models P-51B Mustang Manuel utilisateur

Troy Built Models

Troy Built Models SHOCKJET MF 6 Manuel utilisateur

Troy Built Models

Troy Built Models Hawker Typhoon Manuel utilisateur

Troy Built Models

Troy Built Models FAIREY SWORDFLSH Manuel utilisateur

Troy Built Models

Troy Built Models P-47D Thunderbolt Manuel utilisateur

Troy Built Models

Troy Built Models Electric Beaver Manuel utilisateur

Troy Built Models

Troy Built Models P-39 Airacobra Manuel utilisateur

Troy Built Models

Troy Built Models 50cc SPITFIRE Manuel utilisateur

Troy Built Models

Troy Built Models F86D DOG SABRE Manuel utilisateur

Troy Built Models

Troy Built Models DC-3 Manuel utilisateur

Troy Built Models

Troy Built Models SPITFIRE MK.XIV Manuel utilisateur

Troy Built Models

Troy Built Models Fw-190 D9 Manuel utilisateur

Troy Built Models

Troy Built Models PA-25 Manuel utilisateur

Troy Built Models

Troy Built Models B-25 Mitchell Manuel utilisateur

Troy Built Models

Troy Built Models Bonanza V-35 Manuel utilisateur

Troy Built Models

Troy Built Models Hawker hurricane MK.IIa Manuel utilisateur

Troy Built Models

Troy Built Models T-28 Trojah Manuel utilisateur

Troy Built Models

Troy Built Models ROBIN DR400 Manuel utilisateur

Troy Built Models

Troy Built Models Do-335 Manuel utilisateur

Troy Built Models

Troy Built Models P-40 warhawk Manuel utilisateur

Troy Built Models

Troy Built Models Memphis Belle B-17 Manuel utilisateur

Manuels Jouet populaires d'autres marques

marklin

marklin 37321 Manuel utilisateur

Canon

Canon PAPER CRAFT Manuel utilisateur

GREAT PLANES

GREAT PLANES Pitts M-12S Manuel utilisateur

NOCH

NOCH 14261 Manuel utilisateur

Hausler

Hausler 450 SE V2 Manuel utilisateur

Dynaflite

Dynaflite Daydream Manuel utilisateur

MiniacRC

MiniacRC MIGHTY MINI P40 WARHAWK Manuel

Kenner

Kenner Batman 63651 Manuel utilisateur

LEGO

LEGO 8527 Manuel utilisateur

iKarus

iKarus ECO 8 Manuel utilisateur

Multiplex

Multiplex EasyStar II Mode d’emploi

Walkera

Walkera 38 Mode d’emploi

Hasbro

Hasbro TRANSFORMERS BUMBLEBEE Manuel utilisateur

MD MXION SWD Manuel utilisateur

Mattel

Mattel Disney Pixar Cars Cozy Cone Spiral Rampway Manuel utilisateur

marklin

marklin 39671 Manuel utilisateur

Meccano

Meccano 15103 Manuel utilisateur

LEGO

LEGO TECHNIC 8735 Manuel utilisateur
