Foreword

FOREWORD

This handbook contains information on the Triumph Trophy and Trophy SE motorcycles. Always

store this owner's handbook with the motorcycle and refer to it for information whenever

necessary.

Warnings, Cautions and

Notes

Throughout this owner's handbook

particularly important information is

presented in the following form:

Note:

• This note symbol indicates points of

particular interest for more efficient

and convenient operation.

Warning

This warning symbol identifies special

instructions or procedures, which if not

correctly followed could result in personal

injury, or loss of life.

Caution

This caution symbol identifies special

instructions or procedures, which, if not

strictly observed, could result in damage to,

or destruction of, equipment.

Foreword

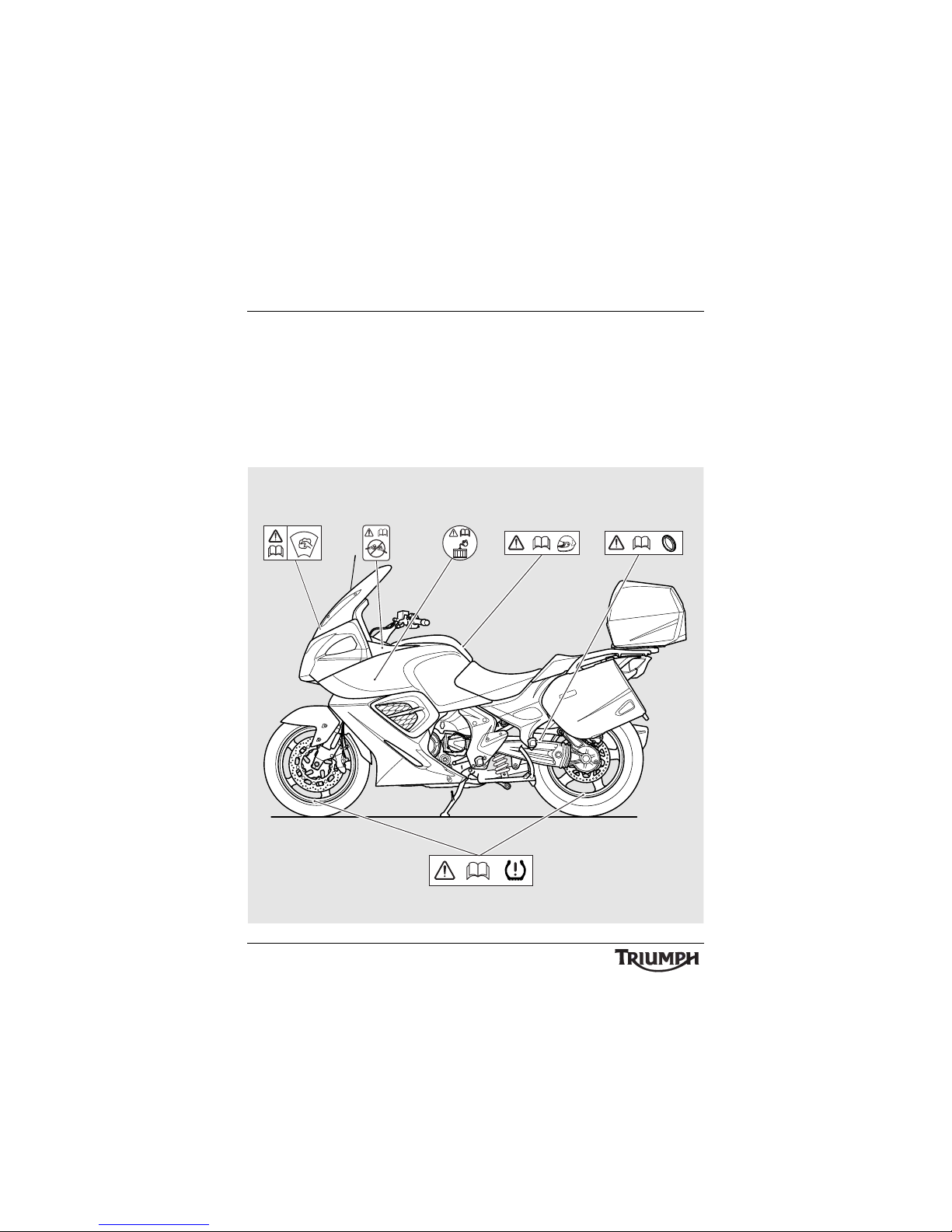

Warning Labels

At certain areas of the

motorcycle, the symbol (left)

can be seen. The symbol

means 'CAUTION: REFER TO

THE HANDBOOK' and will

be followed by a pictorial

representation of the subject

concerned.

Never attempt to ride the motorcycle or

make any adjustments without reference to

the relevant instructions contained in this

handbook.

See page 10 for the location of all labels

bearing this symbol. Where necessary, this

symbol will also appear on the pages

containing the relevant information.

Maintenance

To ensure a long, safe and trouble free life for

your motorcycle, maintenance should only be

carried out by an authorised Triumph dealer.

Only an authorised Triumph dealer will have

the necessary knowledge, equipment and

skills to maintain your Triumph motorcycle

correctly.

To locate your nearest Triumph dealer, visit

the Triumph web site at www.triumph.co.uk

or telephone the authorised distributor in

your country. Their address is given in the

service record book that accompanies this

handbook.

Noise Control System

Tampering with the Noise Control System is

Prohibited.

Owners are warned that the law may

prohibit:

• The removal or rendering inoperative by

any person other than for purposes of

maintenance, repair or replacement, of

any device or element of design

incorporated into any new vehicle for the

purpose of noise control prior to its sale

or delivery to the ultimate purchaser or

while it is in use and,

• the use of the vehicle after such device or

element of design has been removed or

rendered inoperative by any person.

Immobiliser and Tyre

Pressure Monitoring System

This device complies with part 15 of the FCC

Rules.

Operation is subject to the following two

conditions:

• This device may not cause harmful

interference;

• This device must accept any interference

received, including interference that may

cause undesired operation.

Changes or modifications to the device could

void the user's authority to operate the

equipment.

Foreword

Owner's Handbook

Thank you for choosing a Triumph

motorcycle. This motorcycle is the product of

Triumph's use of proven engineering,

exhaustive testing, and continuous striving for

superior reliability, safety and performance.

Please read this owner's handbook before

riding in order to become thoroughly familiar

with the correct operation of your

motorcycle's controls, its features, capabilities

and limitations.

This handbook includes safe riding tips, but

does not contain all the techniques and skills

necessary to ride a motorcycle safely.

Triumph strongly recommends that all riders

undertake the necessary training to ensure

safe operation of this motorcycle.

This handbook is also available from your

local dealer in:

•Dutch;

• French;

•German;

•Italian;

• Japanese;

• Spanish;

•Swedish.

Talk to Triumph

Our relationship with you does not end with

the purchase of your Triumph. Your feedback

on the buying and ownership experience is

very important in helping us develop our

products and services for you. Please help us

by ensuring your dealership has your E-mail

address and registers this with us. You will

then receive an online customer satisfaction

survey invitation to your E-mail address

where you can give us this feedback.

Your Trium p h Tea m .

Warning

This owner's handbook, and all other

instructions that are supplied with your

motorcycle, should be considered a

permanent part of your motorcycle and

should remain with it even if your

motorcycle is subsequently sold.

All riders must read this owner's handbook

and all other instructions which are

supplied with your motorcycle, before

riding, in order to become thoroughly

familiar with the correct operation of your

motorcycle's controls, its features,

capabilities and limitations. Do not lend

your motorcycle to others as riding when

not familiar with your motorcycle's

controls, features, capabilities and

limitations can lead to an accident.

Foreword

Information

The information contained in this publication is based on the latest information available at the

time of printing. Triumph reserves the right to make changes at any time without prior notice, or

obligation.

Not to be reproduced wholly or in part without the written permission of Triumph Motorcycles

Limited.

Publication part number 3852642 issue 1.

Table of Contents

This handbook contains a number of different sections. The table of contents below will help

you find the beginning of each section where, in the case of the major sections, a further table

of contents will help you find the specific subject required.

Foreword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Warning Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Parts Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Serial Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

How to Ride the Motorcycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Accessories, Loading and Passengers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 7

Maintenance and Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .161

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3

Foreword - Safety First

FOREWORD - SAFETY FIRST

The Motorcycle

Warning

This motorcycle is designed for on-road

use only. It is not suitable for off-road use.

Off-road operation could lead to loss of

control of the motorcycle resulting in an

accident causing injury or loss of life.

Warning

This motorcycle is not designed to tow a

trailer or be fitted with a sidecar. Fitting a

sidecar and/or a trailer may result in loss of

control and an accident.

Warning

This motorcycle is designed for use as a

two-wheeled vehicle capable of carrying a

rider on his/her own, or a rider and one

passenger.

The total weight of the rider, and any

passenger, accessories and luggage must

not exceed the maximum load limit of

239 kg (526 lb).

Warning

This motorcycle is fitted with a catalytic

converter below the engine, which along

with the exhaust system reaches very high

temperature during engine operation.

Flammable materials such as grass,

hay/straw, leaves, clothing and luggage etc.

could ignite if allowed to come into contact

with any part of the exhaust system and

catalytic converter; always ensure

flammable materials are not allowed to

contact the exhaust system or catalytic

converter.

Warning

Use of a motorcycle with the bank angle

indicator worn beyond the maximum limit

(when 5 mm of the bank angle indicator

remains) will allow the motorcycle to be

banked to an unsafe angle.

Banking to an unsafe angle may cause

instability, loss of motorcycle control and

an accident.

1. Bank angle indicator

Foreword - Safety First

Fuel and Exhaust Fumes Helmet and Clothing

Warning

PETROL IS HIGHLY FLAMMABLE:

Always turn off the engine when refuelling.

Do not refuel or open the fuel filler cap

while smoking or in the vicinity of any

open (naked) flame.

Take care not to spill any petrol on the

engine, exhaust pipes or silencers when

refuelling.

If petrol is swallowed, inhaled or allowed to

get into the eyes, seek immediate medical

attention.

Spillage on the skin should be immediately

washed off with soap and water and

clothing contaminated with petrol should

immediately be removed.

Burns and other serious skin conditions

may result from contact with petrol.

Warning

Never start your engine or let it run for any

length of time in a closed area. The

exhaust fumes are poisonous and may

cause loss of consciousness and death

within a short time. Always operate your

motorcycle in the open-air or in an area

with adequate ventilation.

Warning

When riding the motorcycle, both rider

and passenger must always wear a

motorcycle helmet, boots, eye protection,

gloves, trousers (close fitting around the

knee and ankle) and a brightly coloured

jacket. Brightly coloured clothing will

considerably increase a rider's (or

passenger's) visibility to other operators of

road vehicles. Although full protection is

not possible, wearing correct protective

clothing can reduce the risk of injury when

riding.

Warning

A helmet is one of the most important

pieces of riding gear as it offers protection

against head injuries. You and your

passenger's helmet should be carefully

chosen and should fit you or your

passenger's head comfortably and

securely. A brightly coloured helmet will

increase a rider's (or passenger's) visibility

to other operators of road vehicles.

An open face helmet offers some

protection in an accident though a full face

helmet will offer more.

Always wear a visor or approved goggles

to help vision and to protect your eyes.

cbma

Foreword - Safety First

Parking Parts and Accessories

Triumph does not accept any liability

whatsoever for defects caused by the fitting

of non-approved parts, accessories or

conversions or the fitting of any approved

parts, accessories or conversions by

non-approved personnel.

Warning

Always turn off the engine and remove the

ignition key before leaving the motorcycle

unattended. By removing the key, the risk

of use of the motorcycle by unauthorised

or untrained persons is reduced.

When parking the motorcycle, always

remember the following:

Engage first gear to help prevent the

motorcycle from rolling off the stand.

The engine and exhaust system will be hot

after riding. DO NOT park where

pedestrians, animals and/or children are

likely to touch the motorcycle.

Do not park on soft ground or on a steeply

inclined surface. Parking under these

conditions may cause the motorcycle to fall

over.

For further details, please refer to the 'How

to Ride the Motorcycle' section of this

owner's handbook.

Warning

Owners should be aware that the only

approved parts, accessories and

conversions for any Triumph motorcycle

are those which carry official Triumph

approval and are fitted to the motorcycle

by an authorised dealer.

In particular, it is extremely hazardous to fit

or replace parts or accessories whose fitting

requires the dismantling of, or addition to,

either the electrical or fuel systems and any

such modification could cause a safety

hazard.

The fitting of any non-approved parts,

accessories or conversions may adversely

affect the handling, stability or other aspect

of the motorcycle operation that may result

in an accident causing injury or death.

Foreword - Safety First

Maintenance/Equipment Riding

Warning

Consult your authorised Triumph dealer

whenever there is doubt as to the correct

or safe operation of this Triumph

motorcycle.

Remember that continued operation of an

incorrectly performing motorcycle may

aggravate a fault and may also

compromise safety.

Warning

Ensure all equipment that is required by

law is installed and functioning correctly.

The removal or alteration of the

motorcycle's lights, silencers, emission or

noise control systems can violate the law.

Incorrect or improper modification may

adversely affect the handling, stability or

other aspect of the motorcycle operation,

which may result in an accident causing

injury or death.

Warning

If the motorcycle is involved in an accident,

collision or fall, it must be taken to an

authorised Triumph dealer for inspection

and repair. Any accident can cause

damage to the motorcycle that, if not

correctly repaired, may cause a second

accident that may result in injury or death.

Warning

Never ride the motorcycle when fatigued

or under the influence of alcohol or other

drugs.

Riding when under the influence of alcohol

or other drugs is illegal.

Riding when fatigued or under the

influence of alcohol or other drugs reduces

the rider's ability to maintain control of the

motorcycle and may lead to loss of control

and an accident.

Warning

All riders must be licenced to operate the

motorcycle. Operation of the motorcycle

without a licence is illegal and could lead to

prosecution.

Operation of the motorcycle without

formal training in the correct riding

techniques that are necessary to become

licenced is dangerous and may lead to loss

of motorcycle control and an accident.

Warning

Always ride defensively and wear the

protective equipment mentioned

elsewhere in this foreword. Remember, in

an accident, a motorcycle does not give the

same impact protection as a car.

Foreword - Safety First

Handlebars and Footrests

Warning

This Triumph motorcycle should be

operated within the legal speed limits for

the particular road travelled. Operating a

motorcycle at high speeds can be

potentially dangerous since the time

available to react to given traffic situations

is greatly reduced as road speed increases.

Always reduce speed in potentially

hazardous driving conditions such as bad

weather or heavy traffic.

Warning

Continually observe and react to changes

in road surface, traffic and wind conditions.

All two-wheeled vehicles are subject to

external forces which may cause an

accident. These forces include but are not

limited to:

• Wind draft from passing vehicles;

• Potholes, uneven or damaged road

surfaces;

• Bad weather;

• Rider error.

Always operate the motorcycle at moderate

speed and away from heavy traffic until

you have become thoroughly familiar with

its handling and operating characteristics.

Never exceed the legal speed limit.

Warning

Banking to an unsafe angle may cause

instability, loss of motorcycle control and

an accident.

Warning

The rider must maintain control of the

vehicle by keeping hands on the

handlebars at all times.

The handling and stability of a motorcycle

will be adversely affected if the rider

removes his hands from the handlebars,

resulting in loss of motorcycle control and

an accident.

Warning

The rider and passenger must always use

the footrests provided, during operation of

the vehicle.

By using the footrests, both rider and

passenger will reduce the risk of

inadvertent contact with any motorcycle

components and will also reduce the risk of

injury from entrapment of clothing.

Warning Labels

WARNING LABELS

The labels detailed on this and the following pages draw your attention to important safety

information in this handbook. Before riding, ensure that all riders have understood and

complied with all the information to which these labels relate.

Warning Label Locations - Trophy and Trophy SE

chqw

R.P.M.

Coolant

(page 12 3 )

Tyres

(page 13 9 )

Tyre Pressure Monitoring

(if fitted) (page 50)

Windscreen

(page 15 9 )

Cockpit

Stowage

(page 109)

Helmet

(page 6)

Autres manuels pour Trophy

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Triumph Moto

Triumph

Triumph Daytona 955i Manuel utilisateur

Triumph

Triumph Bonneville Bobber 2016 Guide de l'utilisateur

Triumph

Triumph Sprint ST ABS Guide de l'utilisateur

Triumph

Triumph Street Twin Guide de l'utilisateur

Triumph

Triumph Daytona 675 Guide de l'utilisateur

Triumph

Triumph Tiger Explorer Manuel utilisateur

Triumph

Triumph Sprint ST ABS Manuel utilisateur

Triumph

Triumph Speed Triple S Guide de l'utilisateur

Triumph

Triumph Tiger Explorer XR 2017 Manuel utilisateur

Triumph

Triumph Daytona 675 Manuel utilisateur

Triumph

Triumph Bonneville T120 Manuel d'instructions

Triumph

Triumph BONNEVILLE Guide de l'utilisateur

Triumph

Triumph Bonneville 750 Manuel d'instructions

Triumph

Triumph Tiger 850 Sport 2020 Guide de l'utilisateur

Triumph

Triumph Bonneville T100 Guide de l'utilisateur

Triumph

Triumph Speed Triple 1200 RR 2022 Guide de l'utilisateur

Triumph

Triumph Bonneville T100 Guide de l'utilisateur

Triumph

Triumph Sprint ST ABS Guide de l'utilisateur

Triumph

Triumph Daytona 675 Guide de l'utilisateur

Triumph

Triumph Street Triple S 660 cc Guide de l'utilisateur

Triumph

Triumph Street Triple S Guide de l'utilisateur

Triumph

Triumph Street Triple R Manuel d'installation

Triumph

Triumph Trophy Manuel utilisateur

Triumph

Triumph Tiger 800 Guide de l'utilisateur

Manuels Moto populaires d'autres marques

OHVALE

OHVALE GP-0 Manuel de la liste des pièces

Yamaha

Yamaha Star XV19CTSZ 2009 Manuel utilisateur

KTM

KTM 350 XCF-W USA Manuel utilisateur

HYOSUNG

HYOSUNG ST7 Manuel utilisateur

Husqvarna

Husqvarna FC 250 2016 Manuel utilisateur

Ducati

Ducati SCRAMBLER 800 Manuel d'instructions

MOTO GUZZI

MOTO GUZZI QUOTA 1100 ES Manuel utilisateur

APRILIA

APRILIA ETV MILLE CAPONORD - PART1 02-2001 Manuel utilisateur

Yamaha

Yamaha 2006 YZF-R1V Manuel utilisateur

KTM

KTM Freeride E-XC 2021 Manuel utilisateur

Fantic

Fantic Enduro 125 Manuel utilisateur

Ducati

Ducati Supersport 750 desmodue Manuel utilisateur

MV Agusta

MV Agusta 2008 F4 312RR 1078 Manuel d'instructions

Yamaha

Yamaha XVS650A Manuel utilisateur

Yamaha

Yamaha YZF-R6T(C) Manuel

Ducati

Ducati 748 monoposto strada Manuel utilisateur

ATK

ATK 1988 250 Manuel utilisateur

Excelsior-HENDERSON

Excelsior-HENDERSON 1999 HCX Manuel utilisateur
