Tripp Lite SmartPro SLT Manuel utilisateur

Owner’s Manual

SmartPro®SLT

Intelligent, Line-Interactive UPS Systems

100/110/120V Input/Output • Sine Wave Output

Warranty

Registration

chance to win a FREE Tripp Lite

product! www.tripplite.com/warranty

Not suitable for mobile applications.

Important Safety Instructions 2

Quick Installation 3

Optional Installation 4

Basic Operation 4

Battery Replacement 9

Warranty Registration, Storage & Service 9

Español 12

Français 23

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com

12-11-101 93-2442.indb 1 12/4/2012 10:52:39 AM

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be followed during the

installation, operation and storage of all Tripp Lite UPS Systems. Failure to heed these

warnings will void your warranty.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive contaminants,

dust or direct sunlight.

• For best performance, keep the indoor temperature between between 32º F and 104º F

(0º C and 40º C).

• Leave adequate space around all sides of the UPS for proper ventilation.

UPS Connection Warnings

• Connect your UPS directly to a properly grounded AC power outlet. Do not plug the UPS

into itself; this will damage the UPS.

• Do not modify the UPS's plug, and do not use an adapter that would eliminate the UPS’s

ground connection.

• Do not use extension cords to connect the UPS to an AC outlet.

• If the UPS receives power from a motor-powered AC generator, the generator must

provide clean, filtered, computer-grade output.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life-support applications in which a malfunction

or failure of an Tripp Lite UPS System could cause failure or significantly alter the

performance of a life-support device.

• Do not connect surge suppressors or extension cords to the output of your UPS. This

might damage the UPS and will void the surge suppressor and UPS warranties.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current.

Observe proper precautions. There are no user-serviceable parts inside the UPS. Do not

open the UPS except to perform battery replacement. Do not open batteries. Do not

short or bridge the battery terminals with any object. Unplug and turn off the UPS before

performing battery replacement. Use tools with insulated handles. Battery replacement

should be performed only by authorized service personnel using the same number and

type of batteries (Sealed Lead-Acid). Do not dispose of the batteries in a fire. The

batteries are recyclable. Refer to your local codes for disposal requirements or in the

USA only call 1-800-SAV-LEAD or 1-800-8-BATTERY (1-800-822-8837) or visit www.

rbrc.com for recycling information. Tripp Lite offers a complete line of UPS System

Replacement Battery Cartridges (R.B.C.).Visit Tripp Lite on the Web at www.tripplite.

com/support/ battery/index.cfm to locate the specific replacement battery for your UPS.

Important Safety Instructions

12-11-101 93-2442.indb 2 12/4/2012 10:52:39 AM

1 With the UPS disconnected from utility

power, use a small tool to set the

Voltage Dip Switch to match your input

voltage. (All models are preset to the

120V setting.)

2 Plug the UPS into an outlet on a

dedicated circuit.

NOTE! after you plug the UPS into a live AC

outlet, the UPS will automatically charge its

batteries,* but will not supply power to its

outlets until it is turned ON.

* The BATTERY CHARGE LED will be the only LED

illuminated

3 Plug your equipment into the UPS.

Models SMART1500SLT & SMART1050SLT:

All outlets provide battery backup and surge

protection for computers, monitors and other

critical devices. Model SMART750SLT: Select

outlets provide battery backup and surge

protection for computers, monitors and other

critical devices; select outlets provide surge

protection only for printers and other

nonessential devices.

Do not plug high-draw equipment such as

laser printers into the battery backup/surge

protection outlets.

Note: Your UPS is designed to support electronic

equipment only. You will overload the UPS if the total VA

rating for all equipment connected through the battery

backup/surge protection outlets exceeds the UPS's Output

Capacity. To find your equipment's VA ratings, look on their

nameplates. If the equipment is listed in amps, multiply

the number of amps by 120 to determine VA. (Example: 1

amp × 120 = 120 VA). If you are unsure if you have

overloaded the UPS's outlets, see “OUTPUT LOAD LEVEL”

LED description.

4 Turn the UPS ON.

Press and hold the “STANDBY” button for one

second. The alarm will beep once briefly after

one second has passed. Release the button.

Quick Installation

12-11-101 93-2442.indb 3 12/4/2012 10:52:40 AM

1 USB and RS-232 Serial Communications

Use the included USB cable 1a and/or DB9

serial cable 1b to connect the communication

port on your computer to the communication

port of your UPS. Install on your computer the

Tripp Lite PowerAlert Software appropriate to

your computer’s operating system. Consult your

PowerAlert manual for more information.

2 Telephone/Network Protection Jacks

Your UPS has jacks that protect against surges

over a telephone line or a network dataline.

Using telephone network data cables, connect

your wall jack to the UPS jack marked “IN.”

Connect your equipment to the UPS jack

marked “OUT.” Make sure the equipment you

connect to the UPS's jacks is also protected

against surges on the AC line.

Not compatible with PoE (Power Over Ethernet) applications.

Buttons

“STANDBY” Button

• To turn the UPS ON: with the UPS plugged into a live AC wall outlet,*

press and hold the STANDBY button for about one second.** Release

the button. If utility power is absent, you can "cold-start" the UPS

(i.e.: turn it ON and supply power for a limited time from its

batteries***) by pressing and holding the STANDBY button for about

two seconds.**

• To turn the UPS OFF: with the UPS ON and receiving utility power,

press and hold the STANDBY button for one second.** Then unplug

the UPS from the wall outlet. The UPS will be completely OFF.

* After you plug the UPS into a live AC outlet, the UPS will automatically charge its

batteries, but will not supply power to its outlets until it is turned ON. ** The alarm

will beep once briefly after the indicated interval has passed. *** If fully charged.

Optional Installation

Basic Operation

12-11-101 93-2442.indb 4 12/4/2012 10:52:41 AM

Basic Operation continued

“MUTE/TEST” Button

• To Silence (or “Mute”) UPS Alarms: briefly press and release the

MUTE/TEST button.* Note: continuous alarms (warning you to

immediately shut down connected equipment) cannot be silenced.

• To Run a Self-Test: with your UPS plugged in and turned ON, press

and hold the MUTE/TEST button for two seconds.* Continue holding

the button until the alarm beeps several times and the UPS performs

a self test. See “Results of a Self-Test” below. Note: you can leave

connected equipment on during a self-test. Your UPS, however, will

not perform a self-test if it is not turned ON (see “STANDBY” Button

description).

CAUTION! Do not unplug your UPS to test its batteries. this will

remove safe electrical grounding and may introduce a damaging

surge into your network connections.

Results of a Self-Test: The test will last approximately 10 seconds

as the UPS switches to battery to test its load capacity and battery

charge. The “POWER” LED will be flashing and the “OUTPUT LOAD

LEVEL” and “BATTERY CHARGE” LEDs will be lit and the UPS alarm

will sound.

• If the “OUTPUT LOAD LEVEL” LED remains lit red and the alarm

continues to sound after the test, the UPS's outlets are overloaded.

To clear the overload, unplug some of your equipment and run the

self test repeatedly until the “OUTPUT LOAD LEVEL” LED is no longer

lit red and the alarm is no longer sounding.

CAUTION! Any overload that is not corrected by the user

immediately following a self-test may cause the UPS to shut

down and cease supplying output power in the event of a

blackout or severe brownout.

• If the “BATTERY WARNING” LED remains lit and the alarm continues to

sound after the test, the UPS batteries need to be recharged or

replaced. Allow the UPS to recharge continuously for 12 hours, and

repeat the self-test. If the LED remains lit, contact Tripp Lite for service.

If your UPS requires battery replacement, visit www.tripplite.com/

support/battery/ index.cfm to locate the specific Tripp Lite replacement

battery for your UPS.

* The alarm will beep once briefly after the indicated interval has passed.

12-11-101 93-2442.indb 5 12/4/2012 10:52:42 AM

Indicator Lights

All Indicator Light descriptions apply when the UPS is plugged into a wall outlet

and turned ON.

Basic Operation continued

“POWER” LED: this green LED lights continuously when the UPS is ON

and supplying connected equipment with AC power from a utility

source. The LED flashes and an alarm sounds (4 short beeps followed

by a pause) to indicate the UPS is operating from its internal batteries

during a blackout or severe brownout. If the blackout or severe

brownout is prolonged, you should save files and shut down your

equipment since internal battery power will eventually be depleted. See

“BATTERY CHARGE” LED description below.

“VOLTAGE CORRECTION” LED: this green LED lights continuously

whenever the UPS is automatically correcting high or low AC voltage on

the utility line without the assistance of battery power. The UPS will also

emit a slight clicking noise. These are normal, automatic operations of

the UPS, no action is required on your part.

“OUTPUT LOAD LEVEL” LEDs: These multicolored LEDs indicate the

approximate electrical load of equipment connected to the UPS's AC

outlets: green (light load), yellow (medium load) and red (overload). If

the red LED is either illuminated continuously or flashing, clear the

overload immediately by unplugging some of your equipment from the

outlets until the yellow or green LED illuminates. CAUTION! Any overload

that is not corrected by the user immediately may cause the UPS to

shut down and cease supplying output power in the event of a blackout

or severe brownout.

“BATTERY CHARGE” LEDs: When the UPS is operating from utility

power, these LEDs indicates the approximate charge state of the UPS's

internal batteries: red indicates the batteries are beginning to charge;

yellow indicates the batteries are roughly midway through charging; and

green indicates the batteries are fully charged. When the UPS is

operating from battery power during a blackout or severe brownout,

these multicolor LEDs indicate the approximate amount of energy

(ultimately affecting runtime) that the UPS's batteries will provide: red

indicates a low level of energy; yellow indicates a medium level of

energy; and green indicates a high level of energy. Since the runtime

performance of all UPS batteries will gradually deplete over time, it is

recommended that you periodically perform a self-test (see “MUTE/

TEST” Button description) to determine the energy level of your UPS

batteries BEFORE a blackout or severe brownout occurs. During a

prolonged blackout or severe brownout, you should save files and shut

down your equipment since battery power will eventually be depleted.

When the red LED illuminates and an alarm sounds continuously, this

indicates that the UPS's batteries are nearly out of power and UPS

shutdown is imminent.

12-11-101 93-2442.indb 6 12/4/2012 10:52:42 AM

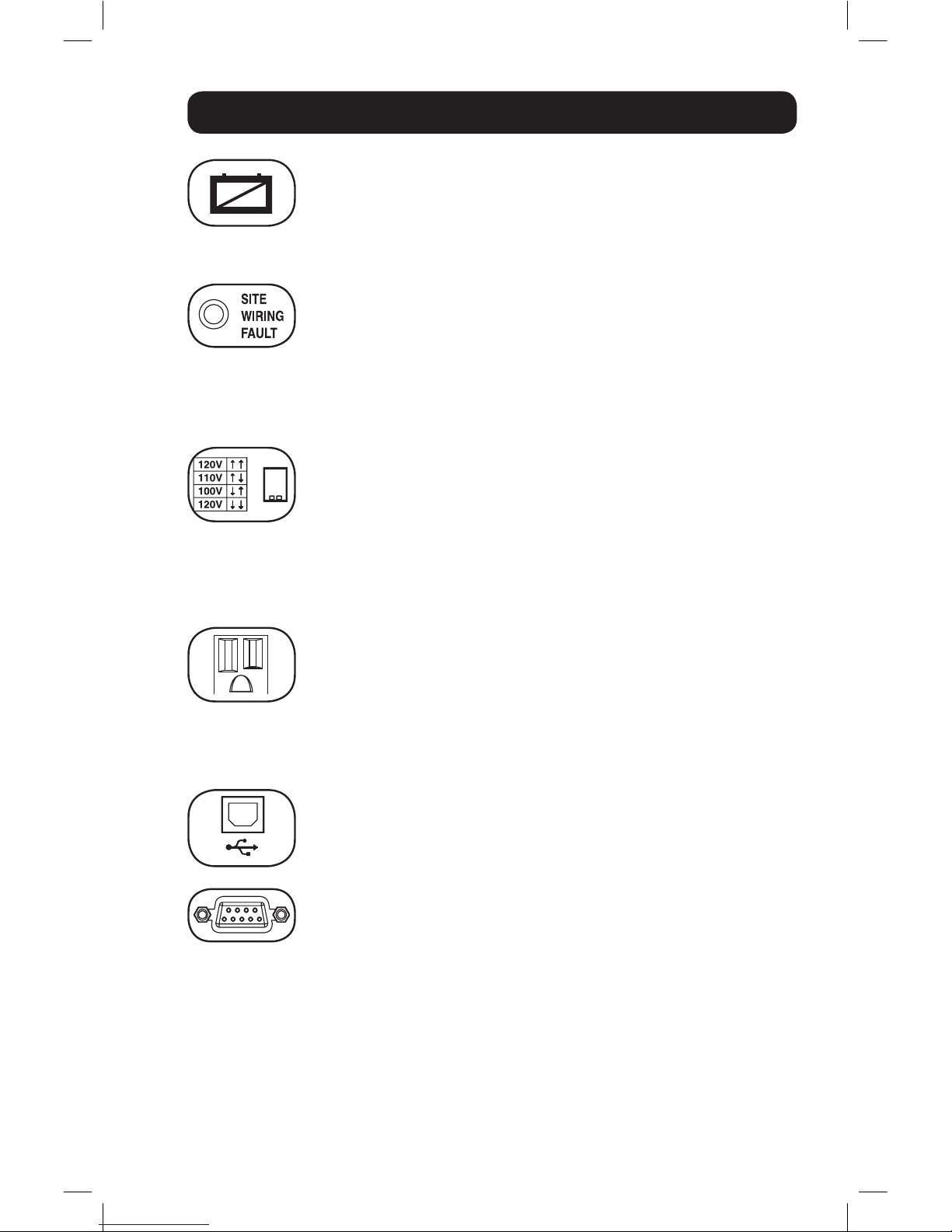

USB Port

RS-232

(DB9 port)

Basic Operation continued

“BATTERY WARNING” LED: this LED lights yellow and an alarm sounds

intermittently after you initiate a self test (See “MUTE/TEST” Button

description) to indicate the UPS batteries need to be recharged or

replaced. Allow the UPS to recharge continuously for 12 hours, and

repeat the self-test. If the LED continues to light, contact Tripp Lite for

service. If your UPS requires battery replacement, visit www.tripplite.com.

“SITE WIRING FAULT” LED: This yellow LED will be lit if the UPS detects

a problem with the wiring of the AC outlet you connect it to. If this

occurs, have the outlet inspected by a qualified electrician. Note that

while the UPS will detect many common wiring faults, including a

missing ground, reversed polarity and overloaded neutral circuits, it

cannot detect every conceivable wiring problem.

Other UPS Features

Voltage DIP Switch: This switch enables you to set the UPS to match

actual input voltage. If the Voltage DIP Switch is set above or below

input voltage, the UPS will treat the input as a continuous overvoltage

or undervoltage condition, and will automatically adjust input voltage to

match the Voltage Dip Switch setting. This will cause constant,

unnecessary wear on the UPS system. Note: The Voltage DIP Switch

must be set with the UPS turned OFF and disconnected from

utility power. If the switch is set while the UPS is connected to

utility power, the setting will not take effect.

AC Receptacles: These output receptacles provide your connected

equipment with AC line power during normal operation and battery

power during power outages. The UPS protects equipment connected

to these receptacles against damaging surges and line noise. Select

outlets provide both battery backup and surge protection for computers,

monitors and other critical devices into these outlets. Select outlets

provide surge protection only for printers and other non-essential

devices that draw large amounts of power.

Communication Ports (USB and RS-232): These ports connect your

UPS to any workstation or server. Use with Tripp Lite's PowerAlert

Software and included cables to enable your computer to automatically

save open files and shut down equipment during a blackout. Also use

PowerAlert Software to monitor a wide variety of AC line power and UPS

operating conditions. Consult your PowerAlert Software manual or

contact Tripp Lite Customer Support for more information. See “USB

Communications” and “RS-232 Serial Communications” in the

“Optional Installation” section for installation instructions.

12-11-101 93-2442.indb 7 12/4/2012 10:52:43 AM

Basic Operation continued

Telephone/Network Protection Jacks: These jacks protect your

equipment against surges over a telephone/network data line.

Connecting your equipment to these jacks is optional. Your UPS will

work properly without this connection.

Not compatible with PoE (Power Over Ethernet) applications.

Accessory Slot: Remove the small cover panel from this slot to install

optional accessories to remotely monitor and control your UPS. Refer to

your accessory’s manual for installation instructions. Visit www.tripplite.

com for more information, including a list of available SNMP, networking

management and connectivity products.

Fan: The fan cools the UPS's internal components. It operates only

when the UPS is in battery backup mode, is charging its batteries or is

carrying a heavy electrical load.

Input Breaker: Protect your electrical equipment from overcurrent draw

from the UPS load. If this breaker trips, remove some of the load, then

reset it by pressing the breaker in.

12-11-101 93-2442.indb 8 12/4/2012 10:52:43 AM

Battery Replacement Door: Under normal conditions, the original battery in your UPS

will last several years. Battery replacement should be performed only by qualified service

personnel. Refer to “Battery Warnings” in the Safety section. Should your UPS require

battery replacement, visit Tripp Lite on the Web at www.tripplite.com/support/ battery/

index.cfm to locate the specific replacement battery for your UPS.

Warranty Registration

Battery Replacement

1 Carefully pull the front panel away from the UPS.

Place front panel on top of the unit. Remove the battery support bar.

2 Remove old batteries.

Carefully pull the batteries from the UPS and disconnect them.

3 Connect new batteries.

Connect the new batteries in exactly the same manner as the old

ones: positive (red) connectors together and negative (black)

connectors together. Carefully push batteries back into the UPS.

4 Reassemble UPS.

Reinstall the battery support bar and replace the front panel.

Visit www.tripplite.com/warranty today to register the warranty for your new Tripp Lite

product. You'll be automatically entered into a drawing for a chance to win a FREE

Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

12-11-101 93-2442.indb 9 12/4/2012 10:52:57 AM

Storage & Service

Storage

CAUTION! Your UPS has an internal power source. Its outlets may still deliver current, even

after the UPS is unplugged, until the UPS is completely turned OFF (deactivated). Before

storing your UPS, turn it completely OFF: with the UPS ON and receiving utility power, press

and hold the STANDBY button for one second (an alarm will beep once briefly after the

interval has passed); then, unplug the UPS from the wall outlet. If you store your UPS for

an extended period of time, recharge the UPS batteries once every three months: plug the

UPS into a wall outlet; allow it to charge for 4 to 6 hours; and then unplug it and place it

back in storage. Note: after you plug the UPS in, it will automatically begin charging its

batteries; however, it will not supply power to its outlets (see Quick Installation section). If

you leave your UPS batteries discharged for an extended period of time, they will suffer a

permanent loss of capacity.

Service

A variety of Extended Warranty and On-Site Service Programs are also available from Tripp Lite.

For more information on services, visit www.tripplite.com/support. Before returning your UPS

for service, follow these steps:

1. Review the installation and operation instructions in this manual to ensure that the

service problem does not originate from a misreading of the instructions.

2. If the problem continues, do not contact or return the UPS to the dealer. Instead, visit

www.tripplite.com/support.

3. If the problem requires service, visit www.tripplite.com/support and click the Product

Returns link. From here you can request a Returned Material Authorization (RMA)

number, which is required for service. A simple on-line form will ask for your unit’s model

and serial numbers along with other general purchaser information. The RMA number,

along with shipping instructions, will be emailed to you. Any damages (direct, indirect,

special or consequential) to the product incurred during shipment to Tripp Lite or an

authorized Tripp Lite service center are not covered under warranty. Products shipped to

Tripp Lite or an authorized Tripp Lite service center must have transportation charges

prepaid. Mark the RMA number on the outside of the package. If the product is within

its warranty period, enclose a copy of your sales receipt. Return the product for service

using an insured carrier to the address given to you when you request the RMA.

12-11-101 93-2442.indb 10 12/4/2012 10:52:58 AM

Autres manuels pour SmartPro SLT

Table des matières

Langues :

Autres manuels Tripp Lite UPS

Tripp Lite

Tripp Lite BCINTERNET500 Manuel utilisateur

Tripp Lite

Tripp Lite S3M30KX Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnLine SU2200RT2U-L520 Instructions d'installation et d'utilisation

Tripp Lite

Tripp Lite SmartPro SMART1500RMXL2Ua Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU16KRT-1TF Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU750RTXLCD2U Guide de configuration

Tripp Lite

Tripp Lite SmartOnline SU12000RT4UHW Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU3000RTXLCD3U Guide de configuration

Tripp Lite

Tripp Lite ECO-UPS ECO650LCD Manuel utilisateur

Tripp Lite

Tripp Lite OMNI650LCD Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU1500RTXL2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU3000XLNAFTA Manuel utilisateur

Tripp Lite

Tripp Lite OmniSmart OMNISMART1050 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SLT Manuel utilisateur

Tripp Lite

Tripp Lite INTERNET525U Manuel utilisateur

Tripp Lite

Tripp Lite HT1000UPS Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro UPS System SMART550USB Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART3000RMOD2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro AG-03AD Series Manuel utilisateur

Tripp Lite

Tripp Lite OmniSmart 725 Manuel utilisateur

Tripp Lite

Tripp Lite SmartPro SMART3000RMXL2U Manuel utilisateur

Tripp Lite

Tripp Lite SmartOnline SU6000RT4UHV Guide de configuration

Tripp Lite

Tripp Lite SmartPro AGSM8207 Series Manuel utilisateur

Tripp Lite

Tripp Lite SMART2200NET Manuel utilisateur

Manuels UPS populaires d'autres marques

Pylontech

Pylontech Victron & Pylontech US5000 Manuel utilisateur

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manuel utilisateur

Mecer

Mecer ME-1000-WTU Manuel utilisateur

Mustek

Mustek PowerMust 530(B) Plus Manuel d'installation et d'exploitation

Emerson

Emerson Liebert NXL series Manuel utilisateur

MAKELSAN

MAKELSAN BOXER SERIES Manuel utilisateur

Block

Block PC-0524-400-0 Manuel utilisateur

CyberPower

CyberPower CP585LCD Manuel utilisateur

Eaton

Eaton 3S Instructions de montage

CyberPower

CyberPower Office Tower Series UPS 1000 Manuel utilisateur

CyberPower

CyberPower BM100 Manuel utilisateur

Best Power

Best Power 610 Manuel utilisateur

Best Power

Best Power Unity/I UT3K Manuel utilisateur

Mustek

Mustek PowerMust 400 Offline Manuel utilisateur

Xantrex

Xantrex Trace 512 UR-UPS Manuel utilisateur

Forza

Forza SL-1501UL Manuel utilisateur

LEGRAND

LEGRAND keor 310081 Manuel utilisateur

ABB

ABB Conceptpower DPA 500 Manuel utilisateur
