Tripp Lite NGI-U08A Manuel utilisateur

8-Port Unmanaged Industrial

Gigabit 10/100/1000 Ethernet

Switch with EIP QoS, DIN or

Wall-Mountable

Model: NGI-U08A

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Owner's Manual

Este manual está disponible en español en la página de Tripp Lite:

tripplite.com

Ce manuel est disponible en français sur le site Web de Tripp Lite :

tripplite.com

Русскоязычная версия настоящего руководства представлена на

веб-сайте компании Tripp Lite по адресу: tripplite.com

Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website

verfügbar: tripplite.com

WARRANTY REGISTRATION

automatically entered to win an ISOBAR®

surge protector in our monthly drawing!

tripplite.com/warranty

• NGI-U08A 10/100/1000 Ethernet Switch with EIP QoS

• DIN Rail-Mounting Clip (Preinstalled)

• Owner’s Manual

• 8 auto-negotiable 10/100/1000 Mbps RJ45 ports

• Supports 10/100/1000Base-T, Full Duplex and auto MDI/MDI-X

crossover function

• Simple plug-and-play installation and operation with no

conﬁguration required

• Rugged high-strength case

• Industrial temperature switch models support operating

temperature range of -40°F to 167°F (-40°C to 75°C)

• Easy-to-read LEDs indicate connection and activity status for

each port

• Meets the following IEEE standards:

o IEEE 802.3 10Base-T

o IEEE 802.3u 100Base-TX

o IEEE 802.3 Auto Negotiation

o IEEE 802.3x Flow Control

o IEEE 802.1p Class of Service

Package Contents

Product Features

Optional Accessories

• Supports MAC address auto-learning and auto-aging

• EIP/QoS/Flow and Storm Control

• Preinstalled durable rail clip mounts ﬁrmly to any standard

35 mm DIN rail

• N001-Series Cat5e 350 MHz Snagless UTP Cables

• N002-Series Cat5e 350 MHz UTP Ethernet Cables

• N200-Series Cat6 Gigabit Molded UTP Ethernet Cables

• N201-Series Cat6 Gigabit Snagless Molded UTP Ethernet

Cables

8-Port Unmanaged Industrial Gigabit 10/100/1000 Ethernet

Switch with EIP QoS, DIN or Wall-Mountable

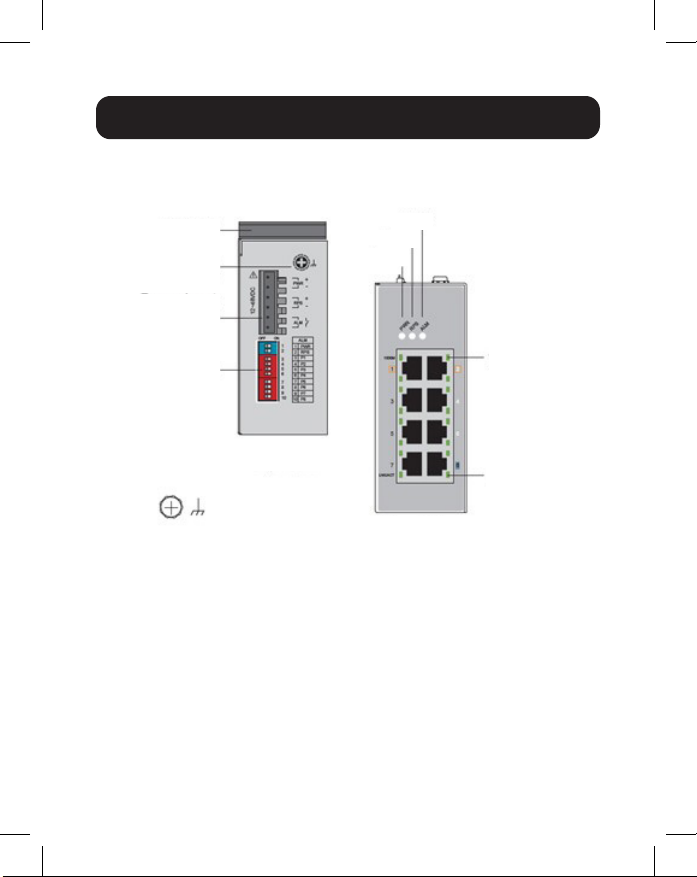

Product Overview

DIN Rail

Grounding

Screw

Power Input

Terminal Block

DIP Switches

Top View

Front View

1000 Mbps

LNK/ACT

Grounding Screw

PWR

RPS

ALM

DIN-Rail Mounting and Dismounting Instructions

Mounting the Switch Removing the Switch

Click

Push Push

Click

ATTENTION: The NGI-U08A is an open-type device

and shall be DIN-rail mounted or wall mounted

(optional) in a cabinet or rack enclosure. The

ambient temperature should not exceed 75°C

(167°F).

Mounting the Switch

Place the switch on the DIN rail from above using the built-in

slot. Push the front of the switch toward the mounting surface

until it snaps into place. You will hear a “click” to indicate it has

successfully snapped into place.

Dismounting the Switch

Press the switch from the top, then pull out the lower edge of the

switch to remove it from the DIN rail.

DIN-Rail Mounting and Dismounting Instructions

ATTENTION: A corrosion-free DIN mounting rail is

advisable. When mounting the switch, be sure to

allow enough space between devices to install the

cabling and to ensure proper airﬂow.

Grounding the Switch

Grounding and wire routing help limit the effects of line noise

caused by electromagnetic interference (EMI). Run the ground

connection from the ground screw to the grounding surface, then

connect the ground connection from the terminal block to the

grounding surface prior to connecting devices.

ATTENTION: This switch is intended for mounting on a well-

grounded surface, such as a metal panel.

WARNING: Safety measures should be taken before

connecting the power cable. Turn off the power before

connecting modules or wires. The correct power supply

voltage is listed on the product label. Check the voltage

of your power source to make sure you are using the

correct voltage. DO NOT use a voltage greater than

what is speciﬁed on the product label. Calculate the

maximum possible current in each power wire and

common wire. Conﬁrm all electrical codes dictating

the maximum current allowable for each wire size. If

current exceeds the maximum rating, the wiring can

overheat causing serious damage to your equipment.

Please read and follow these guidelines:

• Use separate paths to route wiring for power and devices. If

power wiring and device wiring paths must cross, make sure

the wires are perpendicular at the intersection point.

Note: Do not run signal or communications wiring and power wiring

through the same wire conduit. To avoid interference, wires with

different signal characteristics should be routed separately.

• You can use the type of signal transmitted through a wire

to determine which wires should be kept separate. Wiring

that shares similar electrical characteristics can be bundled

together.

• You should separate input wiring from output wiring.

• Be advised that you should label the wiring to all devices in the

system.

Wiring Requirements

Wiring Power Input

You can use “PWR” for Primary Power input and “RPS” for

Redundant Power Input. Check the polarity while connecting. The

top view of the Terminal Block is shown in the ﬁgure below:

CAUTION:

• Use copper conductors only.

• Wiring cable temperature should support at least 105°C

(221˚F).

• Tighten the wire to a torque value 0.5 N•m (4.5 in•lb).

Note: The wire gauge for the terminal block should range between 12

and 24 AWG.

Terminal Block

PWR

RPS

ALM

Wiring Requirements

To insert power wire and connect the speciﬁed voltage and

maximum electric current to the power terminal block, follow

these steps:

• Use a ﬂat-head screwdriver to loosen the wire-clamp screws.

• Insert the negative/positive DC wires into the PWR-/PWR+

terminals, respectively.

• Tighten the wire-clamp screws to prevent the wires from

loosening.

ATTENTION: Use a power supply from 12~48VDC, 0.5A

maximum. The device power shall be supplied by LPS circuit.

Wiring Requirements

Wiring the Relay Contact (ALM)

The switch has one set of relay alarm output. This relay contact

uses two contacts of the terminal block on the switch top panel.

The two contacts of the 6-pin terminal block connector are used

to detect user-conﬁgured events. The two wires attached to the

fault contacts form an open circuit when a user-conﬁgured event

is triggered. If a user-conﬁgured event does not occur, the fault

circuit remains closed.

Load

Relay rating: 24V, 1A

External

Power

PWR

RPS

ALM
