Model #: ISOBAR6

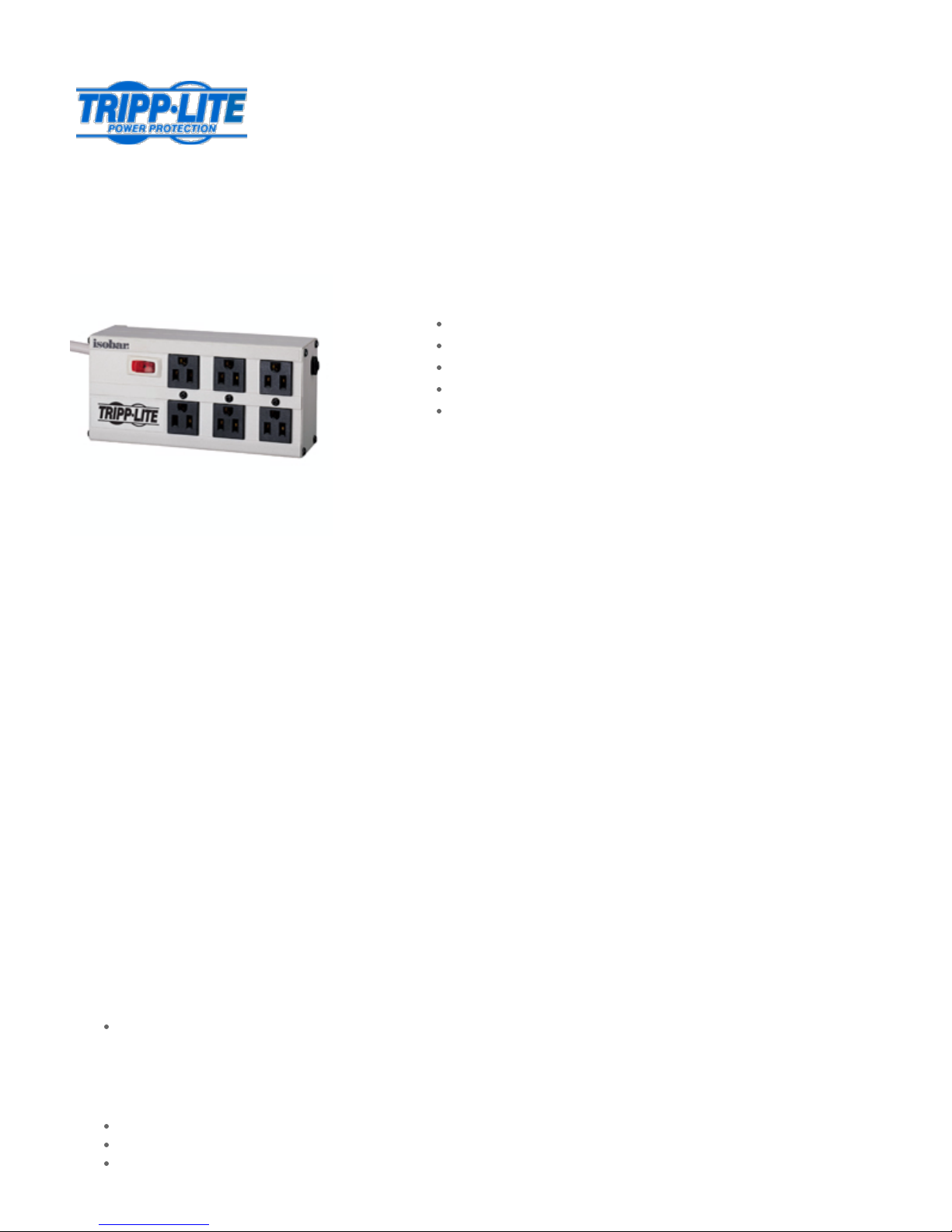

Isobar Surge Suppressor- Premium surge, spike and line noise protection
Highlights
6 outlets/6-ft. cord
2350 joule rating
All metal housing
Isolated filter banks
$50,000 Ultimate Lifetime Insurance (USA, Puerto Rico & Canada only)
Description
For more than 20 years, America's leading companies have trusted Tripp Lite's Isobar Premium surge and noise suppressors to protect sensitive
computer, networking and telecom equipment. With more than 14 million satisfied customers, the Isobar remains the world's #1 selling premium
surge suppressor. Loaded with a generous combination of high quality components, near indestructible all-metal case and unique noise filtration
system, the Isobar offers the highest level of protection attainable in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking
offer extreme levels of protection against the heaviest surge conditions exceeding IEEE 587 category A & B specifications and reducing 6,000V test
surges to harmless levels under 35 volts. Isobar's unique protection system combines large torroidal chokes, ferrite rod-core inductors, HF/VHF
capacitors and multiple layers of metal oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise generated by
other pieces of connected equipment. ISOBAR6 offers 6 outlets arranged in three filter banks to prevent system crashes, reboots and performance
problems common as noisy system peripherals are powered off and on. Surge suppression rated at 2350 joules/97,000 amps offers network-grade
protection. Widely spaced NEMA 5-15 outlets accommodate up to 4 large transformer plugs without blocking outlets. Includes 6 foot AC line cord
with space-saving angled input plug and keyhole mounting tabs. Lifetime warranty with $50,000 Ultimate Lifetime connected equipment insurance
(USA & Canada Only).
PLUG/OUTLETS: Input: NEMA 5-15P/Output: 6 NEMA5-15R/6-ft. AC line cord
ELECTRICAL: 120V AC, 50/60Hz (Requires NEMA 5-15R wall receptacle)
SUPPRESSION: AC: 140V RMS Clamping/2350 joules/97,000 amps
FORMAT: Corded all-metal strip with transformer spaced outlets
Applications
Ideal for premium protection of personal computers with peripherals, network and CAD/CAM/CAE workstations, internetworking
accessories, telecommunications systems, point of sale equipment, audio/video and home theater systems in any home, office or industrial
application.
Package Includes
ISOBAR6 Surge Suppressor
Set of 4 outlet safety covers
Instruction manual with warranty information
Features
Tripp Lite's ISOBAR is the world's #1 selling premium suppressor series with more than 14 million satisfied customers and a safety-tested
history of 20+ years
Robust surge suppression with sine-wave tracking protects against the heaviest of surge conditions, exceeding IEEE category A&B
specifications and reducing 6,000V test surges to harmless levels less than 35 volts
Multi-component suppression circuits combine torroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal
oxide varistors into exclusive isolated filter banks that remove EMI/RFI interference, even noise from other pieces of connected equipment
6 outlets arranged in three filter banks prevent system crashes, reboots and performance problems common as noisy peripherals are
powered off and on
Network grade surge suppression rated at 2350 joules/97,000 amps
Widely spaced outlets accommodate up to 4 large transformer plugs without blocking outlets
Lighted power switch confirms power on/off status
6 foot AC line cord with space-saving angled input plug
Keyhole mounting tabs allow permanent installation
120VAC, 50/60Hz electrical compatibility
$50,000 Ultimate Lifetime Insurance (USA & Canada Only)
Lifetime product warranty
UL1449 listed - surge suppression (330V let-through), UL1283 listed - EMI protection, UL1363 listed - power tap, cUL approved to Canadian
standards
Specifications
OVERVIEW
Intended Application Home/Office, Computer Networks
SYSTEM OVERVIEW
Voltage compatibility 120 VAC
Frequency compatibility 50/60 Hz
OUTPUT
Output volt amp
capacity (amps)
12
Output watts 1440
Outlet quantity / type 6 NEMA 5-15R
Transformer
accommodation
Supports up to 4 large transformer plug accessories without covering remaining outlets
INPUT
Input connection type NEMA 5-15P input plug
Input cord length (ft.) 6 ft.
Input cord length (m) 1.8
Recommended
Electrical Service
120V (110-125V)
LEDS ALARMS & SWITCHES
Switches Two position red illuminated on/off power switch
SURGE / NOISE SUPPRESSION
Protection modes Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
AC suppression joule
rating
2350 joules
Clamping voltage (RMS) 140V
AC suppression
response time
NM = 0 ns. CM =
AC suppression surge
current rating
97,000 amps (36,000 NM / 61,000 CM)
AC suppression
components used
Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.
Safe thermal fusing Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
UL1499 let through
rating
330V - UL Verified
IEEE587 Cat. A
ringwave let through
Less than 35 volts
EMI / RFI filtering 40-80 dB
Isolated filter banks Unique isolated filter bank design offers additional filtering between each duplex pair of outlets on the strip to prevent
electrical noise interference between connected loads. Includes 3 filter banks.
Immunity Conforms to IEE 587 / ANSI C62.41
DATALINE SURGE SUPPRESSION
Telephone/DSL
Protection
No
Cable (Coax) Protection No
Network (Ethernet)
Protection
No
PHYSICAL
Unit Dimensions
(HWD/in)
2.5 x 7 x 3.5
Unit Dimensions
(HWD/cm)
6.4 x 17.8 x 8.9
Material of construction Metal
Integrated keyhole
mounting tabs
Metal end caps are fitted with keyhole mounting tabs for wallmount installation
Receptacle Color Black
AC line cord color Gray
Style Strip
SPECIAL FEATURES
Appearance Rugged all-metal corded strip format with high quality duplex receptacles
CERTIFICATIONS
UL1449 1998 Rev. (AC
Suppression)
UL1449
UL1283 (EMI Filter) UL1283
UL1363 (Power Tap) UL1363
cUL / CSA (Canada) cUL
Approvals Exceeds IEEE 587 category A&B specifications
WARRANTY
Product Warranty
Period
Lifetime
Connected Equipment
Coverage
$50,000
More information, including related products, owner's manuals, and additional technical specifications, can be found online at
www.tripplite.com/en/products/model.cfm?txtModelID=105.
