Owner’s Manual

High Voltage

Monitored Rack PDUs

Model: PDUMNH20HV

(Series Number: AGPD7989)

1. Important Safety Instructions 2

2. Features 3

3. Installation 5

3.1 Mounting the PDU 5

3.2 Connecting the PDU 7

3.3 Networking the PDU 9

3.4 Testing Network Connection 9

3.5 Remote Monitoring and Control 10

4. Technical Support 10

5. Warranty and Product Registration 11

Español 12

Français 23

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

and ultimate peace of mind.

You could also win an

ISOBAR6ULTRA surge protector—

a $50 value!

www.tripplite.com/warranty

15-04-184-93341C.indb 1 4/16/2015 8:49:09 AM

1. Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that should be

followed during the installation, operation, and storage of this

product. Failure to heed these instructions may affect your

warranty.

• The PDU provides the convenience of multiple outlets, but DOES NOT provide surge

or line noise protection for connected equipment.

• The PDU is designed for indoor use only, in a controlled environment, away from

excess moisture, temperature extremes, conductive contaminants, dust or direct

sunlight.

• Keep indoor ambient temperature between 0°C and 40°C.

• The PDU must be installed by a qualiﬁed technician only.

• Do not attempt to mount the PDU to an insecure or unstable surface.

• Install in accordance with National Electrical Code standards. Be sure to use the

proper overcurrent protection for the installation, in accordance with the plug/

equipment rating.

• Connect the PDU to an outlet that is in accordance with your local building codes and

that is adequately protected against excess currents, short circuits and earth faults.

• The electrical outlets supplying power to the equipment should be installed near the

equipment and easily accessible.

• Do not connect the PDU to an ungrounded outlet or to extension cords or adapters

that eliminate the connection to ground.

• Be sure to provide a local disconnect device on any models that are permanently

installed without a plug that is easily accessible.

• Never attempt to install electrical equipment during a thunderstorm.

• Individual equipment connected to the PDU should not draw more current than the

individual PDU’s outlet’s rating.

• The total load connected to the PDU must not exceed the maximum load rating for

the PDU.

• Do not attempt to modify the PDU, input plugs or power cables.

• Do not drill into or attempt to open any part of the PDU housing. There are no user-

serviceable parts inside.

• Do not attempt to use the PDU if any part of it becomes damaged.

• Use of this equipment in life support applications where failure of this equipment

can reasonably be expected to cause the failure of the life support equipment or to

signiﬁcantly affect its safety or effectiveness is not recommended. Do not use this

equipment in the presence of a ﬂammable anesthetic mixture with air, oxygen or

nitrous oxide.

15-04-184-93341C.indb 2 4/16/2015 8:49:09 AM

LOAD (AMPS)

A B

2. Features

AC Input Power Cord: The detachable cord has an IEC-

320-C19 connector Aand an IEC-320-C20 connector B.

IEC-320-C20 Power Inlet: The IEC power inlet connects to

the included power cord or a compatible user-supplied power

cord.

AC Input Adapter: The adapter converts the AC input power

cord to a NEMA L6-20P plug. The included retention bracket

(not shown) secures the connection.

IEC-320-C13 Output Receptacles: These receptacles

distribute 208/230V AC power to connected equipment.

Digital Load Meter (Ammeter): The digital load meter

displays the load in amps.

Longer 1U Mounting Brackets: Use these brackets to

mount the 1U PDU horizontally in a standard rack or rack

enclosure. The mounting depth can be adjusted by attaching

the brackets to different positions on the PDU.

Shorter 0U Mounting Brackets: Use these brackets

to mount the PDU in a 0U rack, wall or under-counter

conﬁguration for 1U PDU models.

Accessory Slot: An SNMP card has been installed in the

slot, allowing the PDU to be monitored remotely.

Factory Port: The port is reserved for conﬁguration by factory

authorized personnel only. Do not connect anything to the

port.

15-04-184-93341C.indb 3 4/16/2015 8:49:09 AM

2. Features

SNMP Card Ports:

PS/2 Port: Use this port to connect a Tripp Lite

ENVIROSENSE environmental sensor to provide remote

temperature/humidity monitoring and a dry contact interface

to control and monitor alarm, security and telecom devices.

Visit www.tripplite.com for ordering information.

Note: Do not connect a keyboard or mouse to this port.

Mini-DIN Serial Port: Use this port to provide a direct

terminal connection to a computer with a terminal emulation

program. A serial cable (part number 73-1025) is included

with the PDU. If you need to order a replacement cable, visit

www.tripplite.com.

Ethernet Port: Use this RJ-45 jack to connect the PDU to

the network with a standard Ethernet patch cable. The

Status LED Aand Link LED Bindicate several operating

conditions, as shown in the table below. This port is not

compatible with PoE (Power Over Ethernet) applications.

Network Operating Conditions

AStatus LED Color

Off Card Not Initialized

Steady Green Card Initialized and Operational

Flashing Amber Error - Card Not Initialized

BLink LED Color

Off No Network Connection

Flashing Amber 100 Mbps Network Connection

Flashing Green 10 Mbps Network Connection

SNMP Reset Button: The SNMP reset button Cis recessed

in a small opening between the Link and Status LEDs. To

reset your SNMPWEBCARD, use a small tool to press the

reset button for 3 seconds. Rebooting the network card will

not erase network settings or interrupt AC power.

15-04-184-93341C.indb 4 4/16/2015 8:49:09 AM

3.1-1

3.1-2

3. Installation

3.1 Mounting the PDU

The PDU supports ﬁve primary mounting conﬁgurations: 1U Rack, 0U Rack, Wall,

Under-Counter and Reduced-Depth.

Note: Regardless of conﬁguration, the user must determine the ﬁtness of hardware and

procedures before mounting. The PDU and included hardware are designed for common rack

and rack enclosure types and may not be appropriate for all applications. Exact mounting

conﬁgurations may vary.

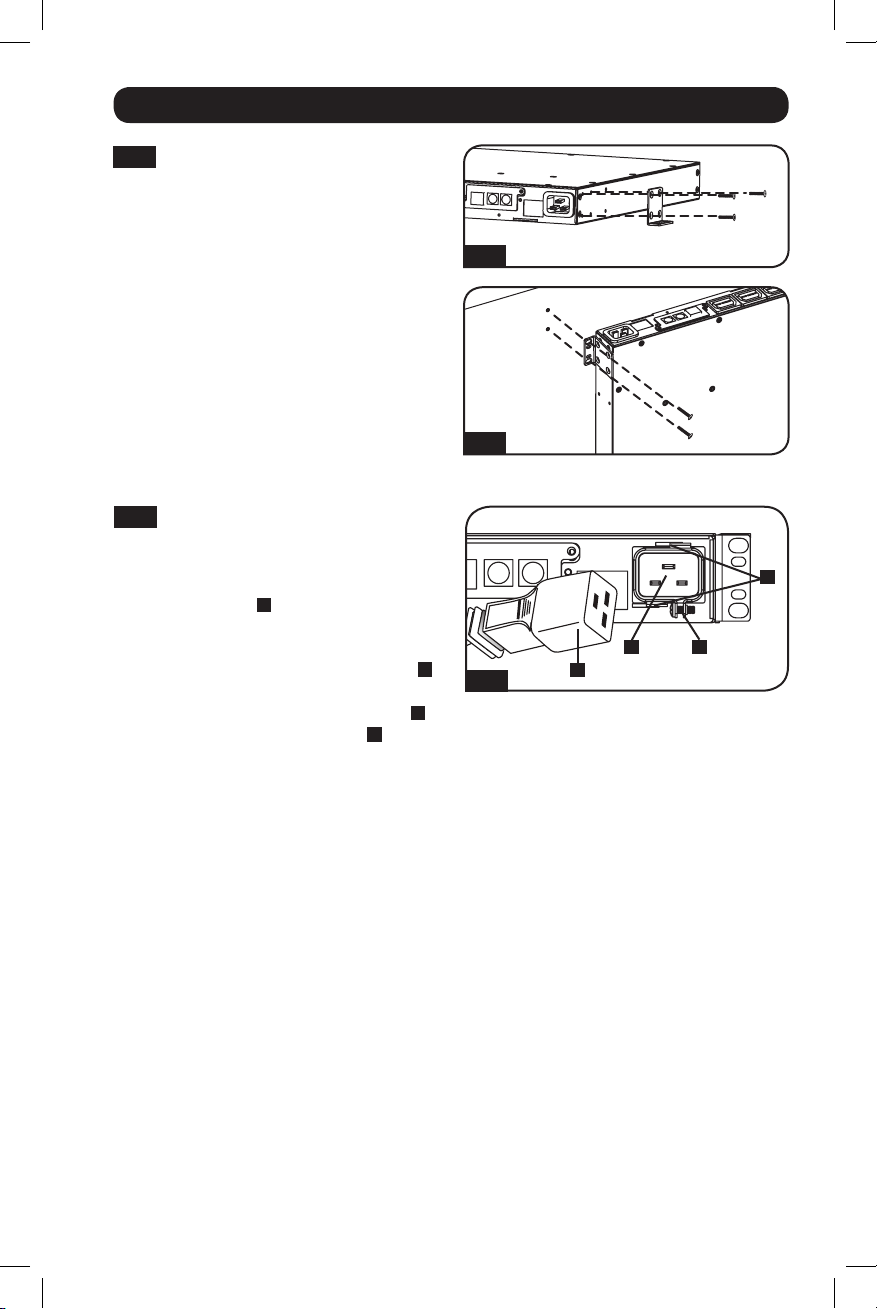

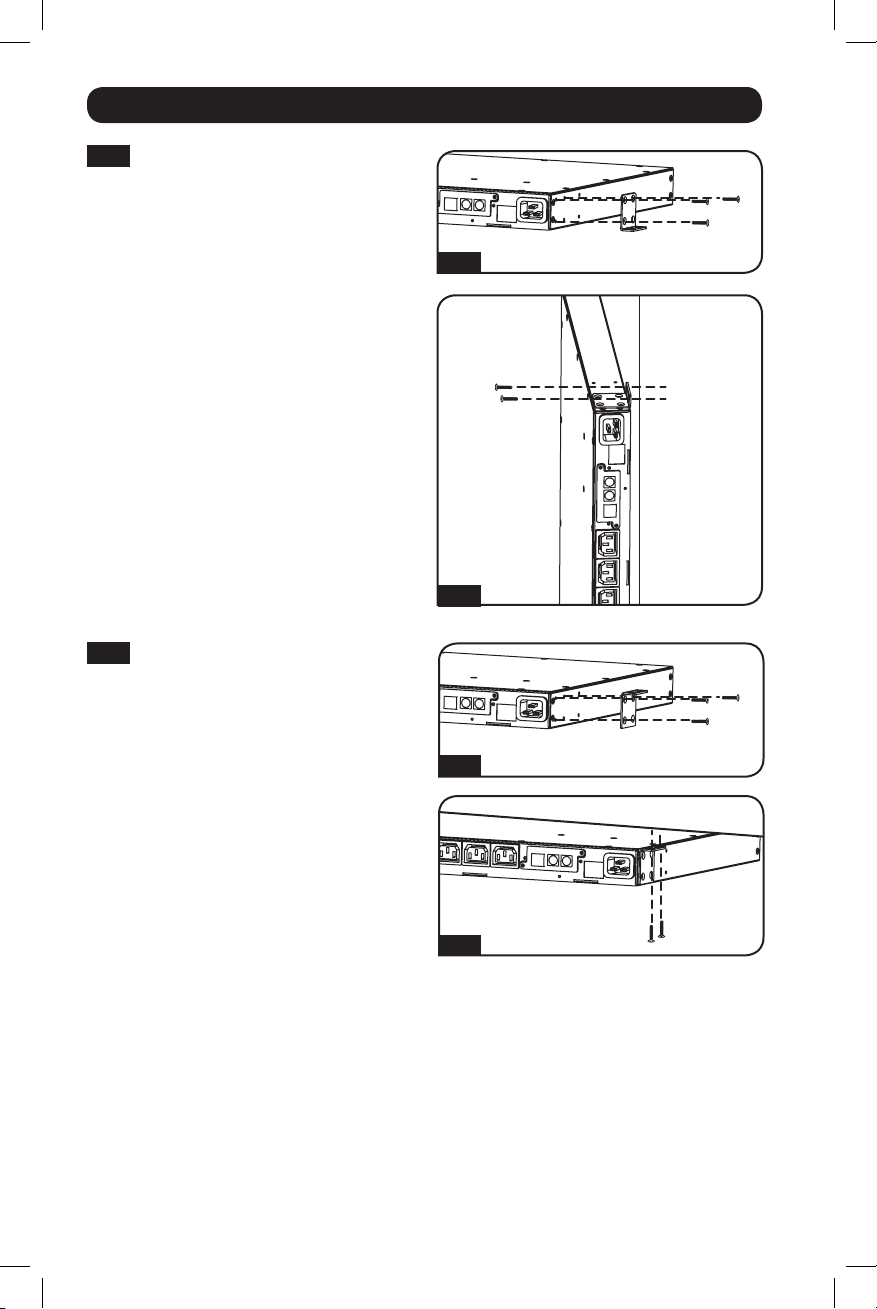

3.1-1 1U Rack Mounting: Use three

screws to attach each of the two

longer mounting brackets to the

PDU as shown. You can mount

the PDU in a recessed position by

attaching the mounting brackets so

they extend beyond the front panel

of the PDU. Mount the PDU in the

rack by inserting four user-supplied

screws through the mounting

brackets and into the mounting

rack rails.

3.1-2 0U Rack Mounting: Use three

screws to attach each of the two

shorter mounting brackets to the

PDU as shown. Mount the PDU

vertically by inserting two or more

user-supplied screws through

the mounting brackets and into

mounting points in the rack or rack

enclosure.

You may have to remove the

screws attaching the mounting

brackets to the PDU, change the

orientation of the brackets as

shown and reattach the brackets.

Use only the screws supplied by

the manufacturer or their exact

equivalent (#8-32, 3/16” ﬂat

head). Attach the PDU vertically by

inserting two or more user-supplied

screws through the PDU mounting

brackets and into mounting points

in the rack or rack enclosure.

15-04-184-93341C.indb 5 4/16/2015 8:49:10 AM

3.1-3

WALL

3.1-4

3. Installation

3.1-3 Wall Mounting: Use three screws

to attach each of the two shorter

mounting brackets to the PDU

as shown. Mount the PDU to

the wall by inserting two or more

user-supplied screws through the

mounting brackets and into secure

mounting points.

You may have to remove the

screws attaching the mounting

brackets to the PDU, change the

orientation of the brackets as

shown and reattach the brackets.

Use only the screws supplied by

the manufacturer or their exact

equivalent (#8-32, 3/16” ﬂat

head). Attach the PDU to a stable

mounting surface by inserting

two or more user-supplied screws

through the PDU mounting

brackets and into secure points on

the mounting surface.

3.1-4 Under-Counter Mounting: Use

three screws to attach each of

the two shorter mounting brackets

to the PDU as shown. Mount the

PDU under the counter by inserting

two or more user-supplied screws

through the mounting brackets and

into secure mounting points.

You may have to remove the

screws attaching the mounting

brackets to the PDU, change the

orientation of the brackets as

shown and reattach the brackets.

Use only the screws supplied by

the manufacturer or their exact

equivalent (#8-32, 3/16” ﬂat

head). Attach the PDU to a stable

mounting surface by inserting

two or more user-supplied screws

through the PDU mounting

brackets and into secure points on

the mounting surface.

15-04-184-93341C.indb 6 4/16/2015 8:49:10 AM

3.1-5

3.2-1

3. Installation

3.1-5 Reduced-Depth Mounting: Use

three screws to attach each of the

two shorter mounting brackets to

the PDU as shown. Mount the PDU

to a stable surface with the outlets

facing upward by inserting two or

more user-supplied screws through

the mounting brackets and into

secure mounting points.

3.2 Connecting the PDU

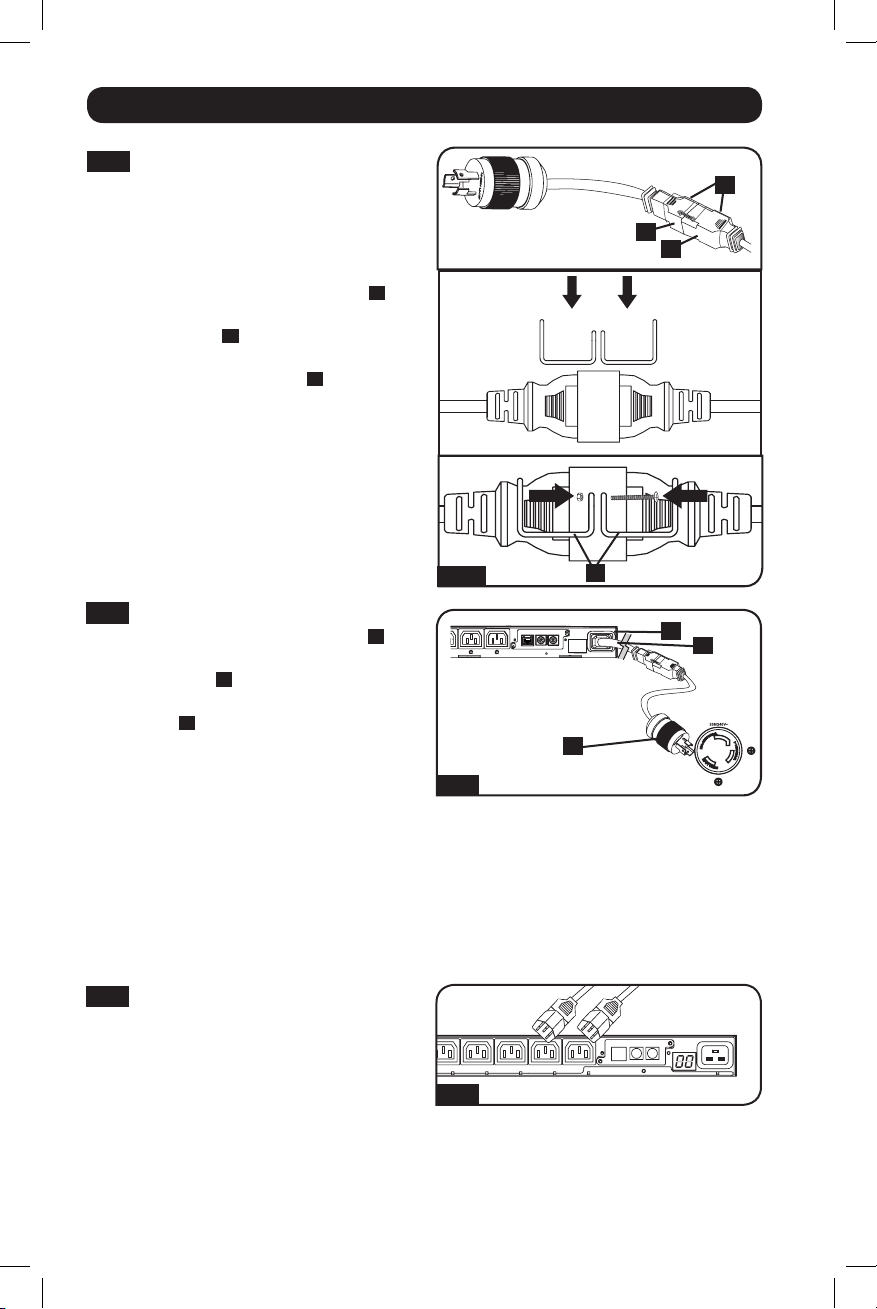

3.2-1 Input Power Cord Connection:

Attach the cable clamp to the PDU

by inserting the tabs into available

slots on the top and bottom of the

power inlet A. Secure the clamp

by sliding it to the right. Attach the

included power cord to the PDU by

inserting the IEC C19 connector B

of the power cord into the cable

clamp and IEC C20 power inlet C.

Install the included screw Don

the cable clamp to secure the

power cord connection. Connect

the other end of the input power

cord to a compatible source of AC

power, such as a UPS system, PDU

or utility outlet.

Note: The AC power source should not

share a circuit with a heavy electrical

load.

Note: When connecting the PDU, it

should be provided with over-current

protection and a maximum 20A

branch-rated over-current protection

device.

15-04-184-93341C.indb 7 4/16/2015 8:49:10 AM

3.2-2 C

3.2-4

3.2-3

3. Installation

3.2-3 NEMA Power Cord Connection:

Insert the IEC C19 connector Aof

the input power cord into the IEC

C20 inlet Bof the PDU. Connect

the other end of the input power

cord Cto a compatible source of

AC power, such as a UPS system,

PDU or utility outlet. The PDU

should be provided with over-

current protection. The PDU should

be provided with a maximum 20A

branch-rated over-current

protection device.

Note: The AC power source should not

share a circuit with a heavy electrical

load (such as an air conditioner or

refrigerator).

3.2-2 NEMA Adapter Connection: The

PDU includes a plug adapter that

adds a NEMA L6-20P plug to the

input power cord. Use this adapter

only if you will be connecting the

PDU to a NEMA L6-20R outlet.

Insert the IEC C19 connector Aof

the adapter into the IEC C20

connector Bof the input power

cord. Secure the connection with

the retention bracket Cby using

the included bolts to fasten the two

halves of the bracket around the

connection as shown.

Caution: To avoid the risk of

electric shock, ensure that the

Neutral (L2) conductor has been

identiﬁed before connecting the

PDU.

3.2-4 Connect Equipment to PDU: Do

not exceed the load rating of the

PDU. The total electrical current

used by the PDU will be displayed

on the digital meter in amperes.

Refer to the Digital Load Meter

(Ammeter) in the Features section

for more information.

15-04-184-93341C.indb 8 4/16/2015 8:49:11 AM

3. Installation

3.3 Networking the PDU

Connect PDU to Network: While the

PDU is powered, connect a standard

Ethernet patch cable to the RJ-45

Ethernet port Aon the PDU.

Note: This port is not compatible with PoE

(Power over Ethernet) applications.

3.4 Testing Network Connection

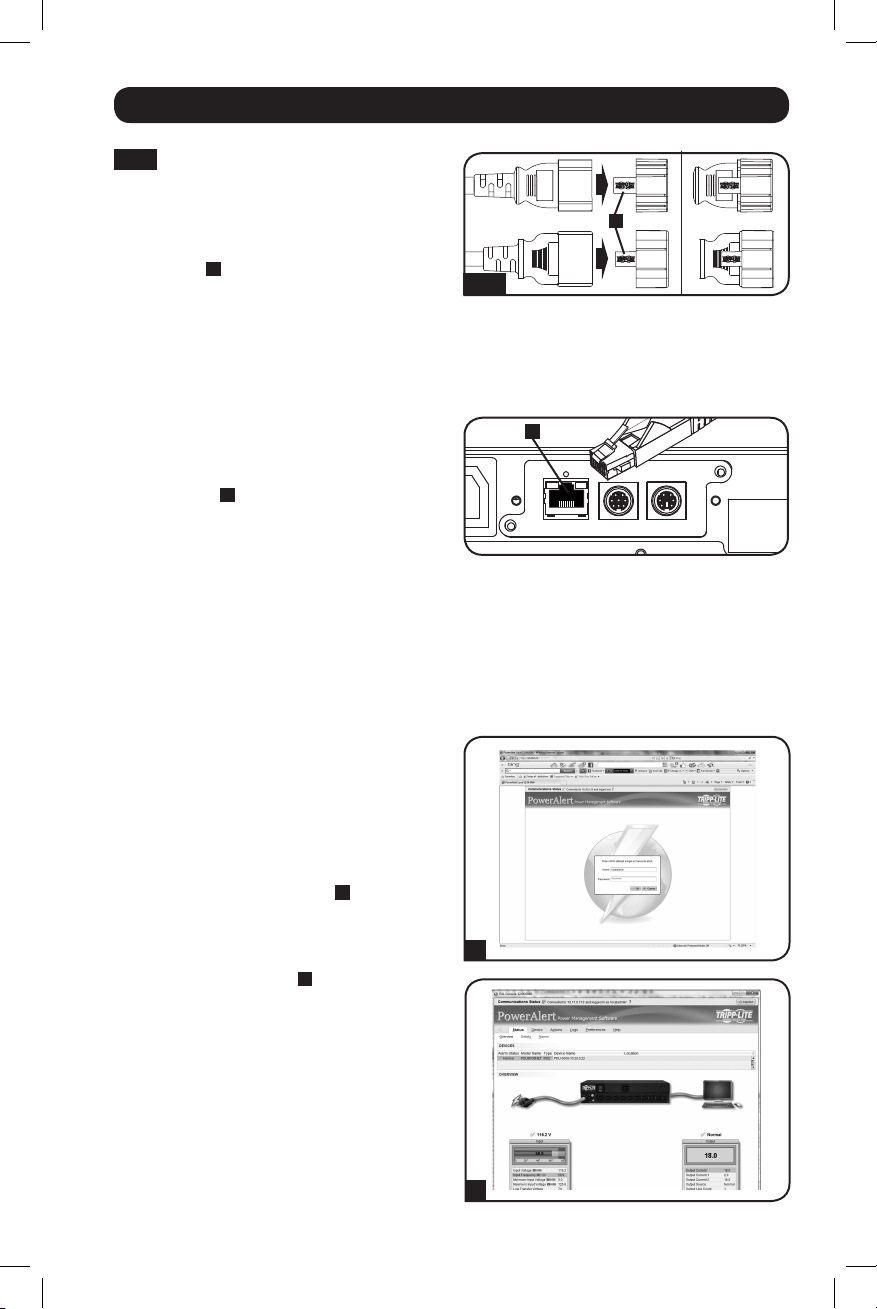

Access PDU with Web Browser: After an

IP address has been assigned to the PDU,

attempt to access it with a Web browser

that supports frames, forms and Java™.

Open a Web browser on a computer

connected to the LAN and enter the IP

address assigned to the PDU. You should

be prompted for a password A. The user

name is localadmin and the default

password is localadmin. After you enter

the user name and password, the

PowerAlert Status page Bwill appear in

the browser window. For more information

about conﬁguration and operation of the

PDU via the PowerAlert interface, refer to

the SNMPWEBCARD Installation Guide.

Note for Network Management System

Users Only: Two MIB ﬁles - Tripplite.mib

and RFC1628.mib - must be loaded on

each Network Management Station that will

monitor the PDU via SNMP. The ﬁles can be

downloaded from the Support section of your

PDU product’s webpage at www.tripplite.com.

3.2-5

3.2-5 Optional Cord Retention

Procedure: Use the included C14

plastic sleeves to secure plugs to

receptacles. Attach the sleeve to

the plug, making sure that the pull

tabs Aremain outside the plug

and that the ﬁt is secure. To unplug

equipment properly, use the pull

tabs to remove the plug and sleeve

from the receptacle.

The PDU will attempt to obtain an IP address via DHCP. This may take as long as

several minutes, depending on your network environment. For more information

about conﬁguration and operation of the PDU via the PowerAlert interface, refer to the

SNMPWEBCARD User’s Guide provided in the Support section of your PDU product’s

webpage at www.tripplite.com.

15-04-184-93341C.indb 9 4/16/2015 8:49:12 AM

4. Technical Support

Web: www.tripplite.com/support Email: [email protected]

3. Installation

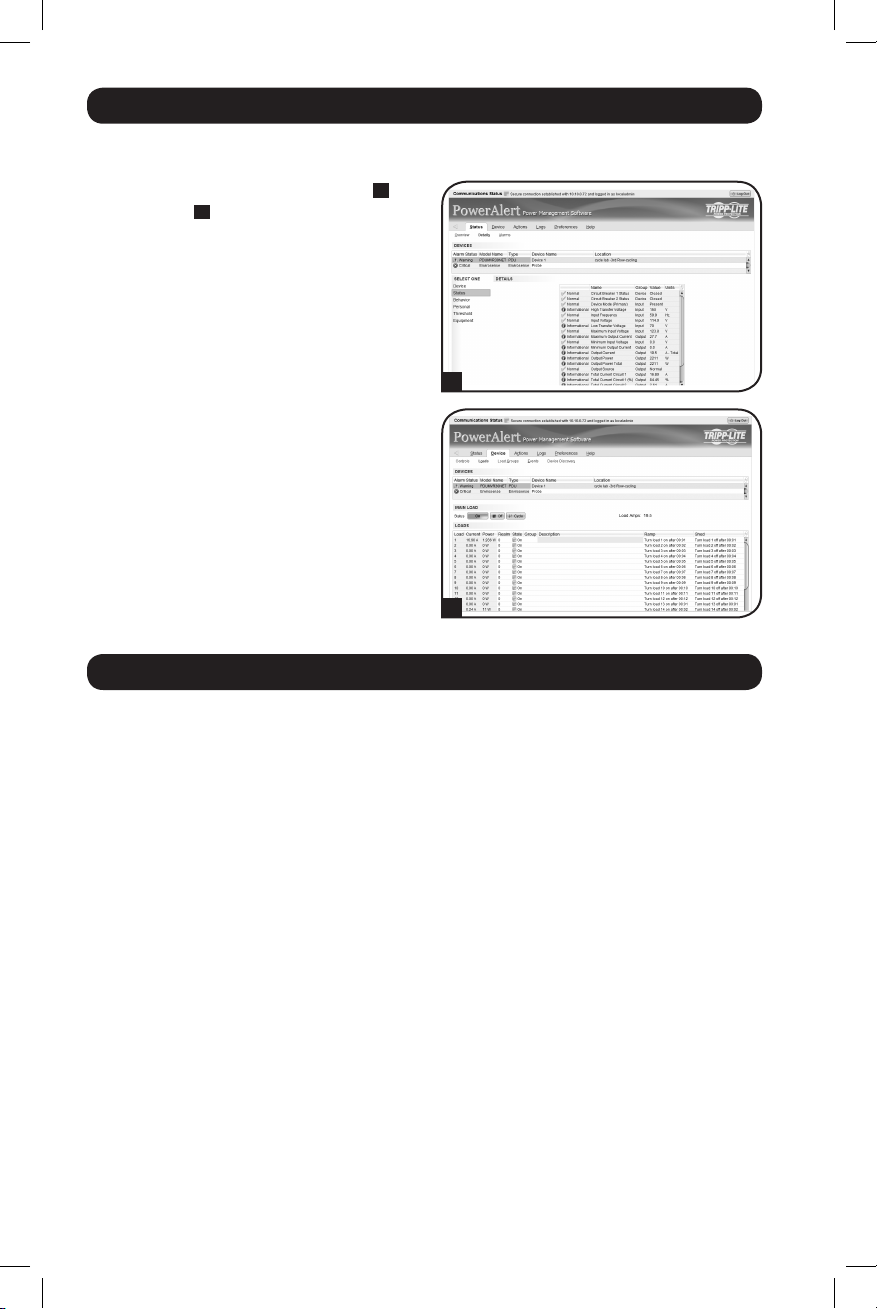

3.5 Remote Monitoring and Control

The PDU provides remote monitoring A,

outlet control Band more via Web

browser, telnet and SNMP-based Network

Management Systems. For more

information about conﬁguration and

operation of the PDU via the PowerAlert

Web browser interface, refer to the

SNMPWEBCARD Installation Guide. You

can ﬁnd the guide by going to

www.tripplite.com/support and typing

“SNMPWEBCARD” in the search ﬁeld.

15-04-184-93341C.indb 10 4/16/2015 8:49:12 AM

Autres manuels pour PDUMNH20HV

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Tripp Lite Unité de distribution d'énergie

Tripp Lite

Tripp Lite PDU3EVN10L2130 Manuel utilisateur

Tripp Lite

Tripp Lite PDUMV30HV2 Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH15AT Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH15AT Manuel utilisateur

Tripp Lite

Tripp Lite Power Distribution Unit (PDU) PDU6K Manuel utilisateur

Tripp Lite

Tripp Lite PDU Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH15S Manuel utilisateur

Tripp Lite

Tripp Lite PDUNV Manuel utilisateur

Tripp Lite

Tripp Lite PDU1215 Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH30HVNET Manuel utilisateur

Tripp Lite

Tripp Lite PDUH20DV Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH15-ISO Manuel utilisateur

Tripp Lite

Tripp Lite SUPDM56HW Manuel utilisateur

Tripp Lite

Tripp Lite PDUH30HV19 Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH20NET2 Guide de configuration

Tripp Lite

Tripp Lite PDUMH15 Manuel utilisateur

Tripp Lite

Tripp Lite PDU3VN10L2120 Manuel utilisateur

Tripp Lite

Tripp Lite 200904140 Manuel utilisateur

Tripp Lite

Tripp Lite SUPDMB710 Manuel utilisateur

Tripp Lite

Tripp Lite Metered Rack PDU Manuel utilisateur

Tripp Lite

Tripp Lite SUPDMB568HW Manuel utilisateur

Tripp Lite

Tripp Lite PDUV15 Manuel utilisateur

Tripp Lite

Tripp Lite PDU1230 Manuel utilisateur

Tripp Lite

Tripp Lite PDUMH15AT Manuel utilisateur

Manuels Unité de distribution d'énergie populaires d'autres marques

hager

hager SP 015 Manuel utilisateur

Pakedge

Pakedge PowerPak 9 Manuel utilisateur

Pts

Pts 9042 Series Manuel utilisateur

Shure

Shure WA405 Manuel utilisateur

CORNING

CORNING CCH 4U Manuel utilisateur

Panamax

Panamax M4LT-EX Manuel utilisateur

PANCONNECT

PANCONNECT FLAT 3M Manuel utilisateur

Raytheon

Raytheon 138-118 Manuel utilisateur

D&R ELECTRONICS

D&R ELECTRONICS PDU-6SS Manuel utilisateur

Botex

Botex PSA 322-6 DL Manuel utilisateur

GE QuiXtra 4000 Guide de démarrage rapide

RDL

RDL EZ Series Manuel utilisateur

StarTech.com

StarTech.com RKPW161915 Manuel du système

Vertiv

Vertiv Knürr DI-Strip Rack PDU Manuel utilisateur

ABB

ABB PSBS0065 Manuel

Baumuller

Baumuller BFN 3-1-0007-001 Manuel

Eaton

Eaton StructuredWiringSolutions ESWT41600 Manuel

GE GEK-45404F Manuel utilisateur
