Owner’s Manual
4K/60 HDMI over Cat6 Extenders
and Extender/Splitters
Extender Kit Models: B127-1A1-HH, B127-002-2H2
and B127-004-H4H
Local Unit Models: B127-002-H, B127-004-H
Remote Unit Models: B127-100-H, B127-100-H-SR
1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support
Copyright © 2019 Tripp Lite. All rights reserved.
PROTECT YOUR INVESTMENT!
Register your product for quicker service and ultimate peace of mind.
You could also win an ISOBAR6ULTRA surge protector—a $100 value!
www.tripplite.com/warranty
Español 17 • Français 33 • Русский 49
19-01-427-933919.indb 1 3/18/2019 4:56:29 PM
2
Package Contents
Product Features
B127-1A1-HH
B127-002-2H2
B127-004-H4H
B127-002-H
B127-004-H
B127-100-H
B127-100-H-SR
Local Unit (L), Remote Unit (R)
or Both (B) B B B L L R R
External Power Supplies
(0 or 1) 1111100
Mounting Hardware Y Y Y Y Y Y N
All
• Support a maximum video resolution of 4K (3840 x 2160) @
60 Hz with 4:4:4 Chroma Subsampling
• Support up to 7.1-channel surround sound audio
• HDMI 2.0, HDCP 2.2 and HDR compatible
• Plug and play—no software or drivers required
B127-1A1-HH
• HDMI over Cat6 Power-over-Cable (PoC) Extender Kit
• Extends a 4K (3840 x 2160) @ 60 Hz signal up to 125 ft. (38 m)
from the source
19-01-427-933919.indb 2 3/18/2019 4:56:29 PM
3
Product Features
• Additional HDMI port on the local transmitter unit allows connection of
local monitor
• Remote receiver unit features built-in equalization (EQ) control and
auto EDID image adjustment
• Includes mounting hardware that allows both the local transmitter and
remote receiver units to be wall-mounted, rack-mounted or pole-
mounted
B127-002-2H2
• HDMI over Cat6 Power-over-Cable (PoC) 2-Port Splitter/Extender Kit
• Extends a 4K (3840 x 2160) @ 60 Hz signal up to 125 ft. (38 m)
from the source
• Remote receiver unit features built-in equalization (EQ) control and
auto EDID image adjustment
• Kit includes a 2-Port Splitter Extender and two Remove Receivers
• Includes mounting hardware that allows unit to be wall-mounted,
rack-mounted or pole-mounted
B127-004-H4H
• HDMI over Cat6 Power-over-Cable (PoC) 4-Port Splitter/Extender Kit
• Extends a 4K (3840 x 2160) @ 60 Hz signal up to 125 ft. (38 m)
from the source
• Remote receiver unit features built-in equalization (EQ) control and
auto EDID image adjustment
• Kit includes a 4-Port Splitter Extender and four Remote Receivers
• Includes mounting hardware that allows unit to be wall-mounted,
rack-mounted or pole-mounted
• Additional HDMI port on the local transmitter unit allows connection of
local monitor
19-01-427-933919.indb 3 3/18/2019 4:56:29 PM
4
Product Features
B127-002-H
• 2-Port HDMI over Cat6 Extender/Splitter Local Transmitter Unit
• Splits an HDMI signal into two
• Works with remote receiver units to extend an HDMI signal past the
15 ft. (4.5 m) distance limitation
• Includes mounting hardware that allows unit to be wall-mounted,
rack-mounted or pole-mounted
B127-004-H
• 4-Port HDMI over Cat6 Extender/Splitter Local Transmitter Unit
• Splits an HDMI signal into four
• Includes an additional HDMI port, which can be used to connect a
local monitor or to daisy-chain additional B127-004-H units (up to
three units can be daisy-chained together)
• Works with remote receiver units to extend an HDMI signal past
the 15 ft. (4.5 m) distance limitation
• Includes mounting hardware that allows unit to be wall-mounted,
rack-mounted or pole-mounted
• Additional HDMI port on the local transmitter unit allows connection of
local monitor
B127-100-H
• HDMI over Cat6 Power-over-Cable (PoC) Remote Receiver Unit
• Works with B127-002-H and B127-004-H extender/splitters to extend
a 4K/60 Hz signal up to 125 ft. (38 m) from the source
• Built-in equalization (EQ) and EDID allows control for auto image
adjustment
• Includes mounting hardware that allows unit to be wall-mounted,
rack-mounted or pole-mounted
19-01-427-933919.indb 4 3/18/2019 4:56:29 PM
5
Product Features
Disclaimer
B127-100-H-SR
• HDMI over Cat6 Power-over-Cable (PoC) Short Distance Remote
Receiver Unit
• Works with B127-002-H and B127-004-H extender/splitters to extend
a 4K/60 Hz signal up to 50 ft. (15 m) from the source
• Built-in equalization (EQ) and EDID allows control for auto image
adjustment
Optional Accessories:
• N202-Series Cat6 24 AWG Solid-Wire Patch Cables
• P569-XXX-CERT or P568-XXX-2A Series High-Speed HDMI 2.0 Cables
Before installation, please check the following settings of your source(s)
and TV/monitor(s):
1. Set to display 60 Hz. Double-check factory settings, as default can
be set to a lower frequency (Hz) than advertised.
2. Ensure the input setting of your monitor is set at HDMI 2.0. Some
displays may have default setting at HDMI 1.4
3. Verify your monitor has the HDR feature enabled. Some displays
may have this feature disabled as a factory setting.
4. Check if the Ultra HD (UHD) Deep Color setting is enabled on your TV/
monitor. Confirm with your TV/monitor manufacturer which HDMI ports
support UHD Deep Color.
Note: If wishing to connect a local monitor to your installation, depending on
your TV/monitor make/model, the UHD Deep Color setting may need to be
disabled on your local TV/monitor to achieve 4K 60 Hz resolution.
19-01-427-933919.indb 5 3/18/2019 4:56:29 PM
6

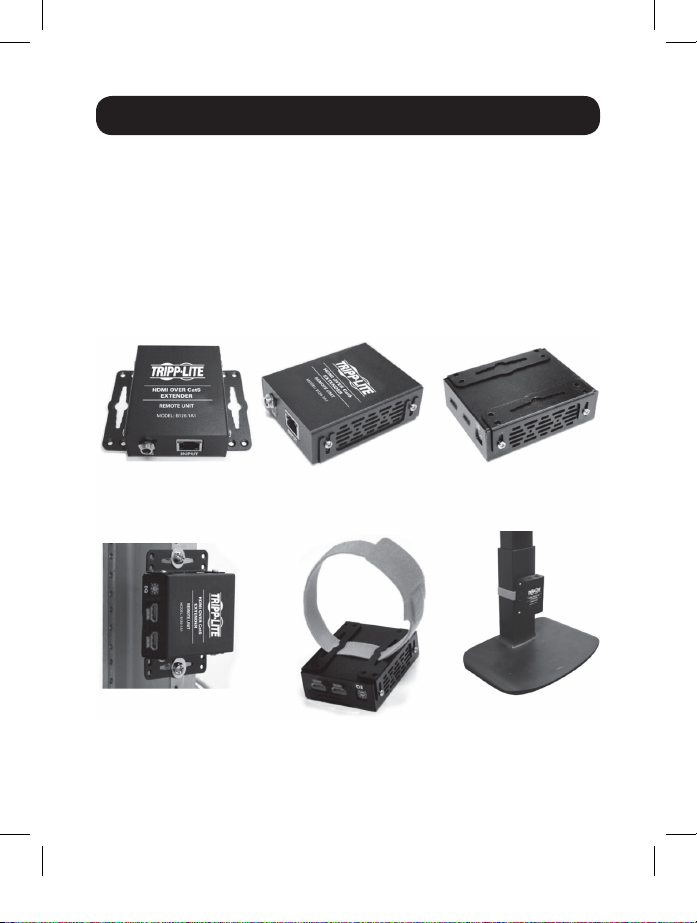

Mounting Instructions (select models only)
The B127-1A1-HH, B127-002-2H2, B127-004-H4H, B127-002-H,
B127-004-H and B127-100H include includes mounting hardware that
allows for a variety of mounting methods. The following images illustrate
how the included mounting brackets can be attached for different
installations.
Note: The model shown in the below images is for illustrative purposes only. Your
product may vary by model number, size or port orientation. The mounting options
for all over IP units are the same.
Wall-mount
19” Rack-mount Pole-mount
19-01-427-933919.indb 6 3/18/2019 4:56:29 PM
7

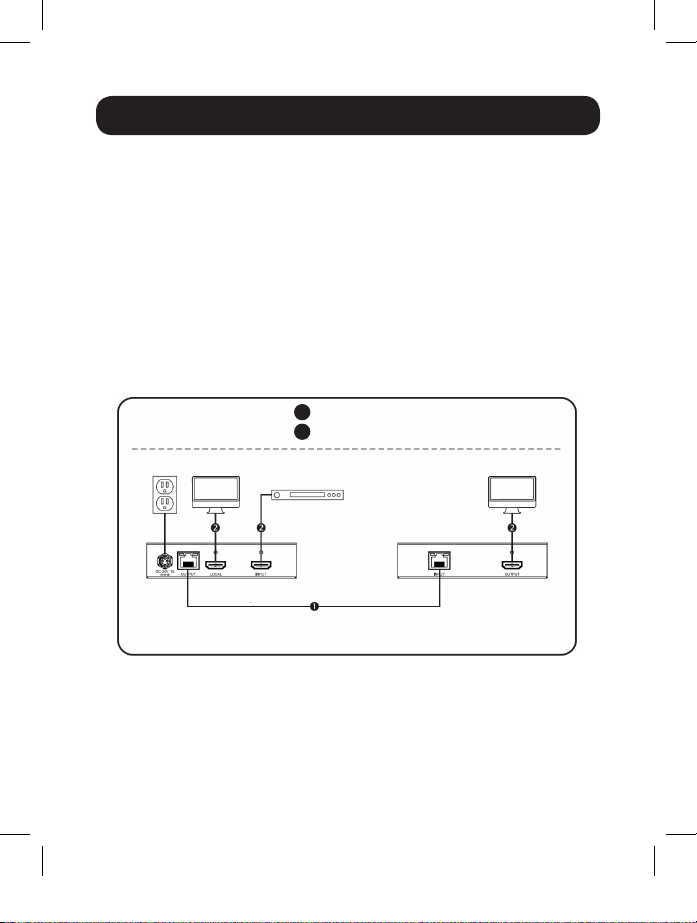

Standard Extender Kit Installation
Notes:
1) Test to ensure the entire installation works properly before pulling cables through
ceilings/walls.
2) To achieve maximum distance and performance, use 24 AWG solid-wire Cat6
cable. Using stranded-wire Cat6 cable, or cable with a gauge (AWG) size higher
than 24 AWG, will result in shorter extension distance. Higher gauge cabling,
such as 26 AWG, has a more limited transmission capability than lower gauge
cabling. All Tripp Lite N202-Series Cat6 cables are made with 24 AWG solid-wire
cabling.
3) The installation diagram shows a B127-1A1-HH unit.
4) External power is not required for remote receiver units due to Power-over-Cable
(PoC) technology incorporated in the transmitter units.
OPTIONAL LOCAL
MONITOR HDR PLAYER
LOCAL
TRANSMITTER
REMOTE
RECEIVER
Up to 125 ft. (38 m) at 4K/60 Hz
Up to 125 ft. (38 m) Cat6 cable at 4K/60 Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60 Hz
1
2
1. Make sure all equipment in the installation—such as TVs, Blu-ray
players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or
P568-XXX-2A Series cables), connect the HDMI source to the INPUT
port on the local transmitter unit.
19-01-427-933919.indb 7 3/18/2019 4:56:29 PM
8
Standard Extender Kit Installation
3. Optional for B127-1A1-HH: Using an HDMI 2.0 cable (such as
Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect
a local monitor to the LOCALOUT port on the B127-1A1-HH local
transmitter unit.
4. Using Cat6 cable, connect the RJ45 port on the local transmitter unit
to the RJ45 port on the remote receiver unit.
5. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or
P568-XXX-2A Series cables), connect the remote receiver unit’s HDMI
port to a monitor.
6. Turn the power on to your connected TVs/monitors. The LOCAL
(orange) LED will illuminate to indicate local port has been connected
to a display.
7. Connect the external power supply to the local transmitter unit and
plug it into an available wall outlet or (optional) a Tripp Lite Surge
Protector, Power Distribution Unit (PDU) or Uninterruptible Power
Supply (UPS). The POWER (green) LED on the local transmitter unit
will illuminate to indicate the unit is receiving power from the external
power supply. The POWER (green) LED on the remote receiver unit
will illuminate to indicate the unit is receiving power from the local
transmitter unit through PoC technology.
8. Turn on the power to the HDMI source. The OUTPUT (orange) LED
on the local transmitter unit illuminates to indicate a signal is being
received from the source.
9. The (orange) RJ45 LED will illuminate on both local transmitter and
remote receiver units to indicate a signal is being received from
source to display. The screen should now display on the connected
monitor.
19-01-427-933919.indb 8 3/18/2019 4:56:29 PM
9

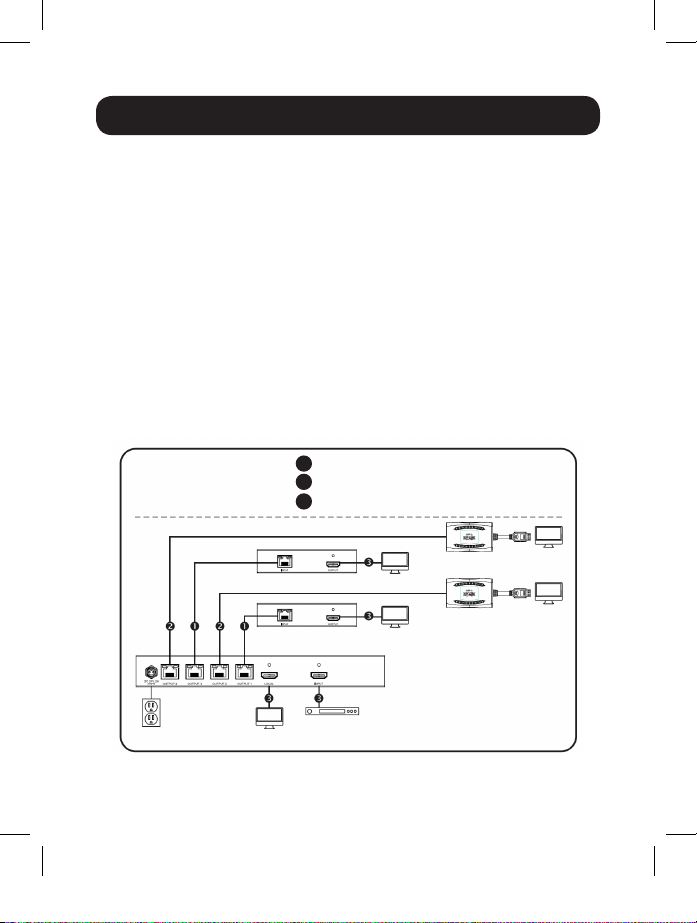

Standard Extender/Splitter Installation
Notes:
1) Test to ensure the entire installation works properly before pulling cables through
ceilings/walls.
2) To achieve maximum distance and performance, use 24 AWG solid-wire Cat6
cable. Using stranded-wire Cat6 cable, or cable with a gauge (AWG) size higher
than 24 AWG, will result in shorter extension distance. Higher gauge cabling,
such as 26 AWG, has a more limited transmission capability than lower gauge
cabling. All Tripp Lite N202-Series cables are made with 24 AWG solid-wire
cabling.
3) The installation diagram shows the B127-004-H local transmitter unit. The
B127-002-H installation is the same, except there are only two remote ports and
no local monitor port.
4) External power is not required for the B127-100-H and B127-100-H-SR units.
5) These installation instructions can be used for the B127-002-2H2 and
B127-004-H4H extender kits.
B127-004-H4H
extender kit
OPTIONAL
LOCAL MONITOR
HDR PLAYER
B127-004-H
B127-100-H
B127-100-H-SR
B127-100-H
B127-100-H-SR
Up to 125 ft. (38 m) Cat6 cable at 4K/60 Hz
Up to 50 ft. (15 m) Cat6 cable at 4K/60 Hz
Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60 Hz
2
1
3
19-01-427-933919.indb 9 3/18/2019 4:56:29 PM
10
Standard Extender/Splitter Installation
1. Make sure all equipment in the installation—such as TVs, Blu-ray
players and the transmitter—is powered OFF.
2. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or
P568-XXX-2A Series cables), connect the HDMI source to the INPUT
port on the B127-002-H or B217-004-H units.
3. Optional for B127-004-H: Using an HDMI 2.0 cable (such as
Tripp Lite P569-XXX-CERT or P568-XXX-2A Series cables), connect an
HDMI monitor to the LOCAL port on the B127-004-H unit.
4. Using Cat6 cable, connect one of the RJ45 output ports on the local
transmitter unit to the RJ45 input port on a B127-100-H (up to
125 ft./38 m) or B127-100-H-SR (up to 50 ft./15 m) remote
receiver unit.
5. Repeat step 5 for each additional remote unit being connected.
6. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or
P568-XXX-2A Series cables), connect the B127-100-H-SR or
B127-100-H to a display.
7. Turn on the power to all your connected TVs or monitors. The LOCAL
(orange) LED will illuminate to indicate the port has been connected
to a display.
8. Connect the external power supply to the local transmitter unit and
plug it into an available wall outlet or (optional) a Tripp Lite Surge
Protector, Power Distribution Unit (PDU) or Uninterruptible Power
Supply (UPS). The POWER (green) LED will illuminate to indicate
the unit is receiving power from the external power supply. On the
B127-100-H, the POWER (green) LED will illuminate to indicate
the unit is receiving power from the extender/splitter. On the
B127-100-H-SR, the (green) LED next to the RJ45 port will illuminate
to indicate the unit is receiving power from the extender/splitter.
19-01-427-933919.indb 10 3/18/2019 4:56:29 PM
Ce manuel convient aux modèles suivants
6
Table des matières
Langues :
Autres manuels Tripp Lite Extenseur
Tripp Lite
Tripp Lite B203-101-IND Manuel utilisateur
Tripp Lite
Tripp Lite B132-100A Manuel utilisateur
Tripp Lite
Tripp Lite NPOE-EXT-1G30 Manuel utilisateur
Tripp Lite
Tripp Lite B126-1A1-WP Manuel utilisateur
Tripp Lite
Tripp Lite BHDBT-K-SI Manuel utilisateur
Tripp Lite
Tripp Lite B130-101A-MR Manuel utilisateur
Tripp Lite
Tripp Lite B130-101-WP Manuel utilisateur
Tripp Lite
Tripp Lite B127A-1A1-BCBH Manuel utilisateur
Tripp Lite
Tripp Lite B127-1A1-CH Manuel utilisateur
Tripp Lite
Tripp Lite B126-1A1-WHD3 Manuel utilisateur
Tripp Lite
Tripp Lite B132-002A-2 Manuel utilisateur
Tripp Lite
Tripp Lite B127F-1A1-MM-HH Manuel utilisateur
Tripp Lite
Tripp Lite B130-101-2: B130-101A-2 Manuel utilisateur
Tripp Lite
Tripp Lite B013-330 Manuel utilisateur
Tripp Lite
Tripp Lite B130-101S-WP Manuel utilisateur
Tripp Lite
Tripp Lite B051-000-AC Manuel utilisateur
Tripp Lite
Tripp Lite B126-1A1-IR Manuel utilisateur
Tripp Lite
Tripp Lite B203-104-PNP Manuel utilisateur
Tripp Lite
Tripp Lite 8TLP167000 Manuel utilisateur
Tripp Lite
Tripp Lite B130-101A-WP Manuel utilisateur
